2J7B26JB-C177N-B16J

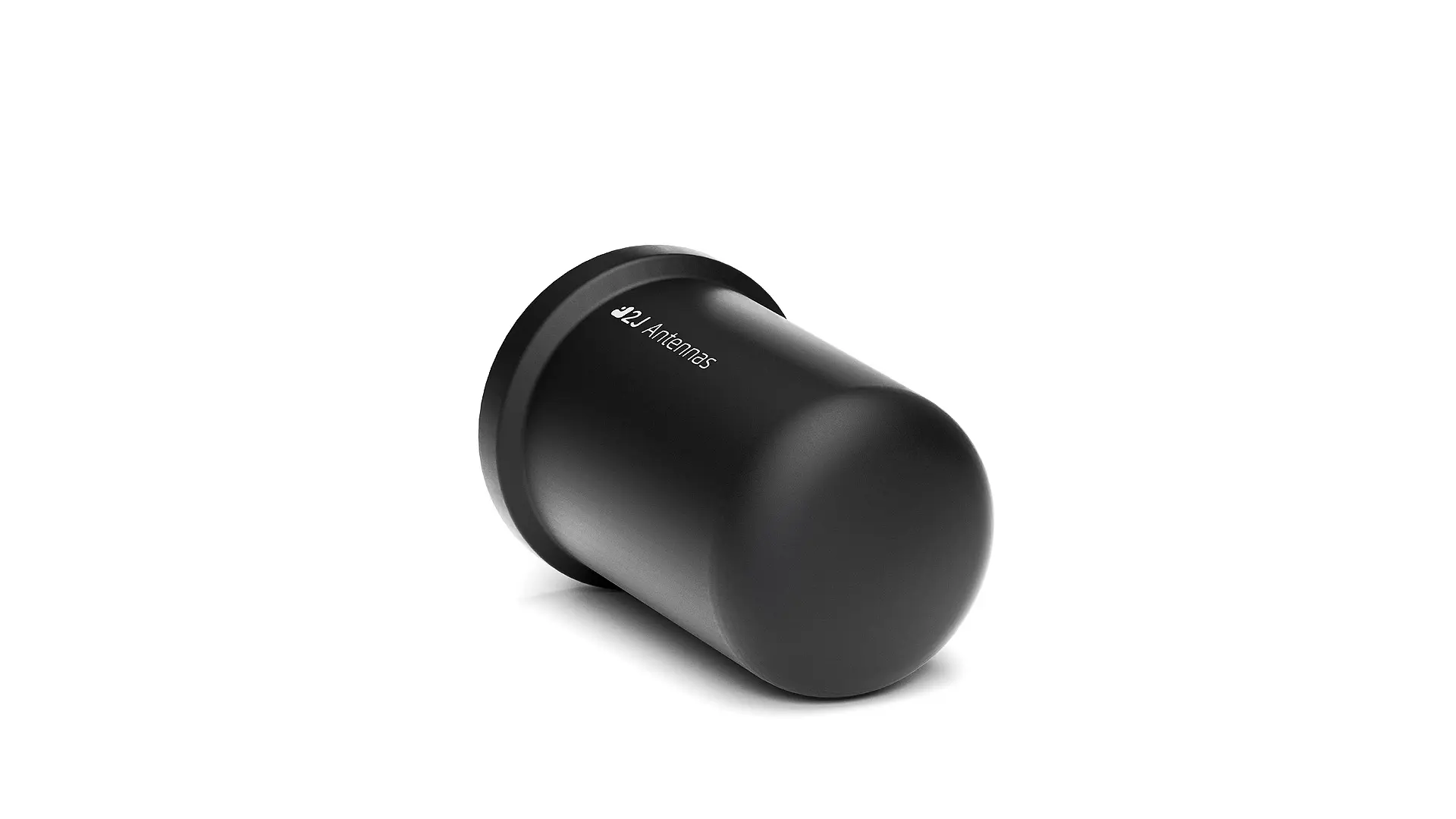

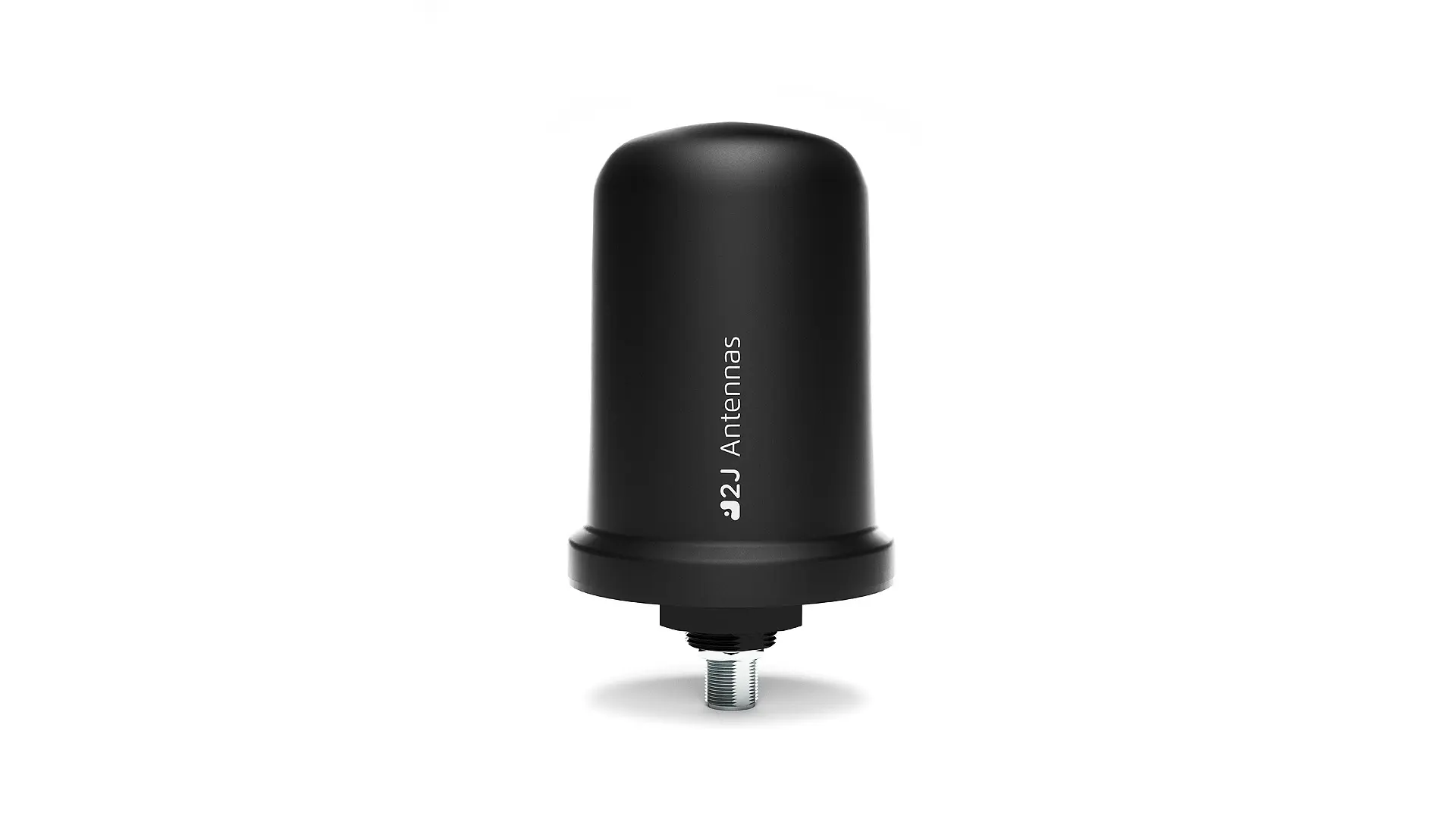

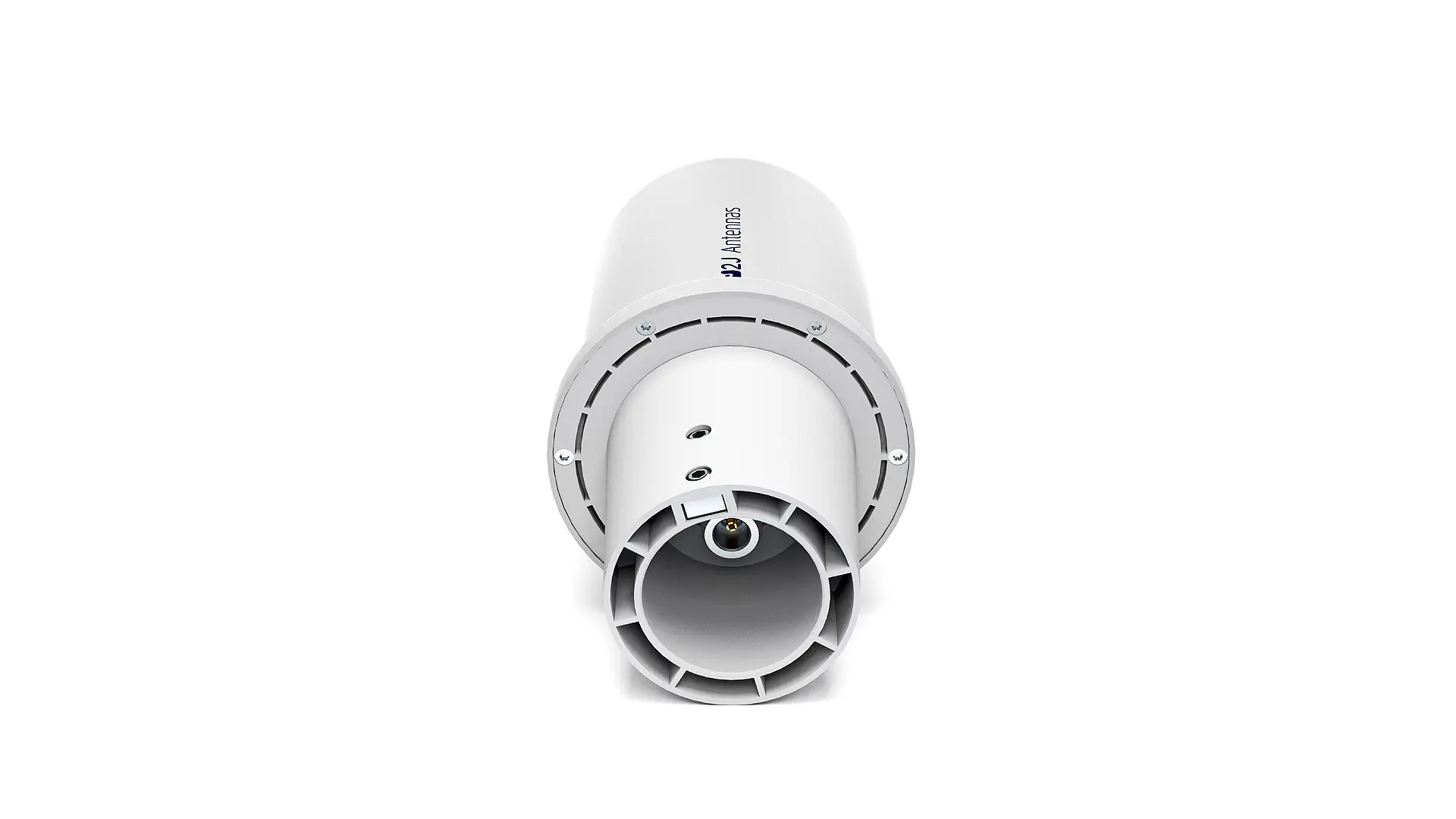

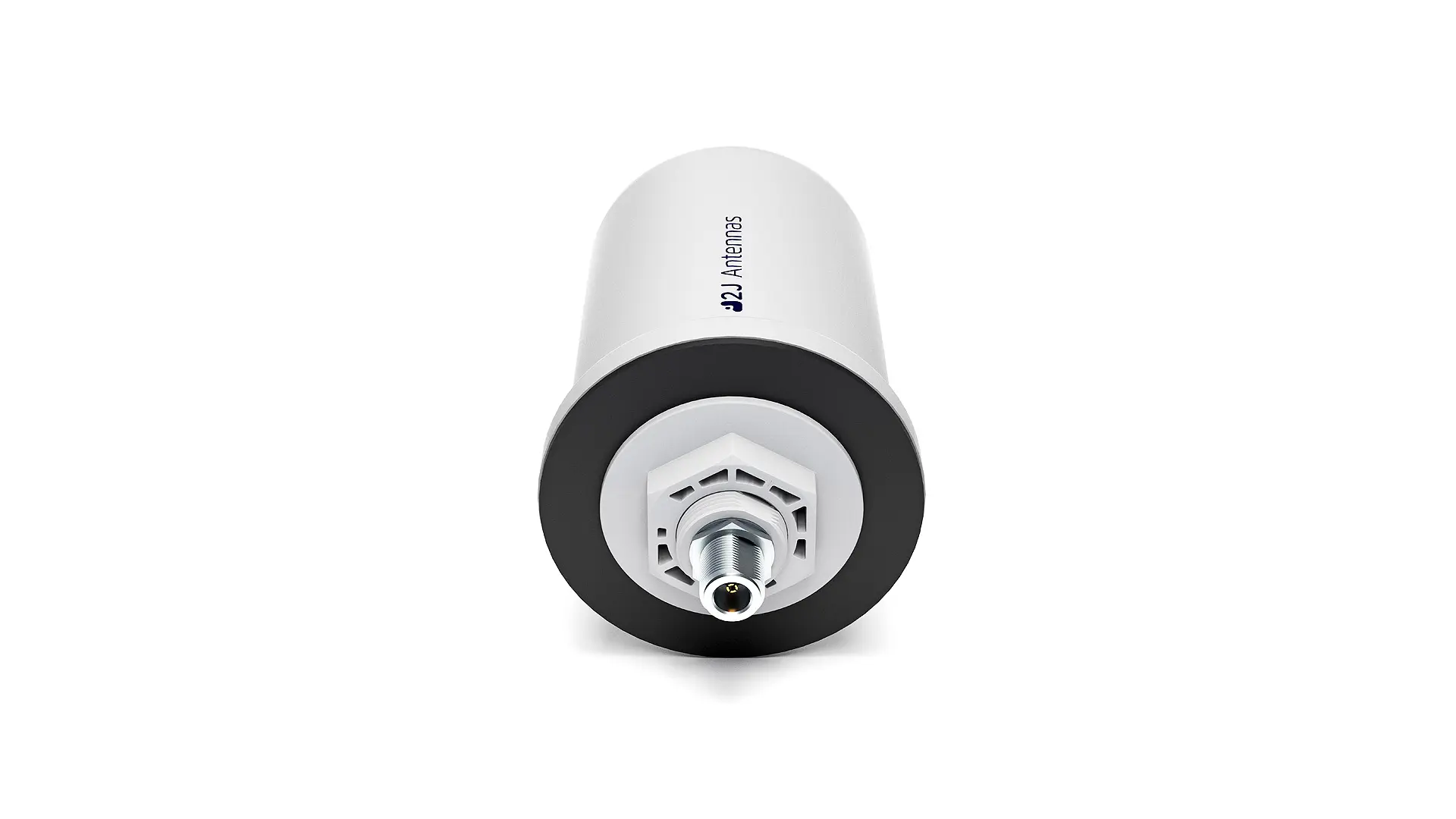

Big Medusa IRIDIUM Quadrifilar Helix Configurable Mounting Marine Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Screw Mount, Pole Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 200 (Pole), Ø 96 × H 131 (Screw) |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.3:1 |
| Efficiency (%) | ~86.4 |
| Peak Gain (dBi) | ~2.7 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Omni-Directional |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Heavy Duty antenna
Anti-Rotation Mounting
Adhesive Mounting sticker included
Lightweight Plastic Base
Compact Marine antenna
Configurable Mount options
IRIDIUM Quadrifilar Helix Antenna
2.7 dBi IRIDIUM Peak Gain
Axial Ratio below 3 dB
Superb RHCP polarization
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm
Applications
Marine & Maritime
Satellite Communication
Antenna band list
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series

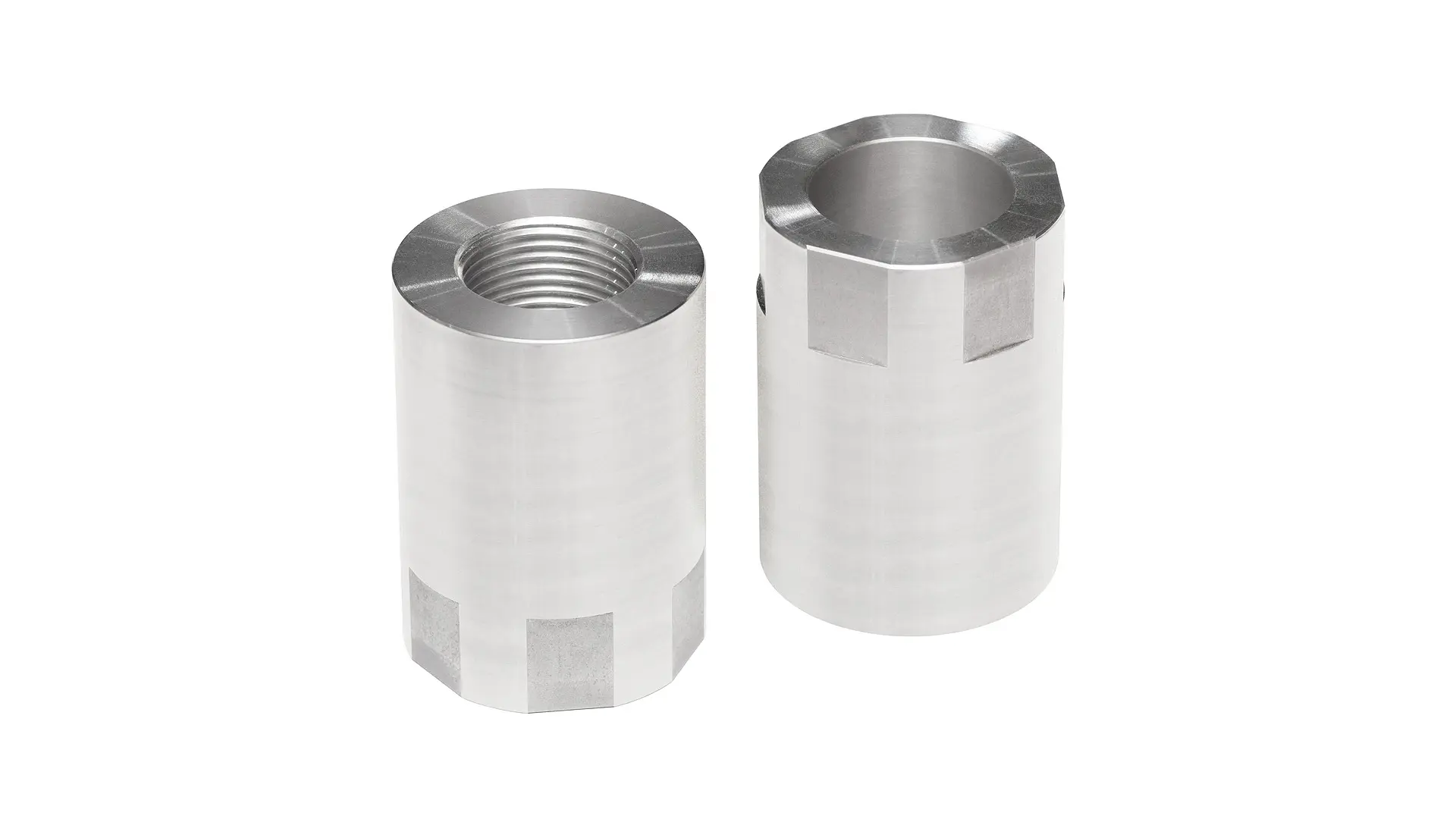

2JB18J
Pole Mount aluminum alloy bracket for 2J6Bxx, 2J70xx, 2J71xx, 2J7Axx and 2J7Bxx pole mount antenna series
