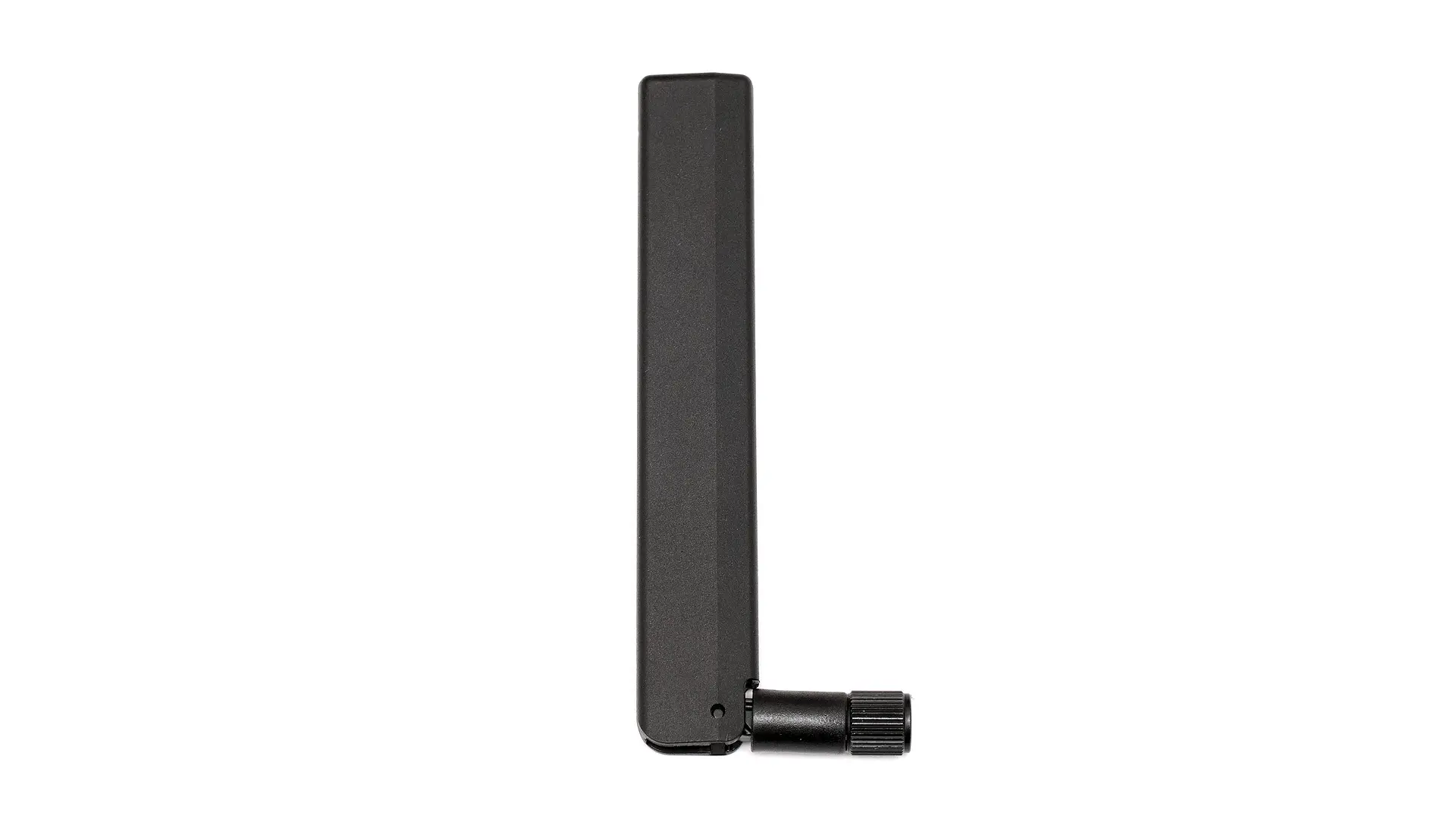

2JW1126-C952B
Iridium certified High Efficiency Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 135 × 19 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified |
| Standard colors |
Black
White
|
Antenna and electrical specifications
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~85.5 |
| Passive Gain (dBiC) | ~2.5 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarization | Linear |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
