2J9C26JW-C392N

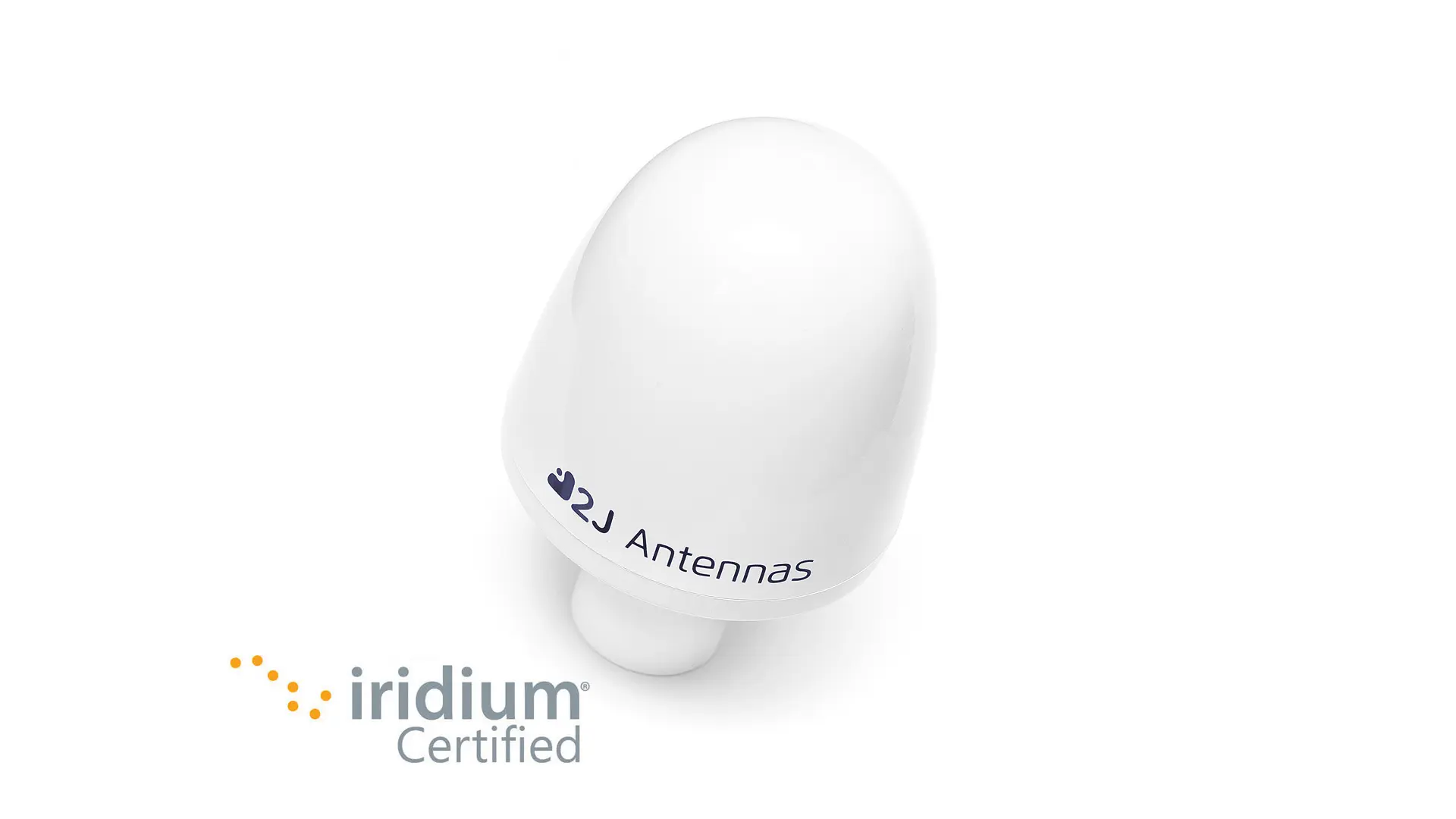

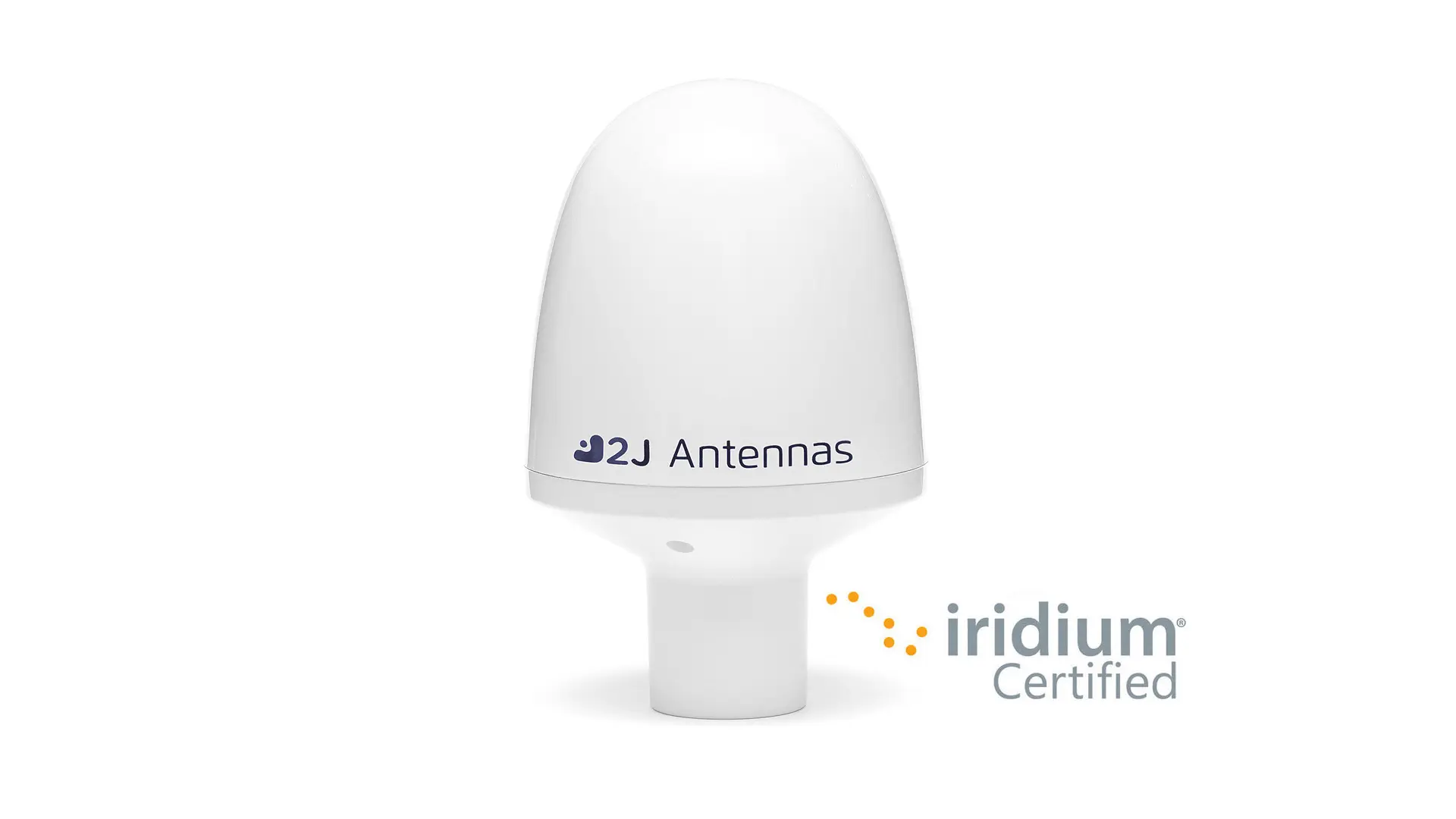

Ray IRIDIUM 1616-1627MHz High Performance Marine Pole Mount Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Pole Mount |
|---|---|
| Dimensions (mm) | Ø 74 × 116 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified , IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~85.8 |
| Passive Gain (dBiC) | ~4.0 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Iridium Certified Antenna

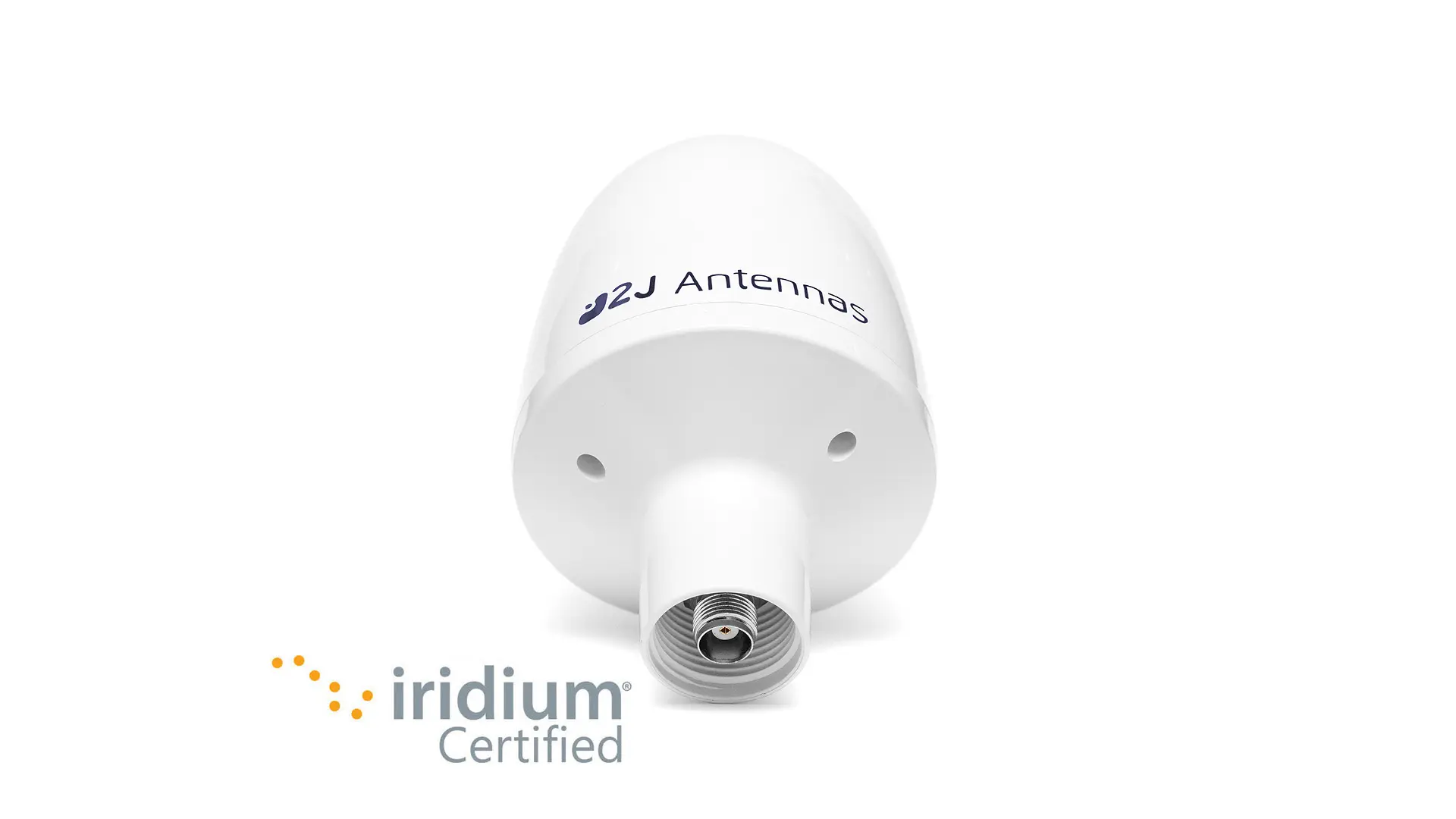

Integrated TNC Female Connector
4.0 dBic IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
