2JP0526Bz

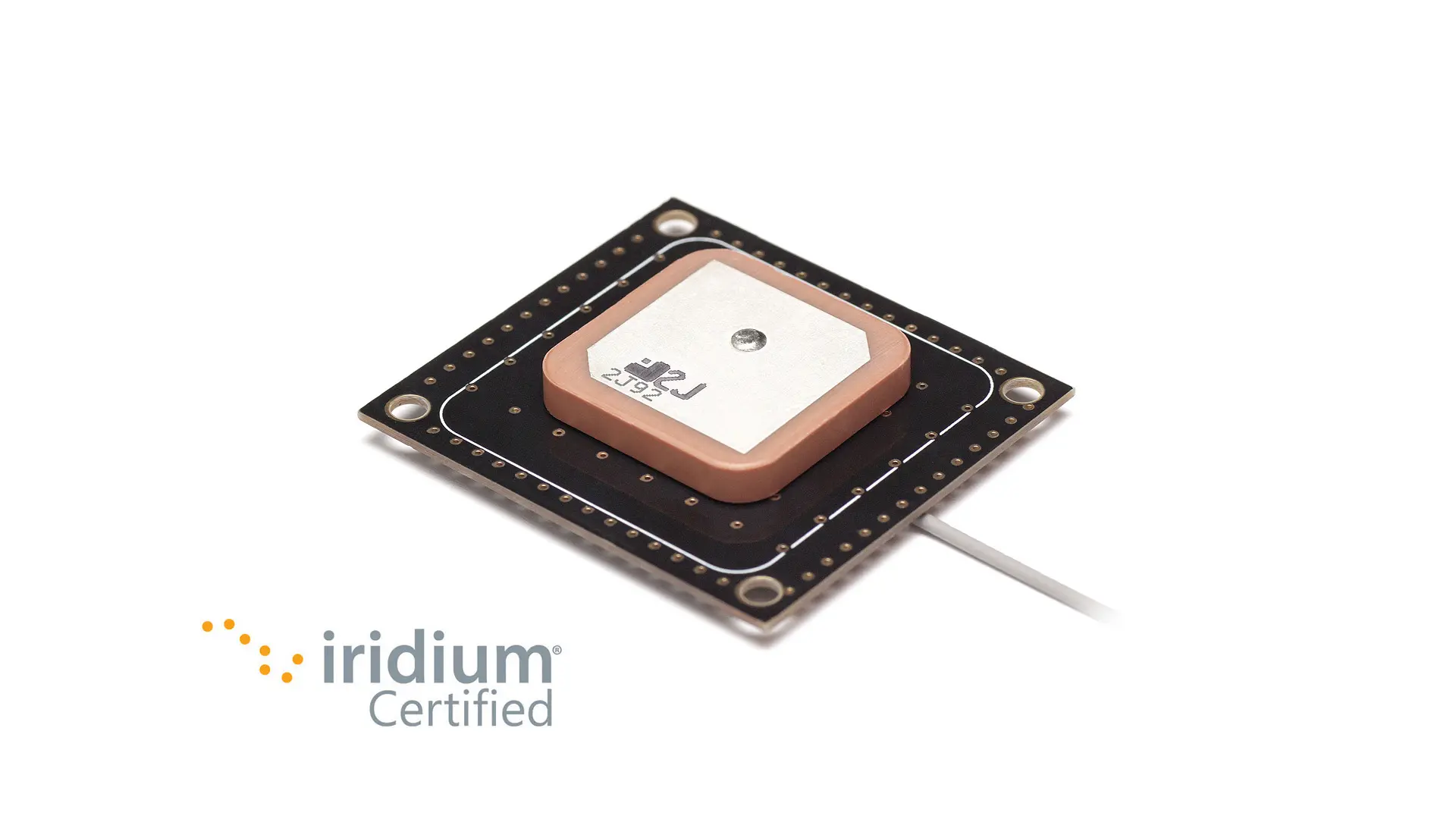

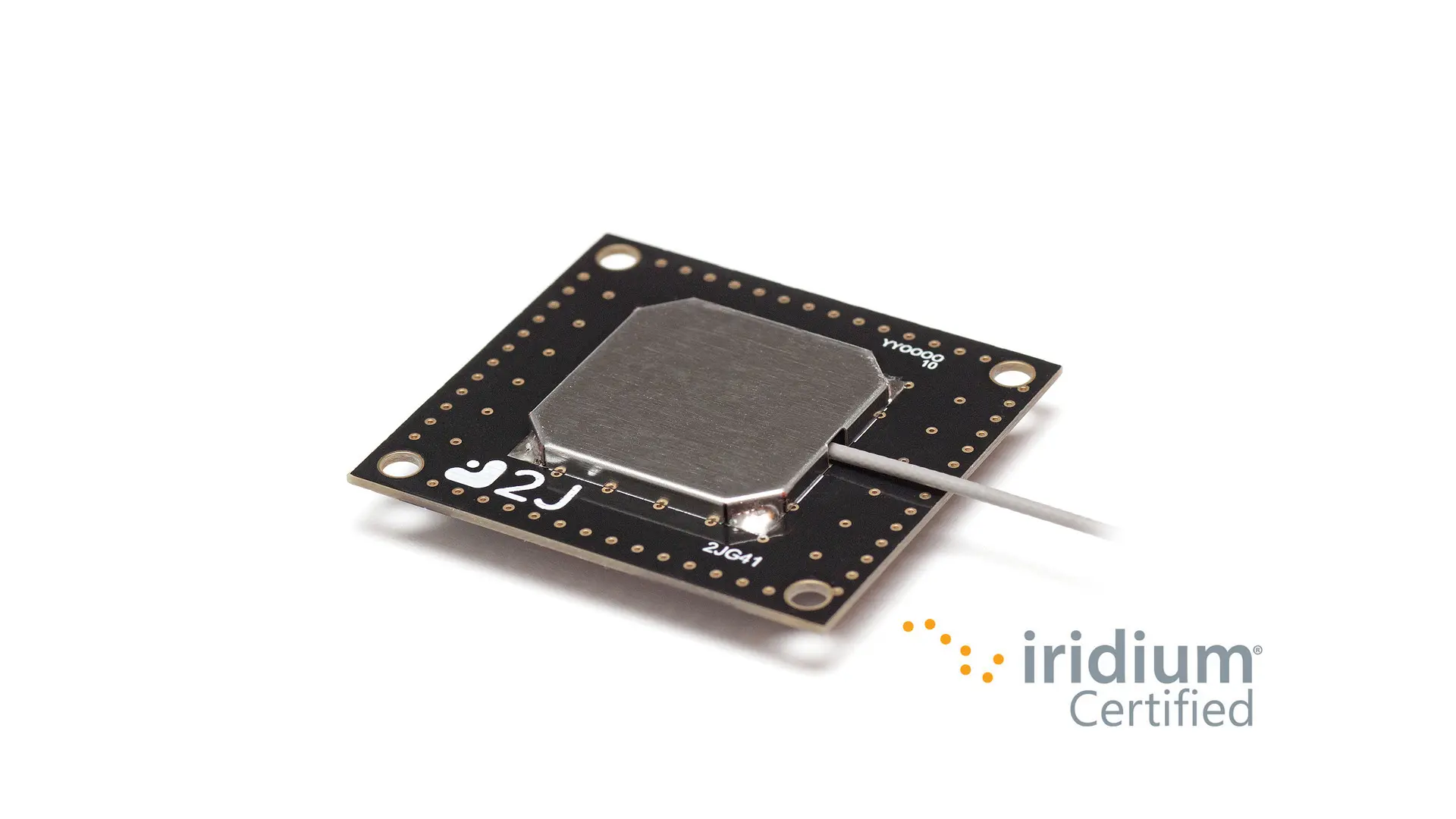

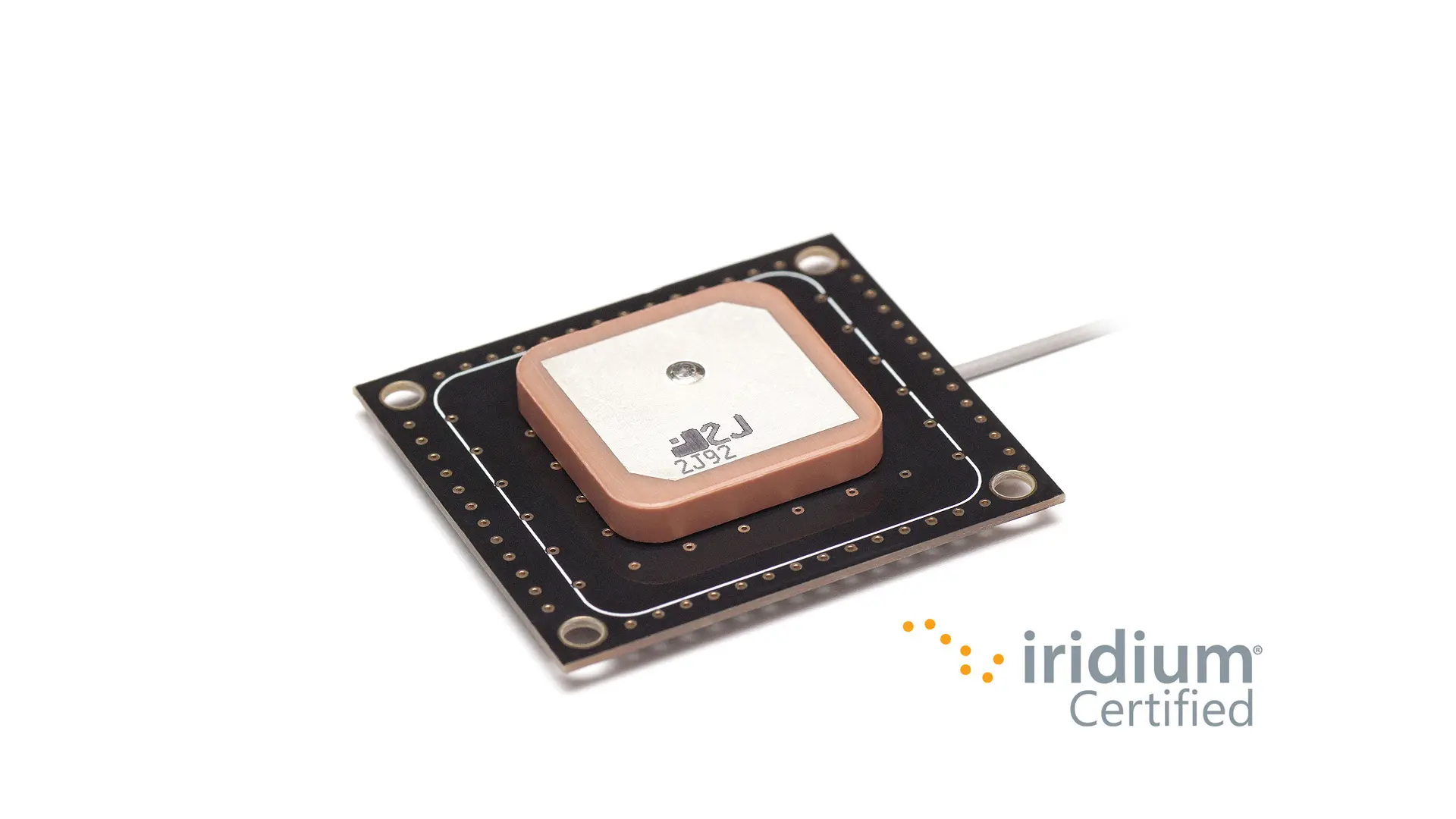

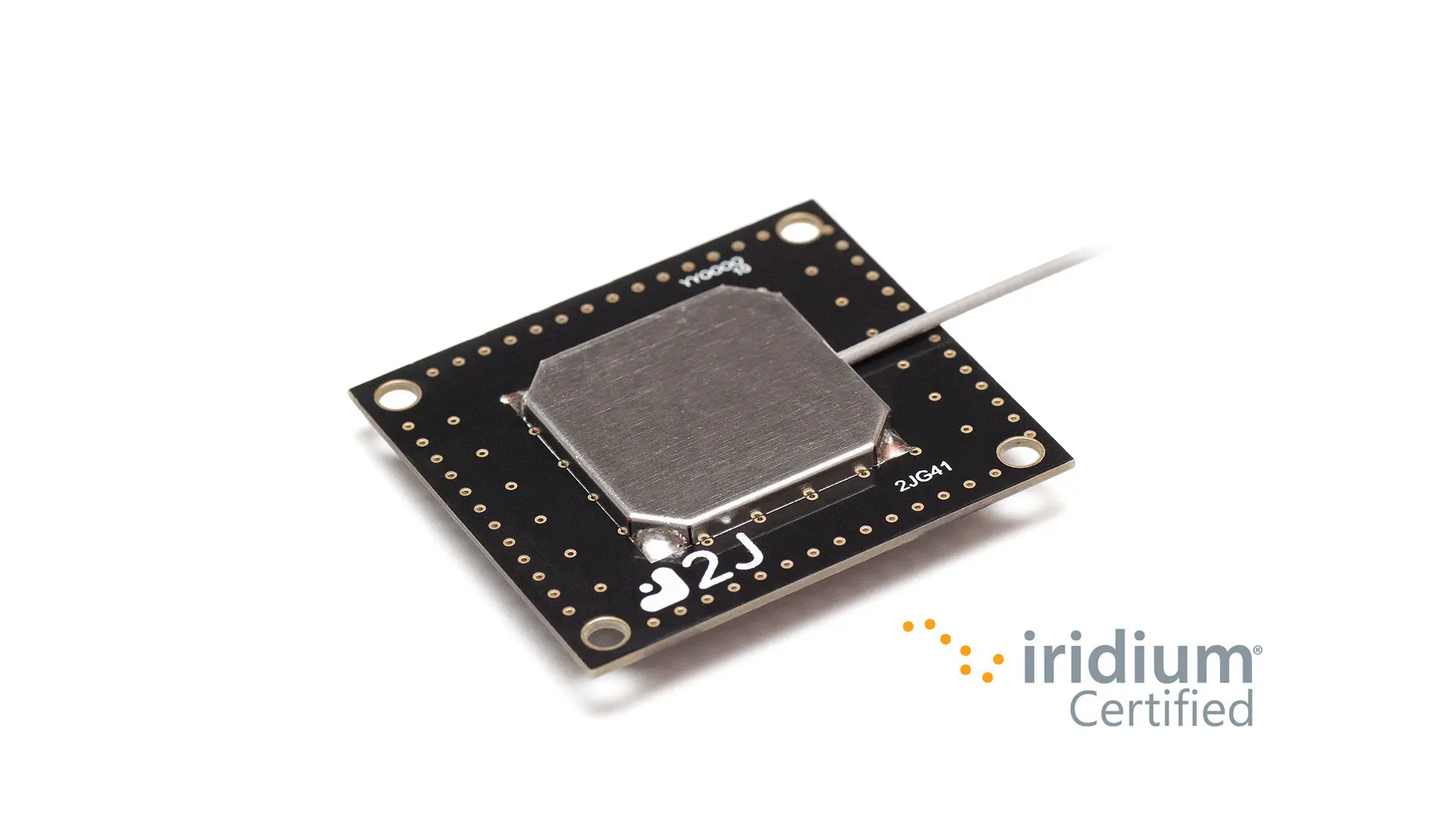

Iridium Certified High-Performance Internal Passive Screw Mount Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Screw Mount Module |
|---|---|
| Dimensions (mm) | 46 × 42 × 7.8 |
| Operating temperature | -40 °C to +85 °C |
| Note | Patent Pending |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Peak Gain (dBi) | ~3.5 |
| Efficiency (%) | ~70.5 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Internal Antenna
Iridium Certified Antenna

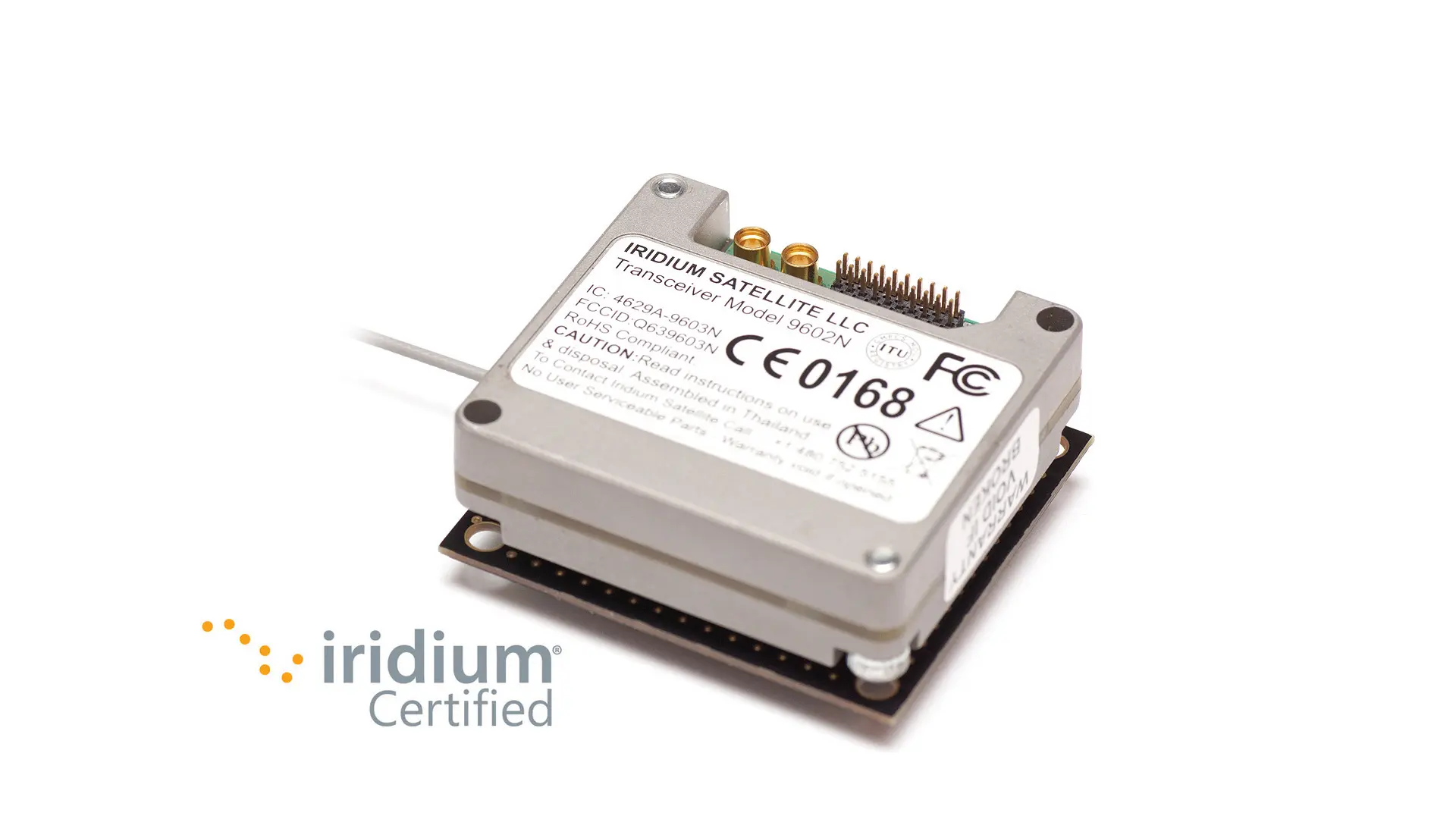

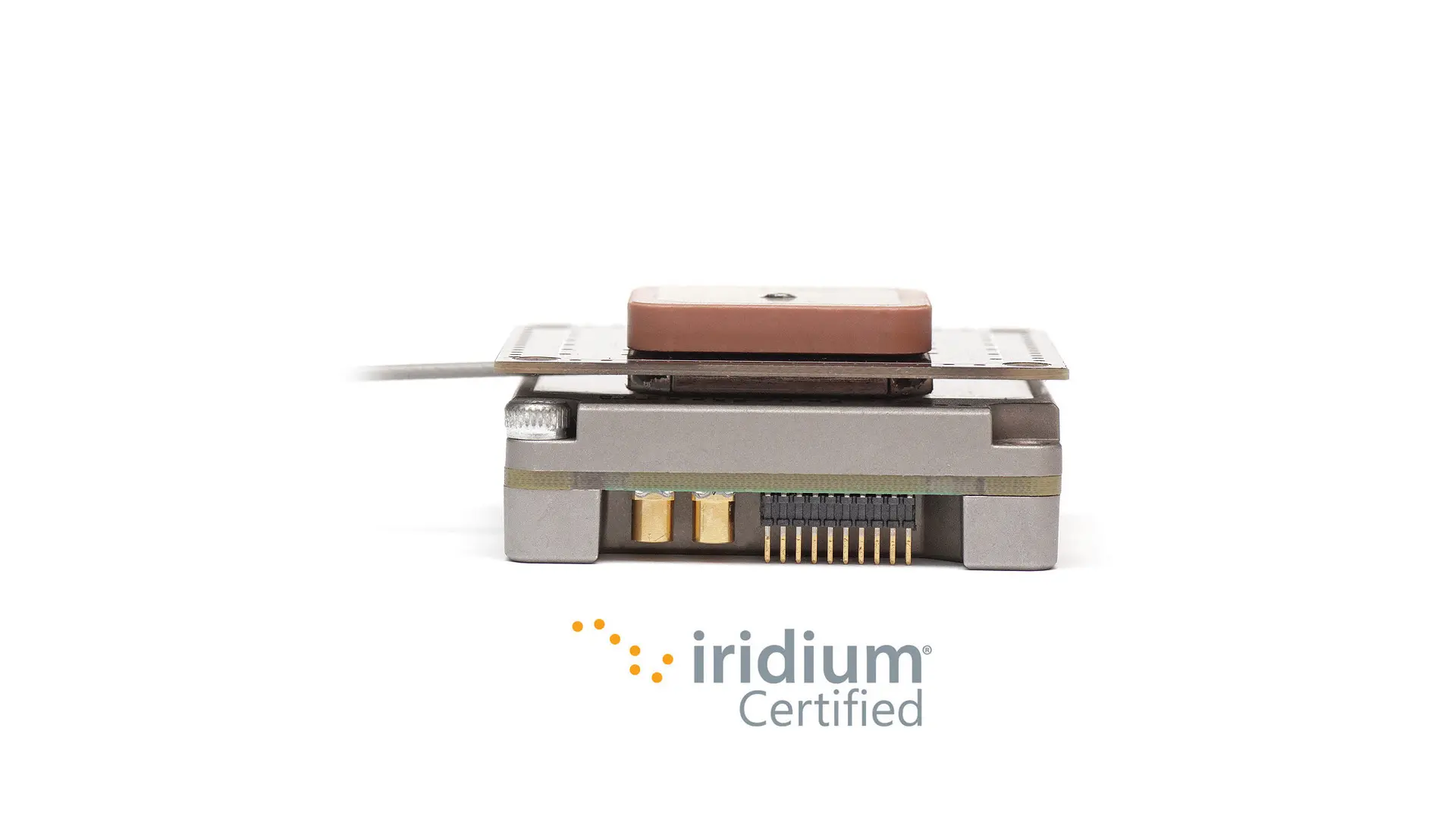

Screw on Feature on Iridium Module
Socket Antenna Module Technology
Patent Pending
3.5 dBi IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
Internal Antenna Solutions
