2JDK0126a-C104N
IRIDIUM Development Kit - Set of 6 pcs of 36 mm patches to try on Device
Connections (1)
1×
IRIDIUM
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Included in Kit |

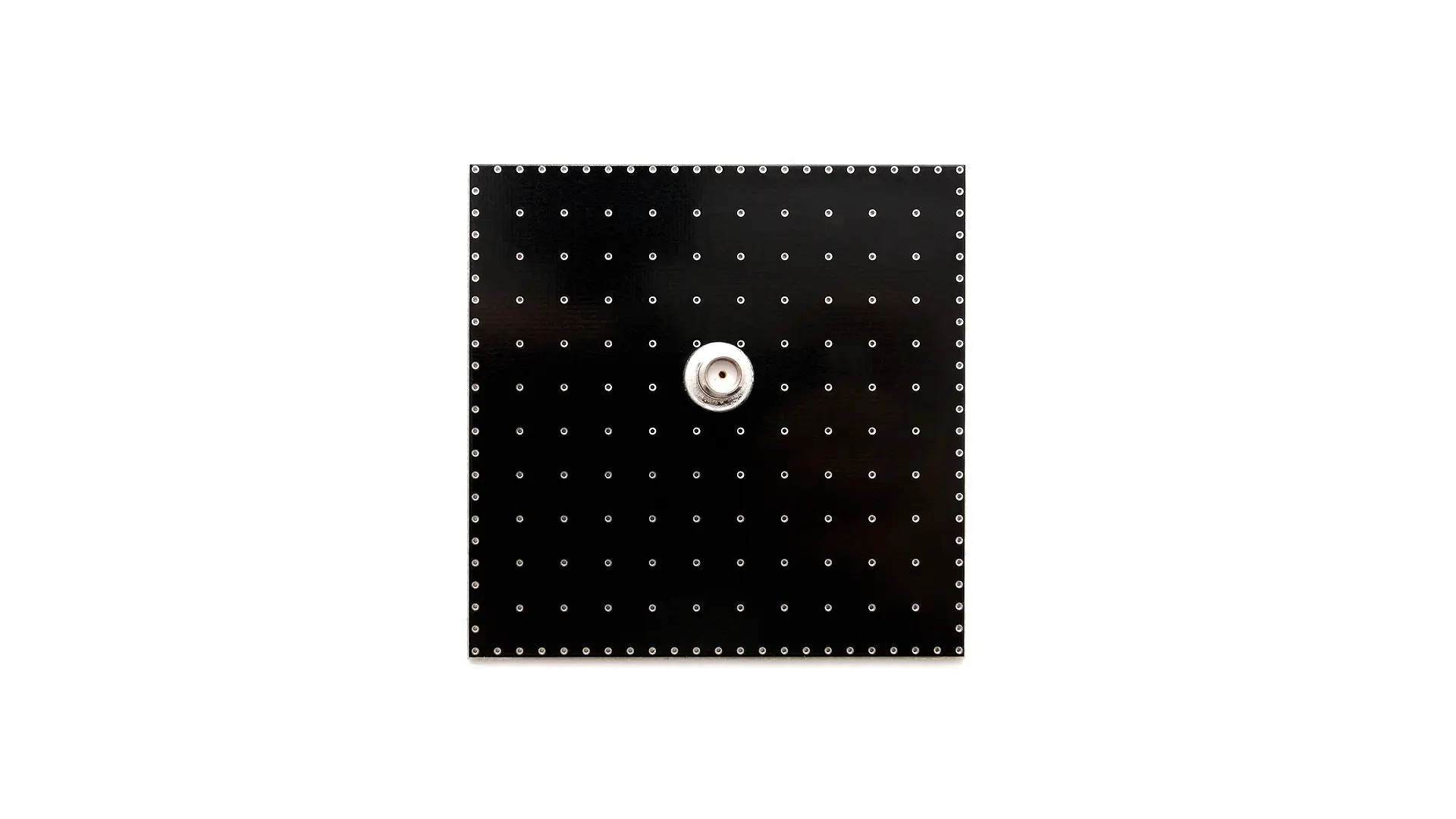

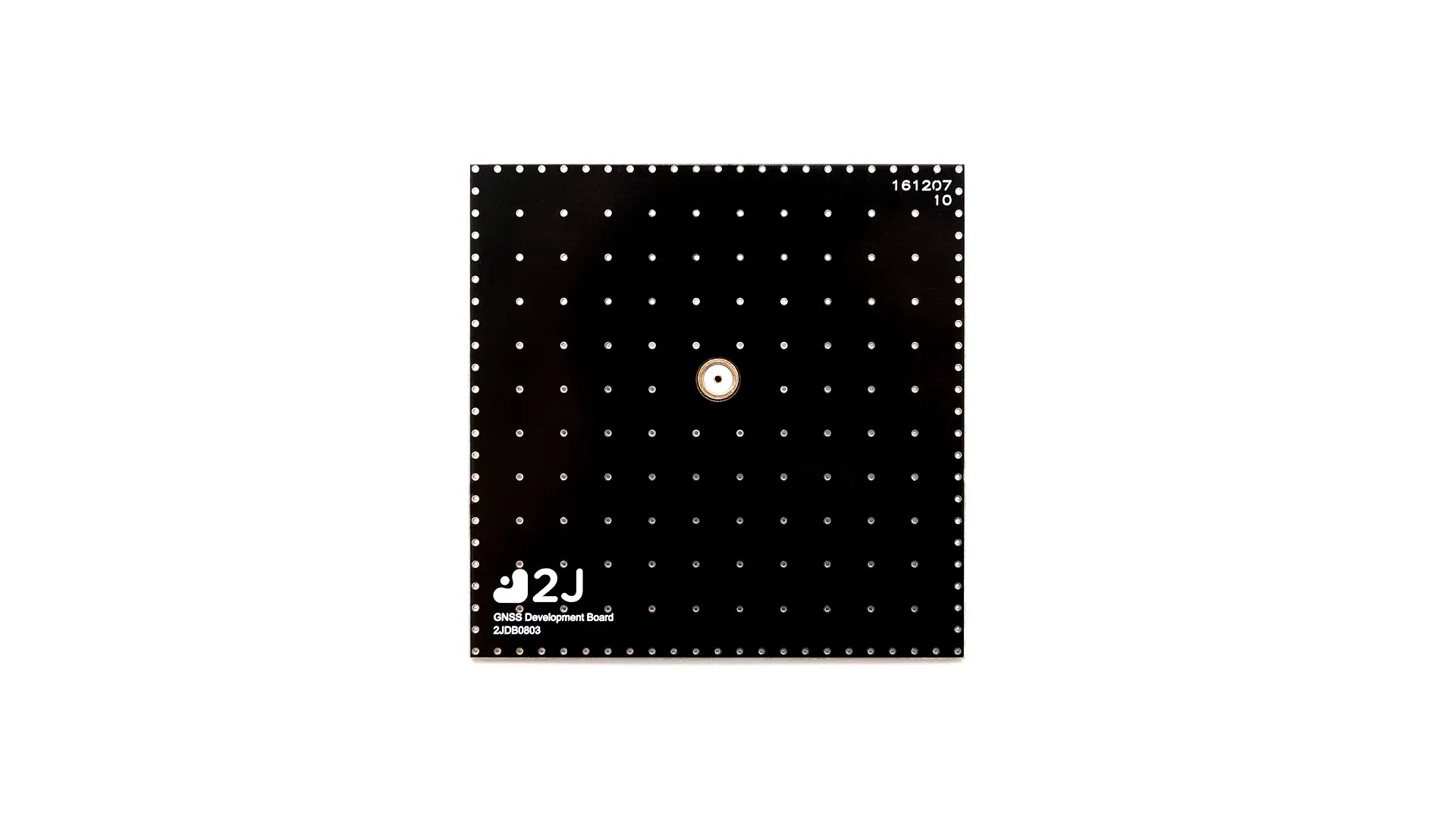

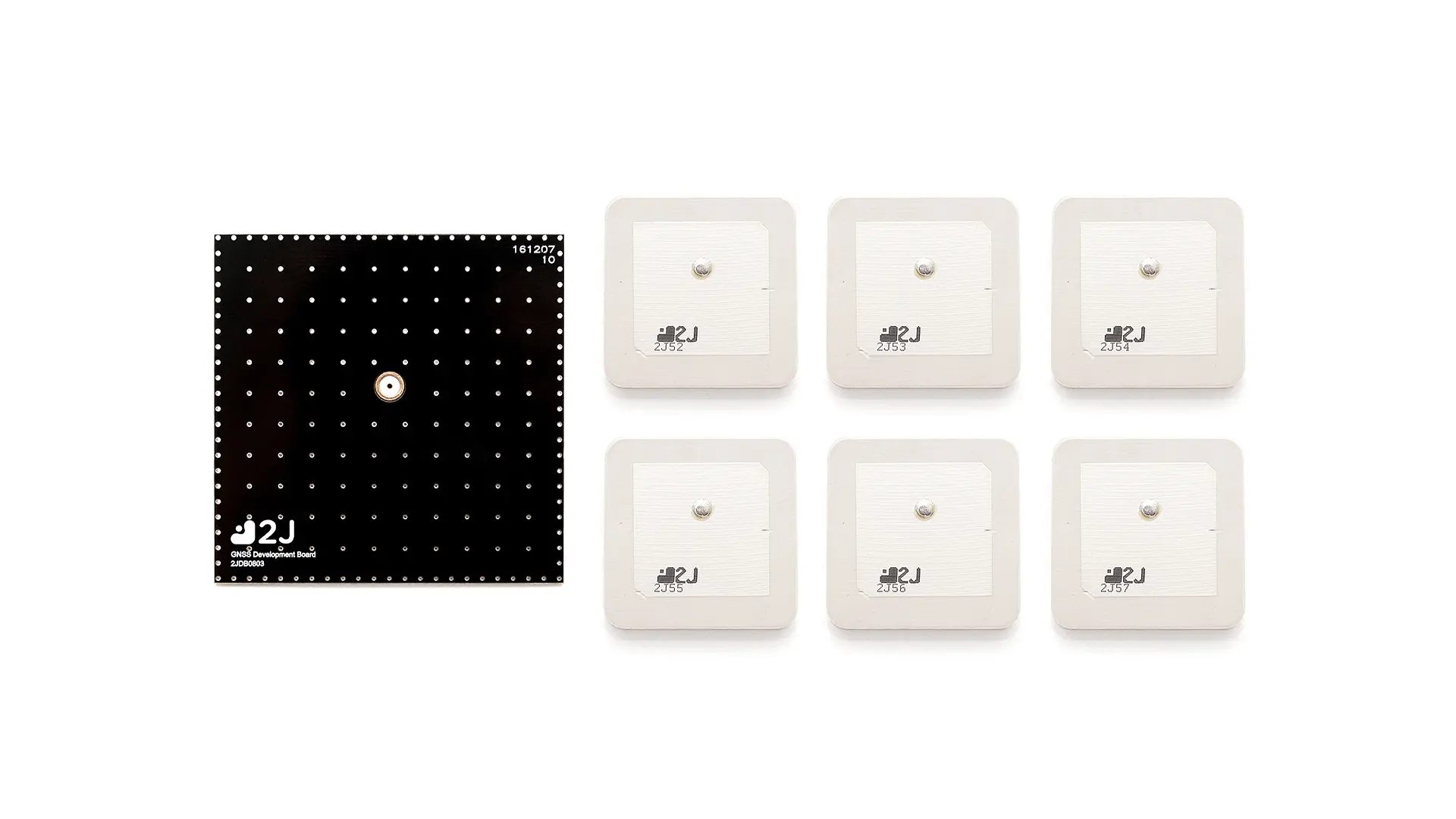

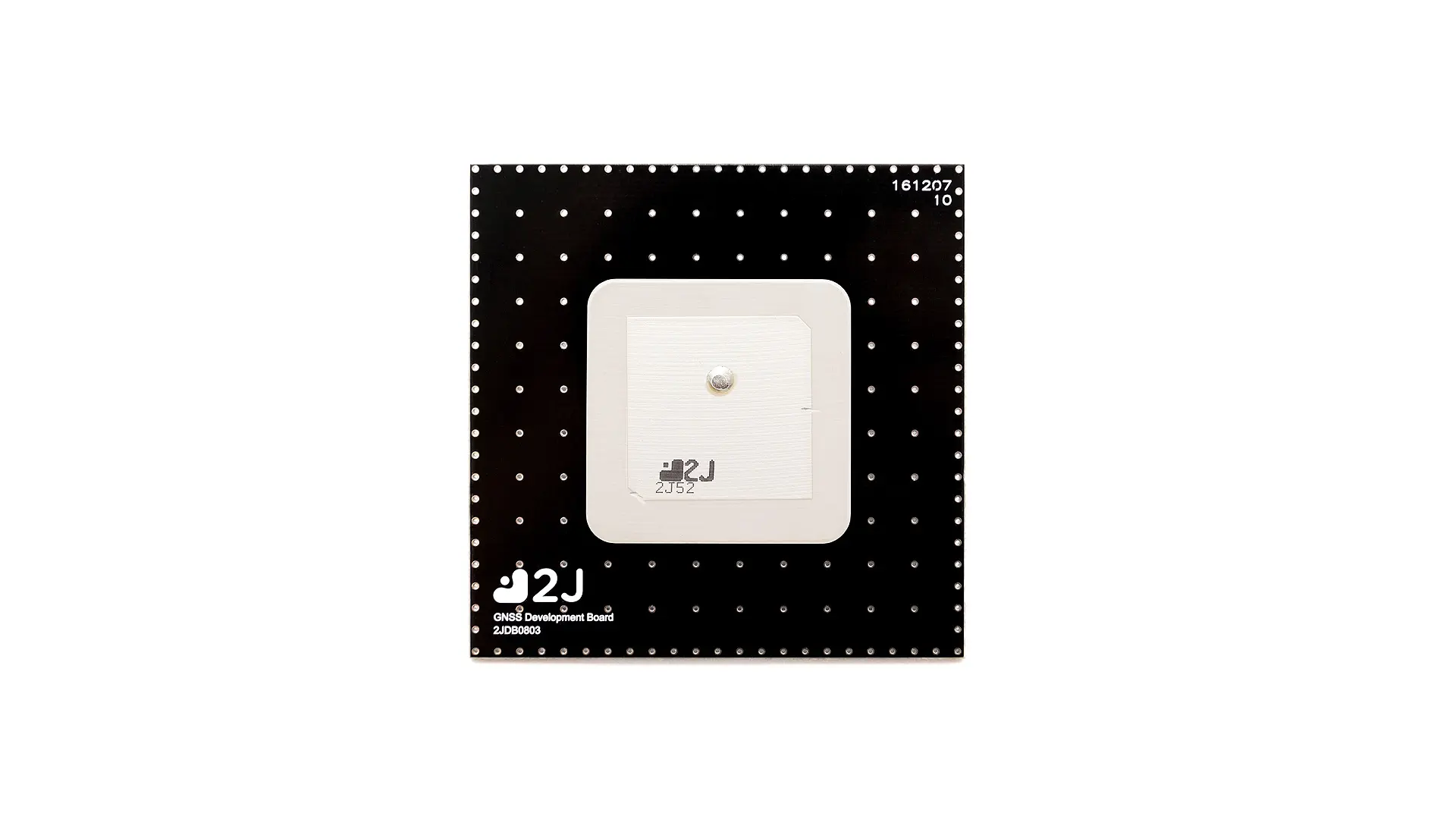

1× 2JDB0803-C104N Development Board 6× 2JCP3642601a Ceramic Antennas |
| Dimensions (mm) |
36 × 36 × 4 (Patches) 70.4 × 70.4 × 13.5 (Board) |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Dev Kit specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency (MHz) | 1616-1627 - Ceramic patch 2JCP3642601a (2J 52) 1621-1632 - Ceramic patch 2JCP3642602a (2J 53) 1626-1637 - Ceramic patch 2JCP3642603a (2J 54) 1631-1642 - Ceramic patch 2JCP3642604a (2J 55) 1636-1647 - Ceramic patch 2JCP3642605a (2J 56) 1641-1652 - Ceramic patch 2JCP3642606a (2J 57) |
| Passive Gain (dBi) | ~4.5 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3 max |
| Polarization | RHCP |
Development Kit Description
Key Features
Ground Plane Independent
High Gain
Set of 6 patches to try on devices
Development Kit for IRIDIUM
Patches 36 x 36 x 4 mm
Applications
Marine & Maritime
Satellite Communication
Internal Antenna Solutions
