Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou & IRIDIUM
| Standards | GPS/GLO/BEI/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1561, 1575.42, 1598-1606, 1616-1627 |
| VSWR | ~1.2:1, ~1.2:1, ~1.1:1, ~1.1:1 |
| Efficiency (%) | ~93.2, ~93.2, ~96.0, ~96.1 |
| Peak Gain (dBi) | ~3.1, ~3.1, ~3.1, ~3.2 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Omni-Directional |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Heavy Duty antenna
Anti-Rotation Mounting
Adhesive Mounting sticker included
Lightweight Plastic Base
Configurable Mount options
Axial Ratio below 3 dB
Superb RHCP polarization
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm

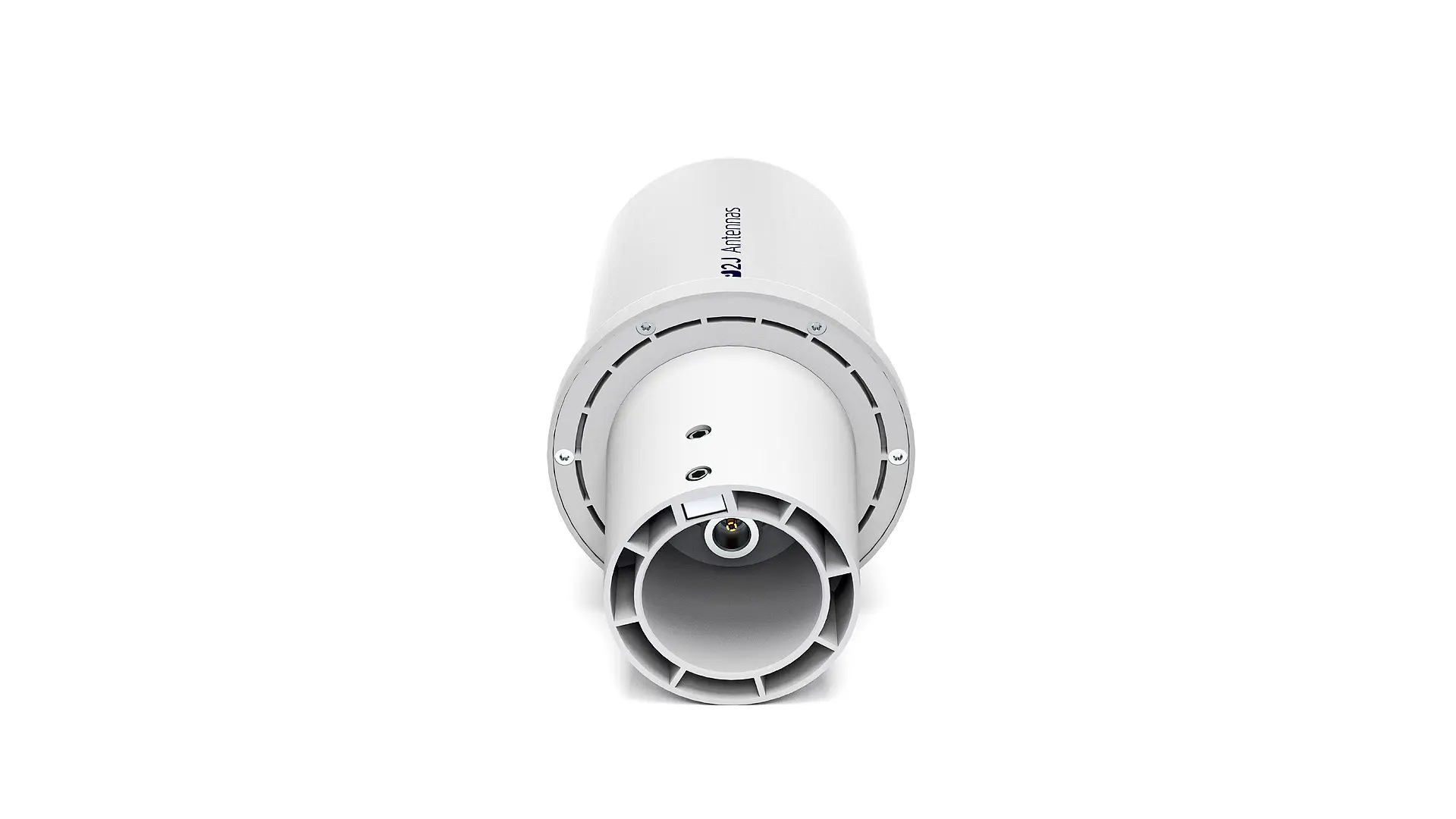

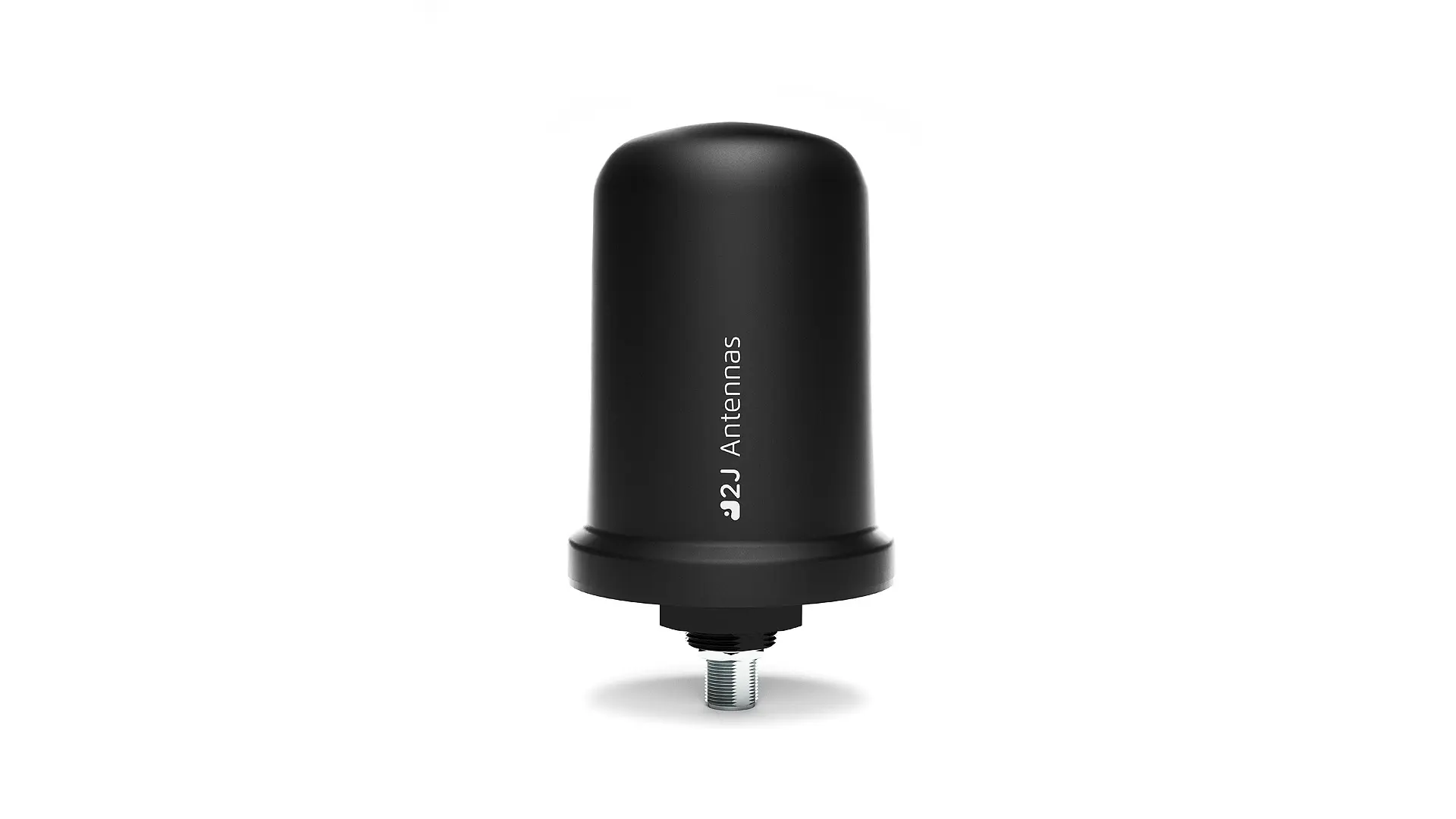

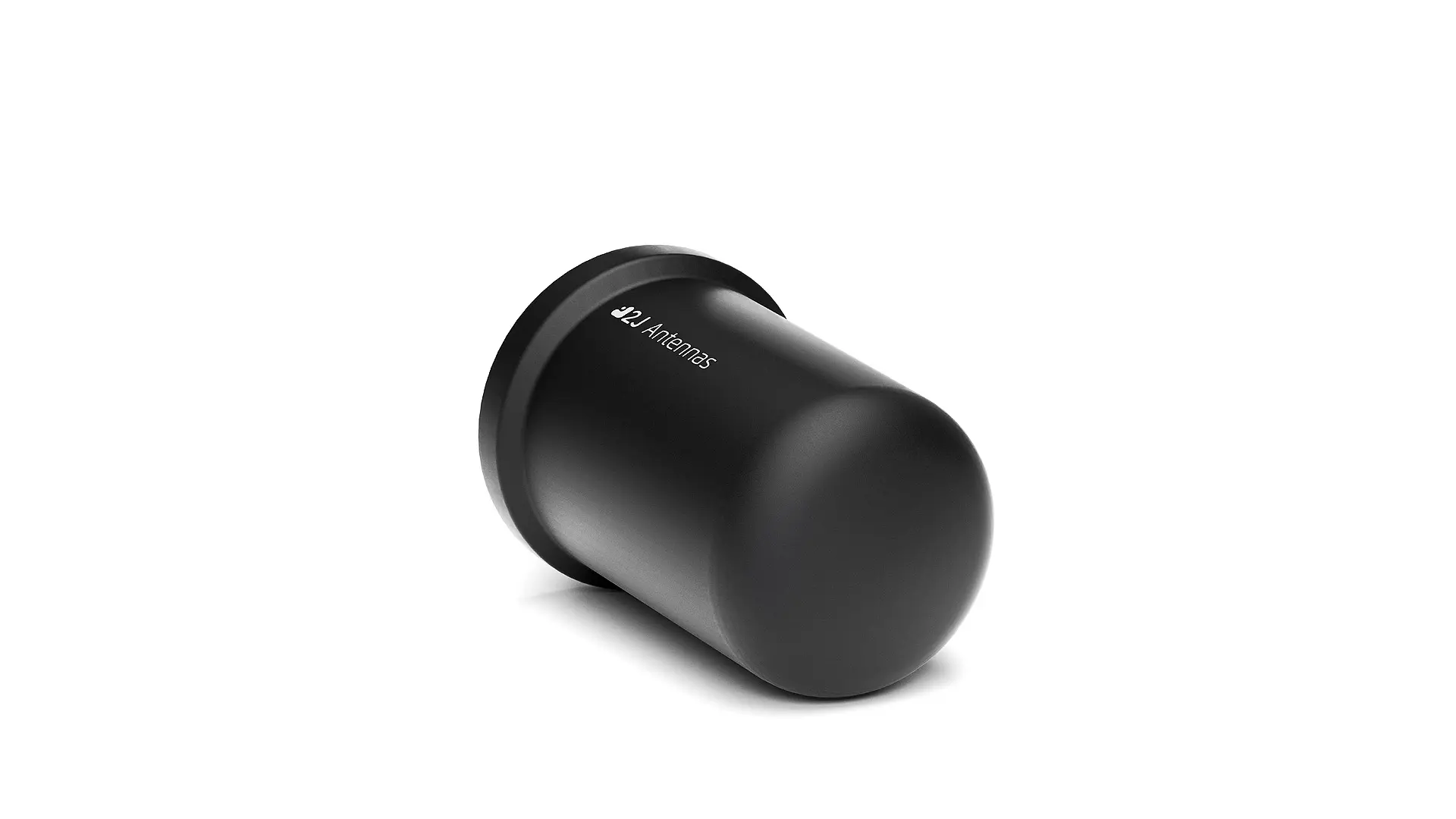

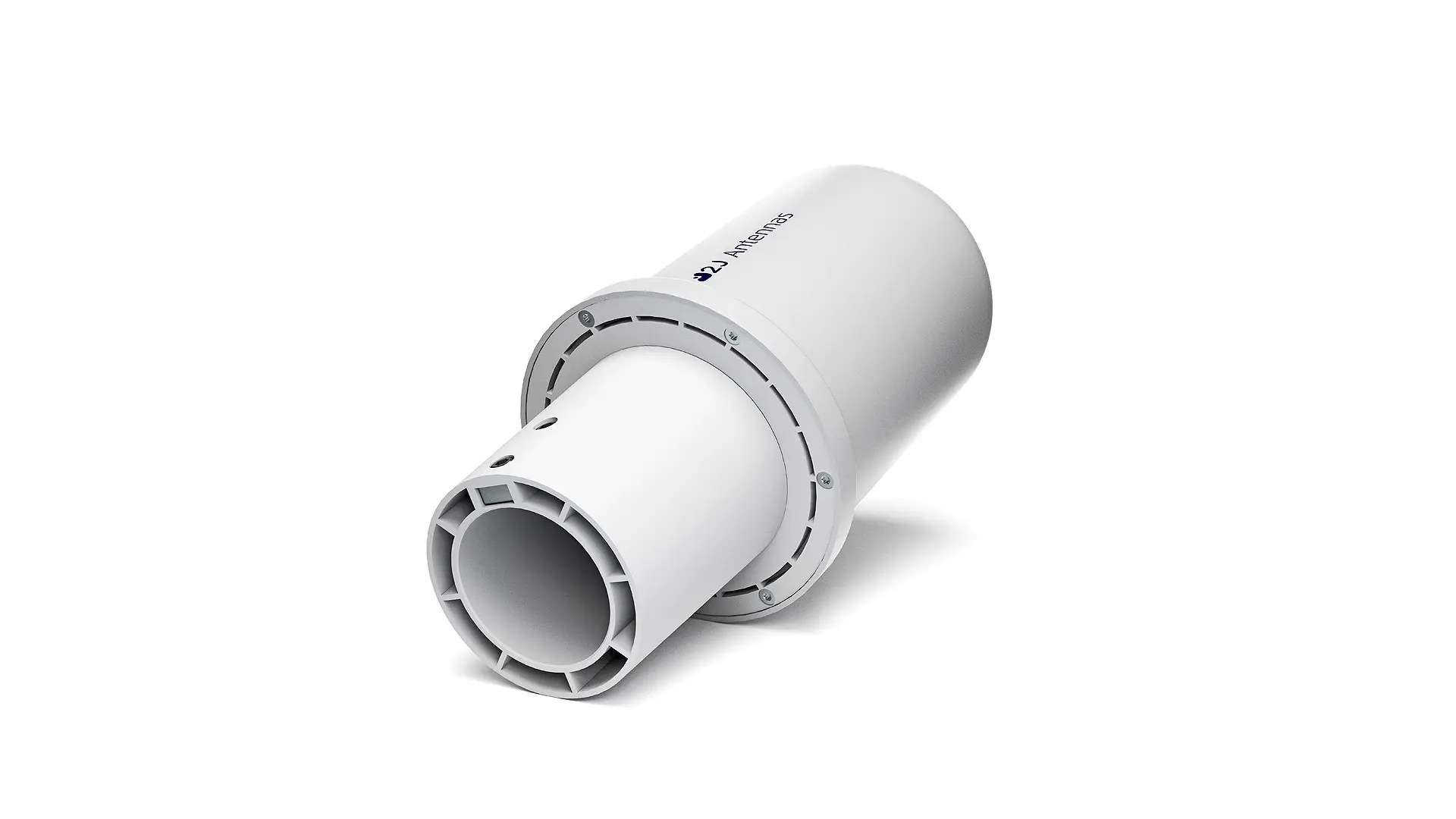

GNSS-IRIDIUM Quadrifilar Helix Antenna
3.2 dBi GNSS-IRIDIUM Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Antenna band list
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB18J
Pole Mount aluminum alloy bracket for 2J6Bxx, 2J70xx, 2J71xx, 2J7Axx and 2J7Bxx pole mount antenna series
