Medusa 5GNR MIMO 2.4/5.0 GHz ISM and GPS/GNSS Pole and Screw Mount Antenna
Connections (5)
2×
5G NR / Cellular / LPWA
2×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
1×
GPS / GLONASS / QZSS / Galileo - L1

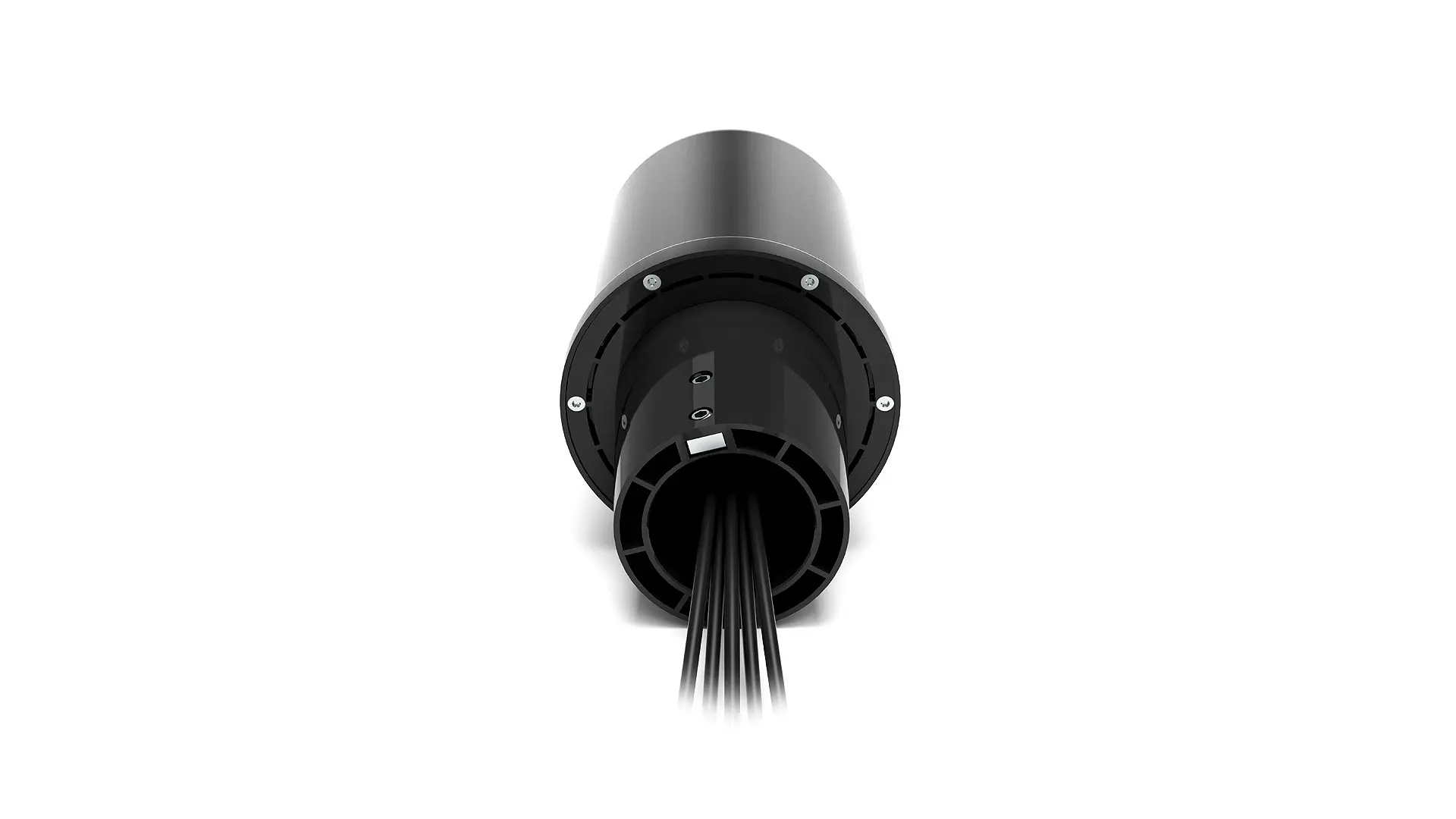

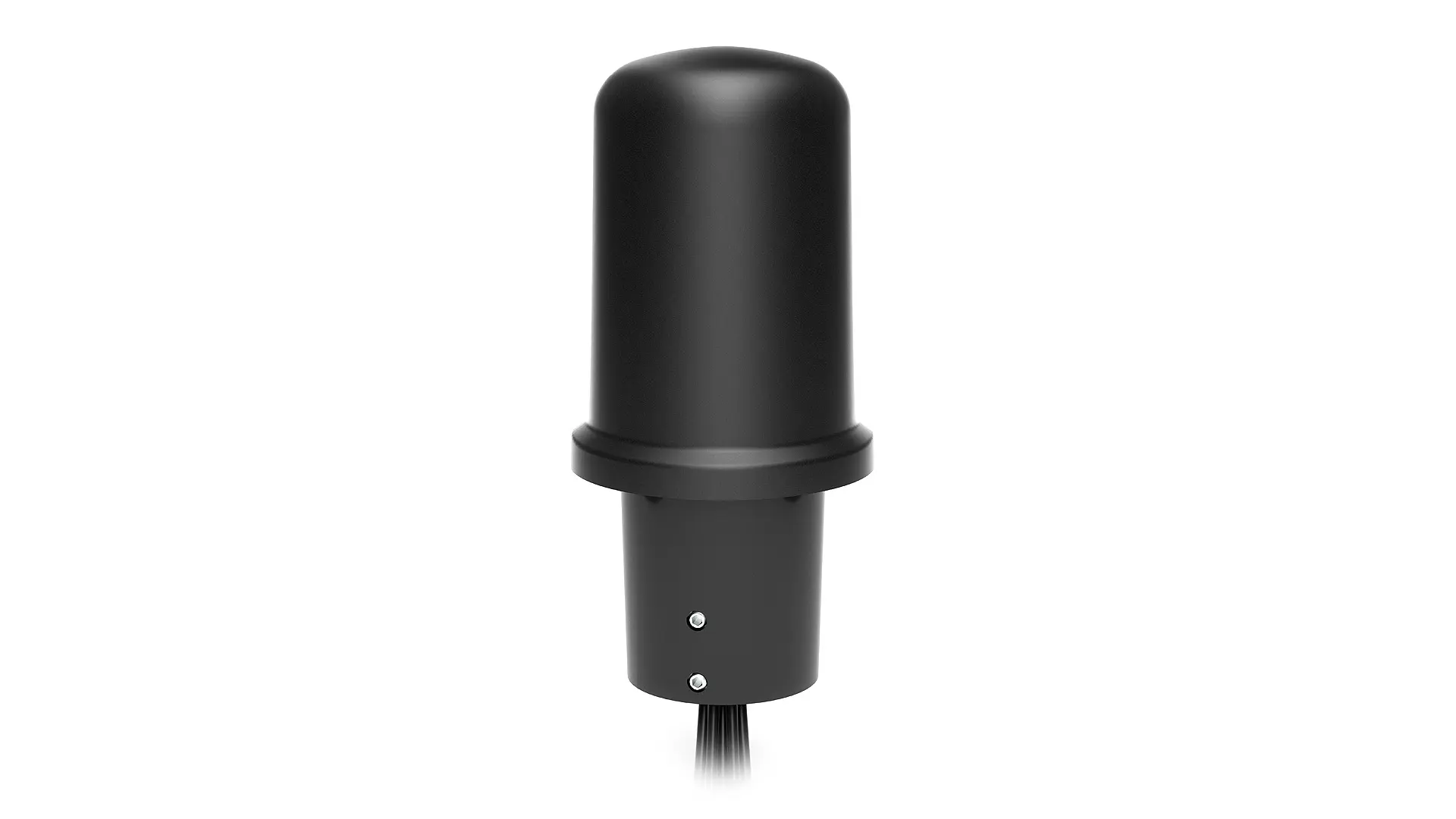

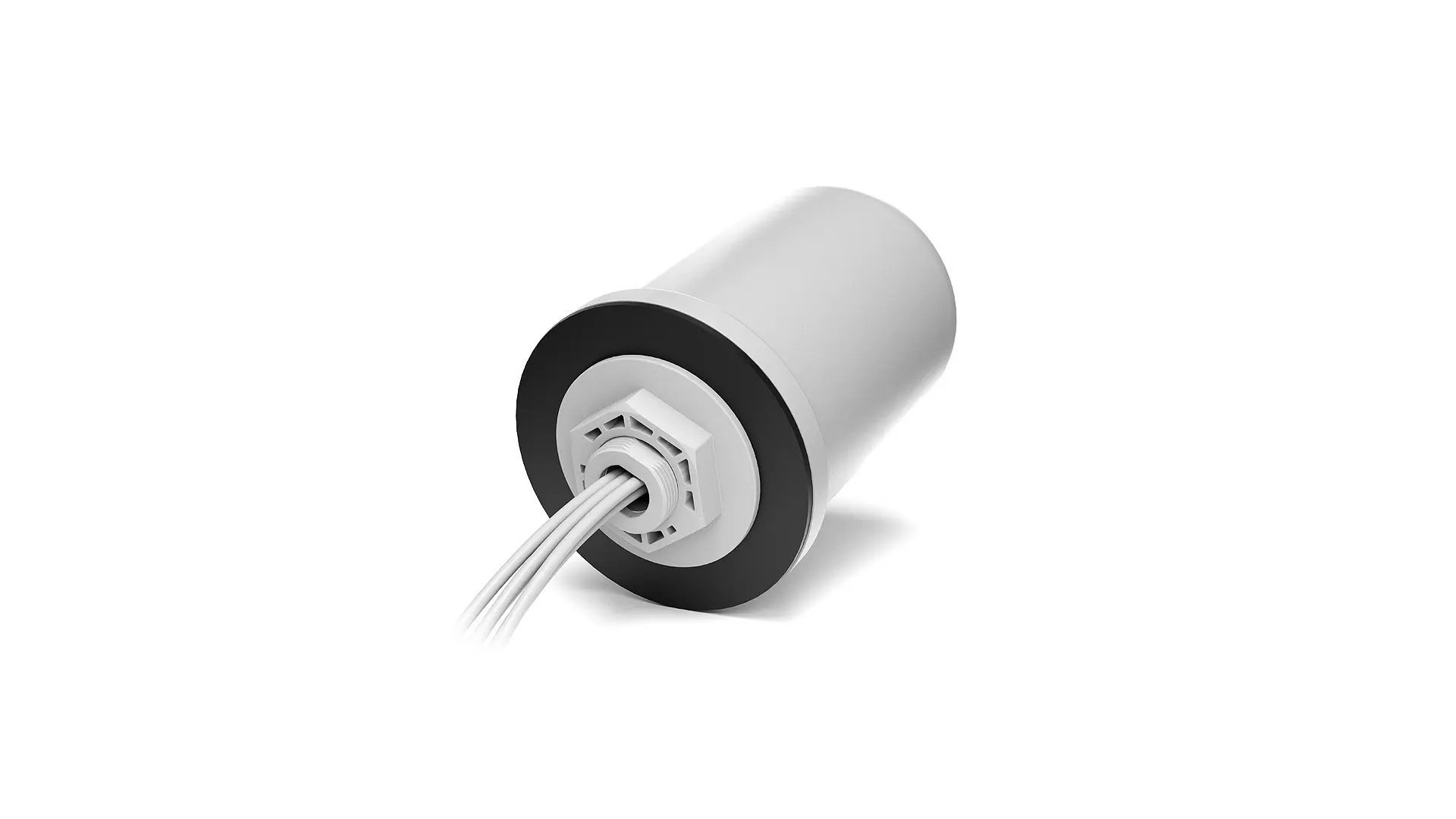

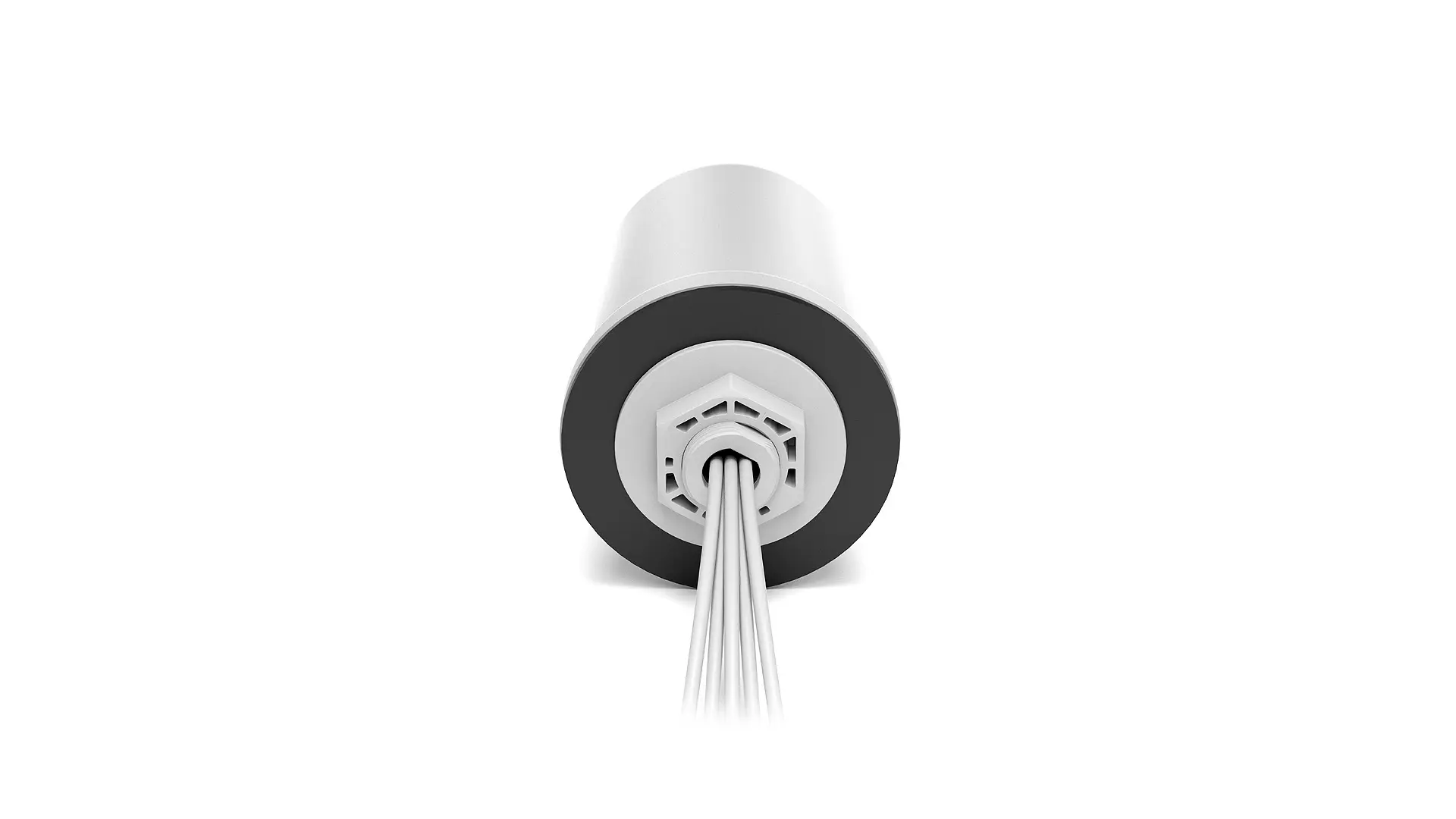

| Mounting | Screw Mount, Pole Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 200 (Pole), Ø 96 × H 131 (Screw) |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-8.2, ~-16.3, ~-17.9, ~-18.9 |
| VSWR | ~2.5:1, ~1.4:1, ~1.4:1, ~1.3:1 |
| Efficiency (%) | ~38.5, ~45.8, ~41.6, ~36.6 |
| Peak Gain (dBi) | ~0.3, ~3.6, ~4.7, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 35 |
connection 2
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-8.2, ~-15.6, ~-13.7, ~-13.2 |
| VSWR | ~2.5:1, ~1.4:1, ~1.7:1, ~1.9:1 |
| Efficiency (%) | ~42.2, ~45.3, ~43.0, ~36.7 |
| Peak Gain (dBi) | ~0.7, ~3.7, ~4.6, ~3.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 35 |
connection 3
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.5:1, ~1.4:1 |
| Efficiency (%) | ~43.4, ~26.2 |
| Peak Gain (dBi) | ~5.3, ~1.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.6:1, ~1.3:1 |
| Efficiency (%) | ~41.8, ~30.9 |
| Peak Gain (dBi) | ~5.3, ~2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 5
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 15 - 25 |
| Power Consumption (mW) | 40.5 - 137.5 |
| Out of Band Rejection (dB) | 32 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
5.3 dBi WIFI Peak Gain
Heavy Duty antenna
Anti-Rotation Mounting
Adhesive Mounting sticker included
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Post Filter GNSS
5-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
4.7 dBi 5G NR Peak Gain
Lightweight Plastic Base
Configurable Mount options
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Healthcare & Medical
Navigation & Positioning
Marine & Maritime
Broadcasting & Media
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
| Parameters | 5GNR Antenna | |||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n77, n78, n79 | |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 | |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | ||
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
||
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB18J
Pole Mount aluminum alloy bracket for 2J6Bxx, 2J70xx, 2J71xx, 2J7Axx and 2J7Bxx pole mount antenna series
