2J7A86BGFc

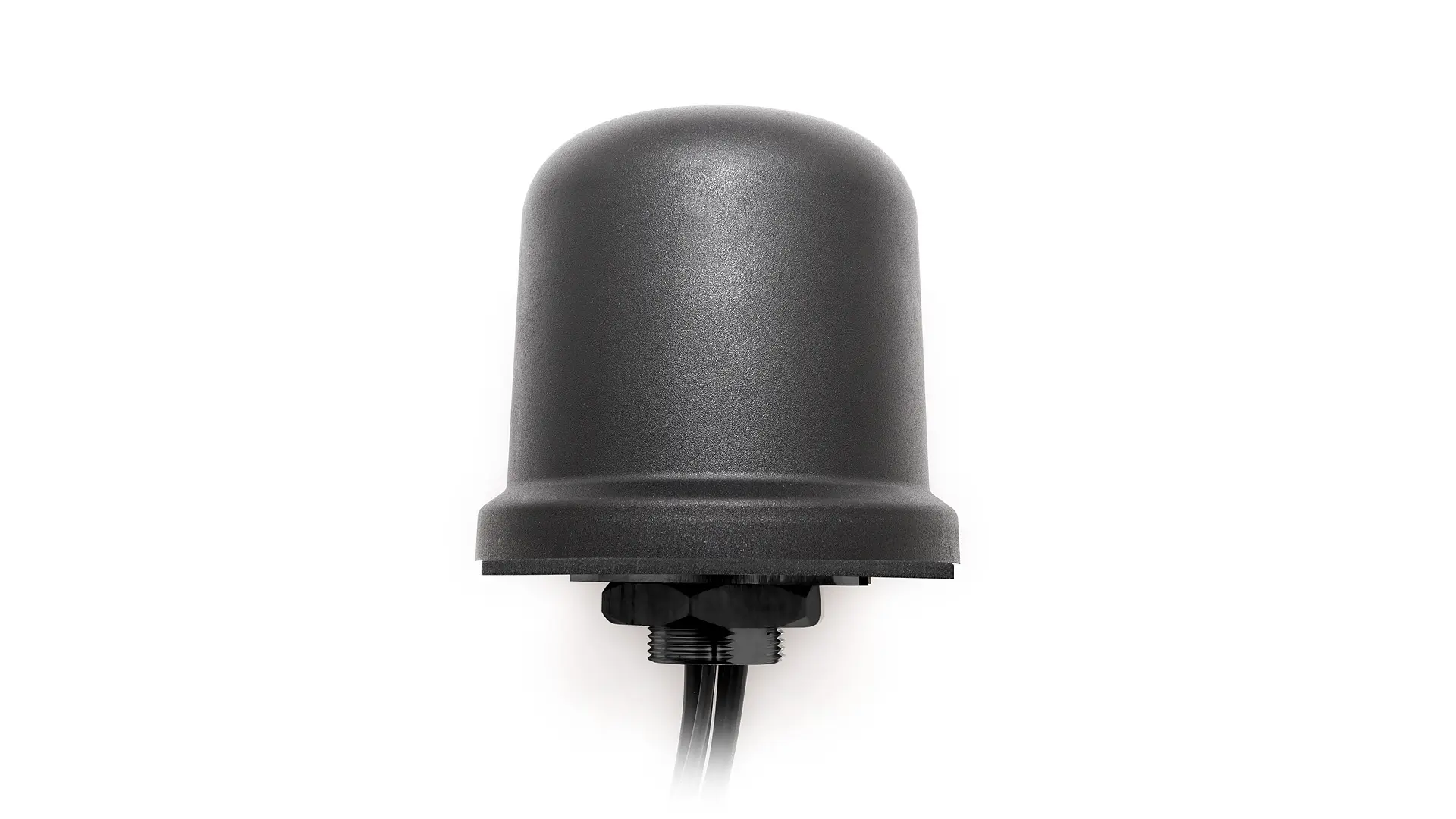

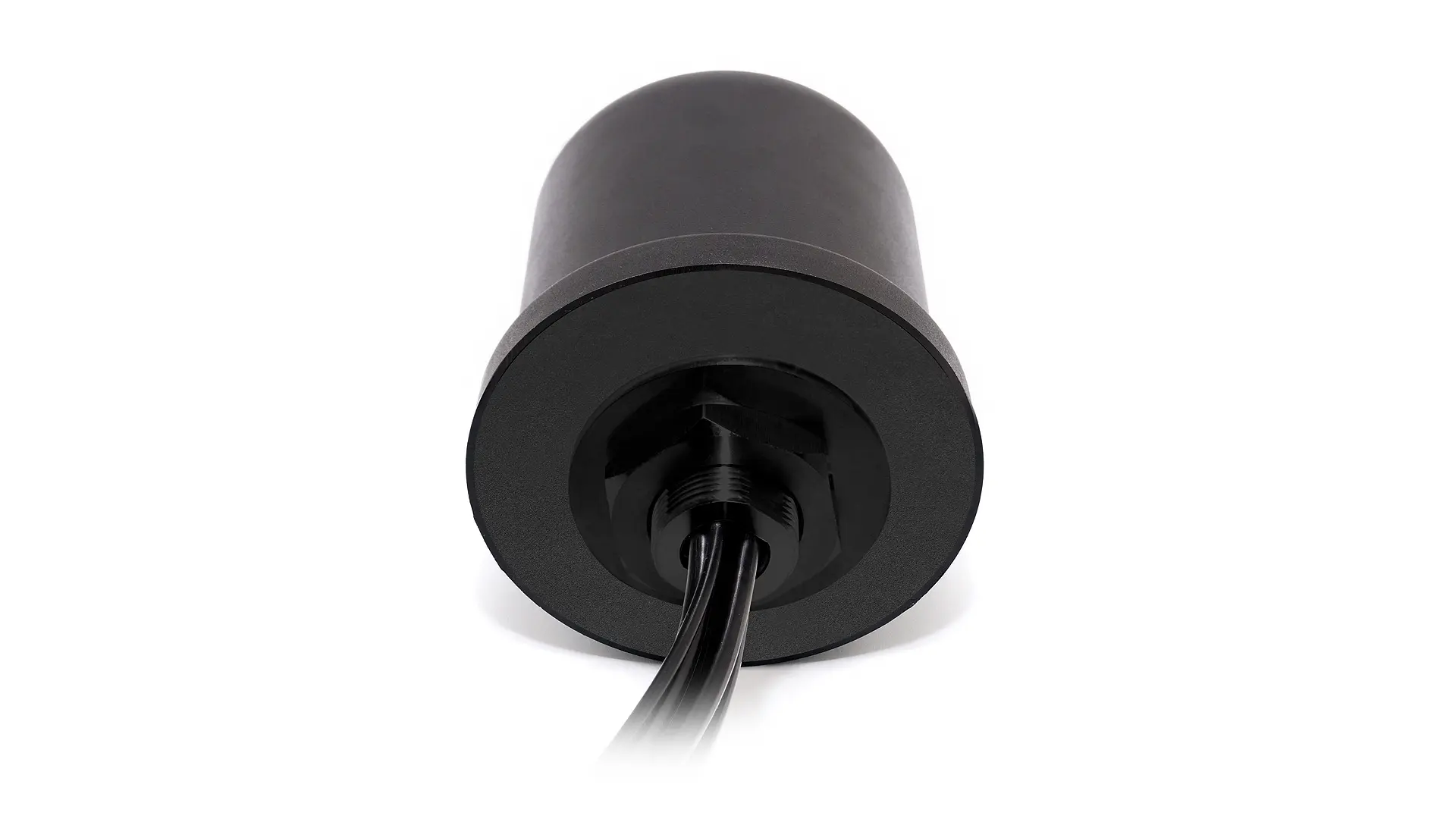

Medusa 5GNR/4G/3G/2G MIMO, WIFI 6E / WIFI 7 and GNSS Screw Mount Antenna
Connections (4)
2×
5G NR / Cellular / LPWA
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 90 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-7.9, ~-13.3, ~-11.4, ~-12.9 |
| VSWR | ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1 |
| Efficiency (%) | ~45.0, ~56.3, ~43.3, ~42.4 |
| Peak Gain (dBi) | ~1.4, ~3.6, ~3.3, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 35 |
connection 2
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-7.7, ~-12.4, ~-11.9, ~-11.9 |
| VSWR | ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1 |
| Efficiency (%) | ~45.4, ~54.8, ~43.0, ~47.1 |
| Peak Gain (dBi) | ~1.5, ~3.6, ~3.5, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 35 |
connection 3
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.9:1, ~1.6:1, ~1.9:1 |
| Efficiency (%) | ~58, ~64, ~65 |
| Peak Gain (dBi) | ~5.6, ~5.5, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 15 - 25 |
| Power Consumption (mW) | 40.5 - 137.5 |
| Out of Band Rejection (dB) | 32 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
4-in-1 Combination Antenna
24 dB GNSS Active Gain
Post Filter GNSS
5.6 dBi WIFI Peak Gain
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Lightweight Plastic Base
3.8 dBi 5G NR Peak Gain
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Healthcare & Medical
Navigation & Positioning
Marine & Maritime
Broadcasting & Media
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
| Parameters | 5GNR Antenna | |||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n77, n78, n79 | |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 | |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | ||
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
||
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB16J
Pole Mount plastic bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
2JB19J
Pole Mount plastic/aluminum alloy bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
