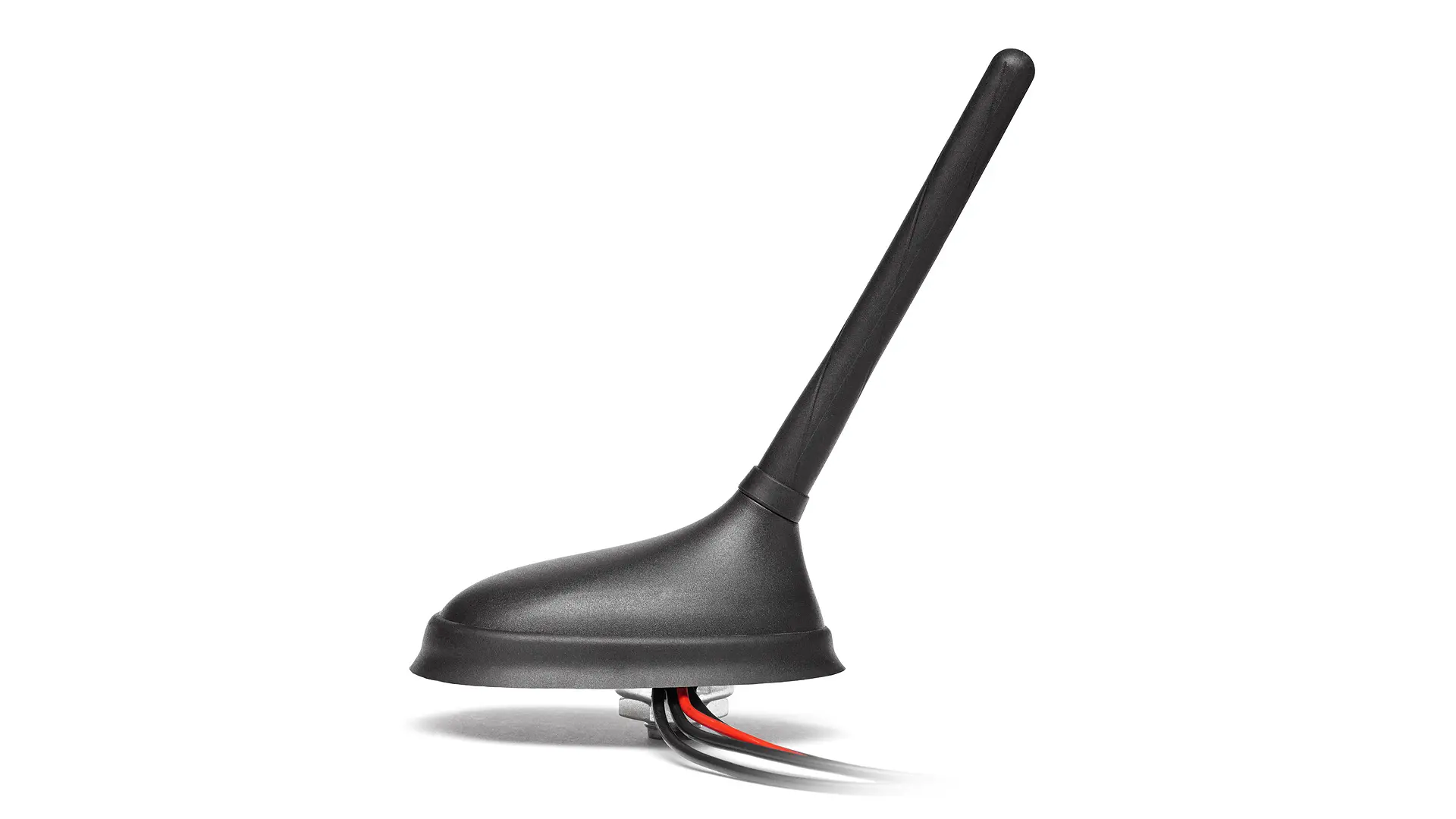

2J8311BGF
CELLULAR/3G/2G, FM, GPS/GLONASS/Galileo Antenna
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 99 × 60 × 137 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~2.8:1, ~1.8:1 |
| Efficiency (%) | ~11.8, ~13.9 |
| Peak Gain (dBi) | ~-4.9, ~-4.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 100 |
FM - 88-108 MHz
| Standards | FM |
|---|---|
| Frequency | 88-108 |
| VSWR | ~2.2:1 |
| Active Gain (dB) | 5-10 |
| Impedance (Ohm) | 75 |
| Polarisation | Linear |
| Radiation Pattern | Hemispherical |
| Voltage Range (V) | 12-15 |
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.2:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Pre-Filter |
| Voltage Range (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.5 |
| Current Consumption (mA) | 15 - 25 |
| Power Consumption (mW) | 40.5 - 137 |
