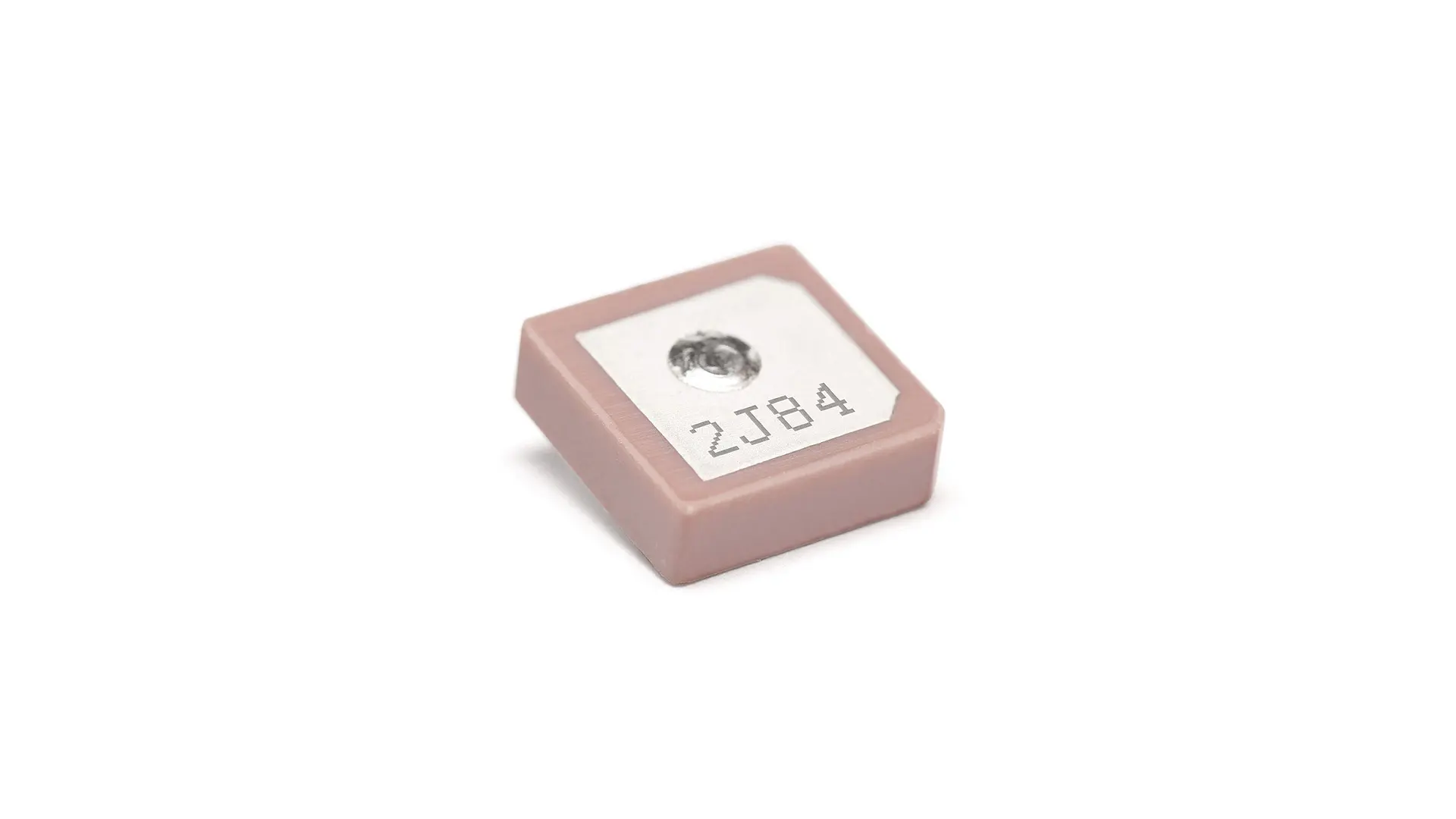

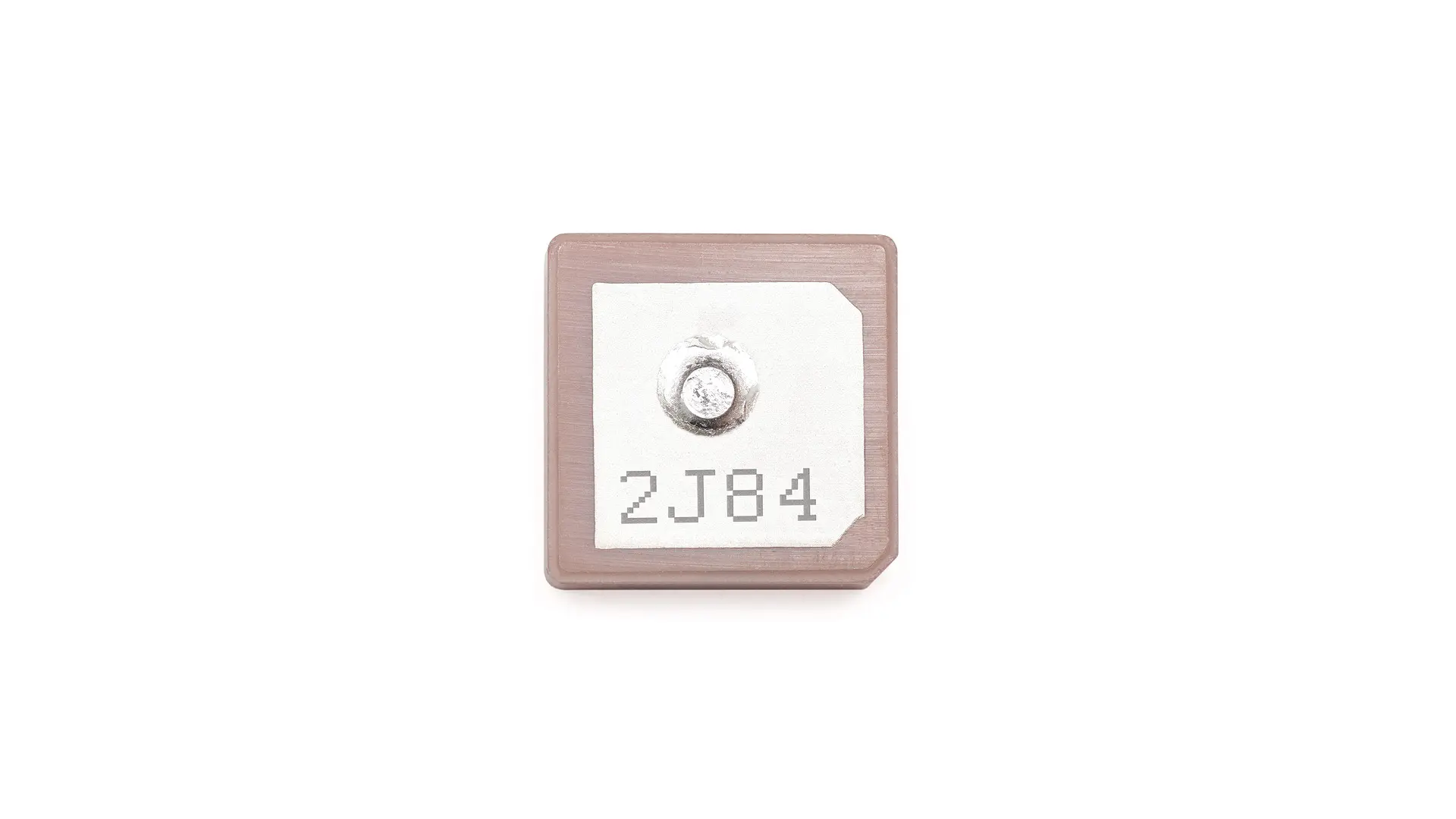

2JCP1340101Ga
GPS/GLONASS/Galileo High Gain Ceramic Passive Antenna
Connections (1)
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Dimensions (mm) | 13 × 13 × 4 |
| Operating temperature | -40 °C to +85 °C |
| Note | Specification only for the 2JDK0401Ga-C104N Development Kit |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/GLONASS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Passive Gain (dBi) | ~3.5, ~3.1 |
| Efficiency (%) | ~58.5, ~54.6 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
Antenna Description
Key Features
Small Form Factor
Ground Plane Dependent
Passive GNSS Ceramic Antenna
Embedded Antenna
3.5 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
