2J0B01C6-C884G

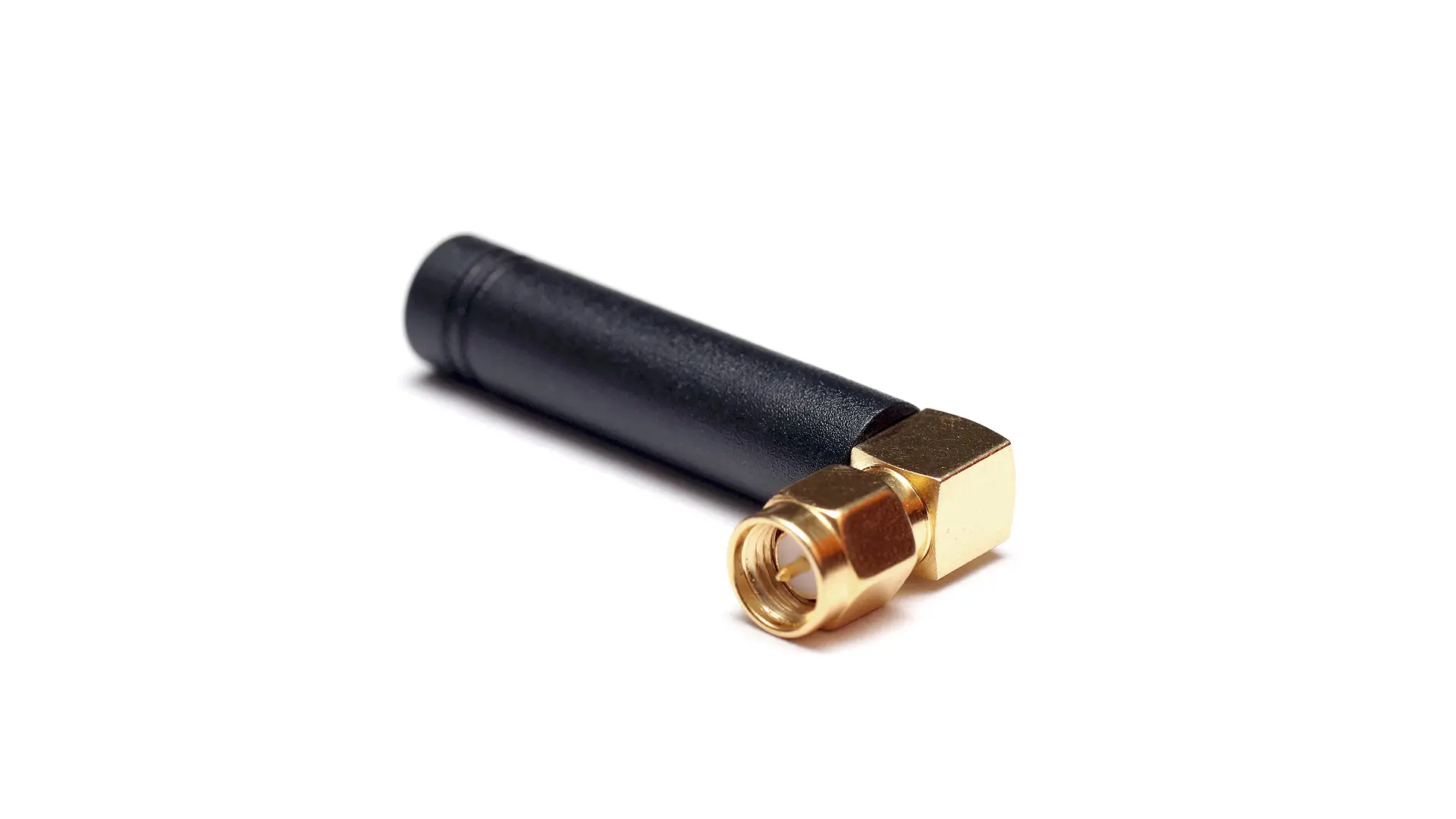

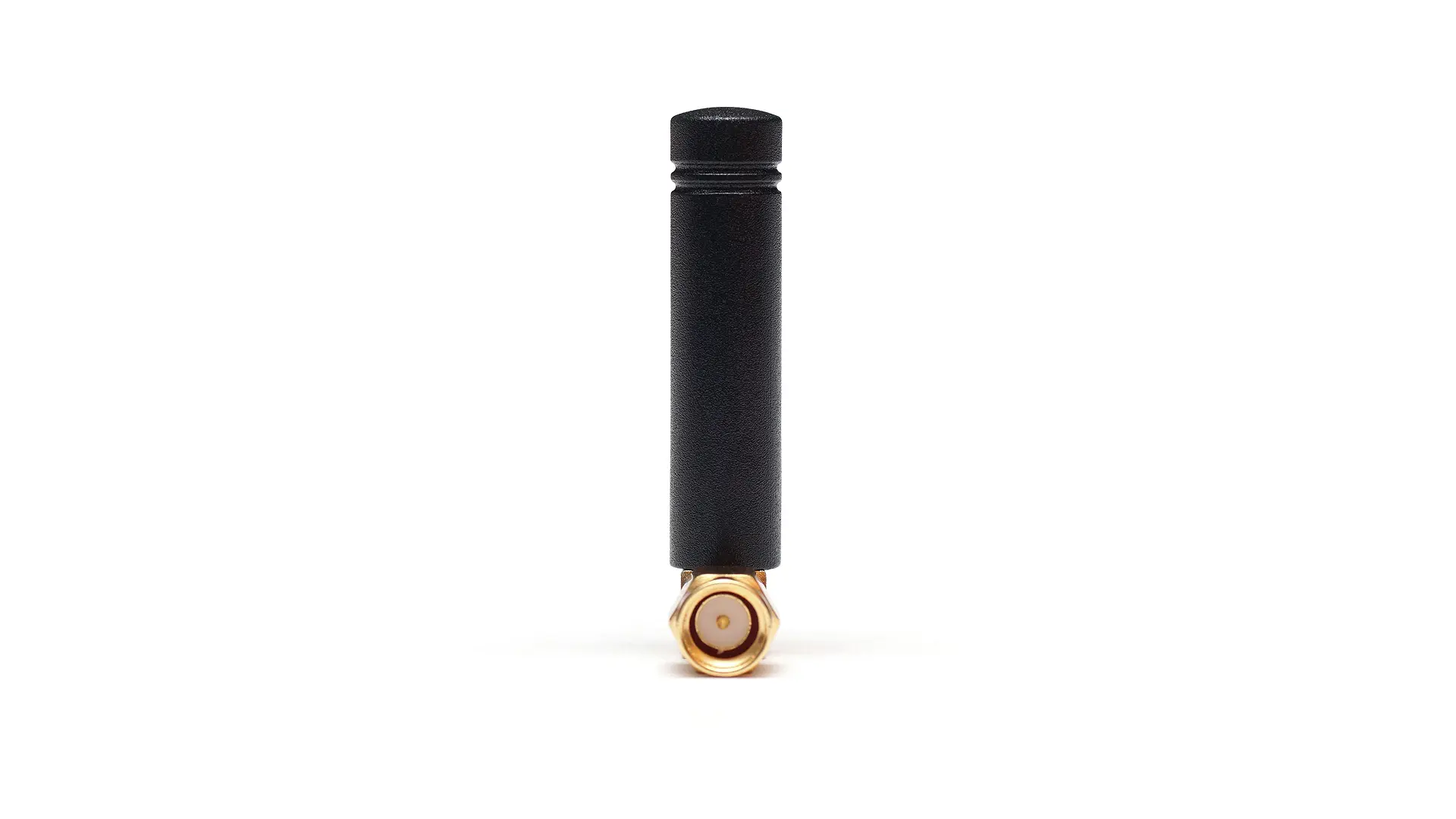

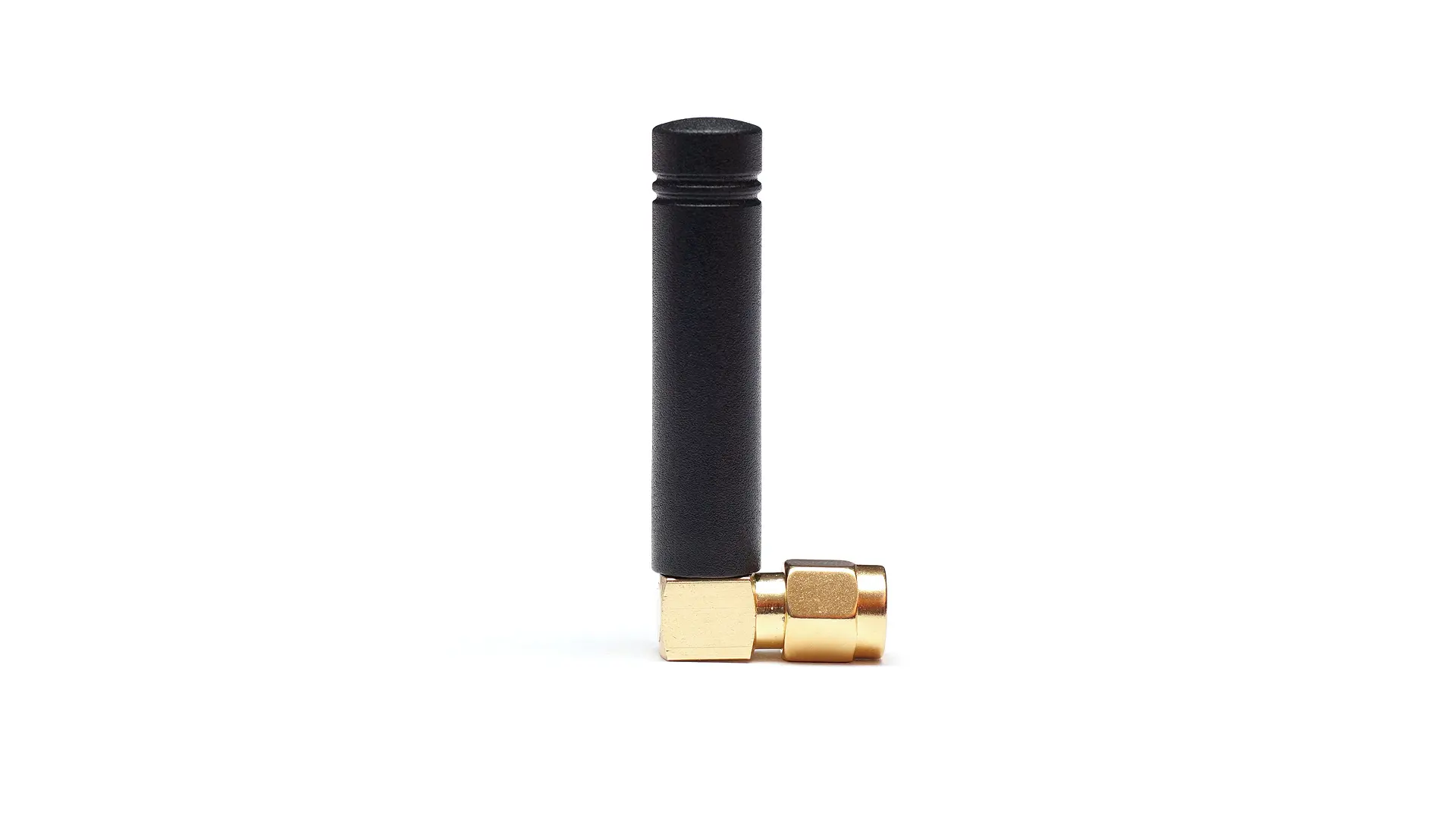

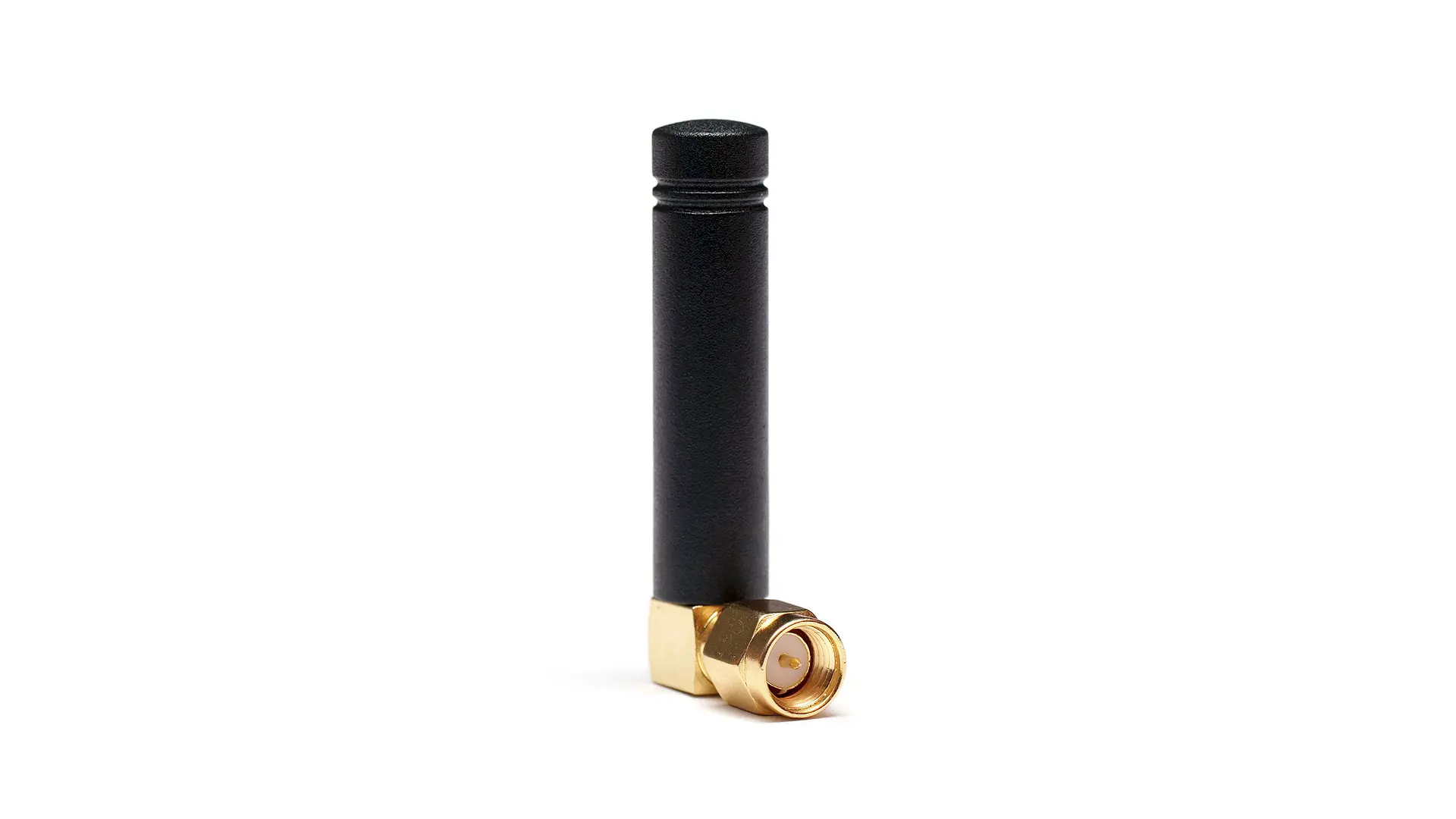

High Precision Passive GPS/GNSS/L1/L2/L5/L6 Right Angle Connector Mount Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 44 × 19.1 × 9 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Antenna and electrical specifications
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
| Technologies | GPS/Glonass/BeiDou/QZSS/Galileo/IRNSS/SBAS/L1L2L5L6 |
|---|---|
| Bandwidth (MHz) | 1176-1208, 1227-1246, 1268-1279, 1561-1606 |
| Bands | L5, L2, L6, L1 |
| Frequency | 1176.45, 1207.14 / 1227.6, 1246.00 / 1268.52, 1278.75 / 1561.09, 1575.42, 1602.00 |
| Standards | GPS(L5), BeiDou(B2a, B2b), QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), GLONASS(L2OF), QZSS(L2C) / GPS(L6), BeiDou(B3), QZSS(L6), Galileo(E6) / GPS(L1C), GLONAS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1) |
| Return Loss (dB) | ~-5.2, ~-5.5, ~-6.5, ~-7.4 |
| VSWR | ~3.5:1, ~3.3:1, ~2.8:1, ~2.5:1 |
| Efficiency (%) | ~61.1, ~63.1, ~66.9, ~64.4 |
| Passive Peak Gain (dBi) | ~0.7, ~0.9, ~1.2, ~1.9 |
| Average Gain (dB) | ~-2.1, ~-2.0, ~-1.7, ~-1.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarization | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
