2JCP2543401a

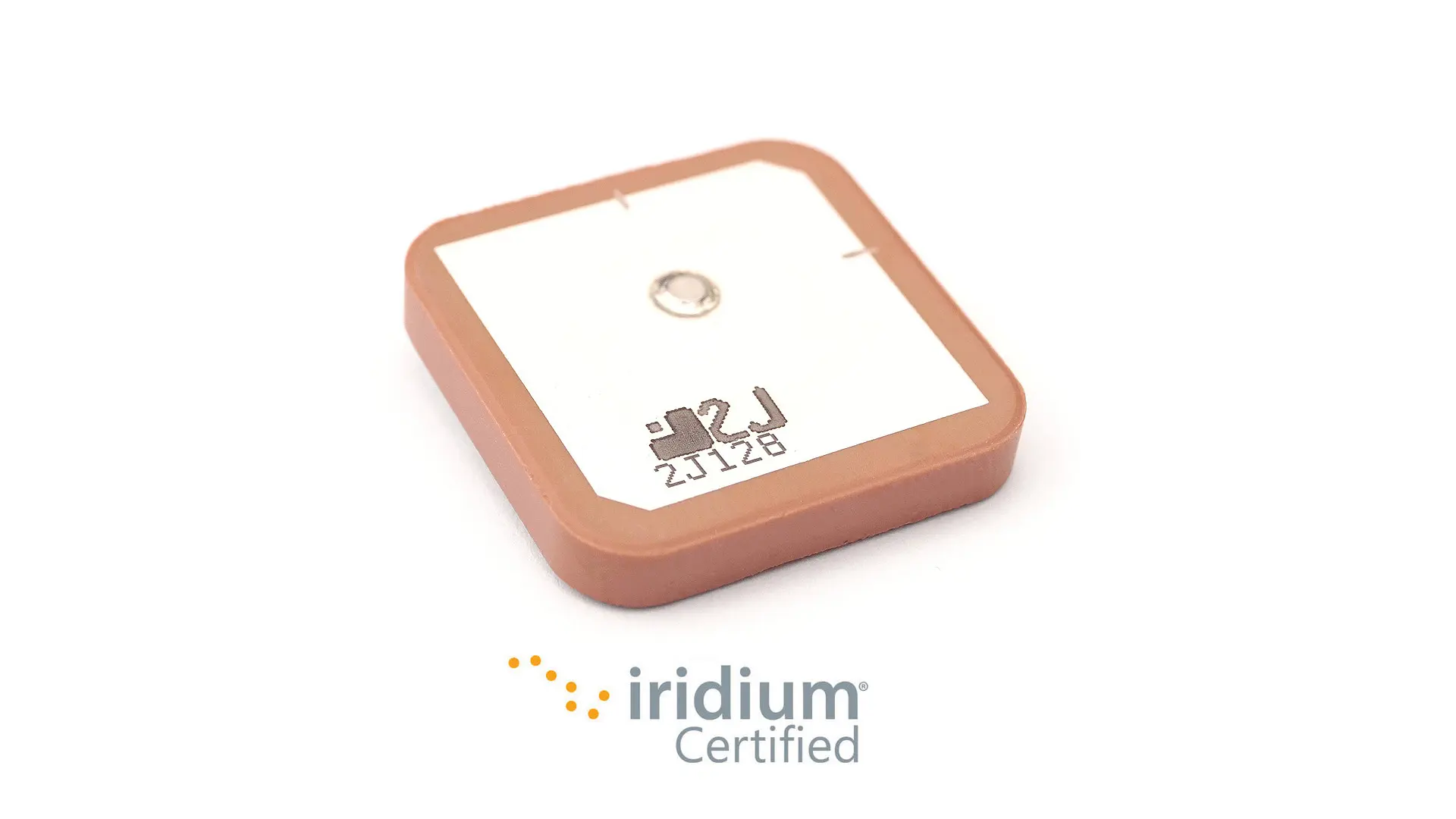

Patch GNSS Galileo IRIDIUM Certified High Gain Thru-Hole Mount Antenna
Connections (1)
1×
GPS & IRIDIUM
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Dimensions (mm) | 25 × 25 × 4 |
| Operating temperature | -40 °C to +85 °C |
| Note | Specification only for the 2JDK0134a-C104N Development Kit |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS & IRIDIUM
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Passive Gain (dBi) | ~5.1, ~5.7 |
| Efficiency (%) | ~93.8, ~92.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Dependent
High Efficiency
Embedded Antenna
Passive GNSS-IRIDIUM Ceramic Antenna
5.7 dBi Peak Gain
Single Feed Technology
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
