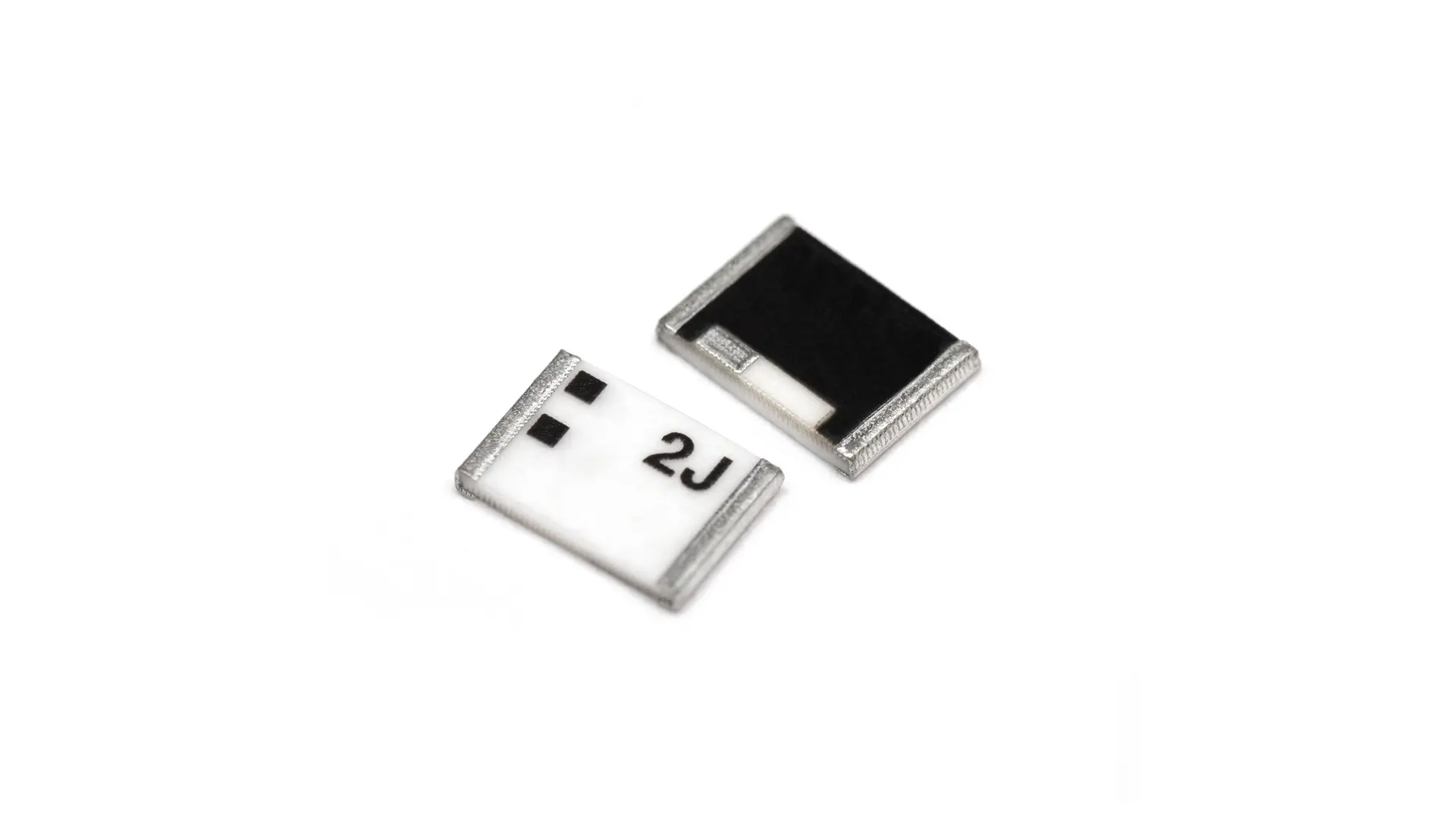

Passive GNSS/GPS/L1/L2/L5/L6 Surface Mount Compact Ceramic Loop Antenna
Connections (1)
1×
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
| Mounting | Surface Mount Ceramic |
|---|---|
| Dimensions (mm) | 5.2 × 3.7 × 0.7 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
| Technologies | GPS/Glonass/BeiDou/QZSS/Galileo/IRNSS/SBAS/L1L2L5L6 |
|---|---|
| Bandwidth (MHz) | 1176-1208, 1227-1246, 1268-1279, 1561-1606 |
| Bands | L5, L2, L6, L1 |
| Frequency | 1176.45, 1207.14 / 1227.6, 1246.00 / 1268.52, 1278.75 / 1561.09, 1575.42, 1602.00 |
| Standards | GPS(L5), BeiDou(B2a, B2b), QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), GLONASS(L2OF), QZSS(L2C) / GPS(L6), BeiDou(B3), QZSS(L6), Galileo(E6) / GPS(L1C), GLONAS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1) |
| Return Loss (dB) | ~-11.4, ~-7.4, ~-4.4, ~-18.9 |
| VSWR | ~2.0:1, ~2.5:1, ~4.1:1, ~1.3:1 |
| Efficiency (%) | ~70.6, ~72.6, ~65.0, ~78.9 |
| Passive Peak Gain (dBi) | ~2.9, ~3.7, ~2.5, ~2.5 |
| Average Gain (dB) | ~-1.5, ~-1.4, ~-2.0, ~-1.0 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarization | Linear |
Antenna Description
Key Features
Ground Plane Dependent
High Efficiency
Compact Size
Easy to Integrate
Passive GNSS Ceramic Antenna
SMT Loop Embedded Antenna
L1/L2/L5/L6 Multi-Band-Constellation
3.7 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Embedded Antenna Solutions
