2JDK0101Ca-C104N
GPS / GLONASS / BeiDou Development Kit - Set of 6 pcs of 18 mm patches to try on Device
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Included in Kit |

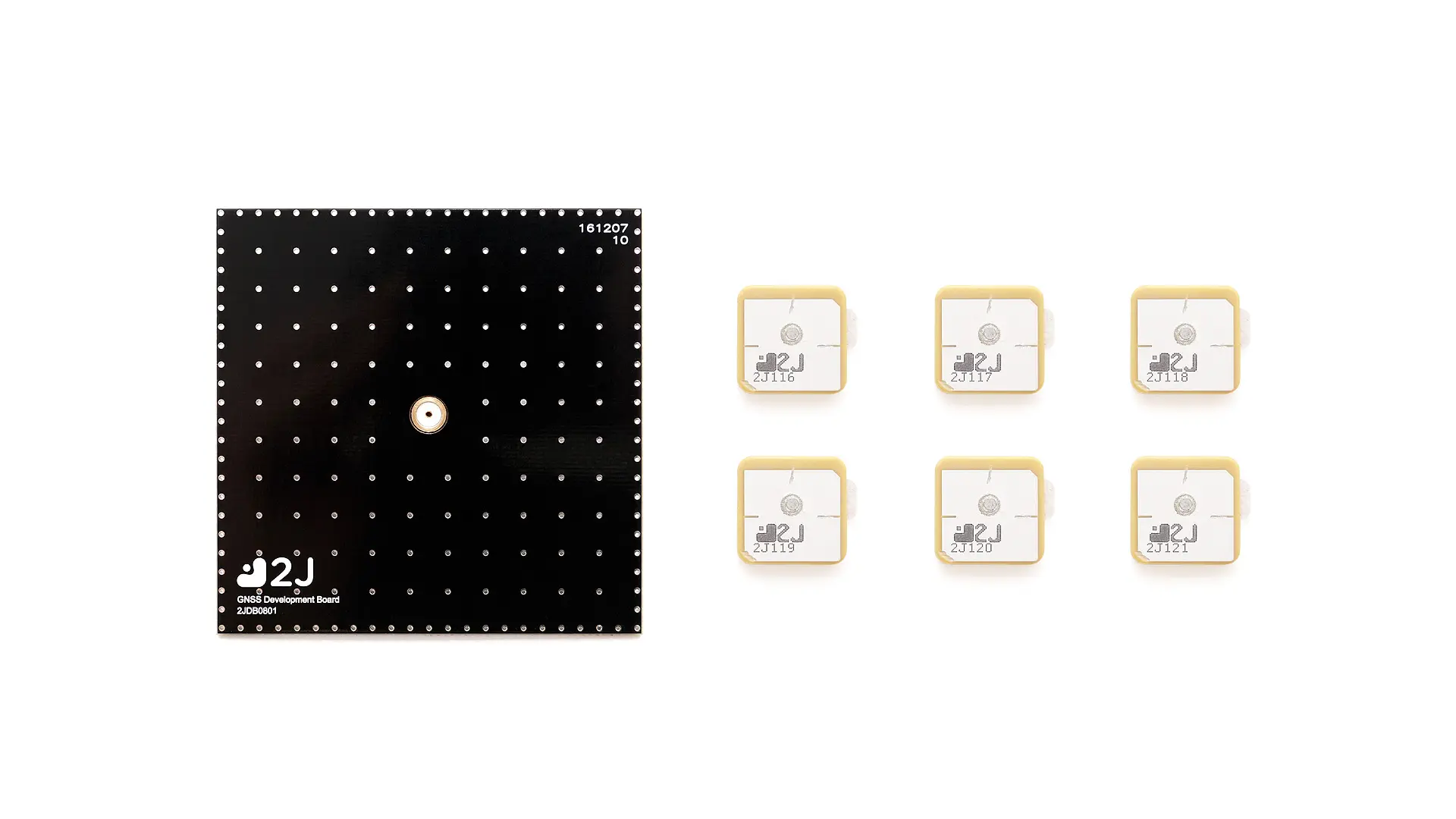

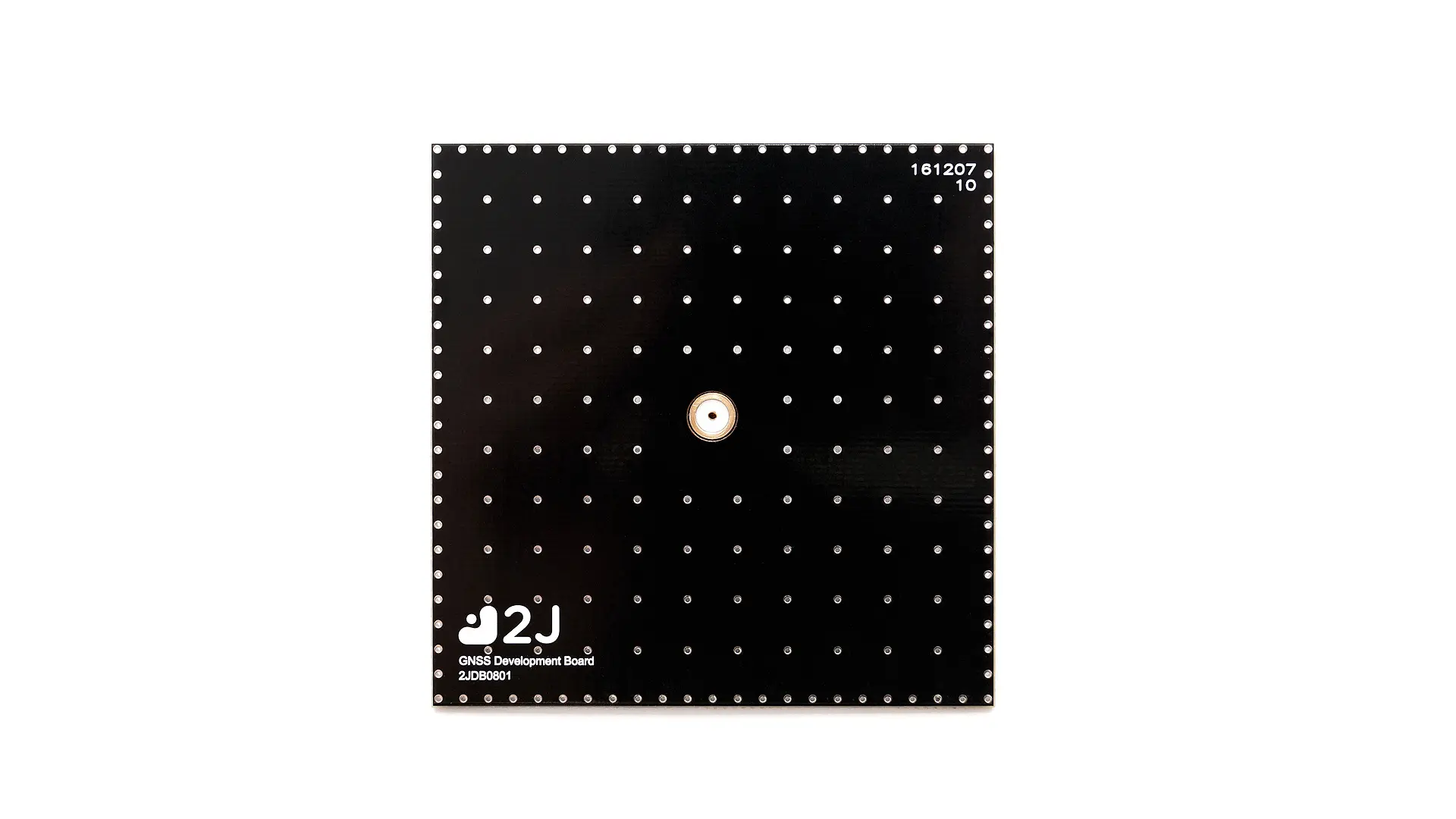

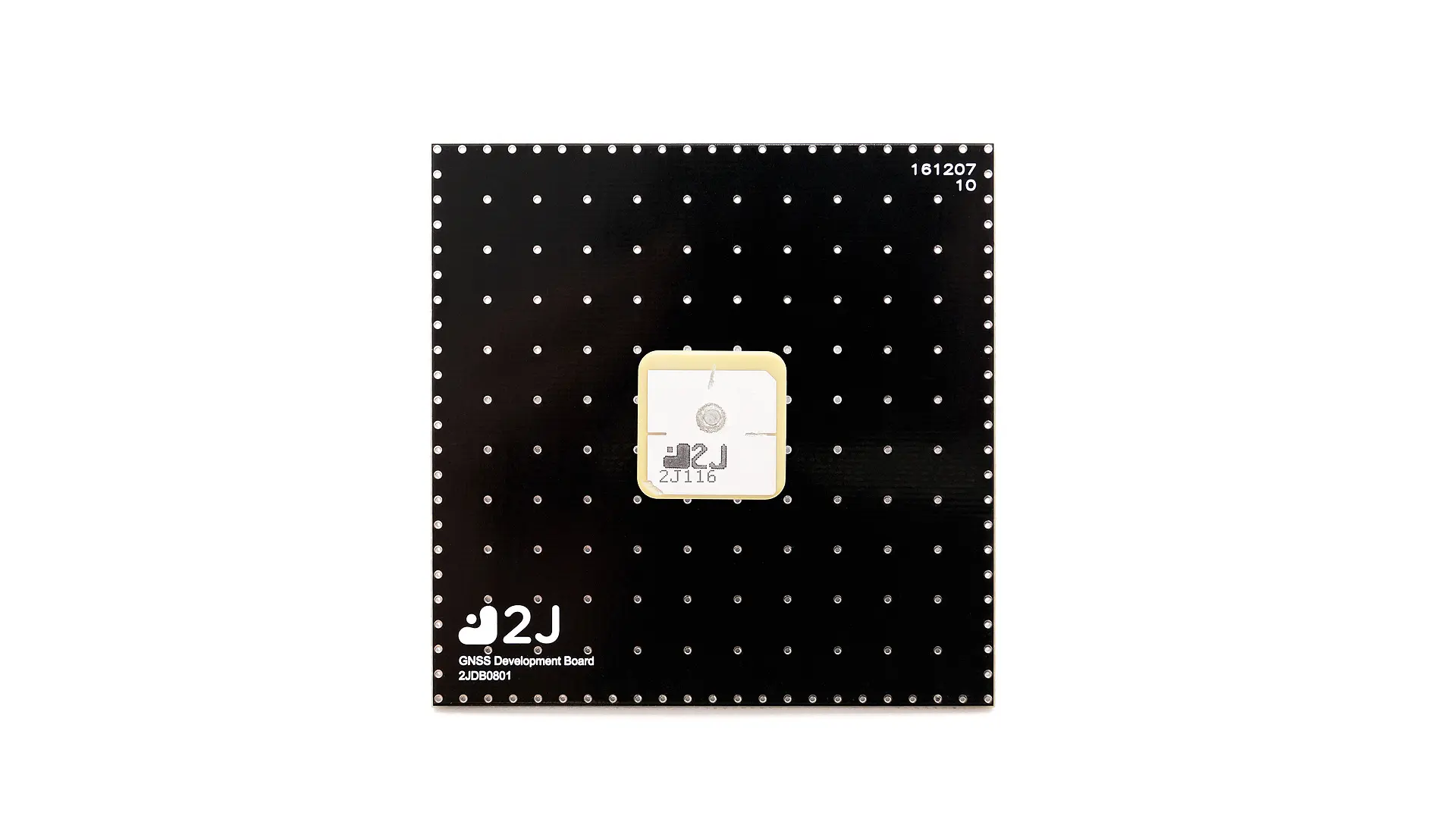

1× 2JDB0801-C104N Development Board 6× 2JCP1840101Ca Ceramic Antennas |
| Dimensions (mm) |
18 × 18 × 4 (Patches) 70.4 × 70.4 × 13.5 (Board) |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Dev Kit specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Standards | GPS / GLONASS / BeiDou / QZSS / Galileo - L1 |
|---|---|
| Frequency (MHz) | 1561.098, 1575.42, 1598-1606 - Ceramic patch 2JCP1840101Ca (2J 116) 1566.098, 1580.42, 1603-1611 - Ceramic patch 2JCP1840102Ca (2J 117) 1571.098, 1585.42, 1608-1616 - Ceramic patch 2JCP1840103Ca (2J 118) 1576.098, 1590.42, 1613-1621 - Ceramic patch 2JCP1840104Ca (2J 119) 1581.098, 1595.42, 1618-1626 - Ceramic patch 2JCP1840105Ca (2J 120) 1586.098, 1600.42, 1623-1631 - Ceramic patch 2JCP1840106Ca (2J 121) |
| Passive Gain (dBi) | ~5.2, ~5.4, ~5.4 |
| Efficiency (%) | ~65.6, ~61.4, ~68.7 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Development Kit Description
Key Features
Ground Plane Independent
High Gain
Development Kit for GNSS
Set of 6 patches to try on devices
Patches 18 x 18 x 4 mm
