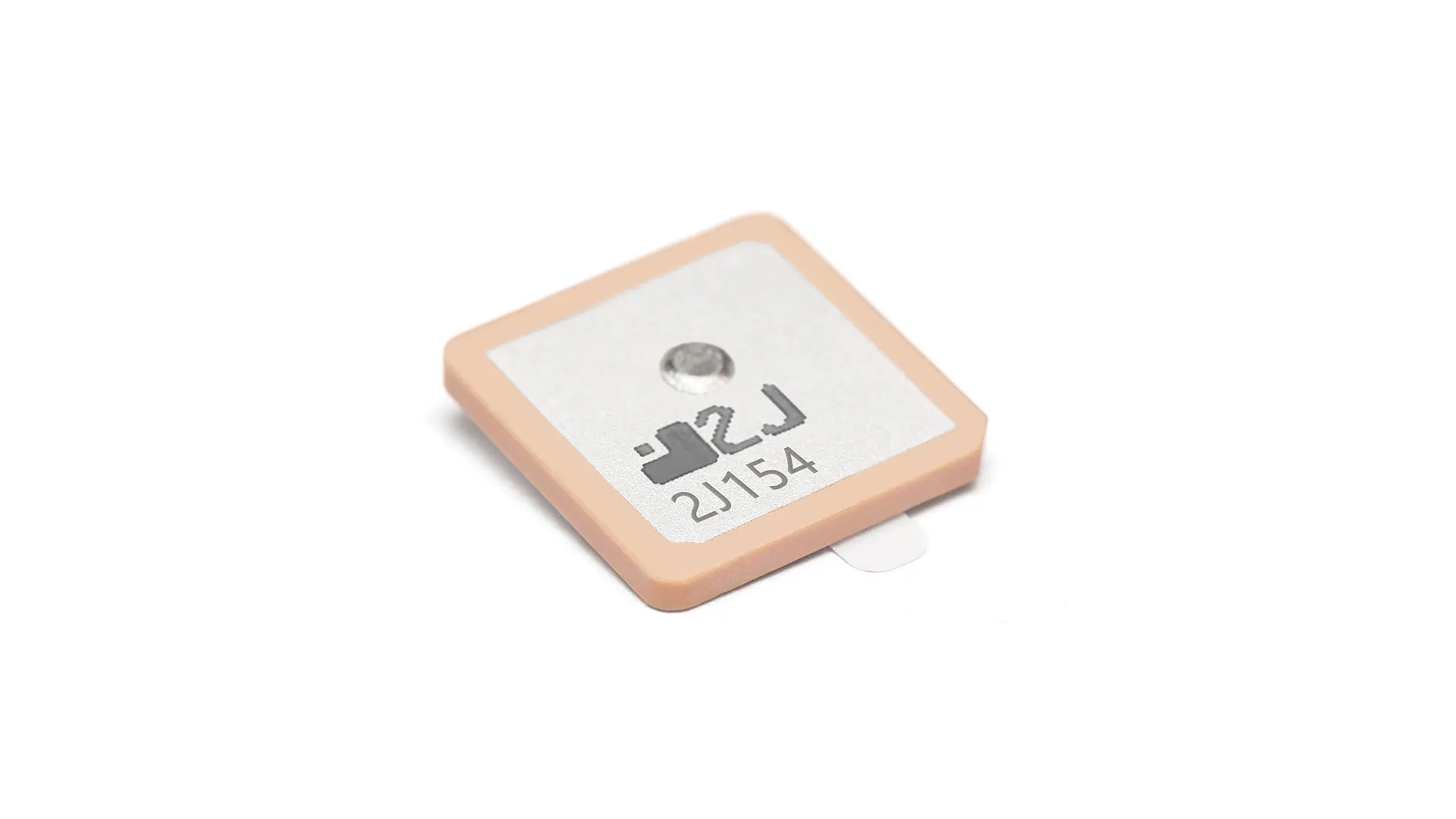

2JCP1820101Da
GPS/BeiDou 1561-1575 MHz High Efficiency Ground Plane Dependent Ceramic Passive Antenna
Connections (1)
1×
GPS / BeiDou / QZSS / Galileo - L1
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Dimensions (mm) | 18.5 × 18.5 × 2 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / BeiDou / QZSS / Galileo - L1
| Standards | GPS/BeiDou/QZSS/Galileo |
|---|---|
| Frequency | 1561.098, 1575.42 |
| Passive Gain (dBi) | ~3.6, ~4.0 |
| Efficiency (%) | ~63.1, ~64.0 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Dependent
High Efficiency
Passive GNSS Ceramic Antenna
Embedded Antenna
4.0 dBi GNSS Peak Gain
Right Hand Circular Polarisation (RHCP)
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
