2J6934MP

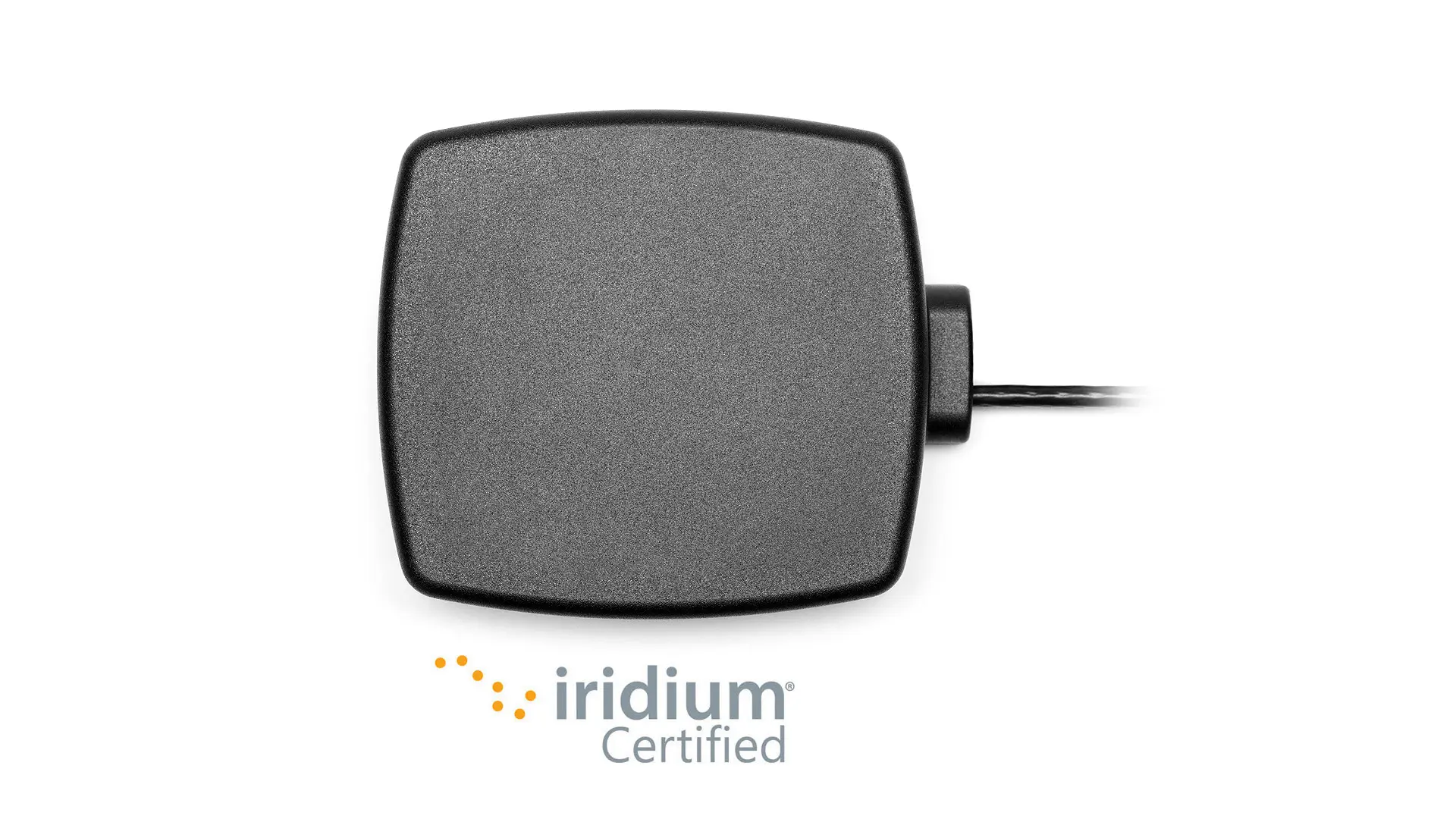

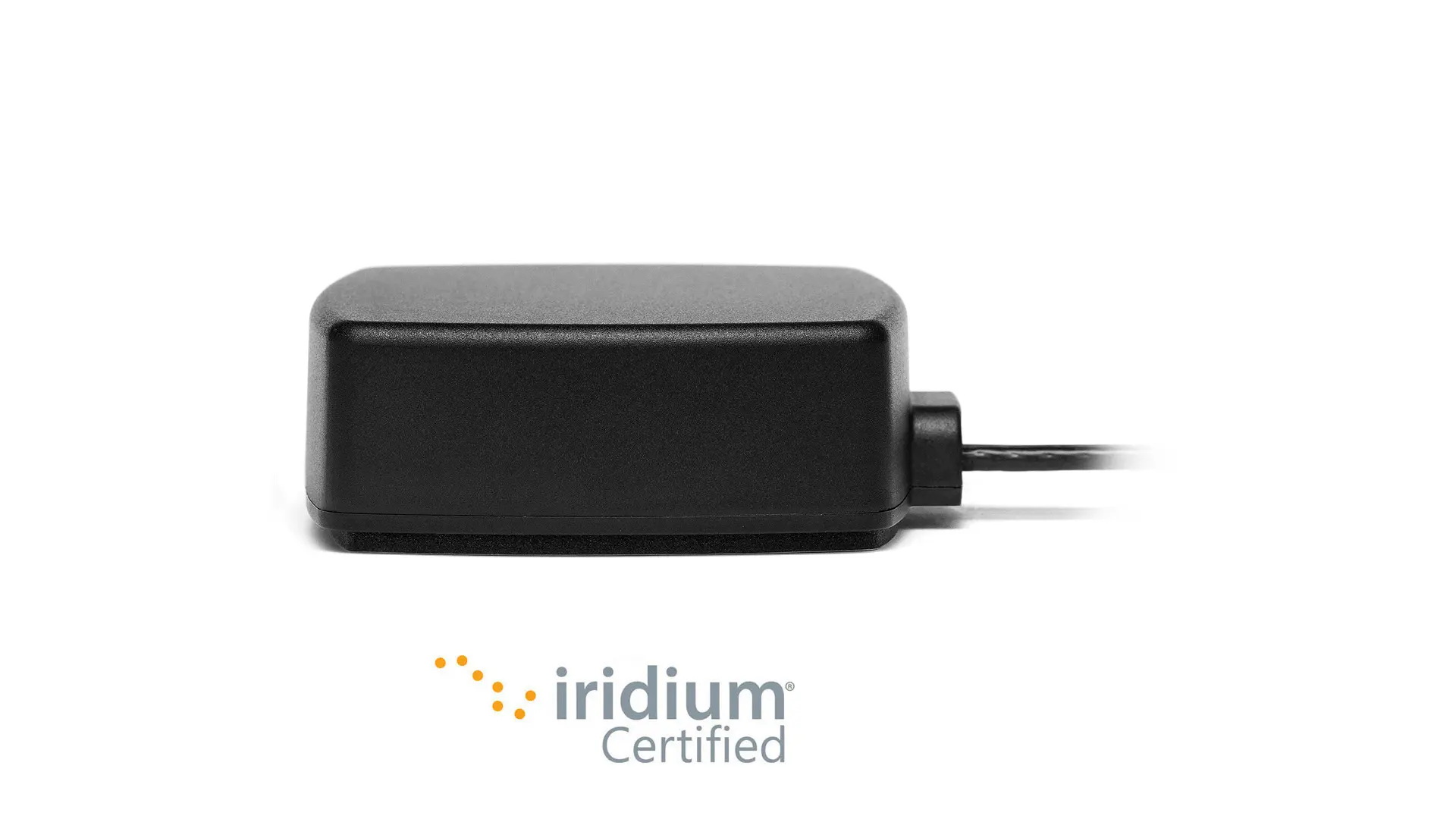

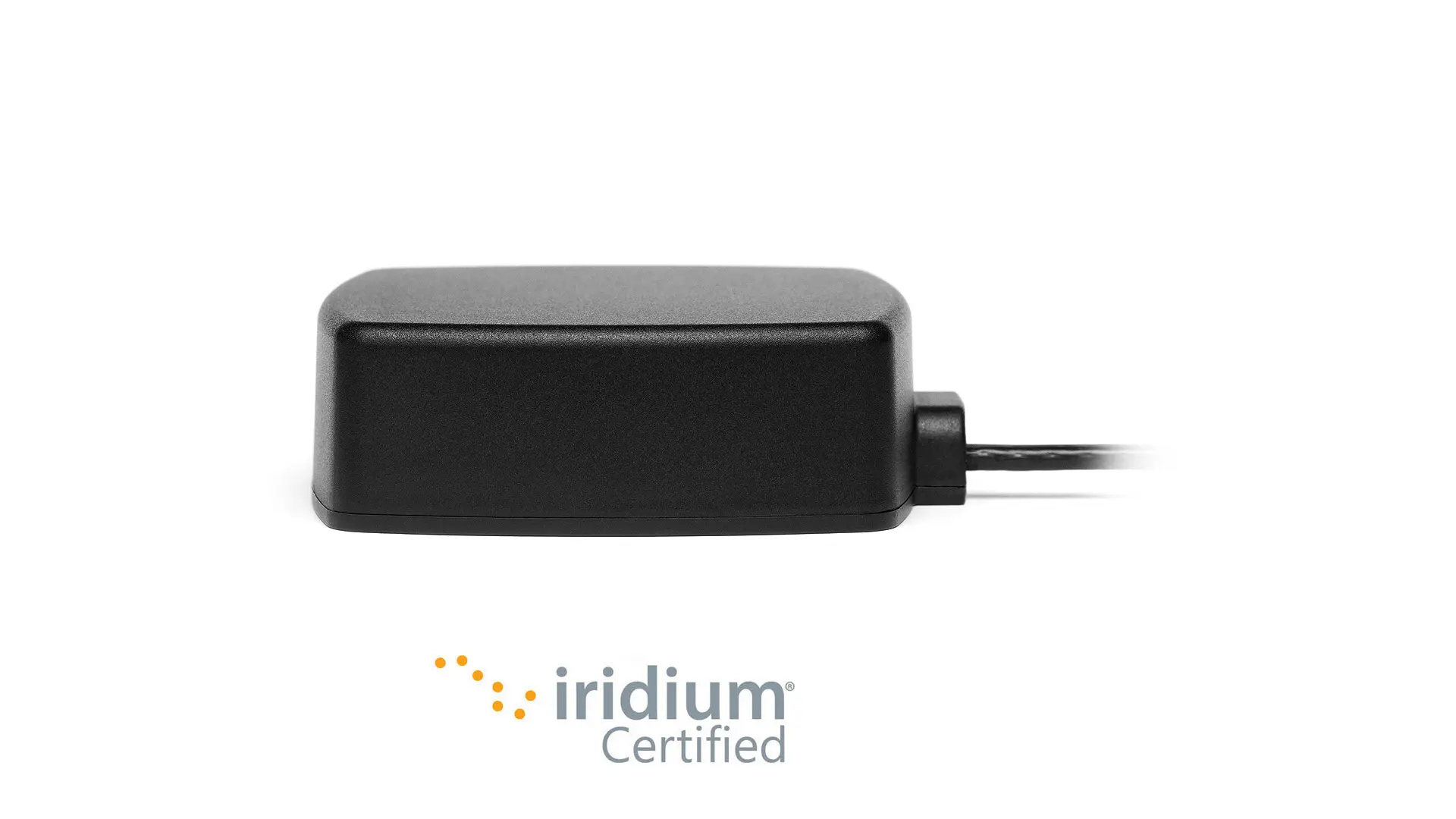

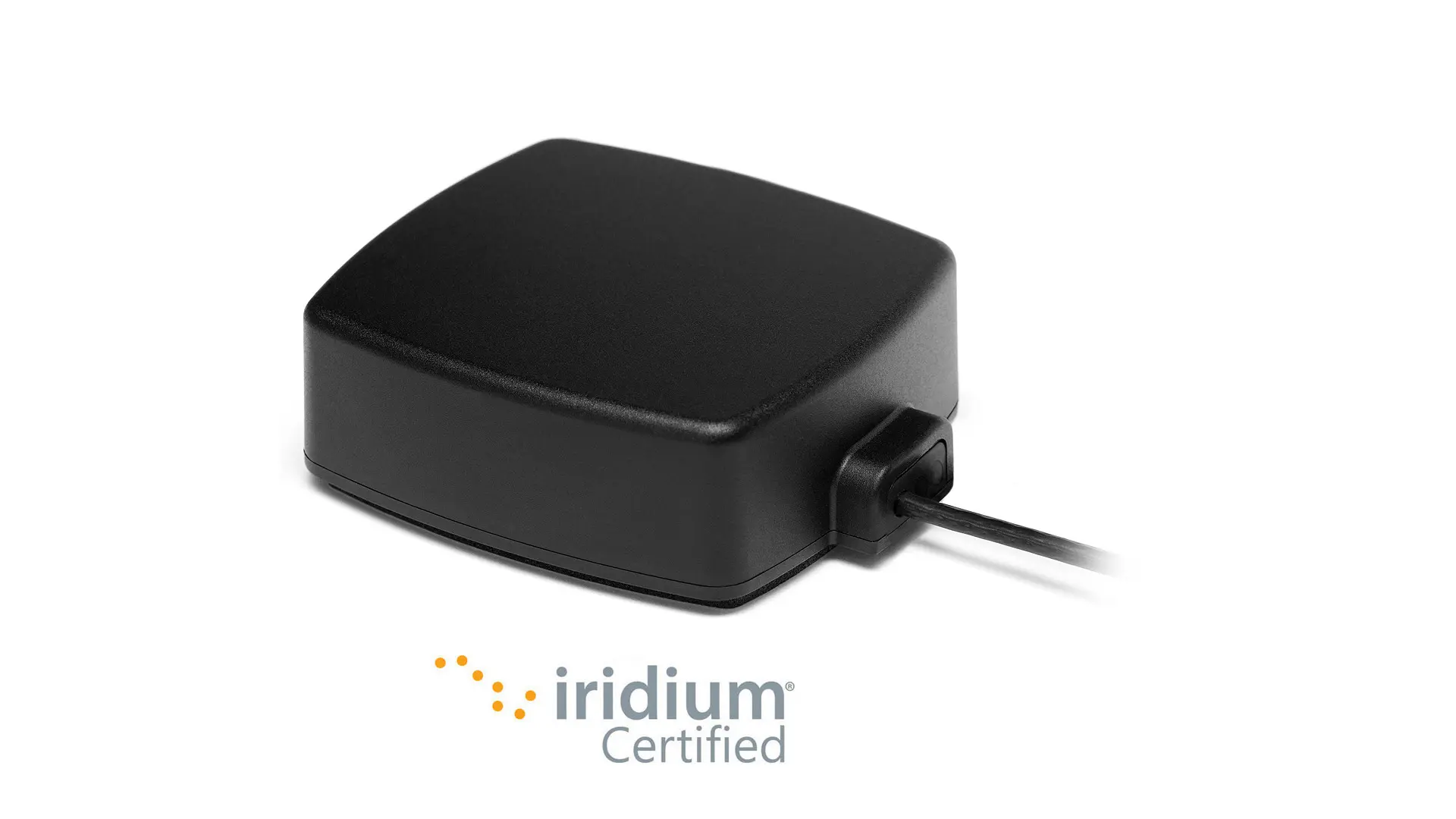

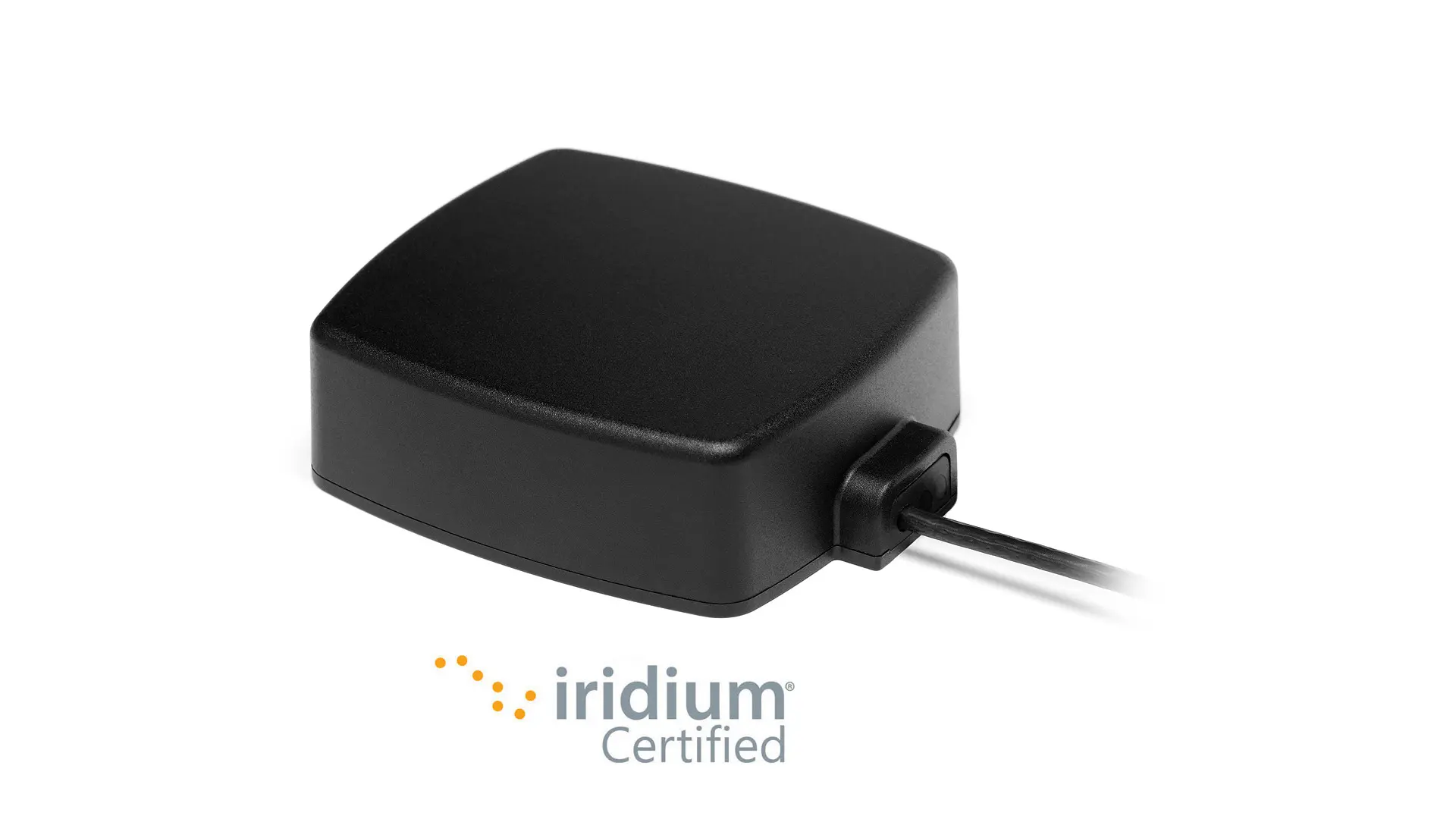

Phoenix Iridium Certified/GPS High Gain Magnetic/Adhesive Mount Antenna
Connections (1)
1×
GPS & IRIDIUM
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 89 × 76 × 27/30 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , Iridium Certified |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS & IRIDIUM
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Peak Gain (dBi) | ~5.1, ~5.7 |
| Efficiency (%) | ~93.8, ~92.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Customizable Cable and Connector

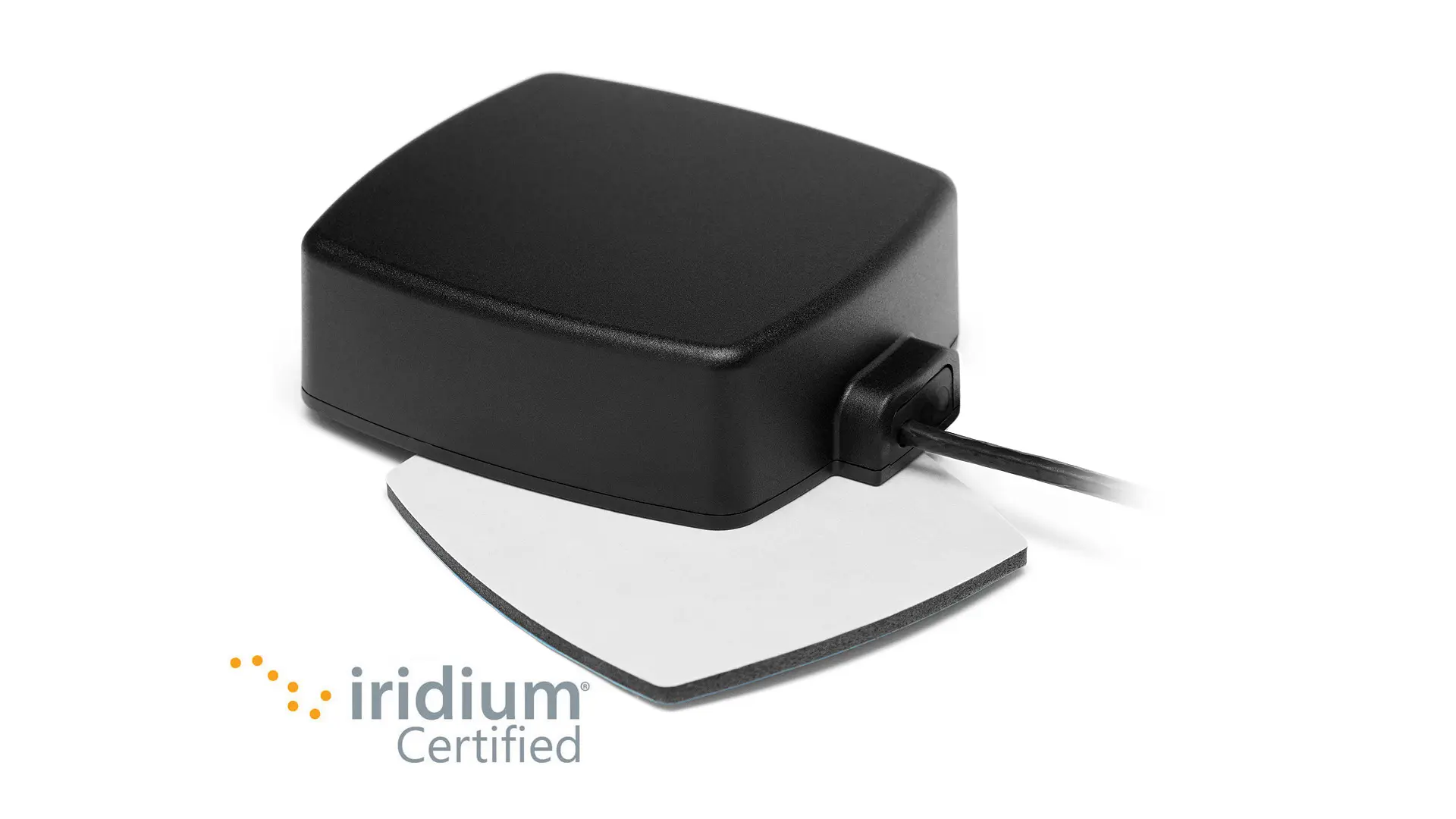

Adhesive Mounting sticker included
Iridium Certified Antenna
Single Feed Technology
Passive GNSS-IRIDIUM Antenna
5.7 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
