2J9C34JW-C392N

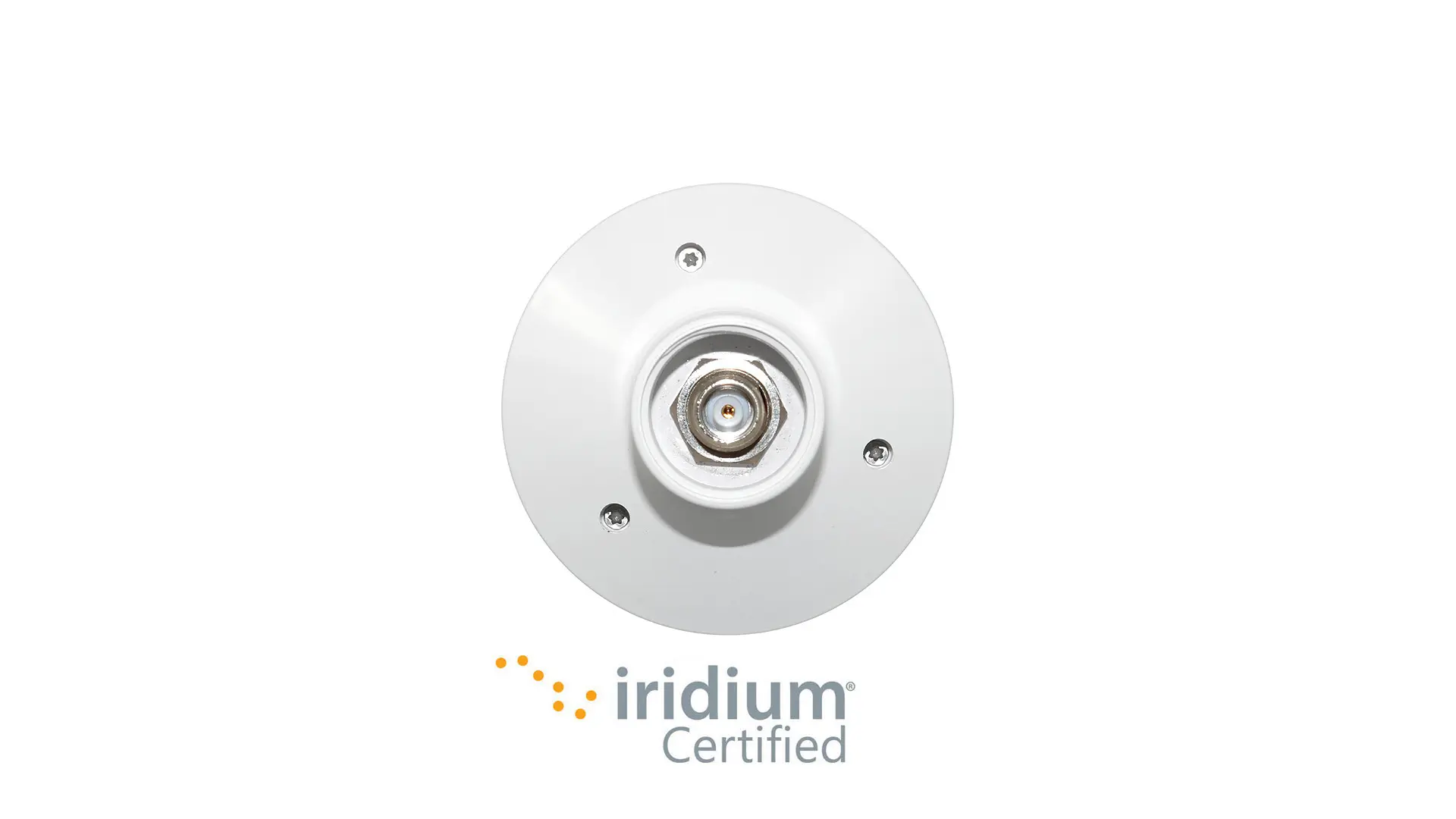

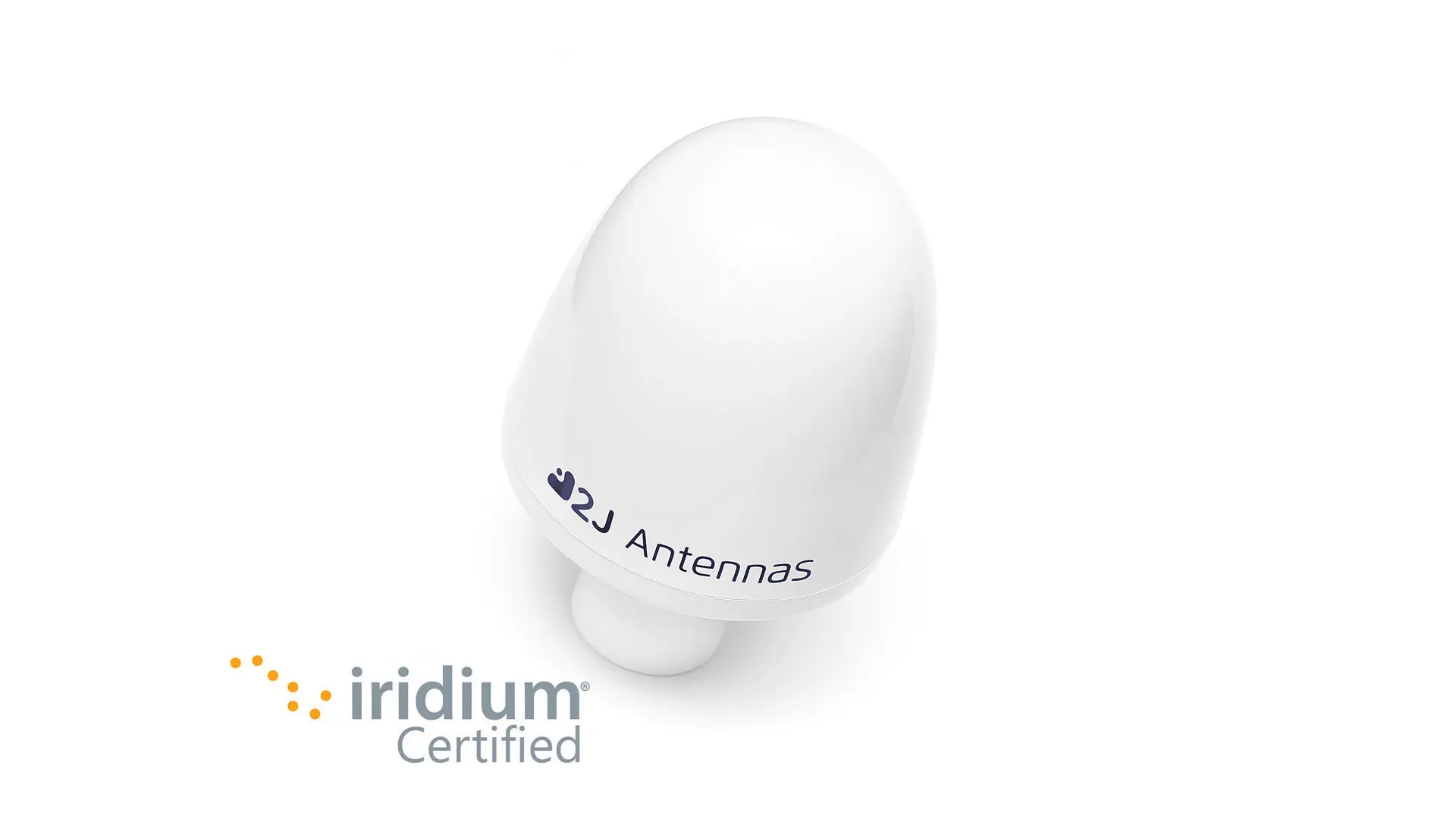

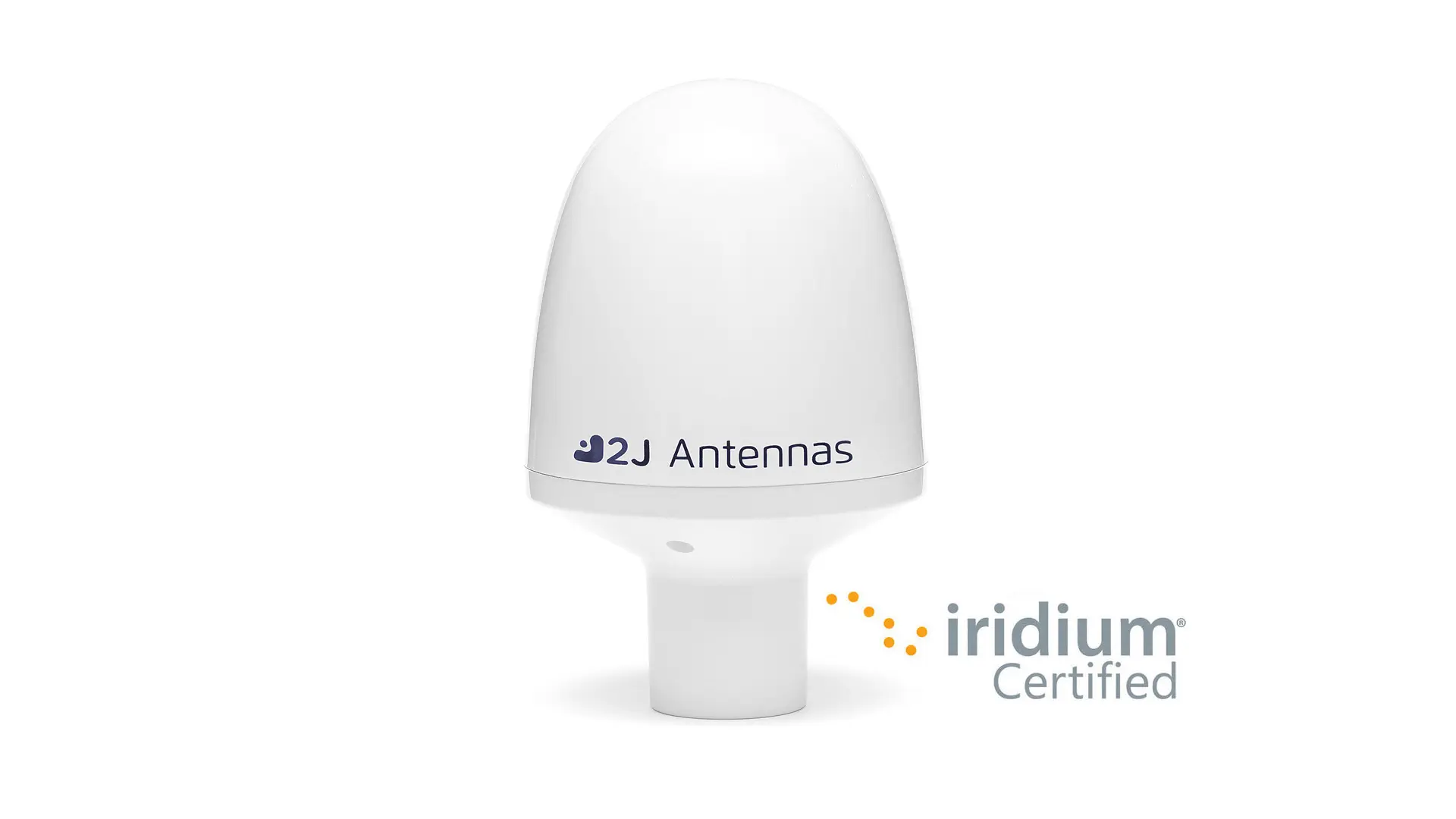

GPS Galileo High Performance Iridium Certified Pole Mount Antenna
Connections (1)
1×
GPS & IRIDIUM
| Mounting | Pole Mount |
|---|---|
| Dimensions (mm) | Ø 74 × 116 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified , IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS & IRIDIUM
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Peak Gain (dBi) | ~5.1, ~5.7 |
| Efficiency (%) | ~93.8, ~92.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Iridium Certified Antenna
Single Feed Technology

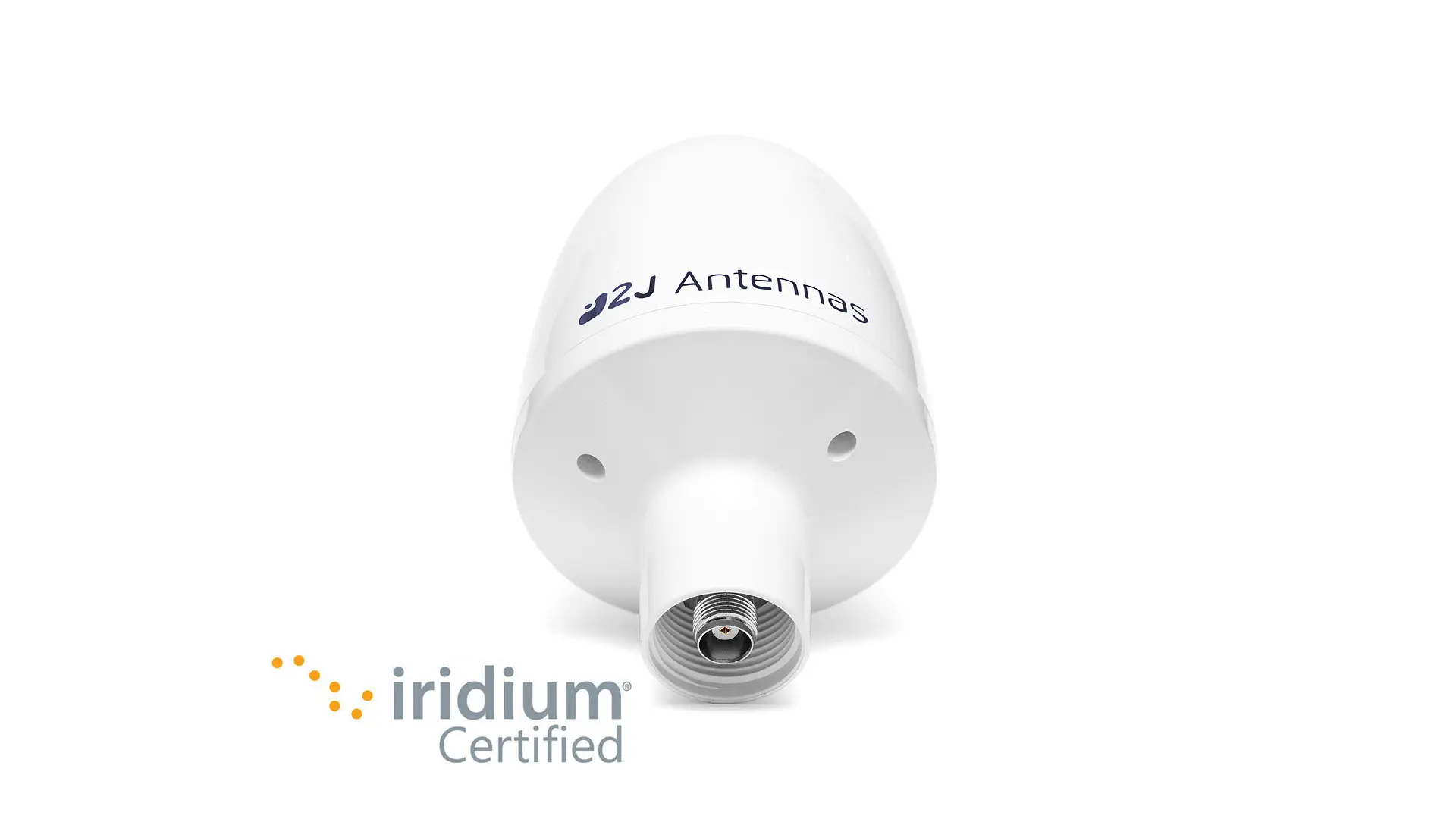

Integrated TNC Female Connector
Passive GNSS-IRIDIUM Antenna
5.7 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
