2J6510M

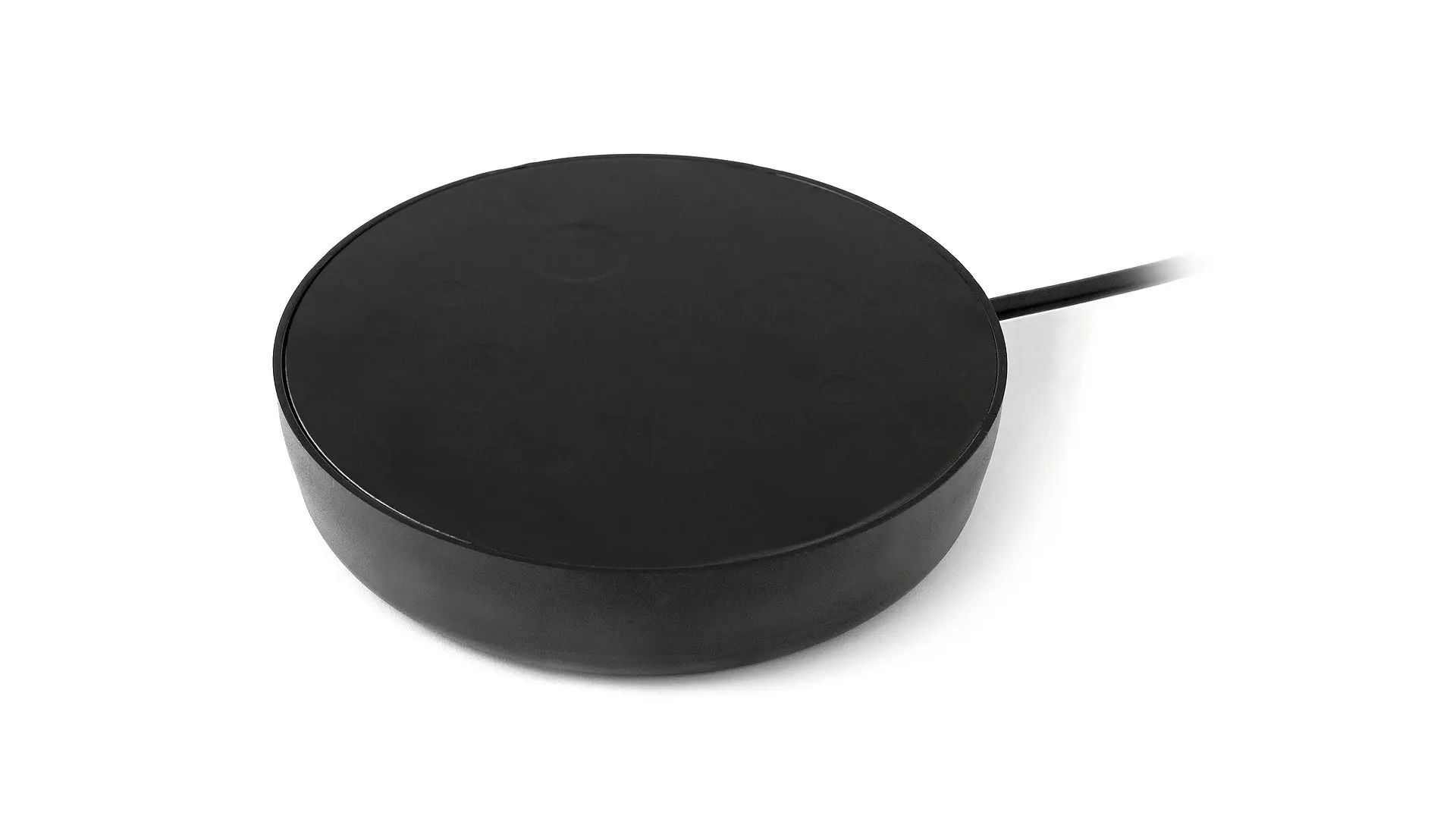

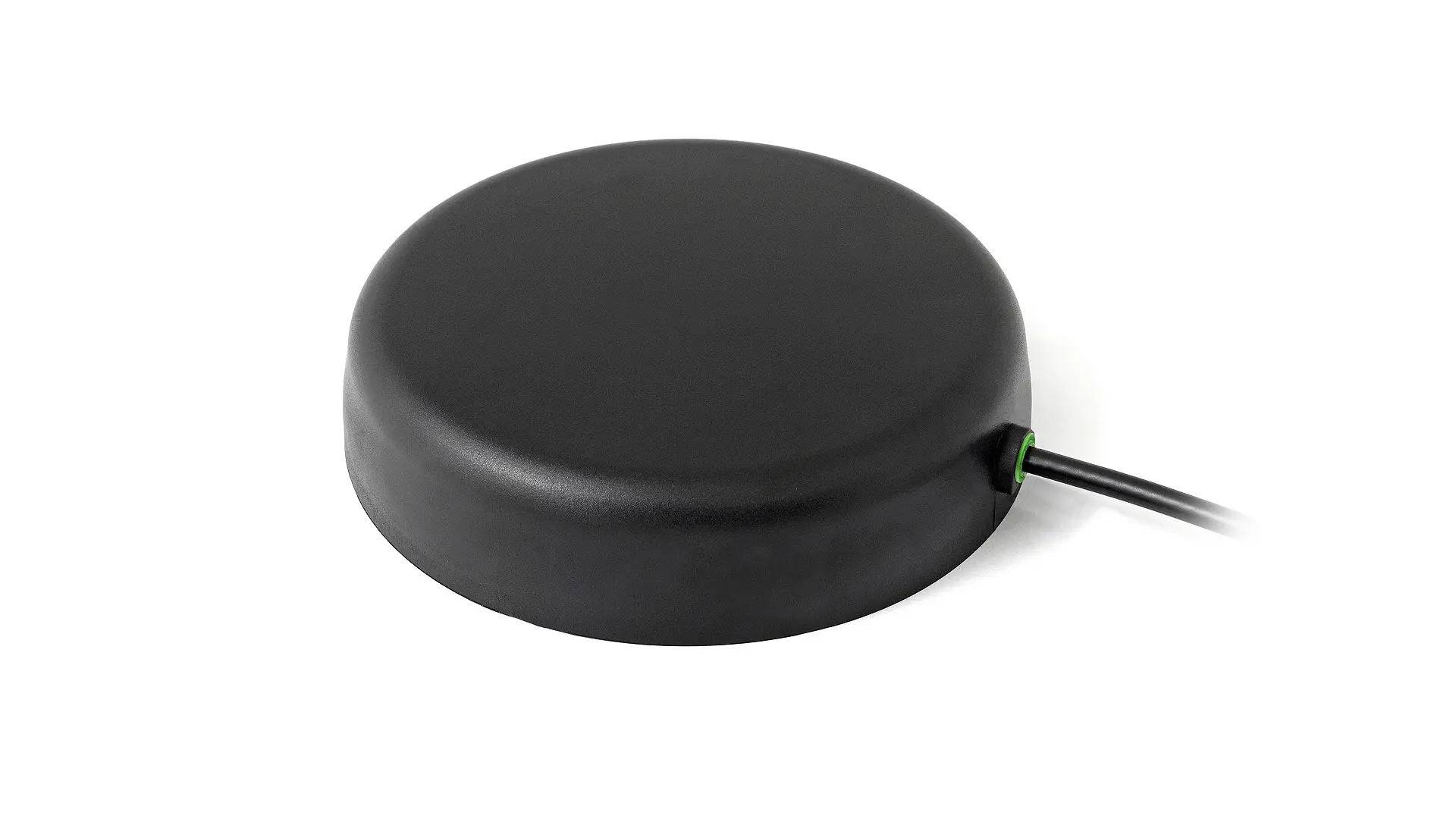

433 MHz ISM Magnetic Mounting IP67 IP69K IK09 Antenna
Connections (1)
1×
433 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 135.5 × 30 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69K , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
433 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ISM, LoRa |
|---|---|
| Frequency | 433-435 |
| VSWR | ~1.1:1 |
| Efficiency (%) | ~58.1 |
| Peak Gain (dBi) | ~2.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Heavy Duty antenna
2.9 dBi 433 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
