2J6915MPa

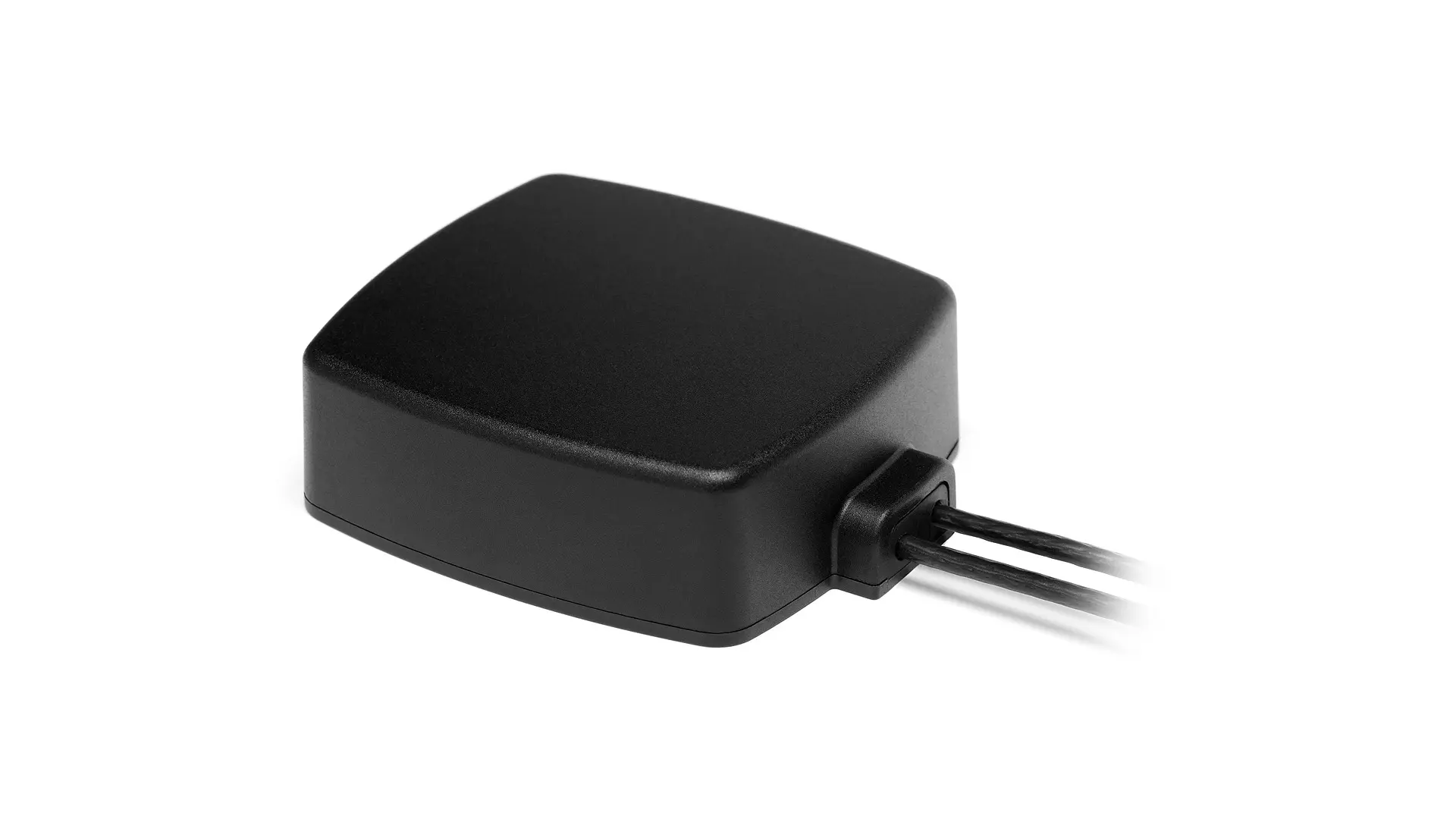

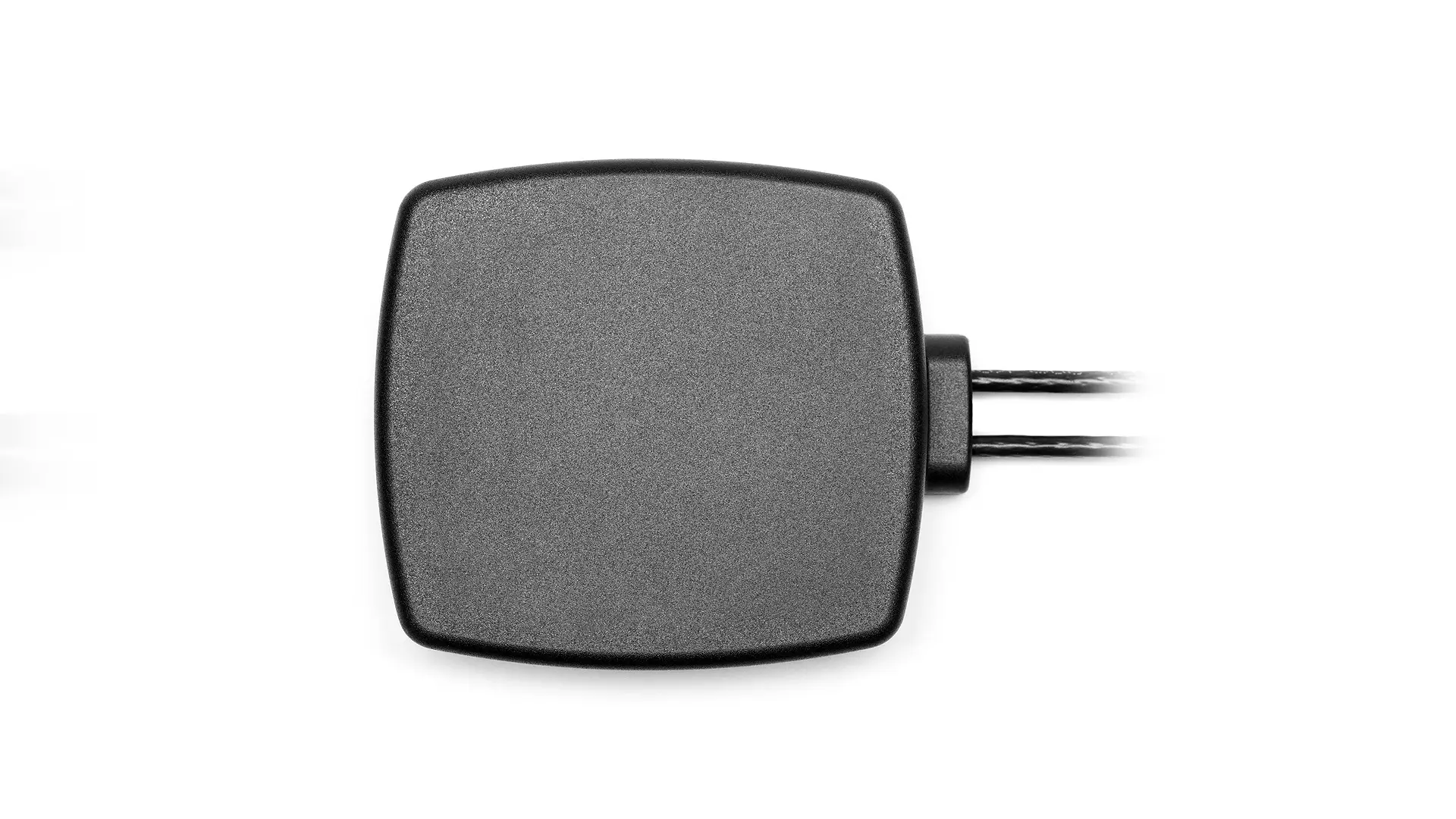

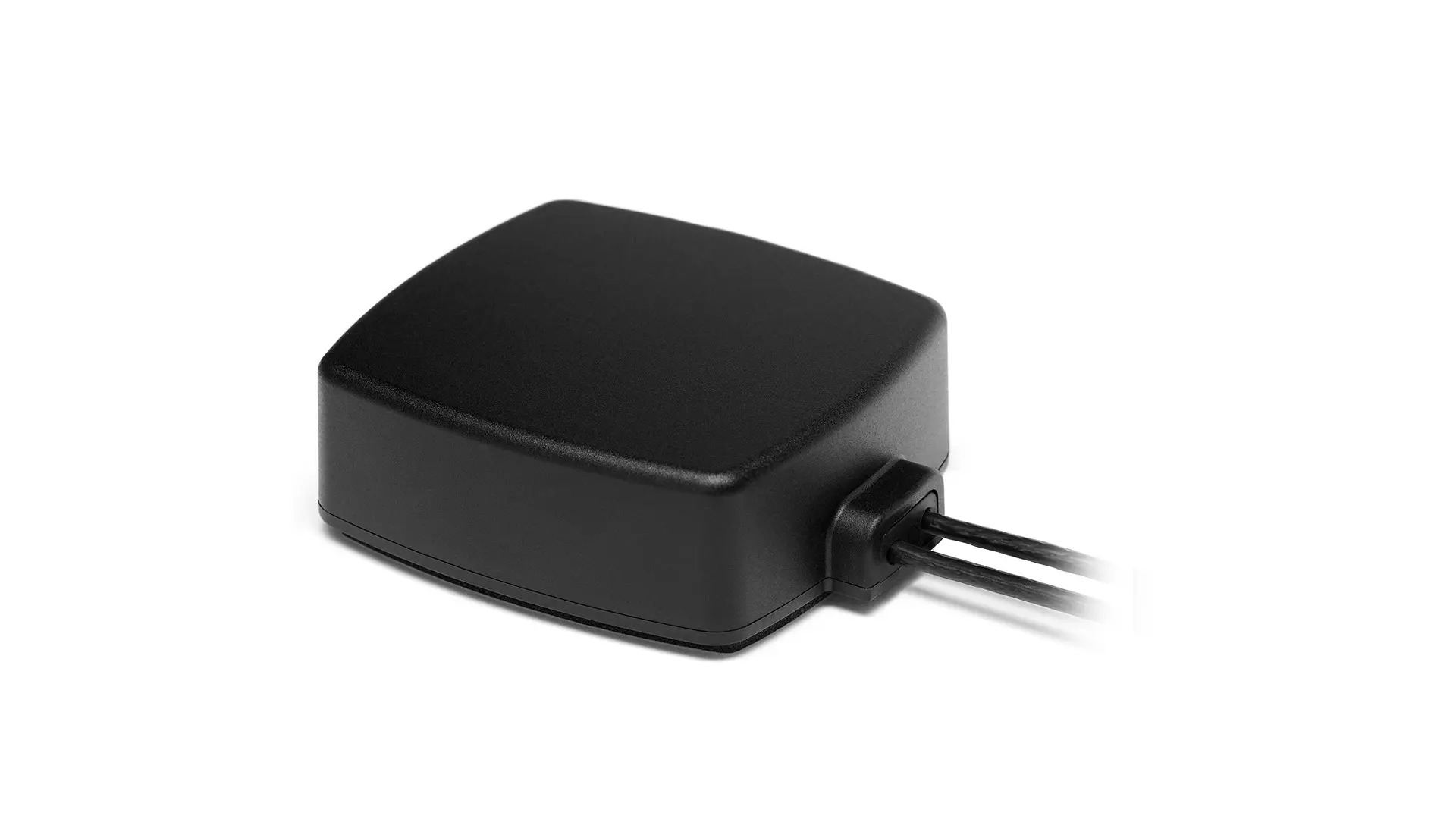

Phoenix 2× 868/915 MHz ISM MIMO Magnetic Adhesive mount Antenna
Connections (2)
2×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 89 × 76 × 27/30 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~2.2:1, ~2.0:1 |
| Efficiency (%) | ~58.0, ~63.0 |
| Peak Gain (dBi) | ~3.5, ~4.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~2.3:1, ~2.1:1 |
| Efficiency (%) | ~48.5, ~52.6 |
| Peak Gain (dBi) | ~3.0, ~3.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector

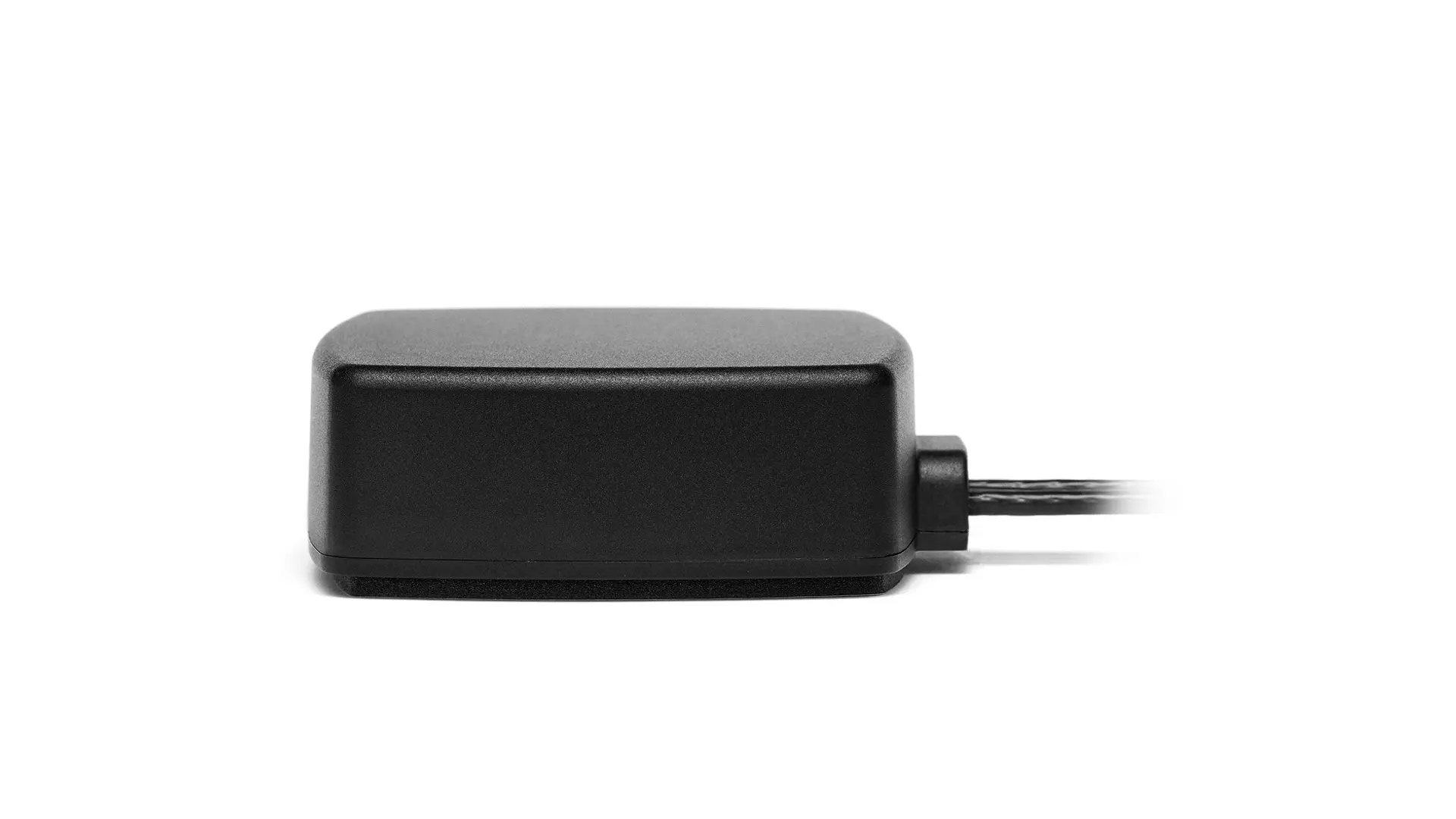

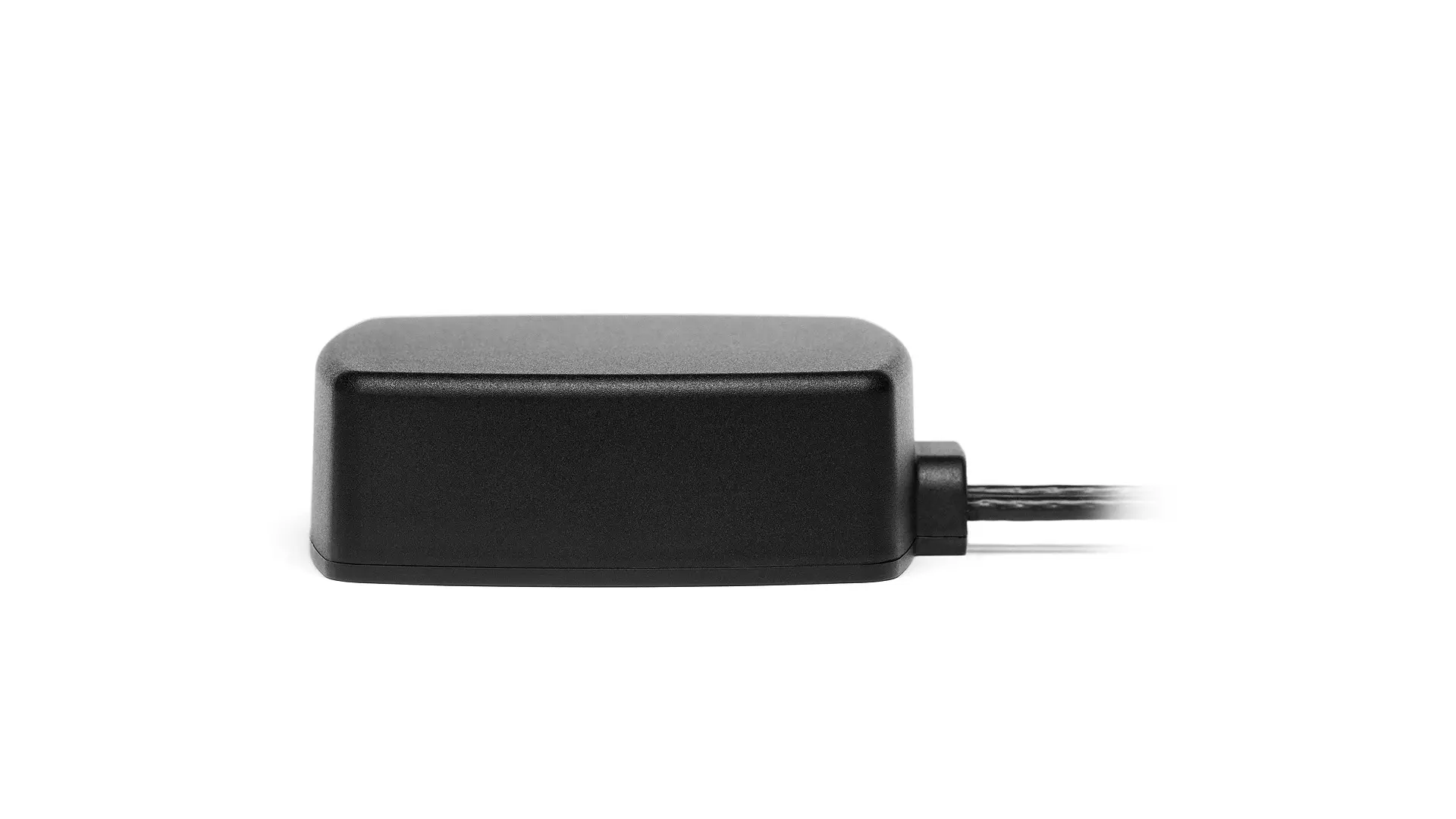

Low Profile

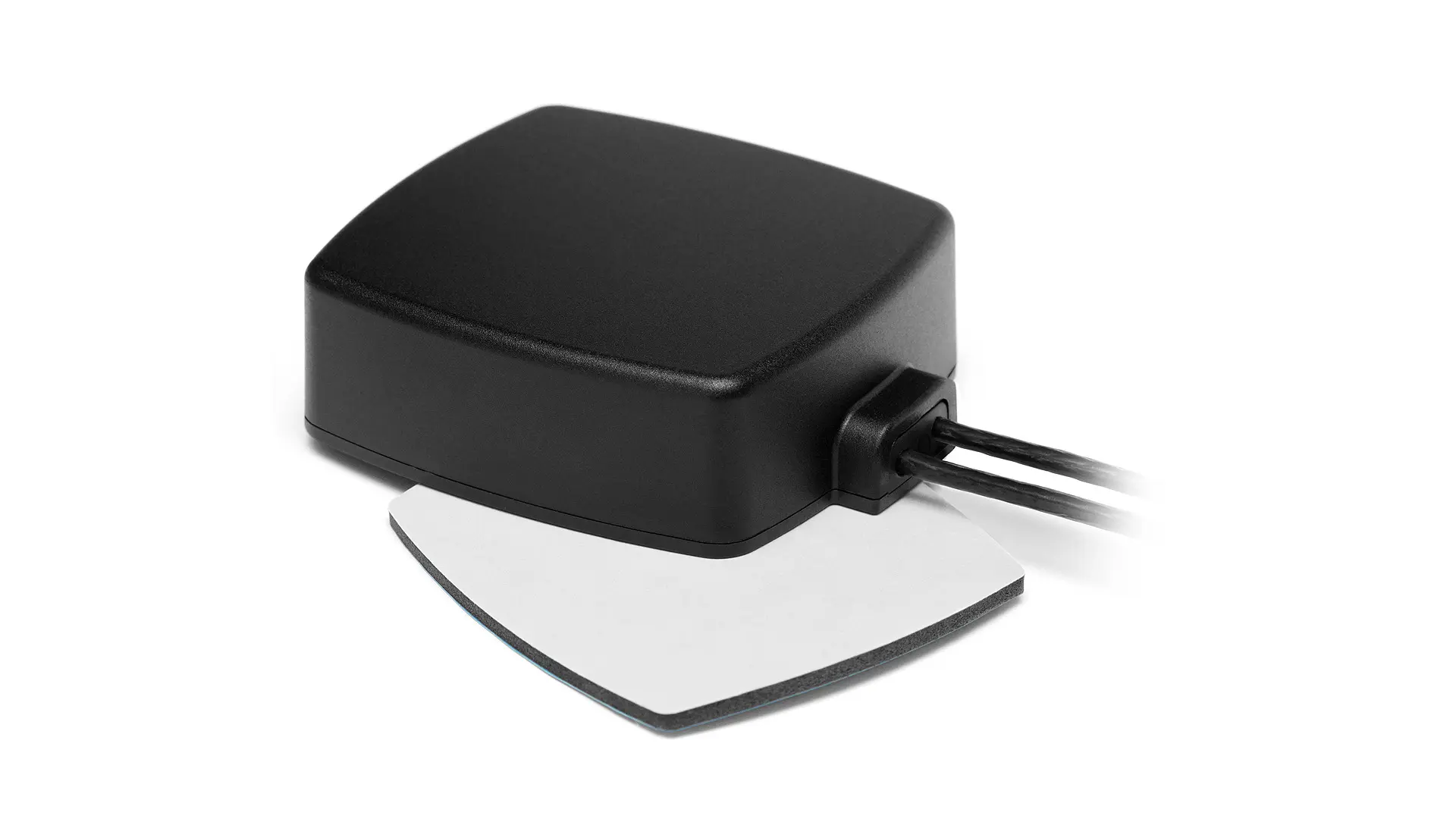

Adhesive Mounting sticker included
2-in-1 Combination Antenna
Dual Band 868/915 MHz ISM Antenna
4.8 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
