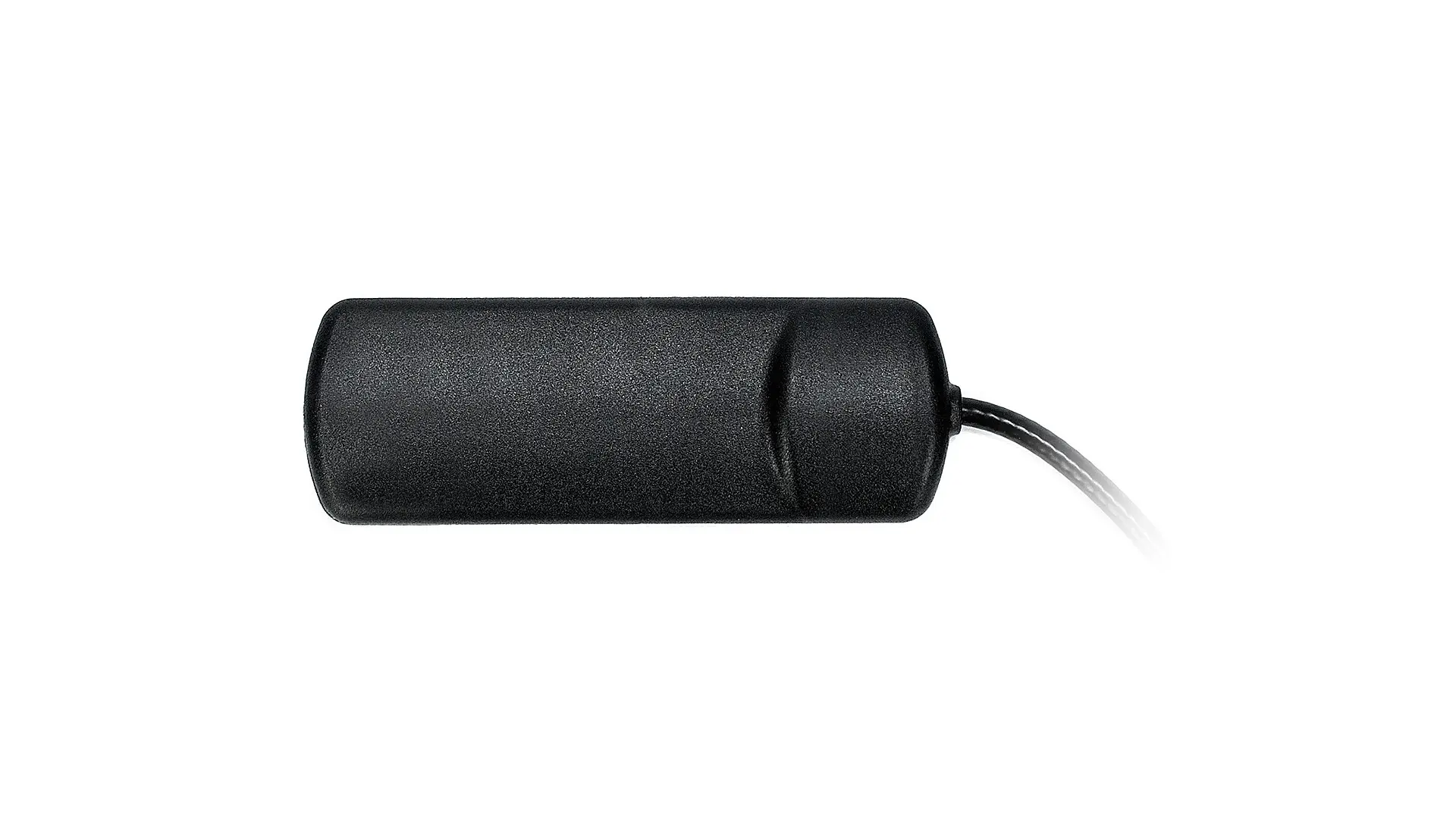

2J5515P
868/915 MHz ISM Adhesive Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 71 × 25 × 7 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~2.2:1, ~1.8:1 |
| Efficiency (%) | ~31.5, ~31.9 |
| Peak Gain (dBi) | ~3.3, ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Low Profile
Dual Band 868/915 MHz ISM Antenna
3.3 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
