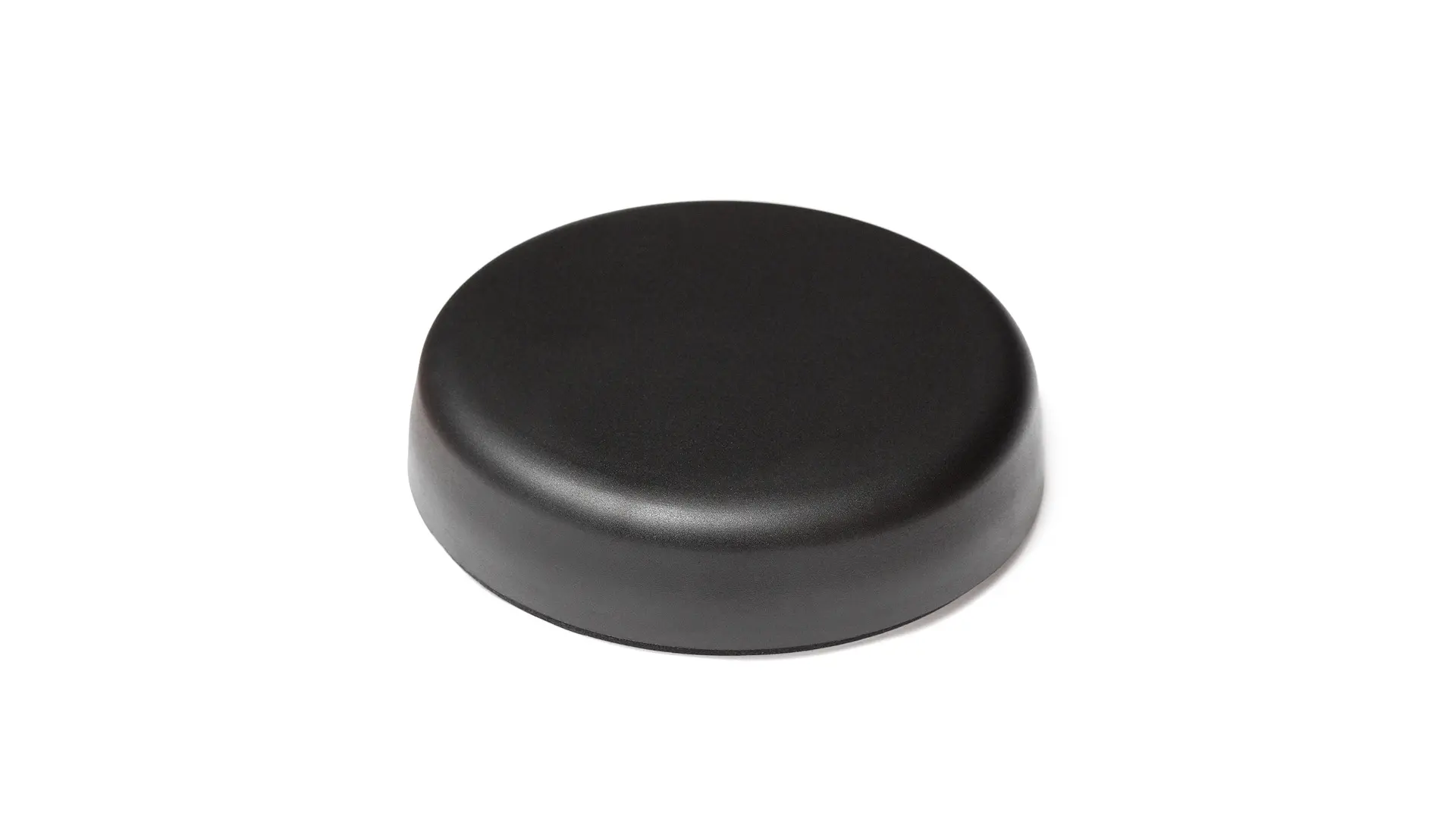

2J6510B-M18-SP
433 MHz ISM Anti-Rotation Mounting IP67 IP69K IK09 Antenna
Connections (1)
1×
433 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 136 × 31.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
433 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ISM, LoRa |
|---|---|
| Frequency | 433-435 |
| VSWR | ~1.3:1 |
| Efficiency (%) | ~58.3 |
| Peak Gain (dBi) | ~2.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
2.9 dBi 433 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
Antenna band list
Compatible mounting brackets
2JB03Ha
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ja
Pole Mount metal bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
