2JE49a

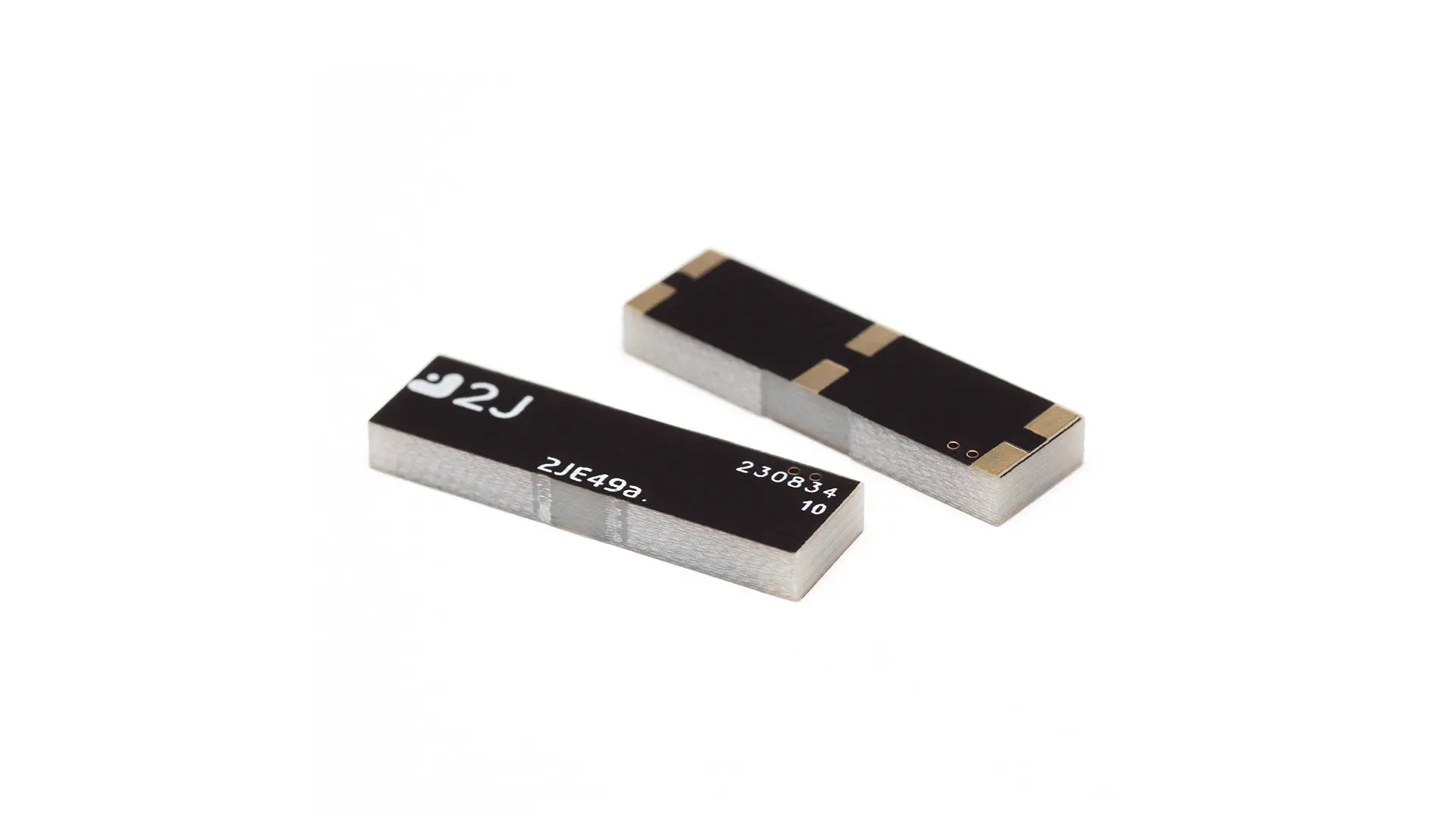

868/915 MHz ISM Surface Mount Compact Fiberglass Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Surface Mount Fiberglass |
|---|---|
| Dimensions (mm) | 26 × 7.6 × 3 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~1.8:1, ~1.5:1 |
| Efficiency (%) | ~66.7, ~81.7 |
| Peak Gain (dBi) | ~5.0, ~5.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
SMT Brick Embedded Antenna
Fiberglass Material
Compact Size
Easy to Integrate
Dual Band 868/915 MHz ISM Antenna
5.8 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
Embedded Antenna Solutions
