2J6039BGF

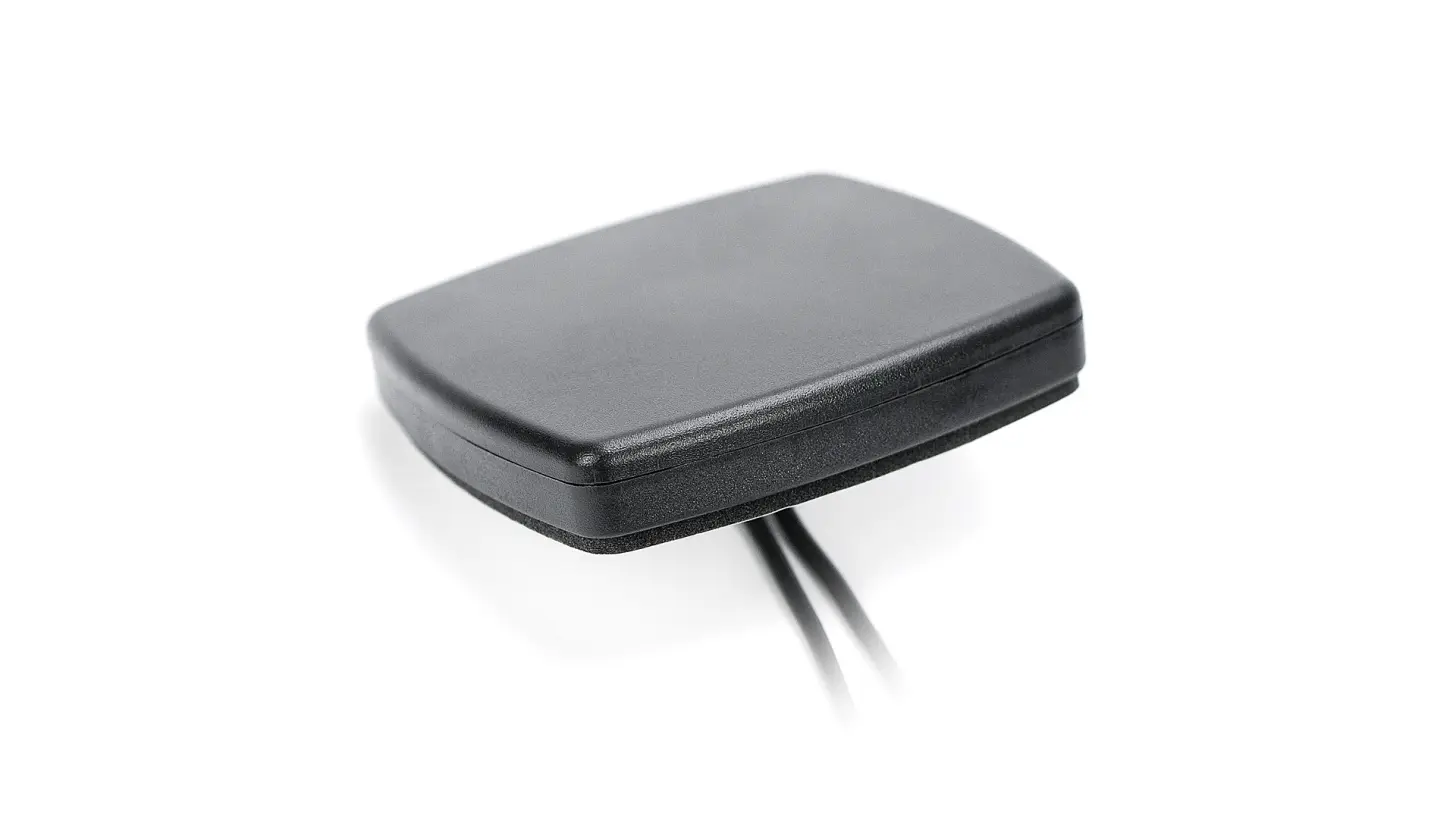

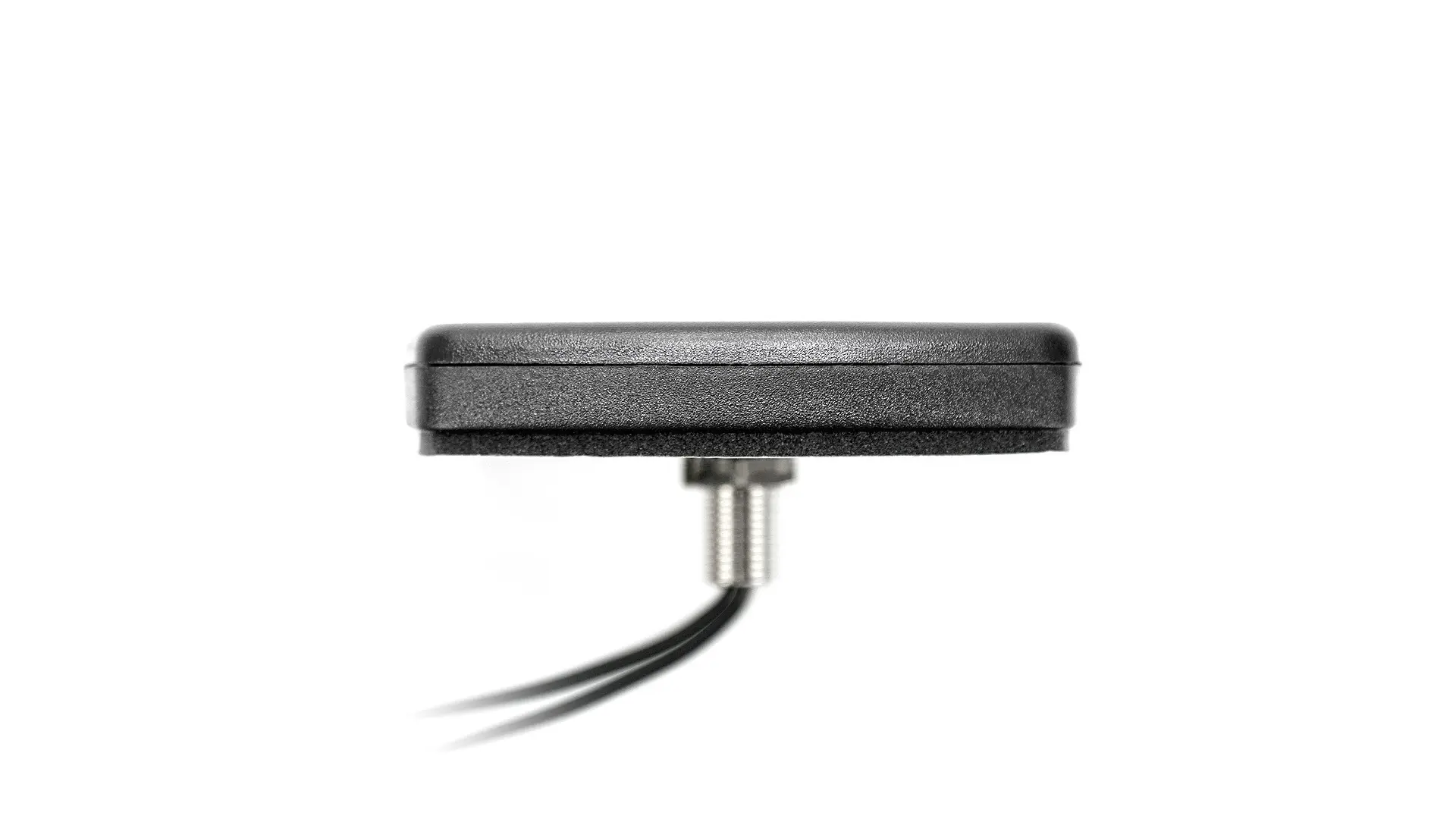

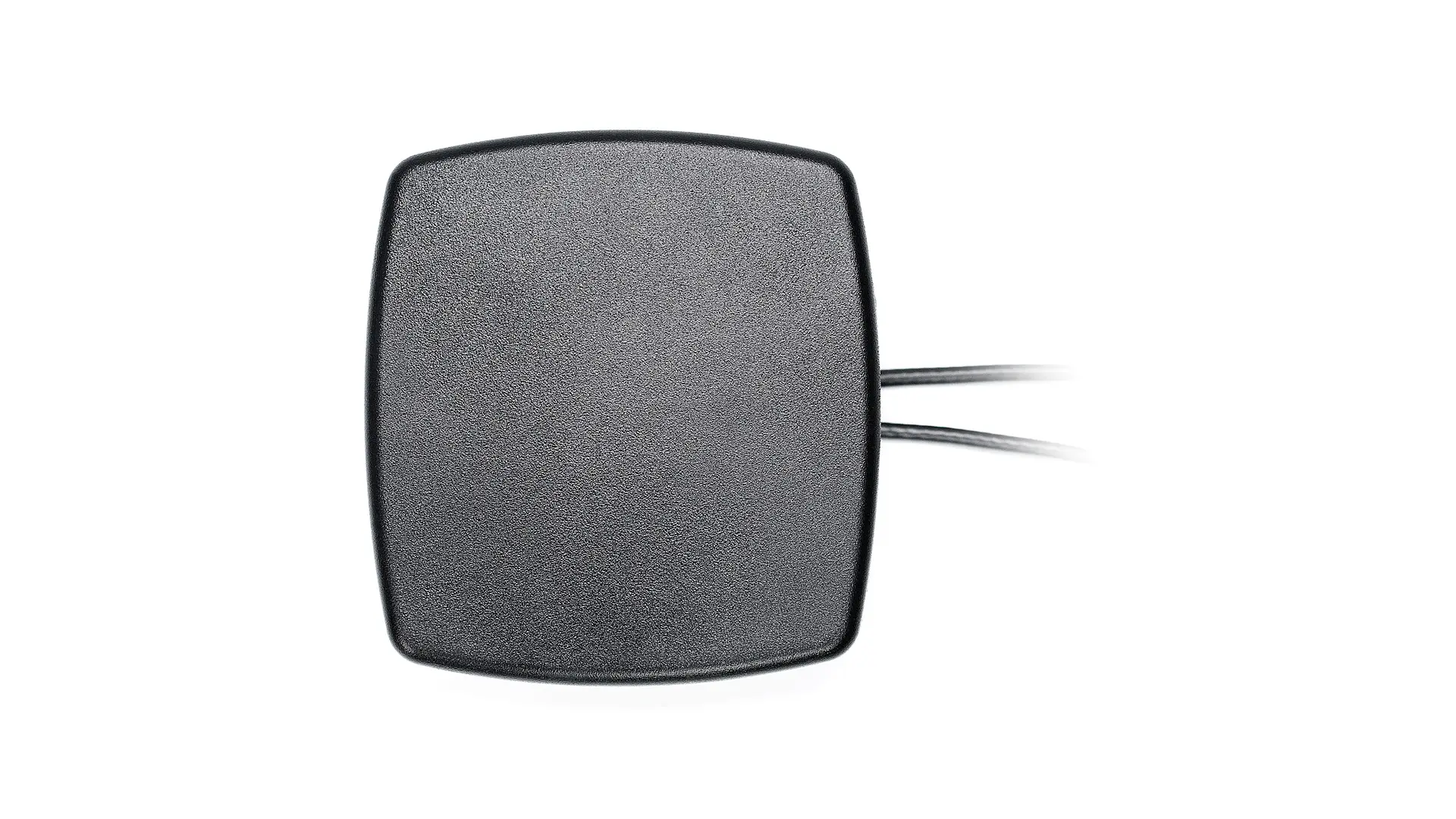

Falcon 868/915 MHz ISM and GPS/GLONASS/Galileo Compact Antenna
Connections (2)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 80 × 74 × 14.7 |
| Operating temperature | -40 °C to +85 °C |
| Note | 19mm Thread is Default Option. See Drawing in Datasheet for other Thread Options available. |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~2.6:1, ~3.5:1 |
| Efficiency (%) | ~40.8, ~40.7 |
| Peak Gain (dBi) | ~1.3, ~1.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 28 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 1.5 - 3.6 |
| Current (mA) | 9 Typ |
| Power Consumption (mW) | 24.3 Typ |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Dual Band 868/915 MHz ISM Antenna
1.6 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Energy & Utilities
Navigation & Positioning
Marine & Maritime
