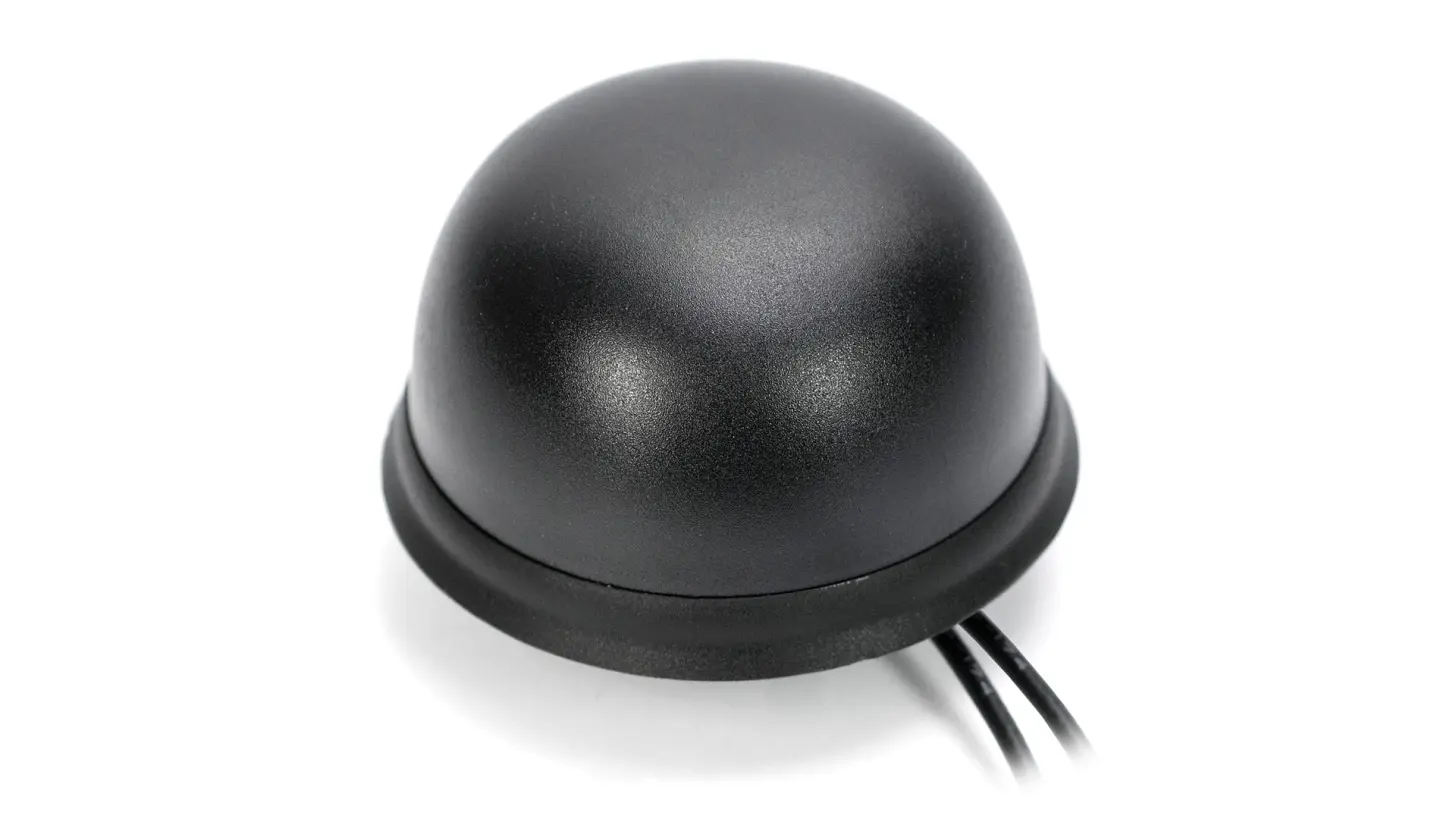

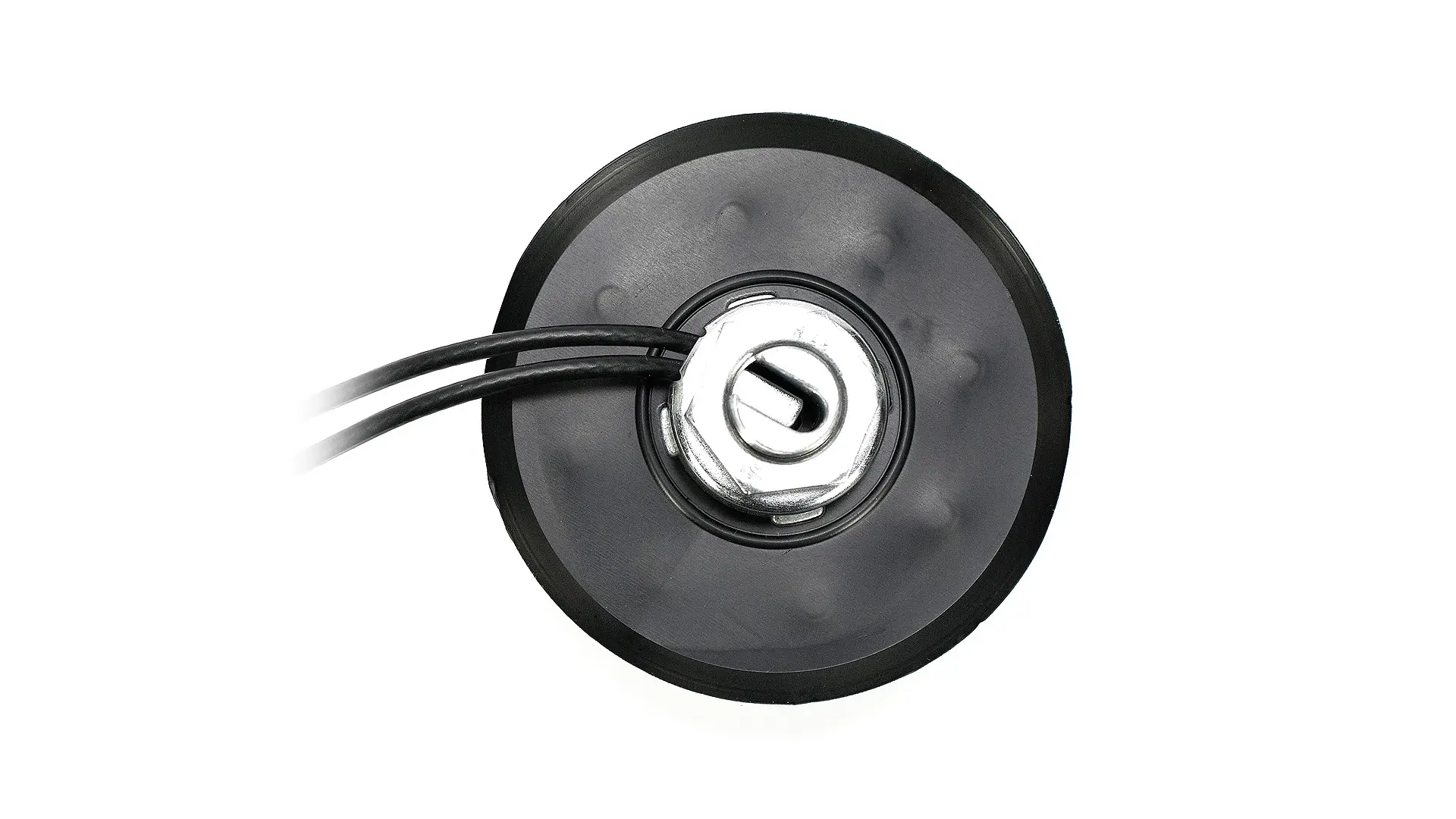

2J6703B
WiFi ISM, GPS/Galileo Anti-Rotation IP67 IP69K IK10 Antenna
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 77.3 × 36.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69K , IK10 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.2:1, ~1.4:1 |
| Efficiency (%) | ~35, ~33 |
| Peak Gain (dBi) | ~4.3, ~1.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
GPS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42 |
| VSWR | <=1.2:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 26 @ 3 V |
| Saw Filter Type | No-Filter |
| Voltage (V) | 3 - 5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 45 - 125 |
