2J7A02Bc

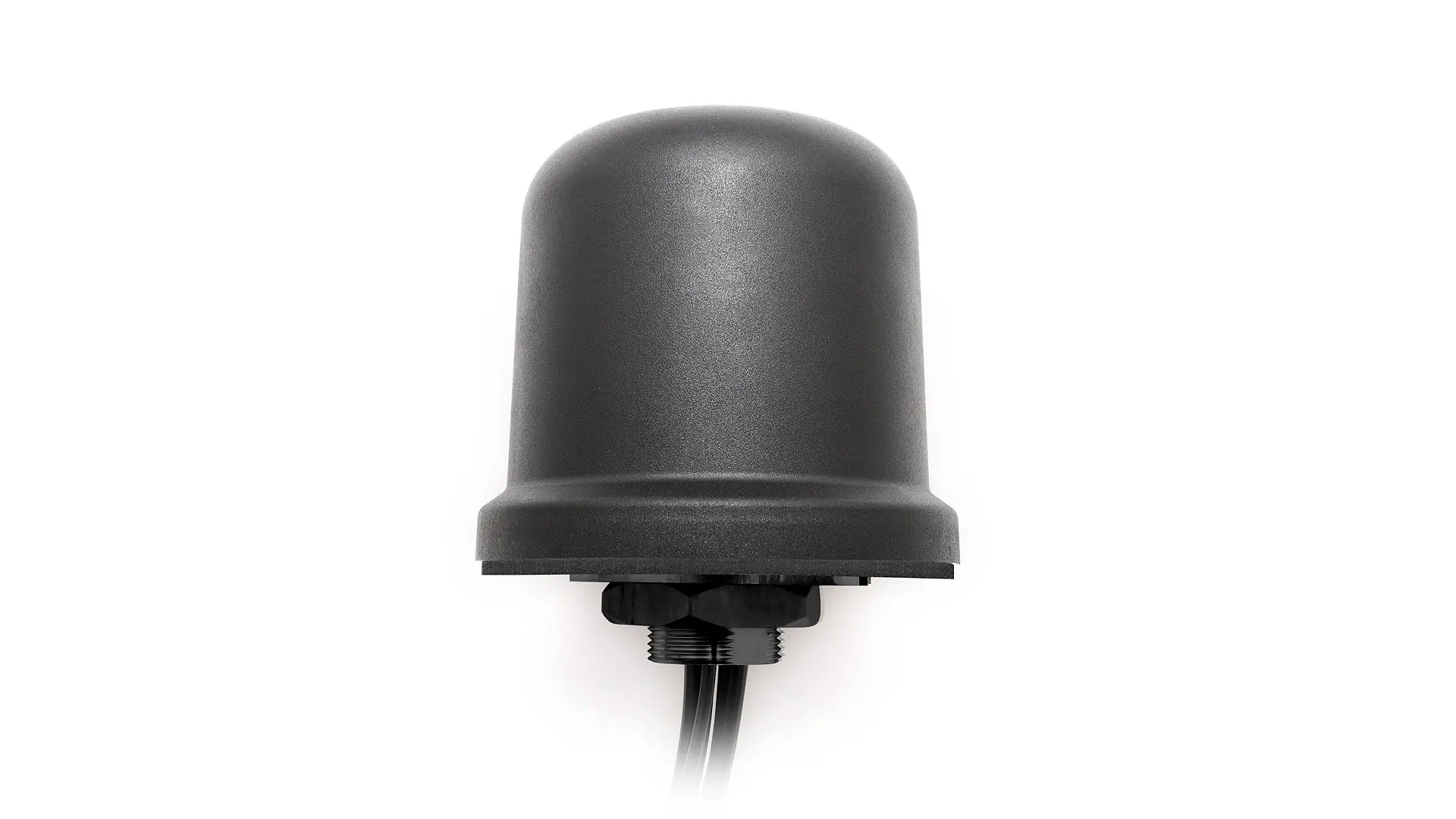

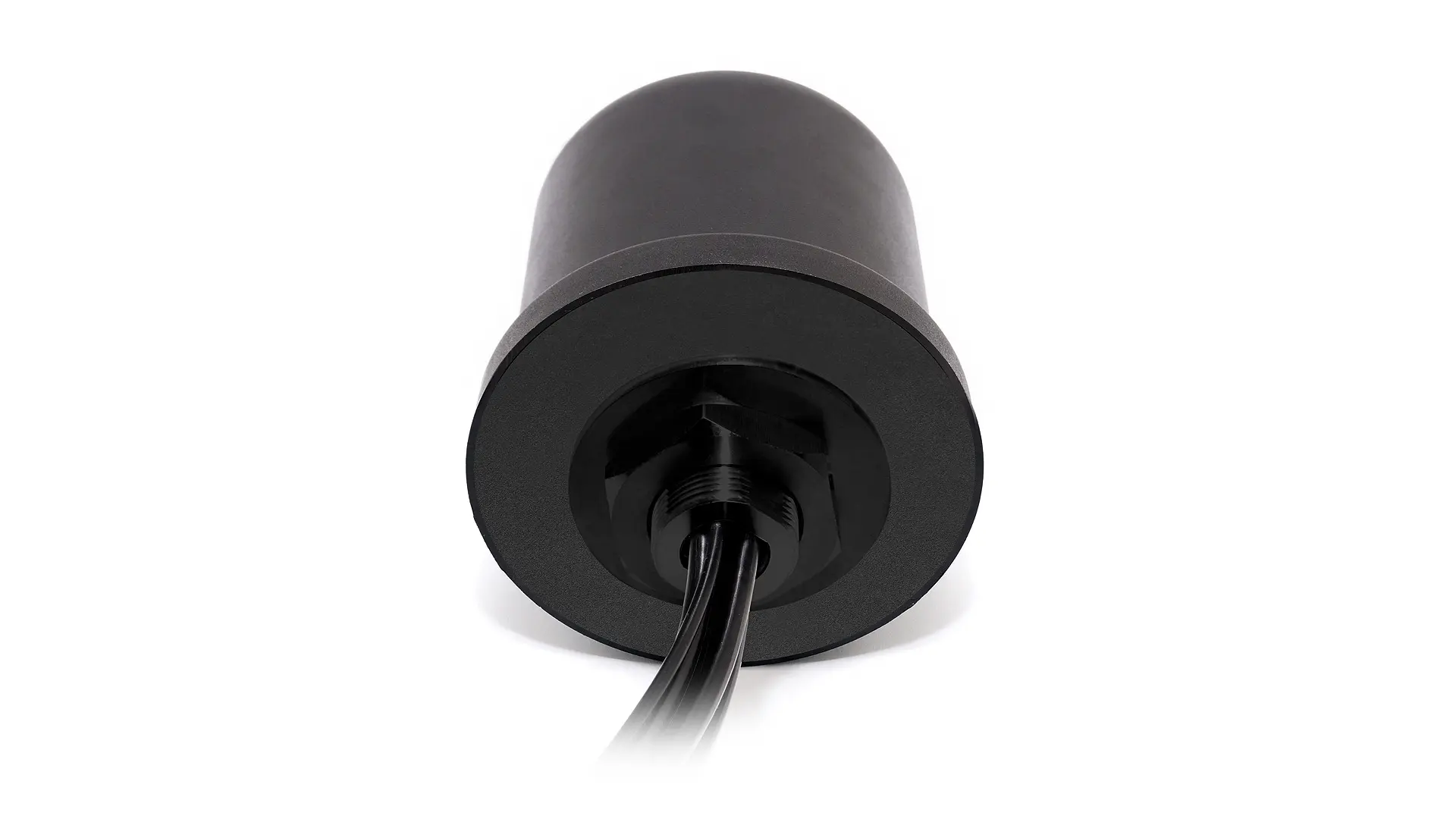

Medusa Quad 4-in-1 WIFI 6E / WIFI 7 MIMO Heavy-Duty Screw Mount Antenna
Connections (4)
4×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 90 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black

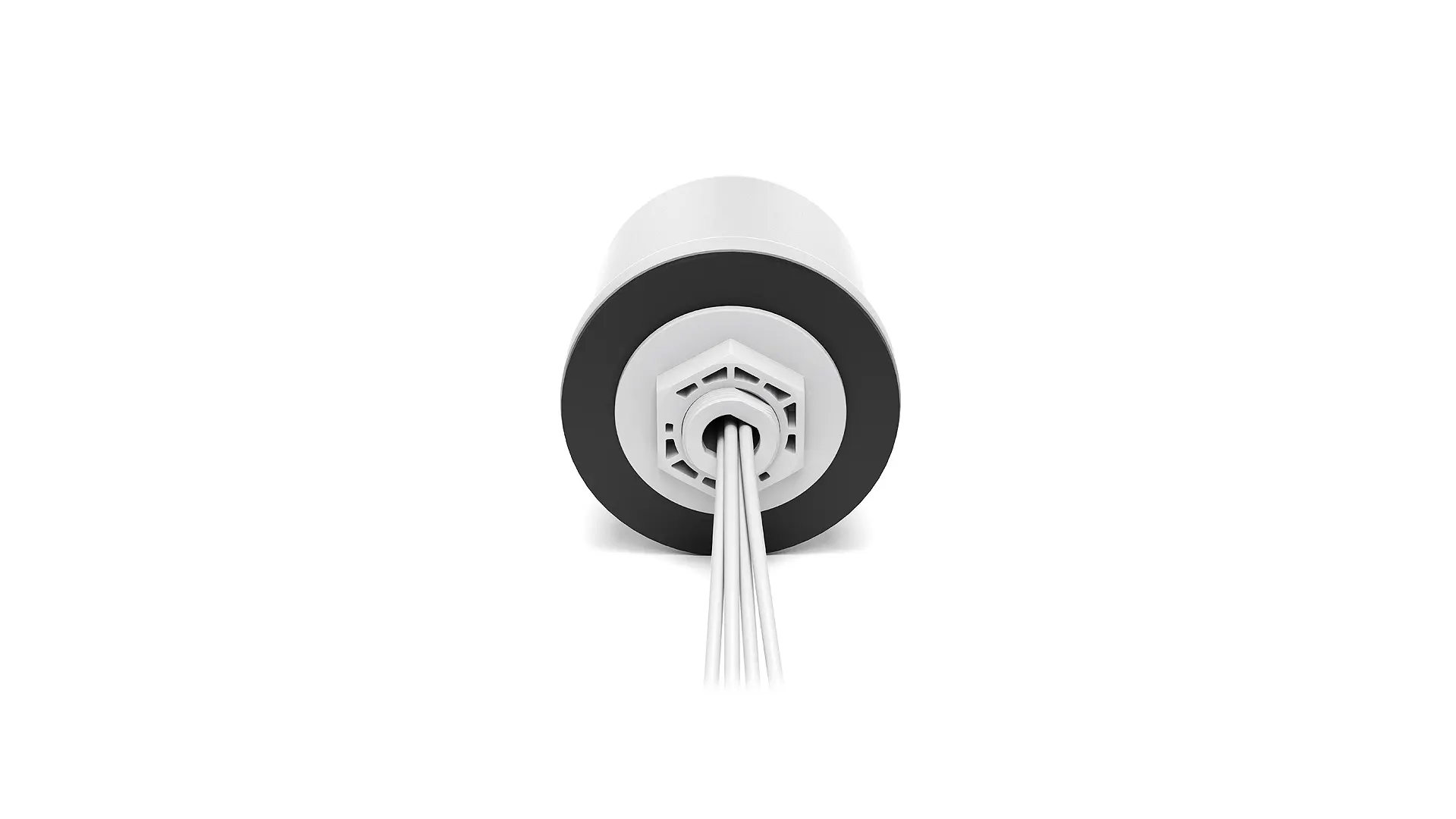

White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~2.2:1, ~2.6:1 |
| Efficiency (%) | ~46.4, ~40.9, ~33.4 |
| Peak Gain (dBi) | ~4.0, ~3.2, ~3.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~2.4:1, ~2.8:1 |
| Efficiency (%) | ~46.7, ~40.5, ~33.2 |
| Peak Gain (dBi) | ~3.2, ~3.7, ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~2.5:1, ~2.9:1 |
| Efficiency (%) | ~48.0, ~38.0, ~32.3 |
| Peak Gain (dBi) | ~3.5, ~3.0, ~3.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~2.3:1, ~2.8:1 |
| Efficiency (%) | ~48.4, ~40.2, ~31.7 |
| Peak Gain (dBi) | ~3.9, ~3.2, ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Heavy Duty antenna
Anti-Rotation Mounting
4-in-1 Combination Antenna
Lightweight Plastic Base
4.0 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB16J
Pole Mount plastic bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
2JB19J
Pole Mount plastic/aluminum alloy bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
