2JCP1841501c

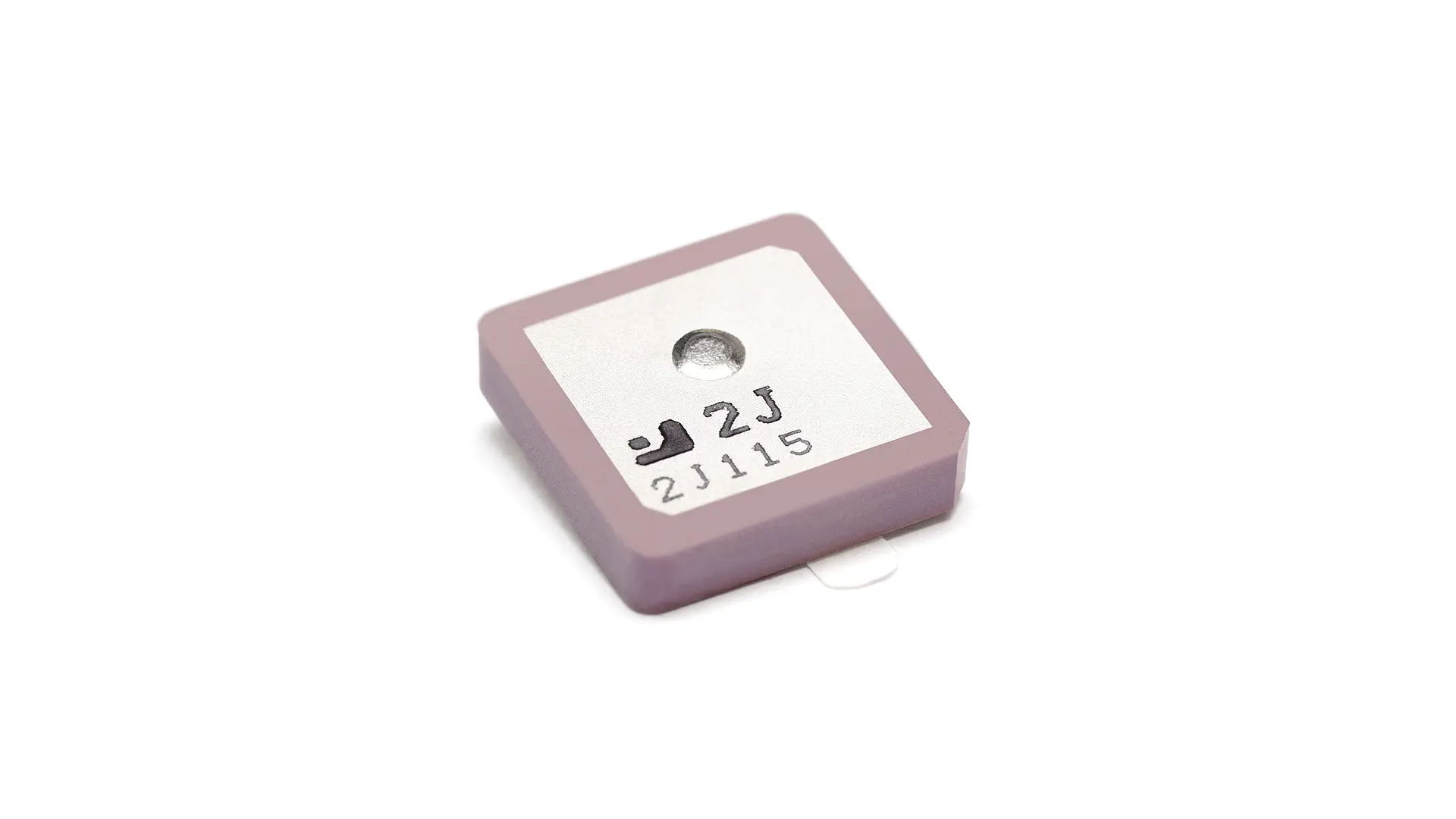

868 MHz ISM Thru-Hole Mount Compact Ceramic Antenna
Connections (1)
1×
868 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Dimensions (mm) | 18 × 18 × 4 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870 |
| VSWR | ~1.9:1 |
| Peak Gain (dBi) | ~6.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3 max |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Dependent
Compact Size
Embedded Antenna
-6.4 dBi 868 MHz ISM Peak Gain
High Grade Ceramic
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
