2J2115B-915-B05H
915 MHz ISM Omni-Directional Ground Plane Independent Antenna
Connections (1)
1×
915 MHz ISM / Sigfox / LoRa / LPWA

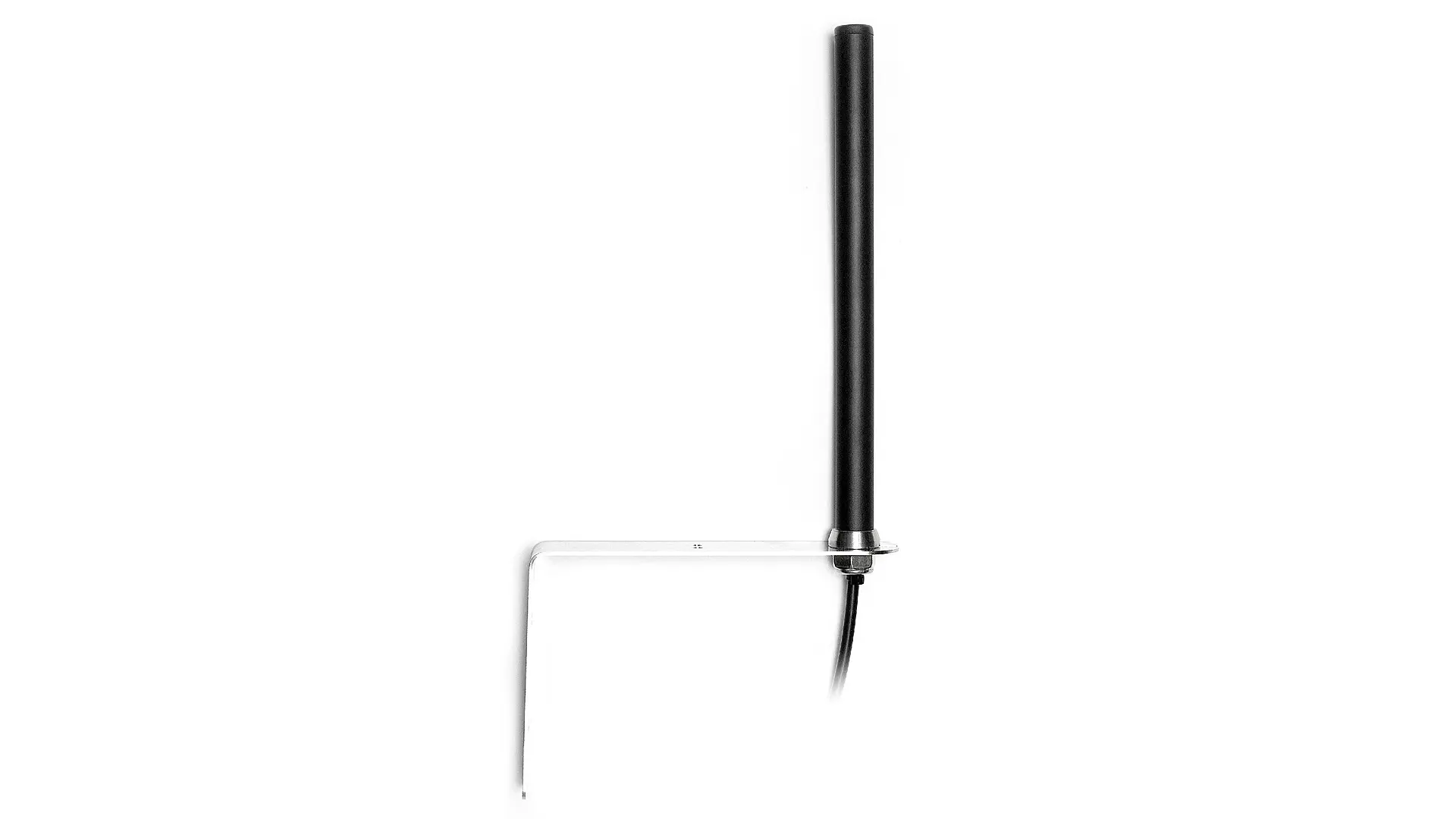

| Mounting | Wall Mount |
|---|---|
| Dimensions (mm) | 325 × 36 × 155 (220 × Ø 16) |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.9:1 |
| Efficiency (%) | ~70.7 |
| Peak Gain (dBi) | ~3.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector

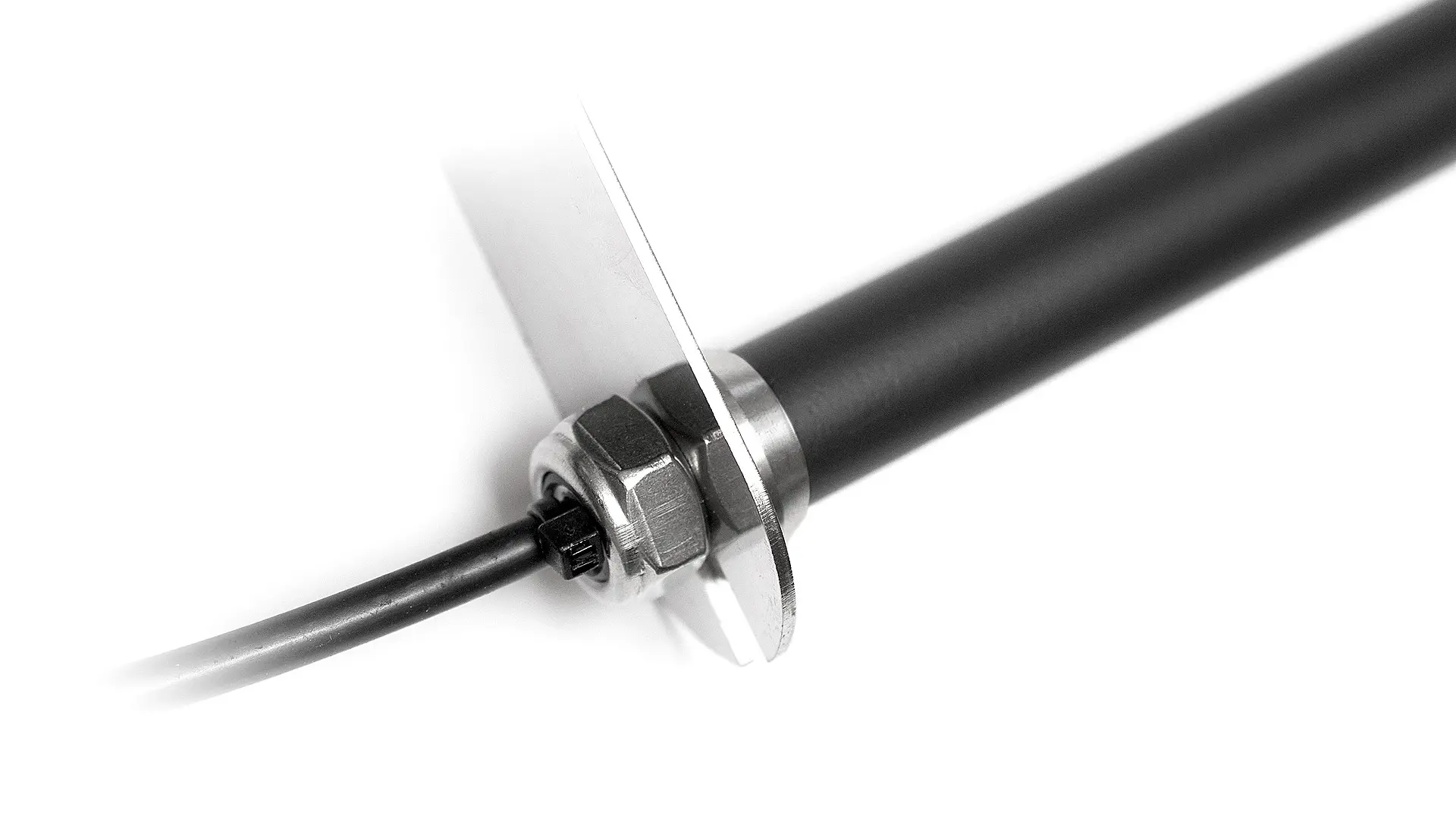

Antenna Bracket included
Waterproof Antenna
3.1 dBi 915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
