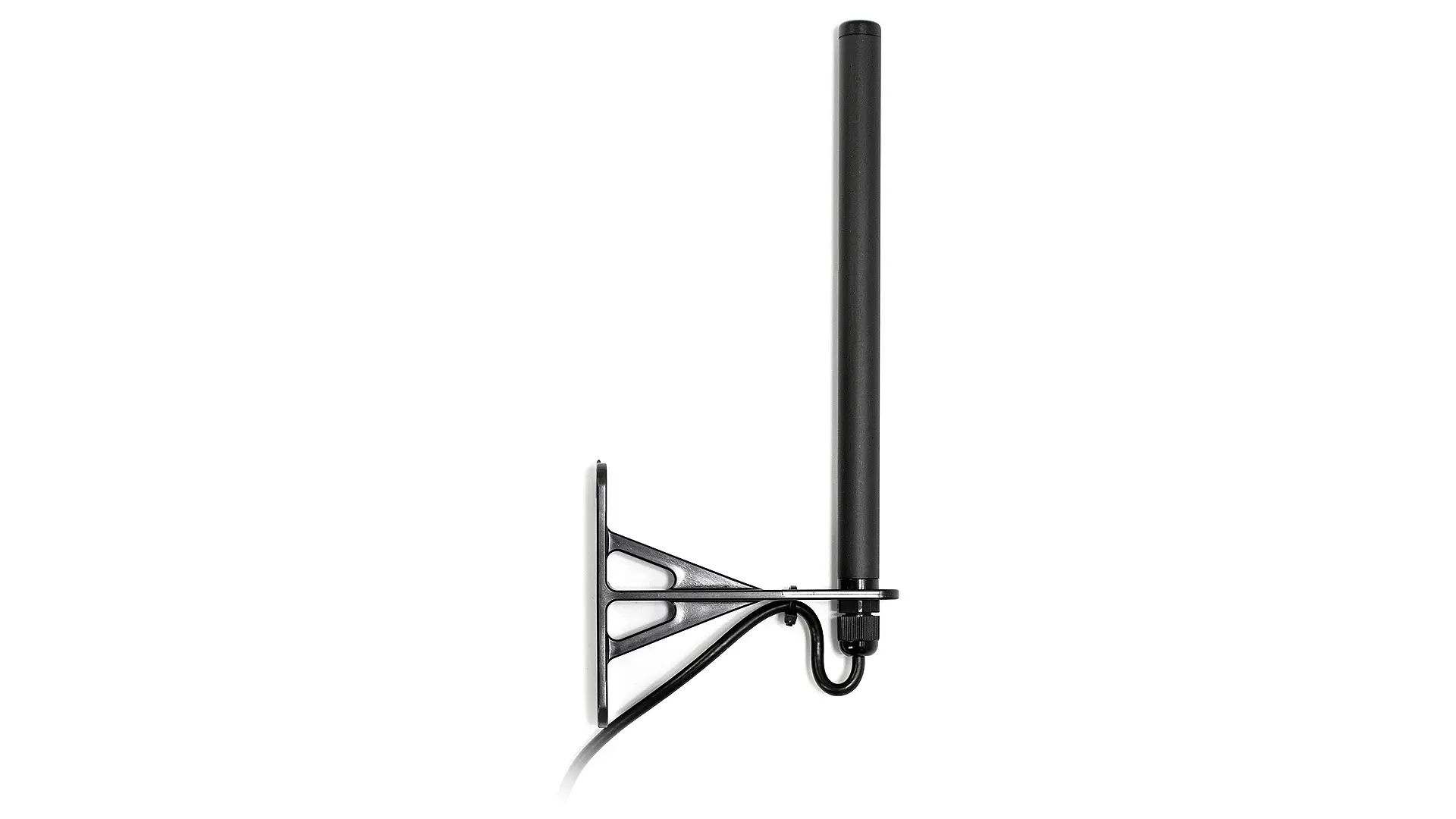

2J2115K-B07H
868/915 MHz ISM Omni-Directional Ground Plane Independent Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Wall Mount |
|---|---|
| Dimensions (mm) | 271 × 30 × 115 (219 × Ø 16) |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~1.4:1, ~1.6:1 |
| Efficiency (%) | ~63.2, ~62.4 |
| Peak Gain (dBi) | ~3.4, ~3.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Antenna Bracket included
Dual Band 868/915 MHz ISM Antenna
3.7 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
