2JF0115P

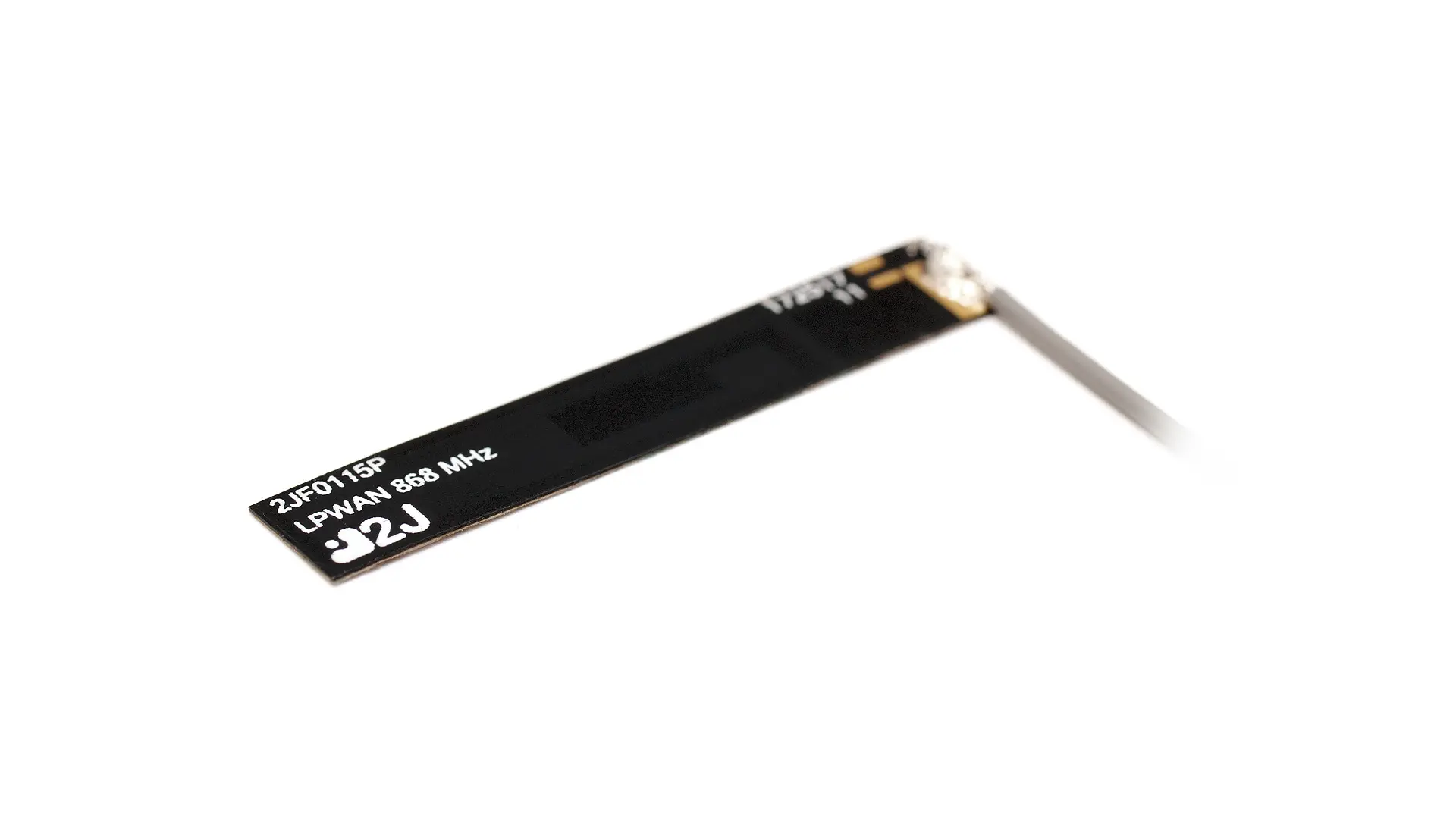

868 MHz ISM Flexible ultra-thin PCB Adhesive Antenna
Connections (1)
1×
868 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 40.0 × 7.0 × 0.2 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870 |
| VSWR | ~1.9:1 |
| Efficiency (%) | ~32.7 |
| Peak Gain (dBi) | ~0.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Independent
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
-0.8 dBi 868 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
Internal Antenna Solutions
