2JDK0101Ga-C104N
GPS / GLONASS Development Kit - Set of 6 pcs of 18 mm patches to try on Device
Connections (1)
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Included in Kit |

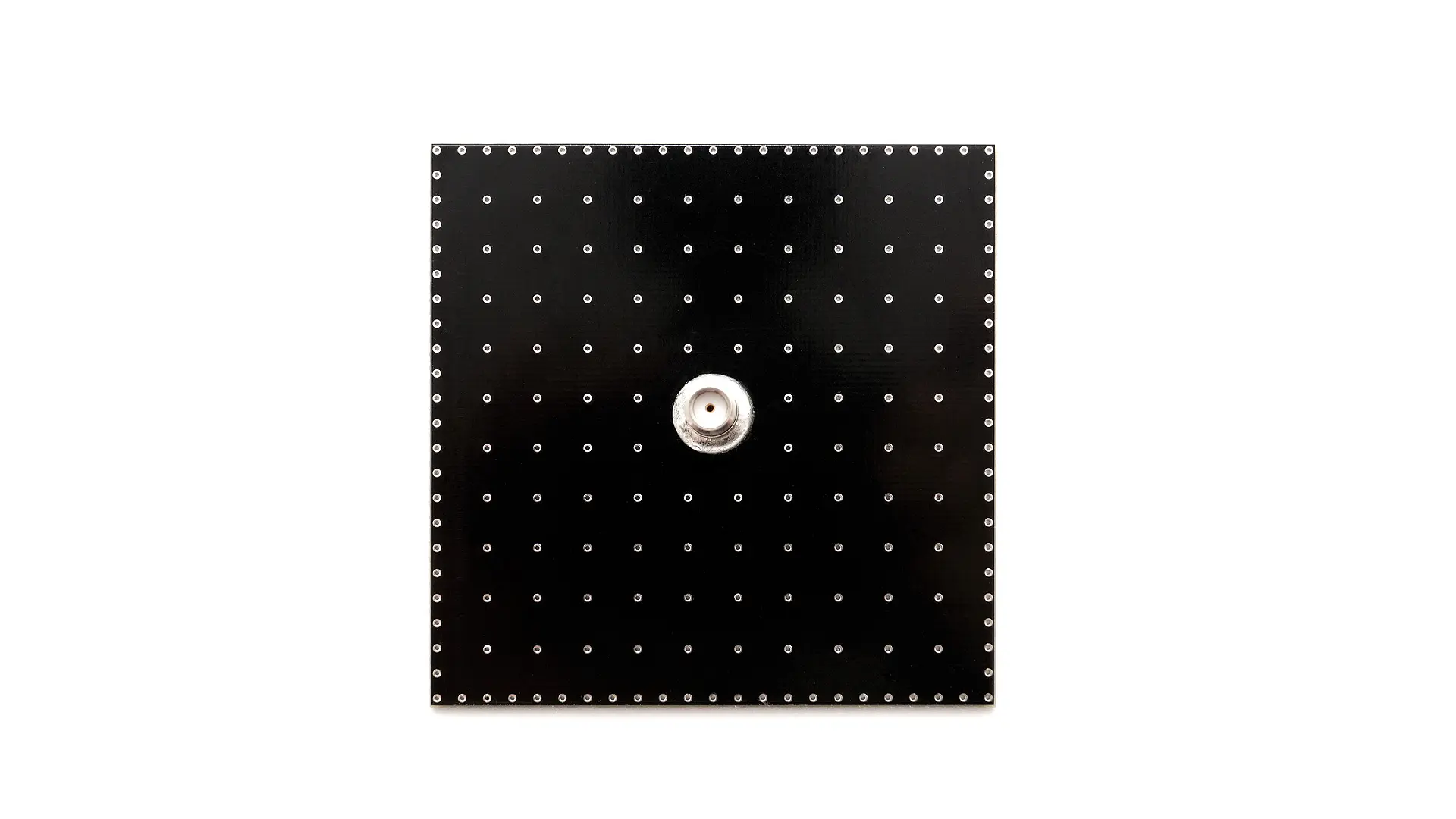

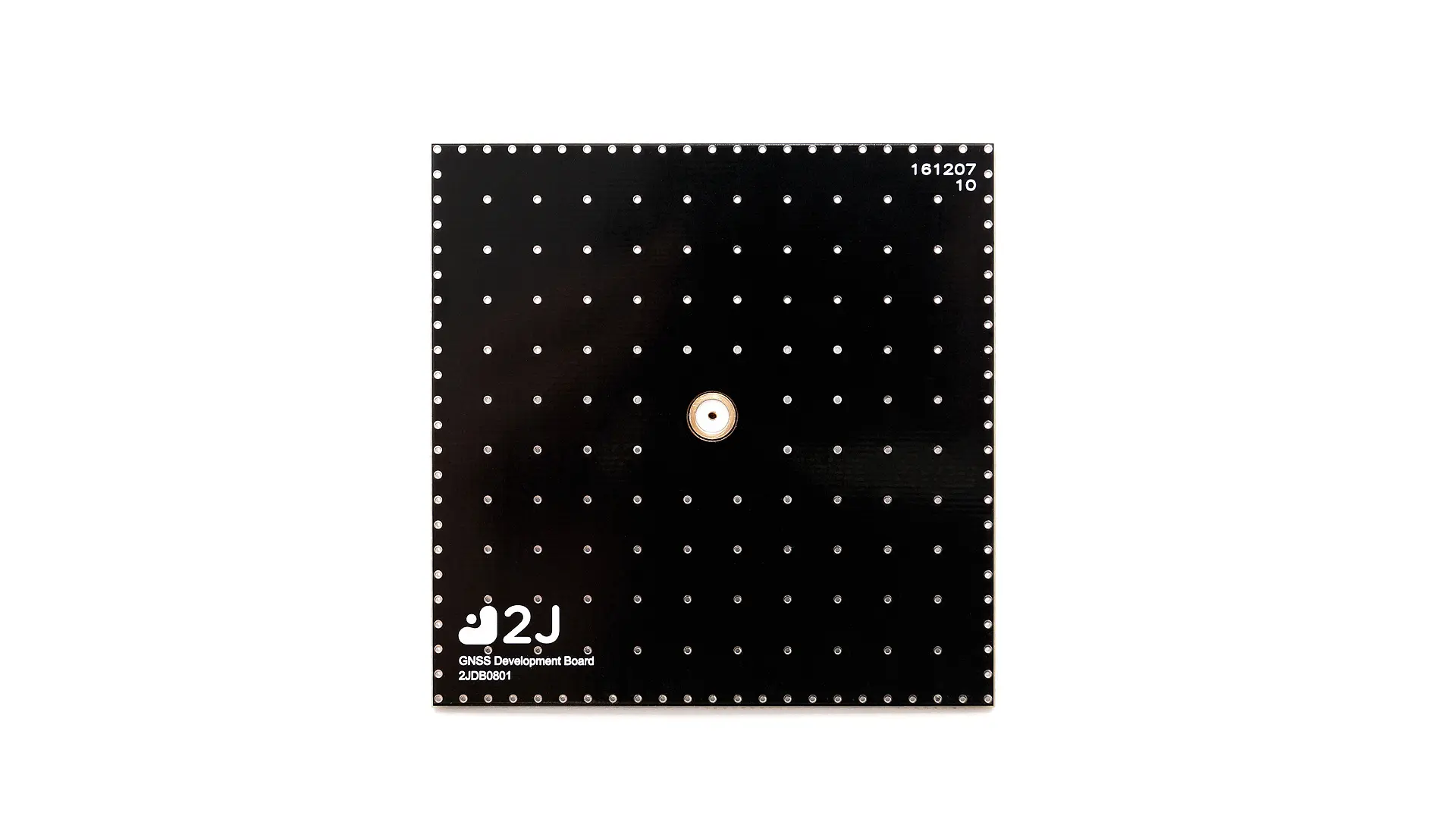

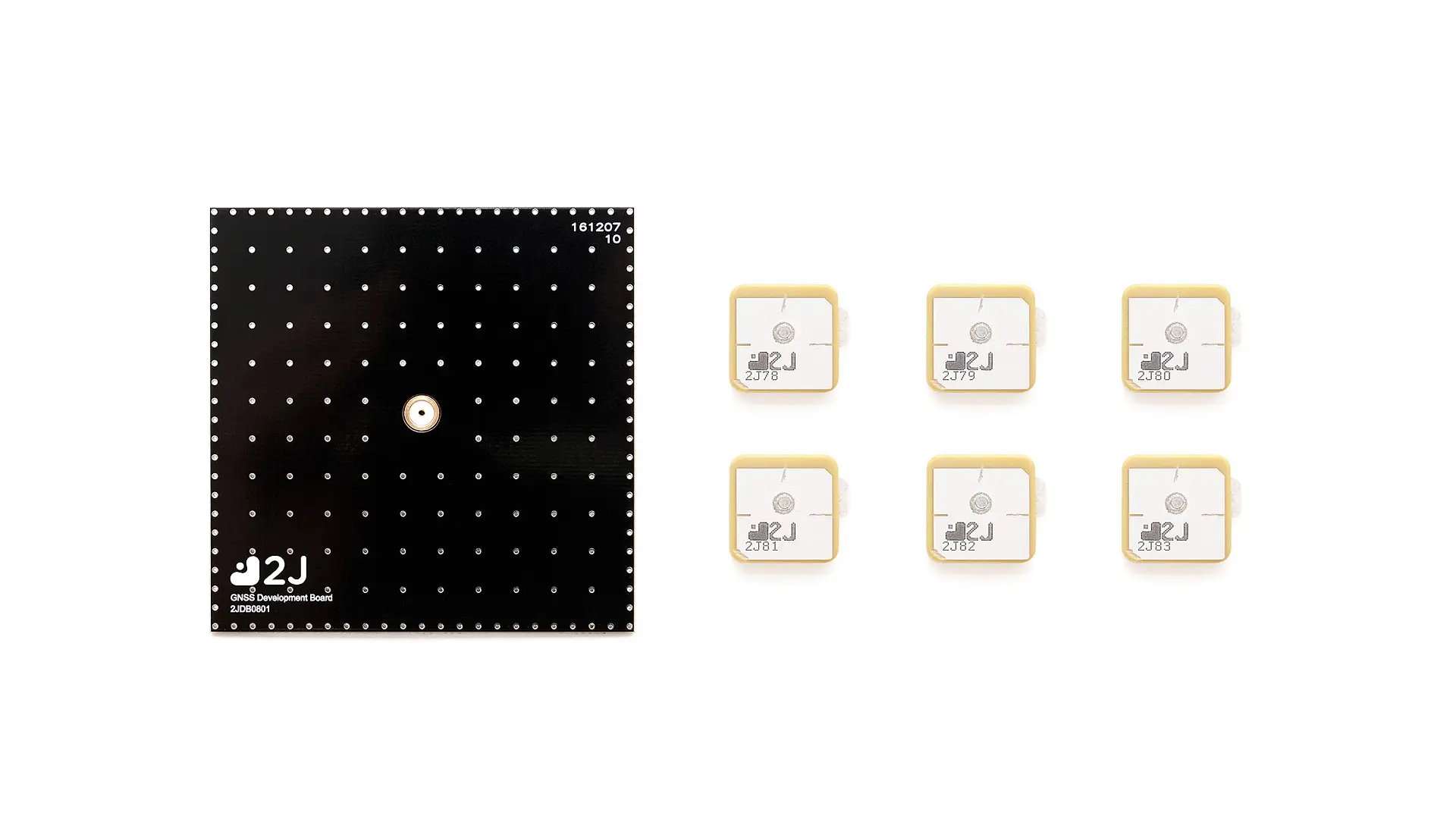

1× 2JDB0801-C104N Development Board 6× 2JCP1840101Ga Ceramic Antennas |
| Dimensions (mm) |
18 × 18 × 4 (Patches) 70.4 × 70.4 × 13.5 (Board) |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Dev Kit specifications
connection 1
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS / GLONASS / QZSS / Galileo - L1 |
|---|---|
| Frequency (MHz) | 1575.42, 1598-1606 - Ceramic patch 2JCP1840101Ga (2J 78) 1580.42, 1603-1611 - Ceramic patch 2JCP1840102Ga (2J 79) 1585.42, 1608-1616 - Ceramic patch 2JCP1840103Ga (2J 80) 1590.42, 1613-1621 - Ceramic patch 2JCP1840104Ga (2J 81) 1595.42, 1618-1626 - Ceramic patch 2JCP1840105Ga (2J 82) 1600.42, 1623-1631 - Ceramic patch 2JCP1840106Ga (2J 83) |
| Passive Gain (dBi) | ~4.1, ~4.2 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
Development Kit Description
Key Features
Ground Plane Independent
High Gain
Development Kit for GNSS
Set of 6 patches to try on devices
Patches 18 x 18 x 4 mm
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
