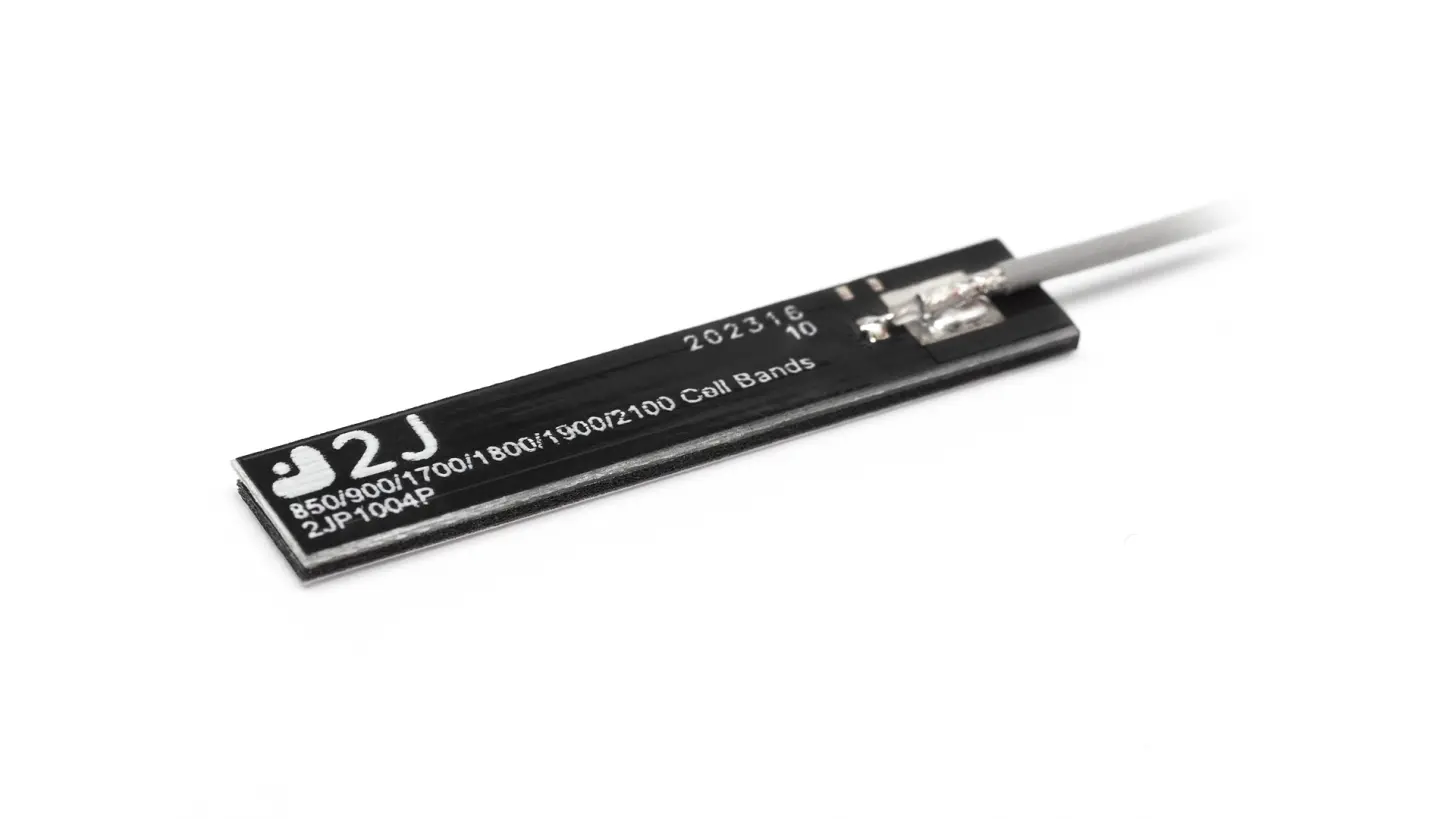

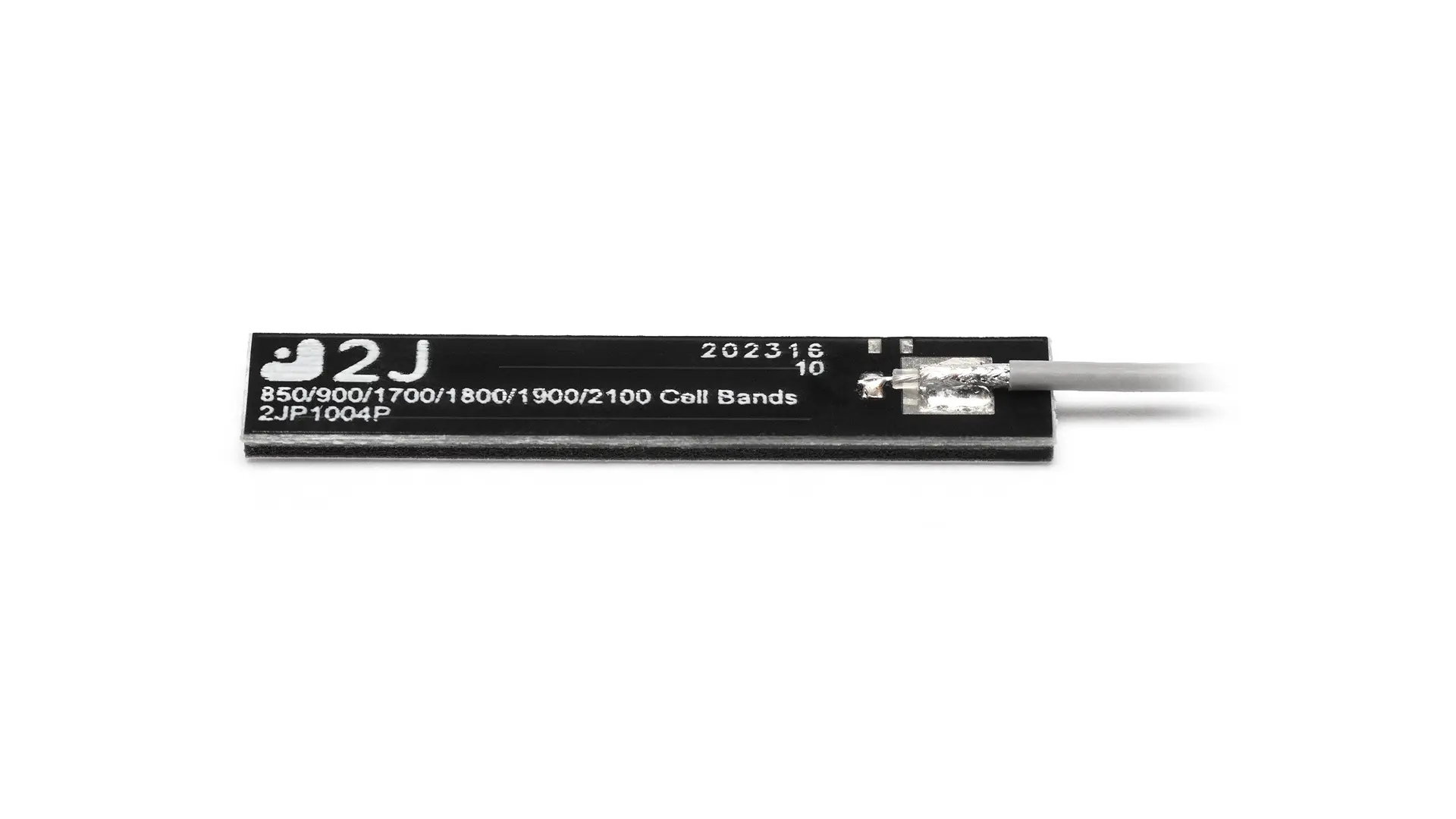

2JP1004P-SP
Cellular Small Form Factor Rigid Fiberglass Embedded Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Adhesive Mount Rigid |
|---|---|
| Dimensions (mm) | 40.0 × 7.2 × 2.0 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | 4.0:1, 6.0:1 |
| Efficiency (%) | ~ 37.8, ~ 38.7 |
| Peak Gain (dBi) | ~ 1.1, ~ 1.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Independent
Rigid Internal Antenna
Self-Adhesive
Customizable Cable and Connector
1.3 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
