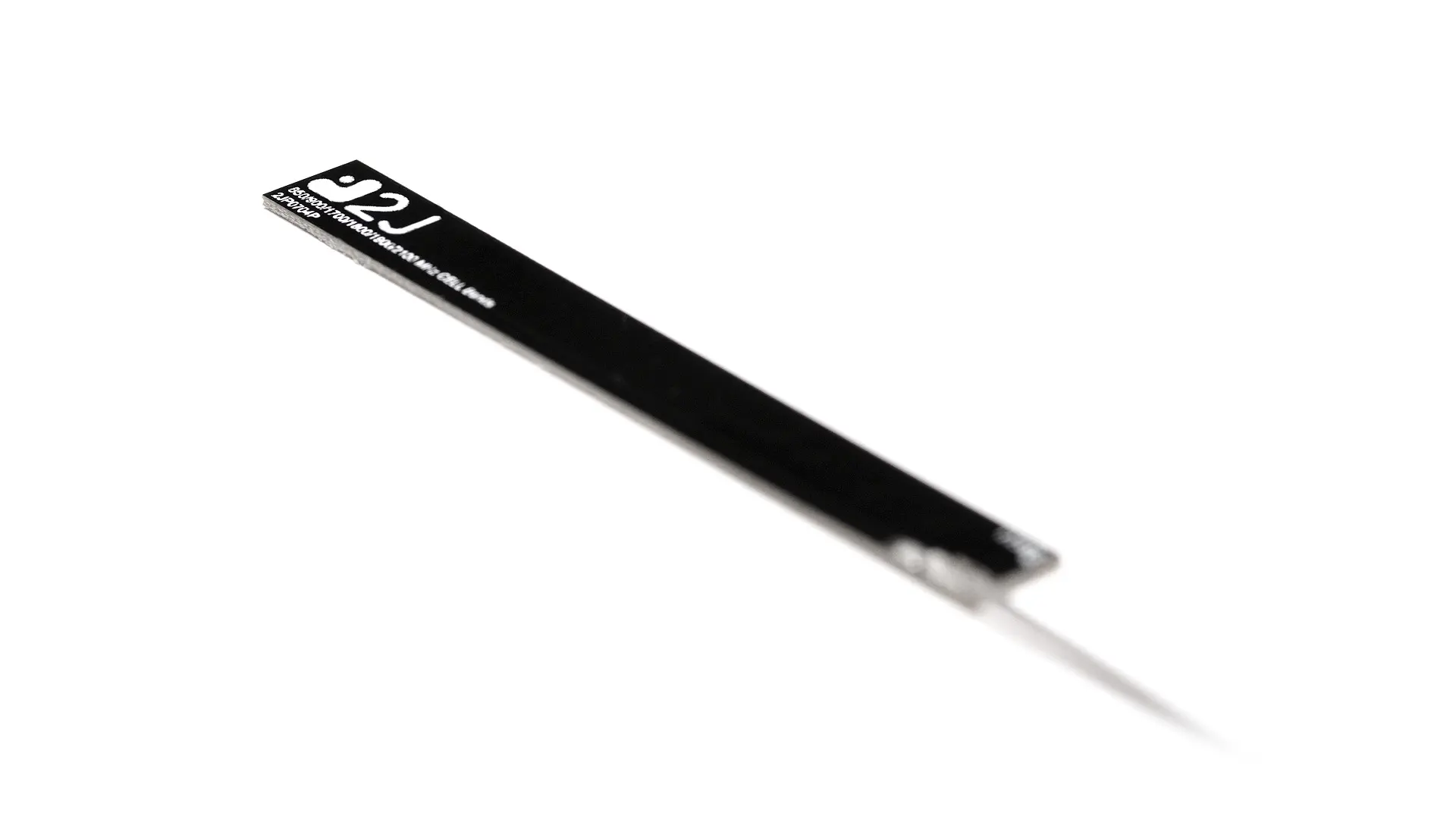

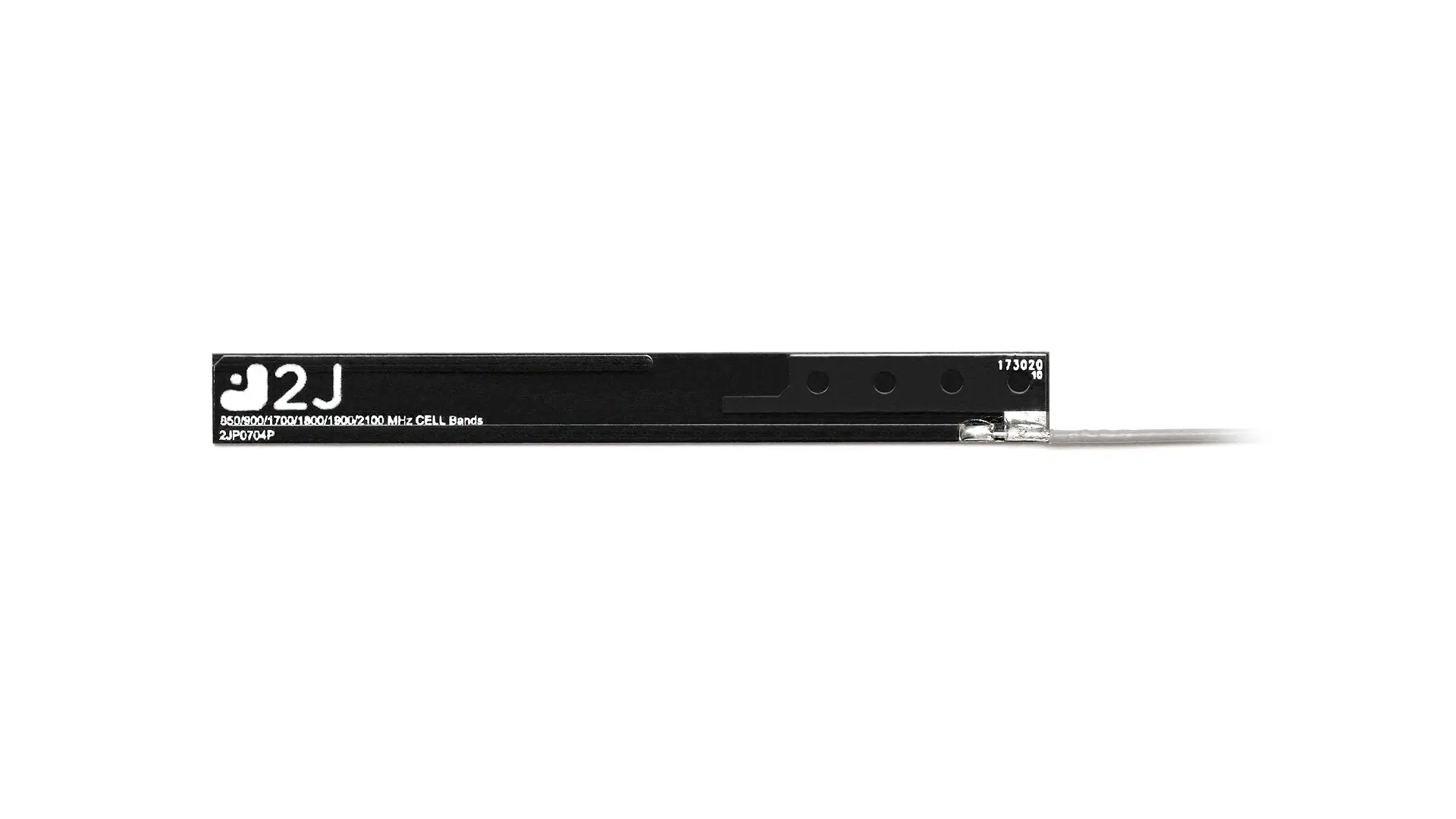

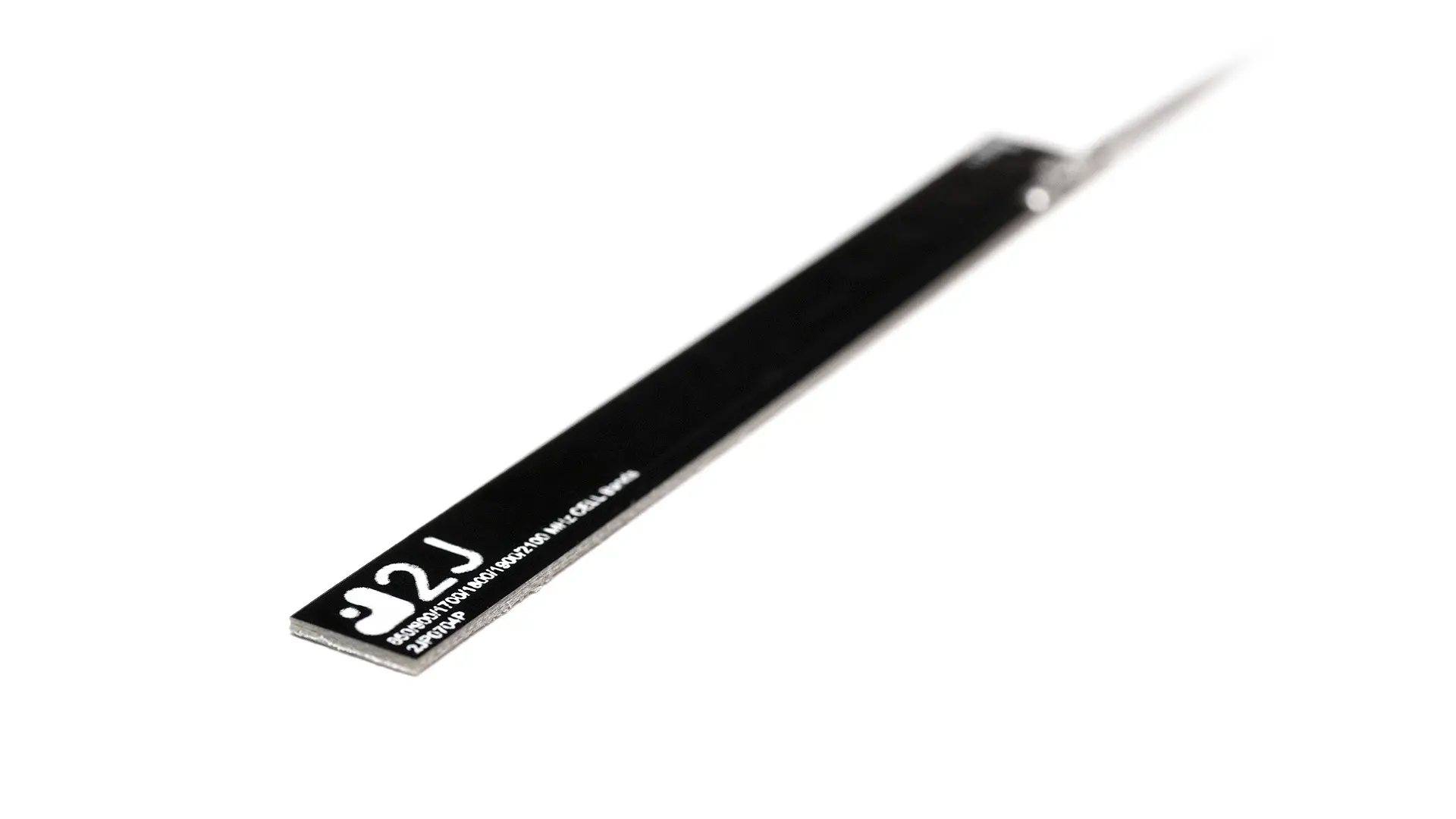

2JP0704P
Cellular High Performance Rigid Customizable Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Adhesive Mount Rigid |
|---|---|
| Dimensions (mm) | 75 × 8.1 × 0.8 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~2.5:1, ~1.7:1 |
| Efficiency (%) | ~32.6, ~39.1 |
| Peak Gain (dBi) | ~-1.3, ~-1.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Rigid Internal Antenna
Self-Adhesive
Customizable Cable and Connector
-1.3 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
Internal Antenna Solutions
