2JF0304P

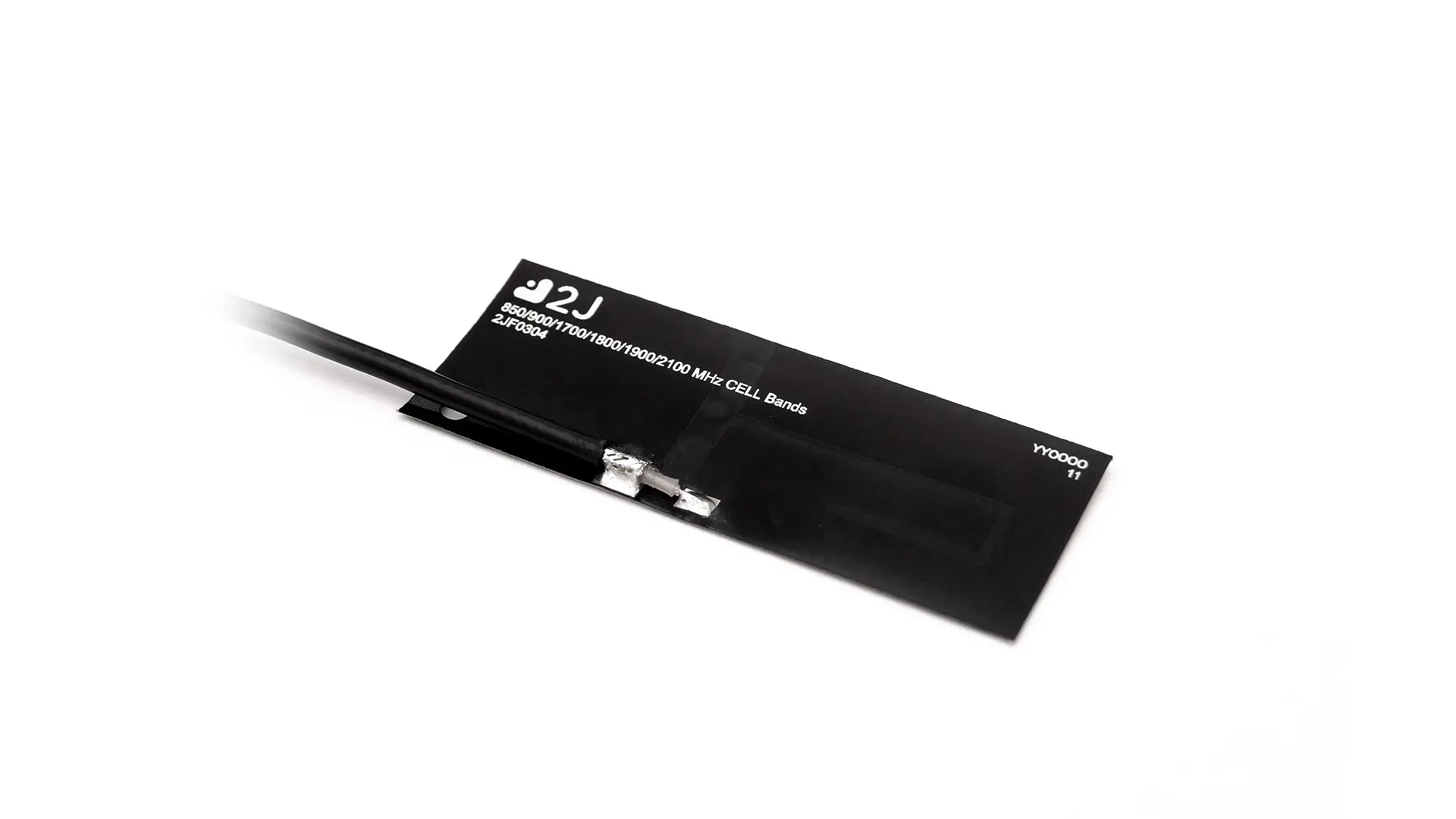

CELLULAR 2G and 3G Flexible ultra-thin PCB Adhesive Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 70.4 × 26.4 × 0.1 |
| Operating temperature | -40 °C to +85 °C |
| Note | Flexi Embedded Antenna |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | <=2.4:1, <=1.5:1 |
| Efficiency (%) | ~41, ~61 |
| Peak Gain (dBi) | ~1, ~2.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
2.1 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
Internal Antenna Solutions
