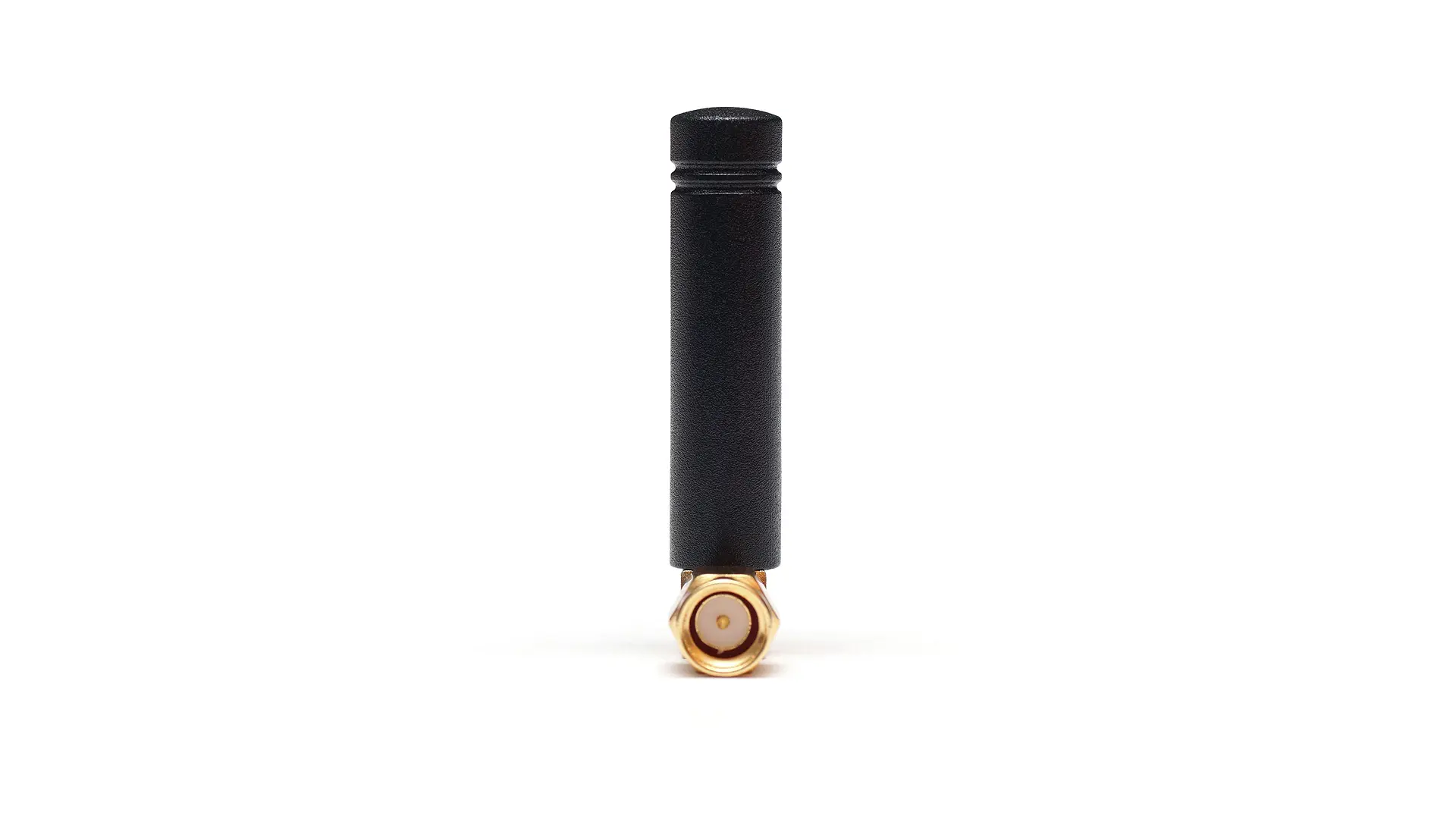

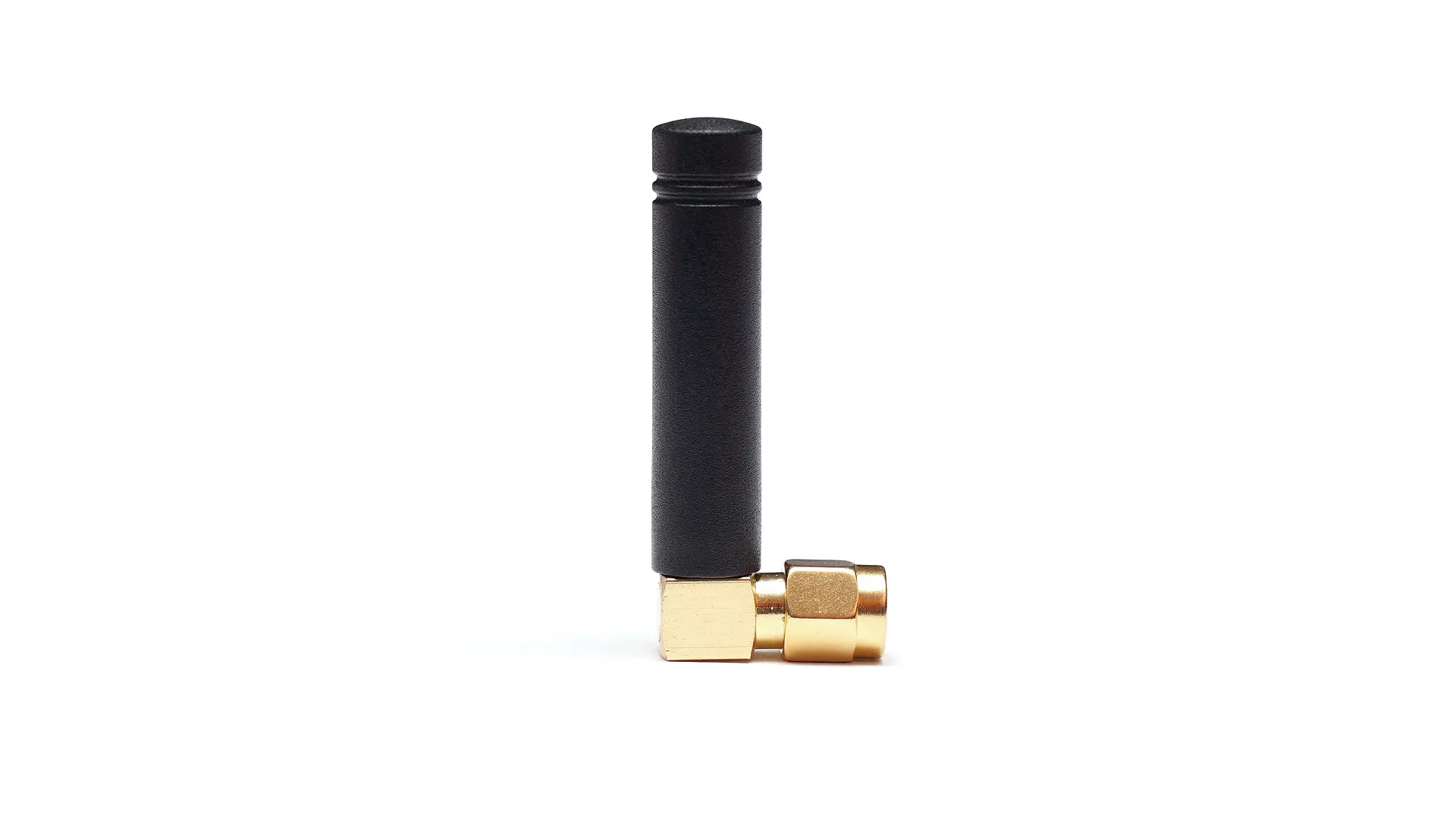

2J0B04-C884G
Cellular Low Profile Right Angle Smart Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 44 × 19.1 × 9 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Antenna and electrical specifications
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~2.2:1, ~2.4:1 |
| Efficiency (%) | ~70.6, ~56.4 |
| Peak Gain (dBi) | ~2.9, ~1.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
