2J7110B
Big-Medusa Tetra 380–470 MHz High Gain Loaded Dipole Screw Mount Antenna
Connections (1)
1×
TETRA / UHF / LMR - 380-470 MHz

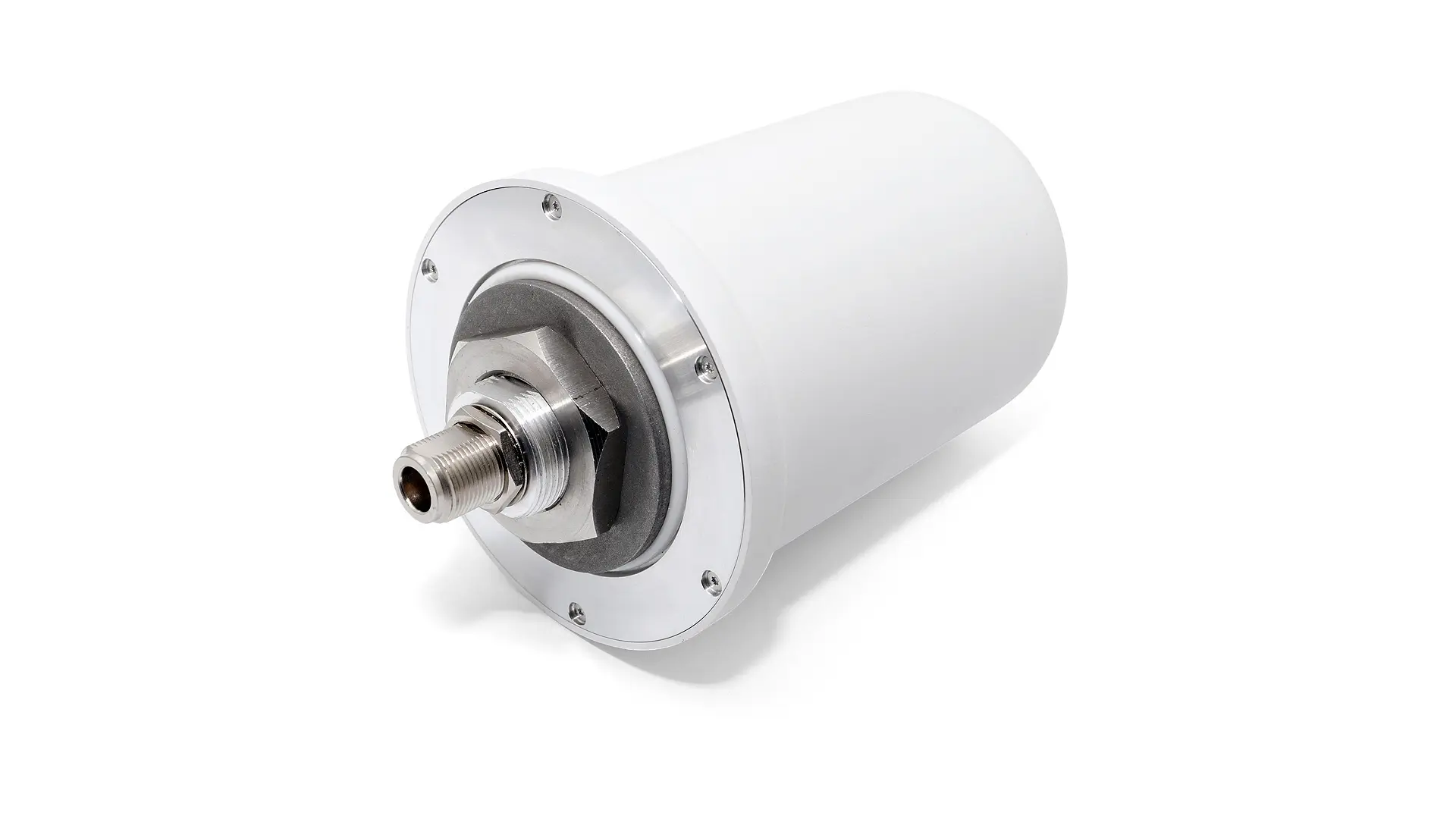

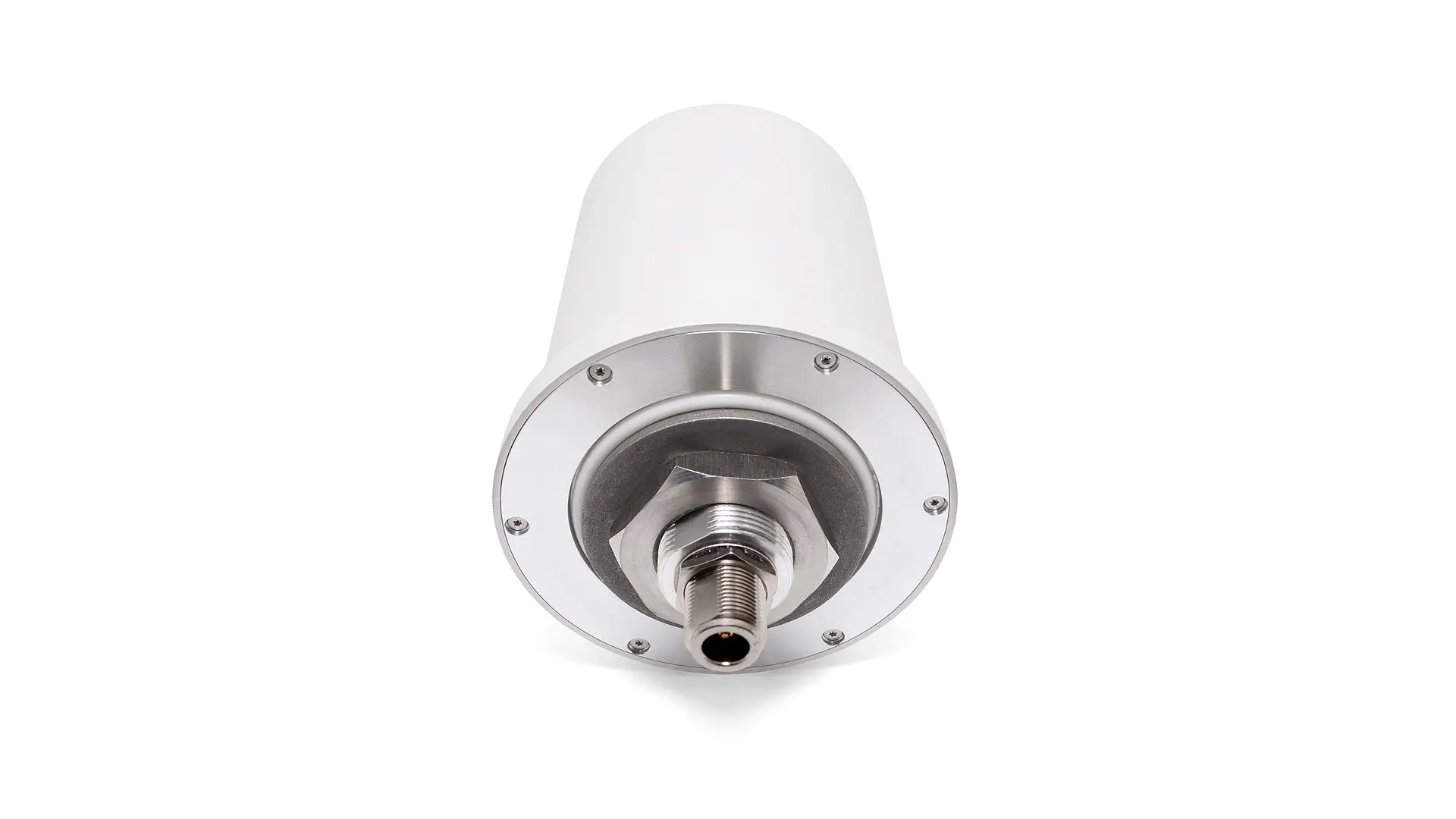

| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 96 × 130 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |

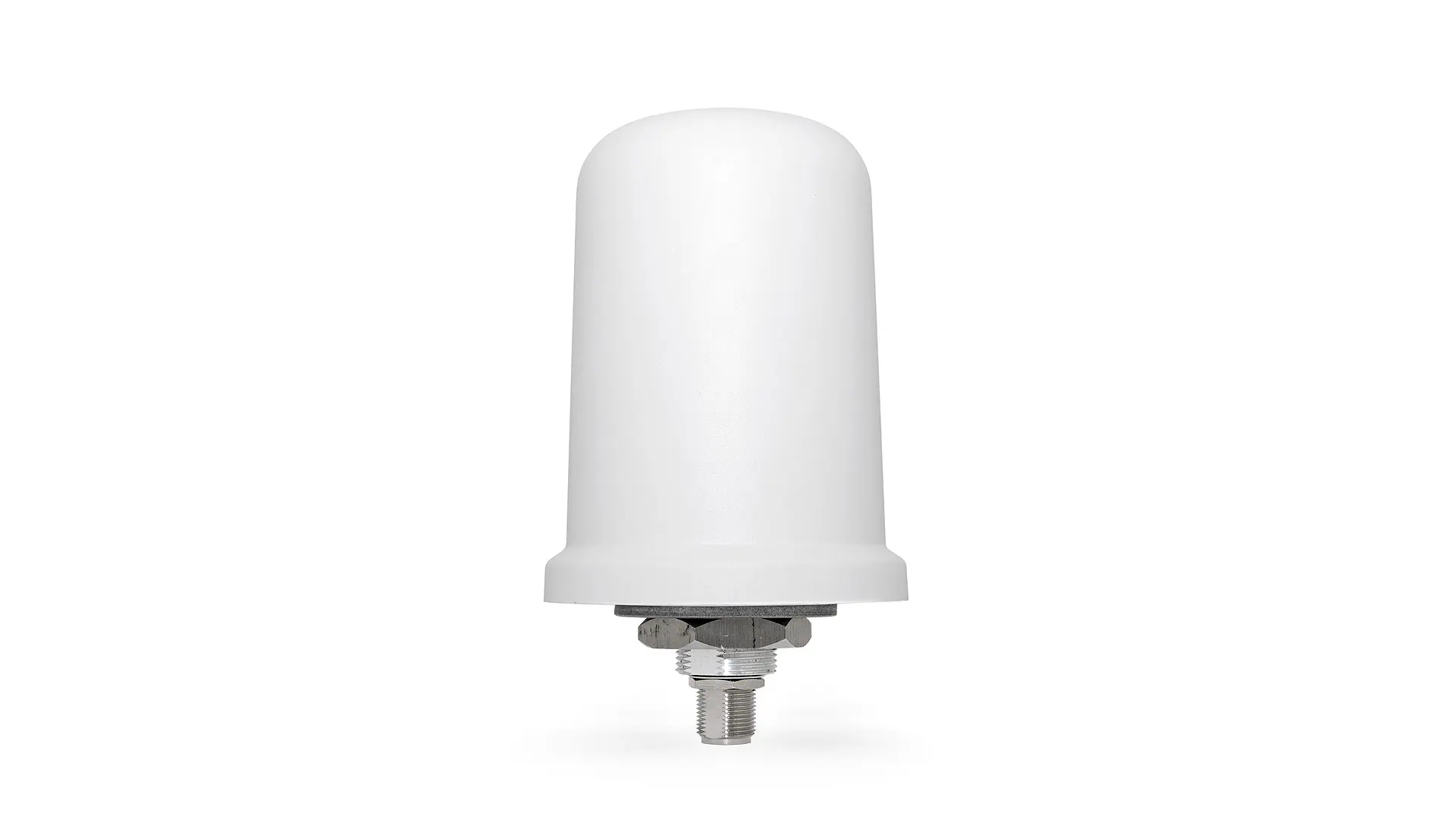

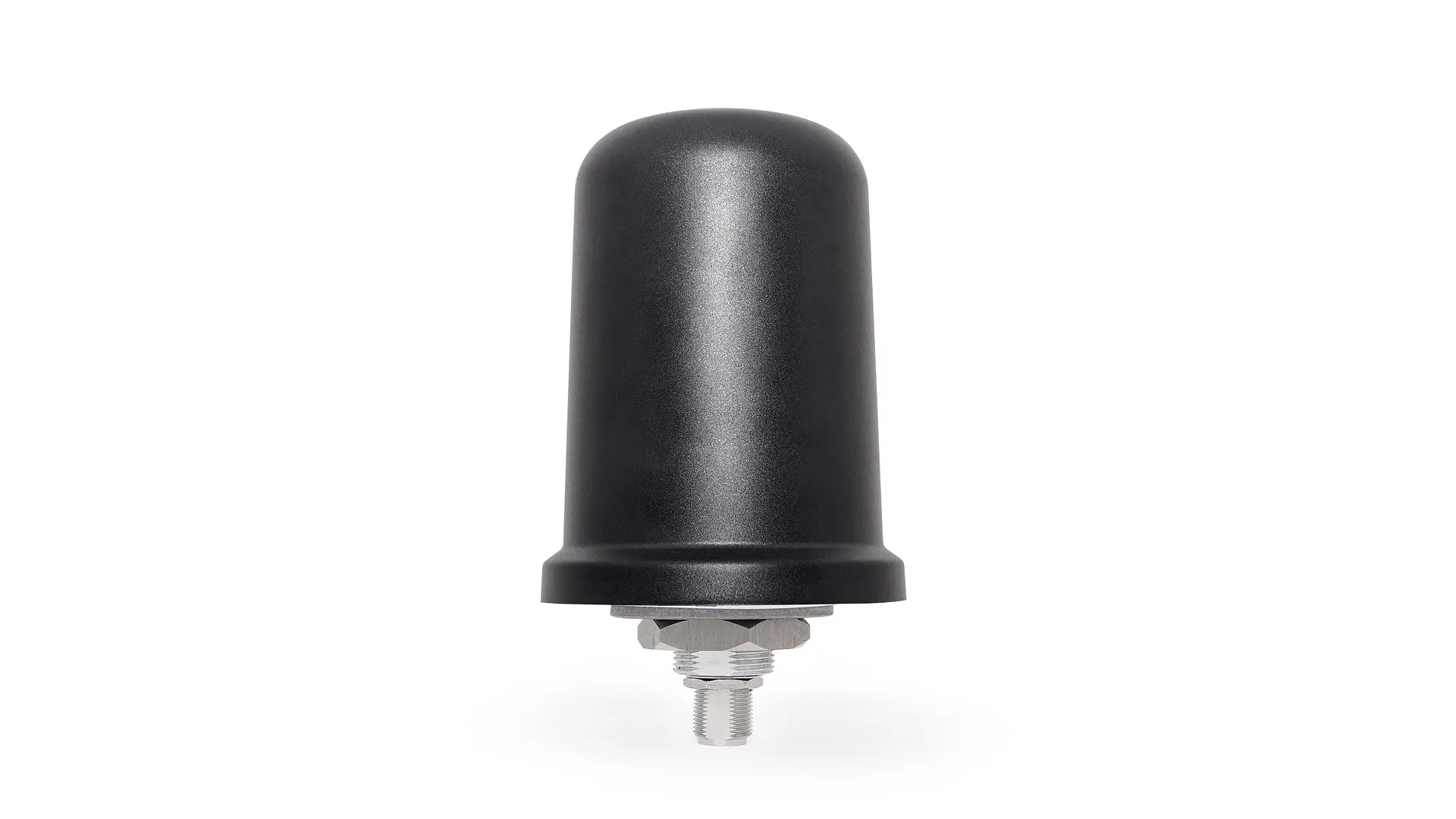

Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
TETRA / UHF / LMR - 380-470 MHz
| Standards | TETRA |
|---|---|
| Frequency | 380-470 |
| VSWR | ~1.5:1 |
| Efficiency (%) | ~73 |
| Peak Gain (dBi) | ~2.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Dependent
High Efficiency
High Gain
Heavy Duty antenna
Anti-Rotation Mounting
Public safety TETRA Antenna
Loaded Dipole
2.5 dBi TETRA Peak Gain
DC Grounded Antenna
Applications
Security & Safety
Defense & Public Safety
