2JW1001-FKC

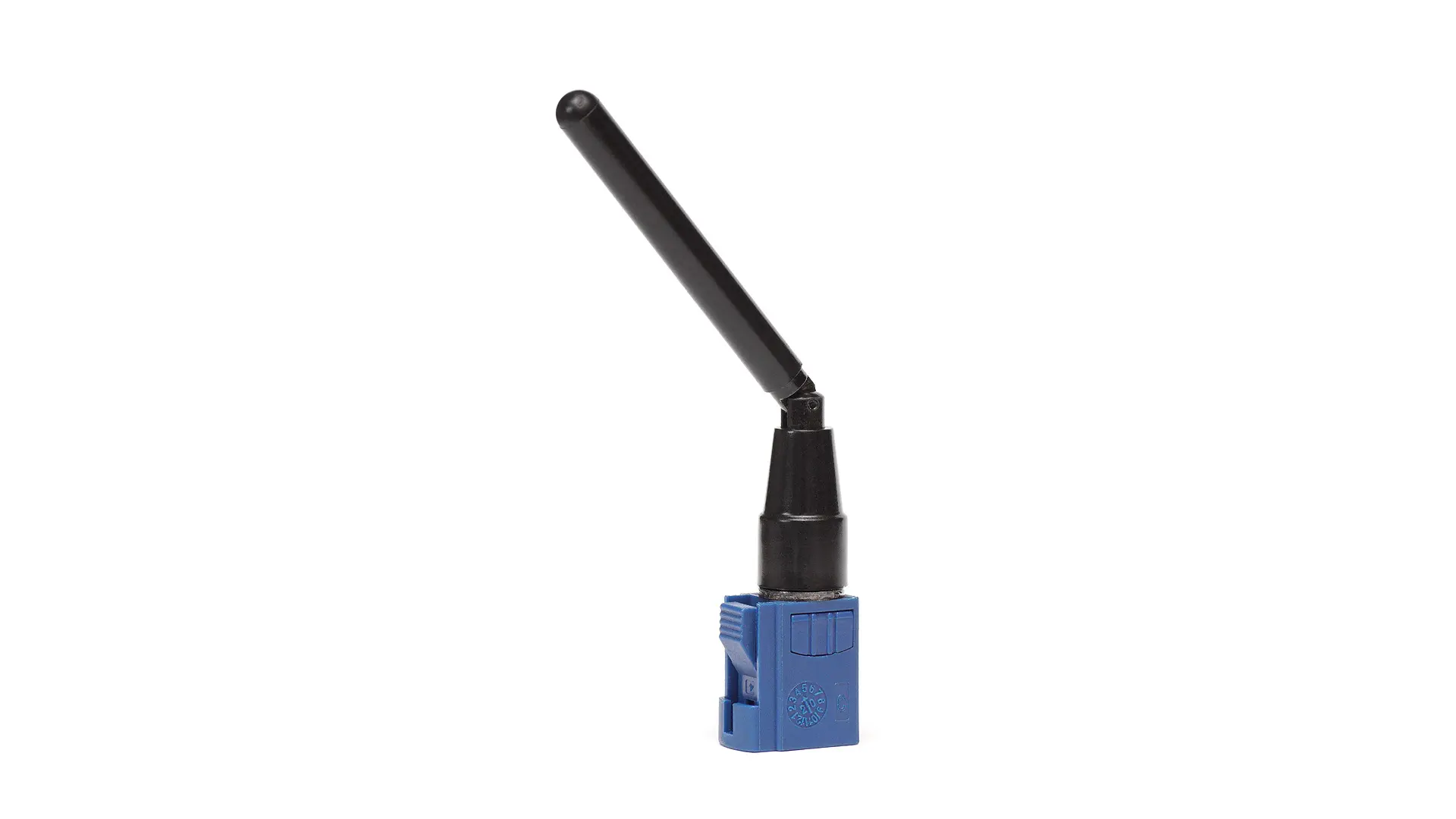

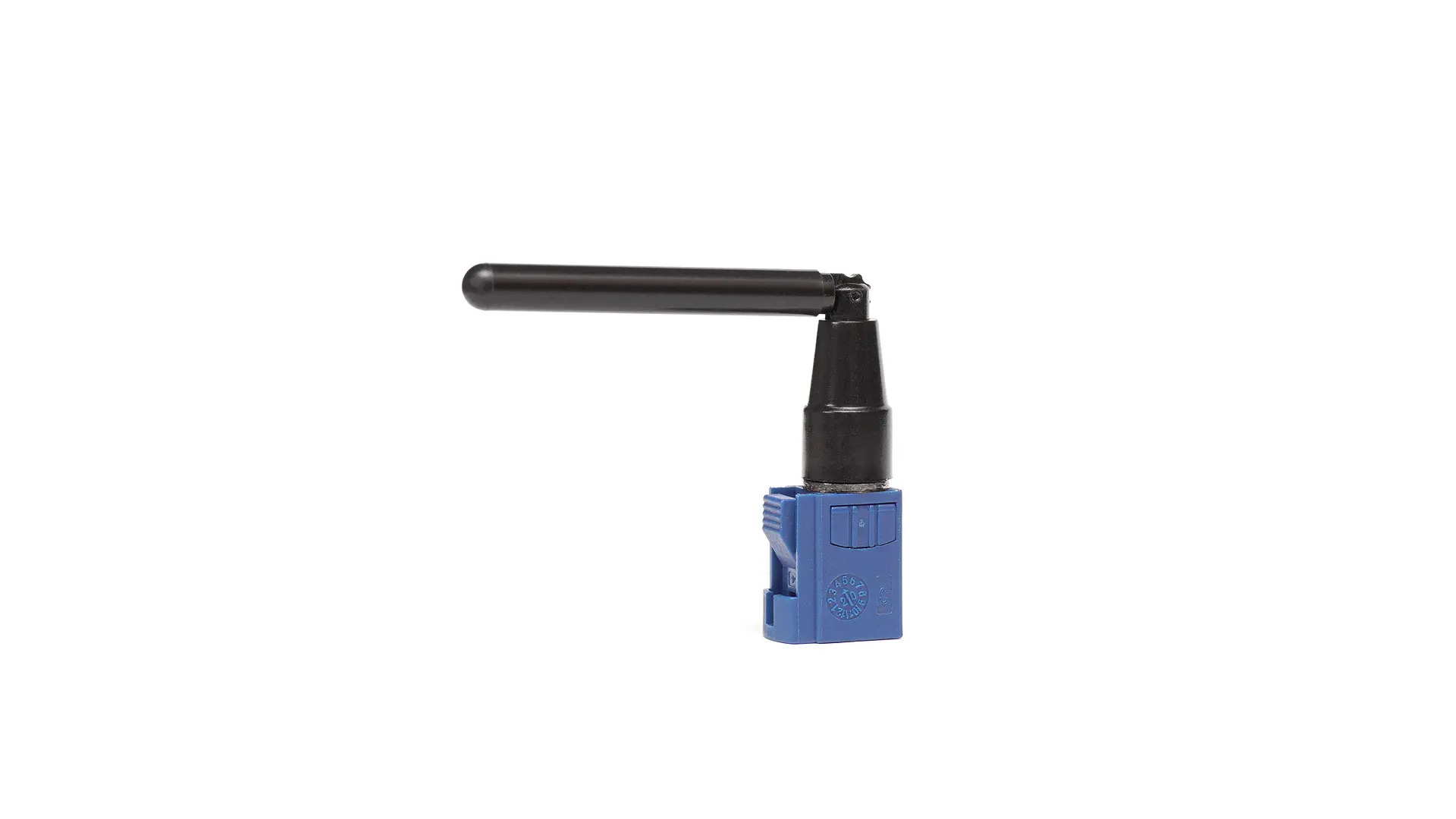

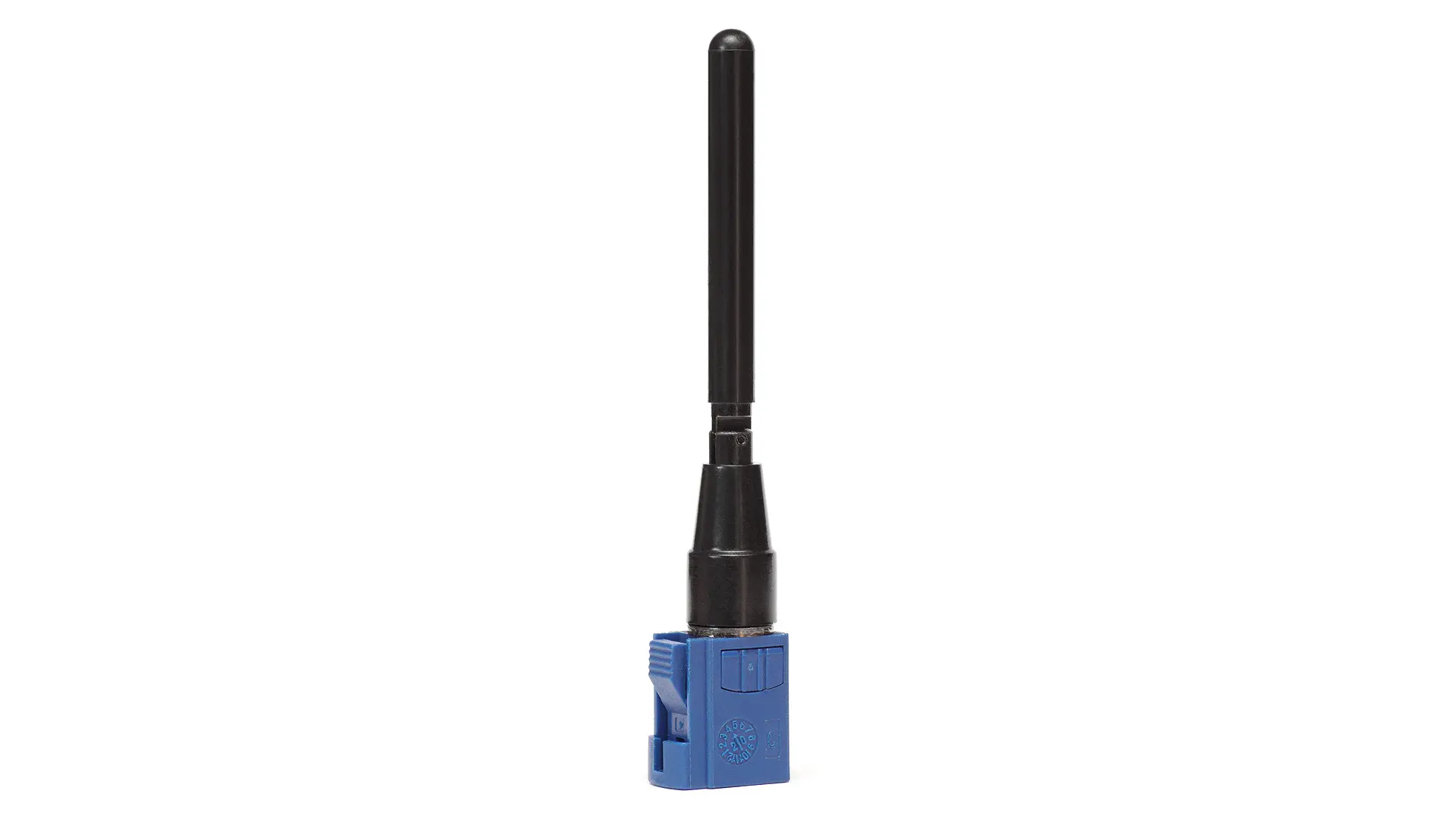

Katana GNSS GPS/GLONASS/BeiDou/Galileo Hinged Fakra Connector Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 81 × 14 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Connector type | Fakra C-Blue Female connector |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Standards | GPS/GLONASS/BeiDou/QZSS/Galileo |
|---|---|
| Frequency | 1561.098, 1575.42, 1598-1606 |
| VSWR | ~1.4:1, ~1.3:1, ~1.1:1 |
| Efficiency (%) | ~75.3, ~75.1, ~77.5 |
| Peak Gain (dBi) | ~3.5, ~3.3, ~3.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
High Efficiency
3.9 dBi GNSS Peak Gain
Passive GNSS Antenna
Fakra C-Blue Female connector
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
