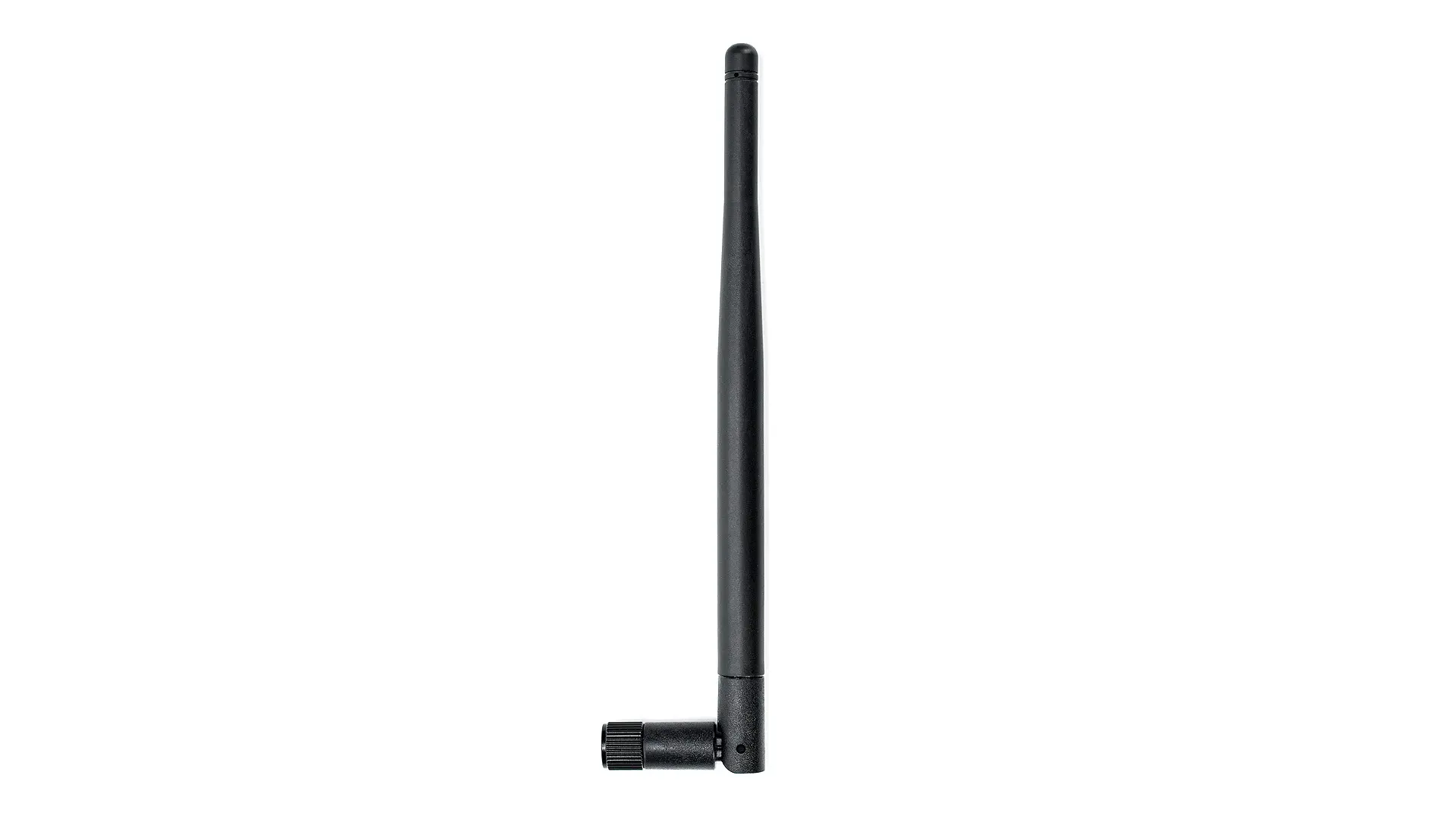

2JW0502-C442B
Tri Band WIFI 6E / WIFI 7 ISM Hinged connector Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 173 × Ø 10 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.2:1, ~2.1:1, ~3.4:1 |
| Efficiency (%) | ~58.4, ~56.1, ~44.3 |
| Peak Gain (dBi) | ~3.1, ~6.6, ~4.5 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Dipole Antenna
Ground Plane Independent
High Performance
Hinged Connector
WIFI 6E / WIFI 7 Antenna
6.6 dBi WIFI Peak Gain
High Gain
Reverse Polarity connector
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
