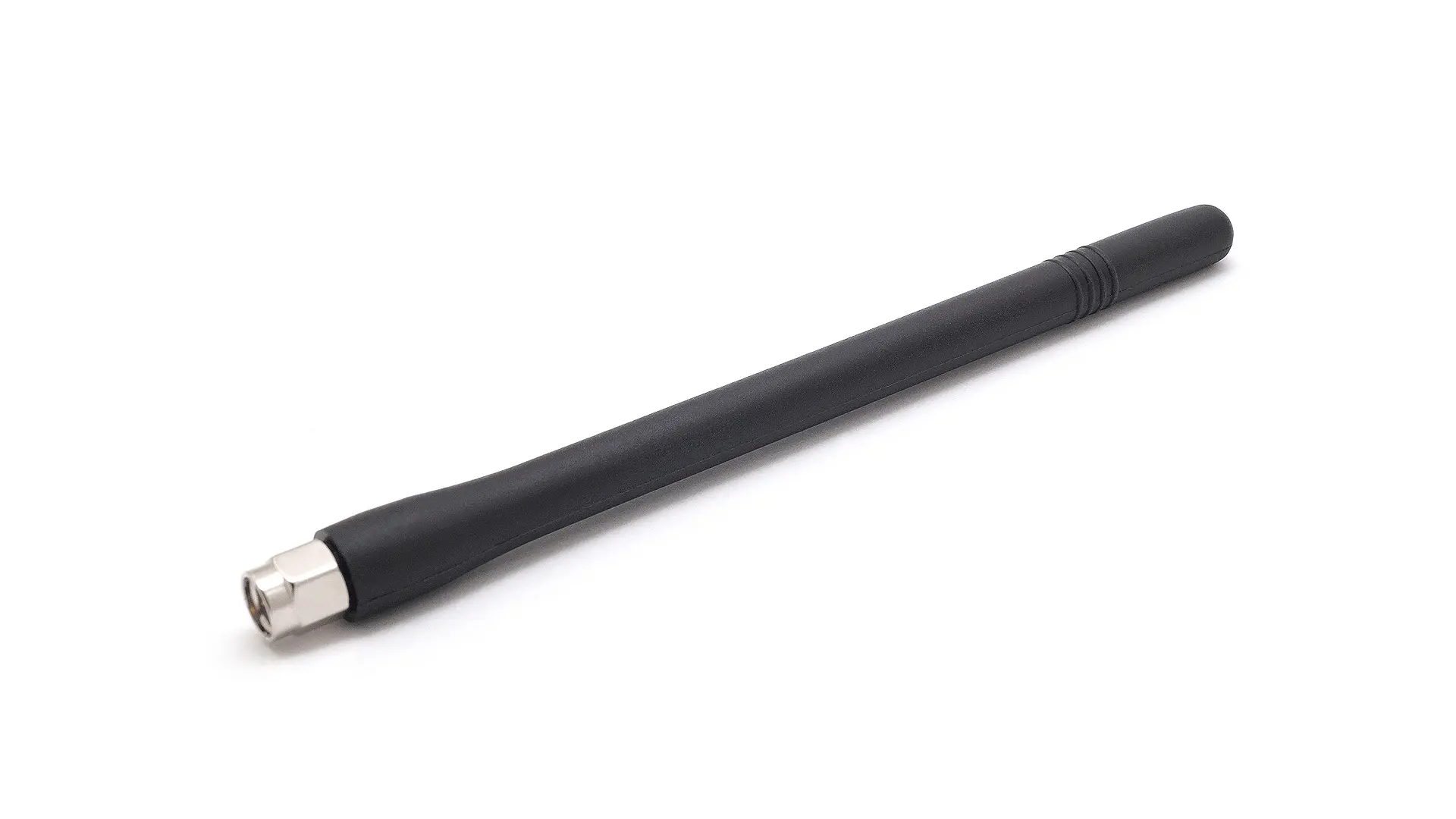

2JW0402-2.4-C20N
2.4 GHz ISM Wifi Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 10 × 139 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490 |
| VSWR | ~1.9:1 |
| Efficiency (%) | ~49.6 |
| Peak Gain (dBi) | ~2.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Dipole Antenna
Ground Plane Independent
Flexible Rod
2.2 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
