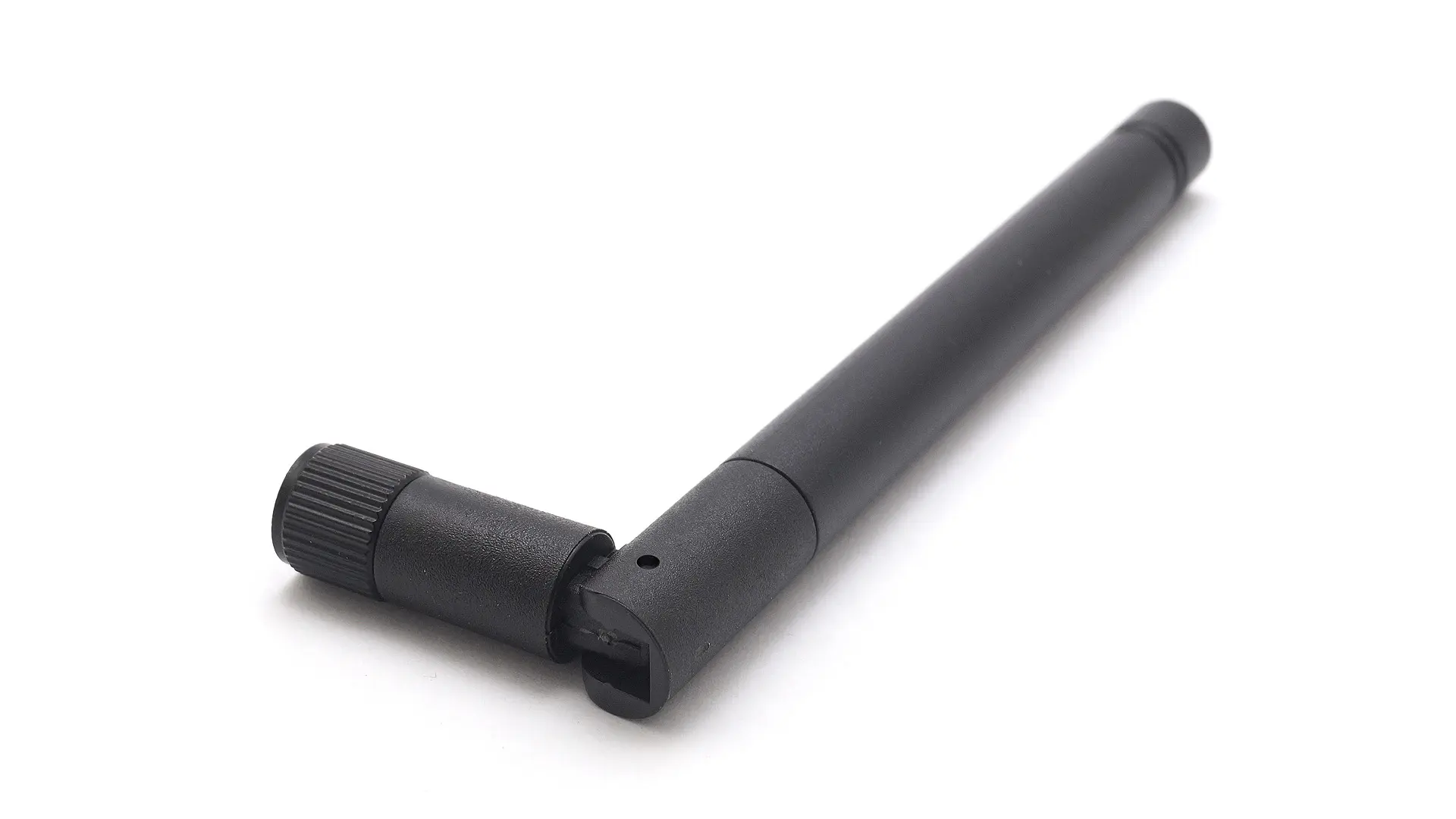

2JW0302-C442B
2.4-5.0-6.0 GHz WIFI 6E / WIFI 7 ISM Ground Plane Independent Conector Mount Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 113 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.5:1, ~3.0:1, ~2.0:1 |
| Efficiency (%) | ~71.2, ~55.5, ~65.1 |
| Peak Gain (dBi) | ~4.8, ~7.1, ~5.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Dipole Antenna
Ground Plane Independent
High Efficiency
Hinged Connector
WIFI 6E / WIFI 7 Antenna
7.1 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
