2JP1180P

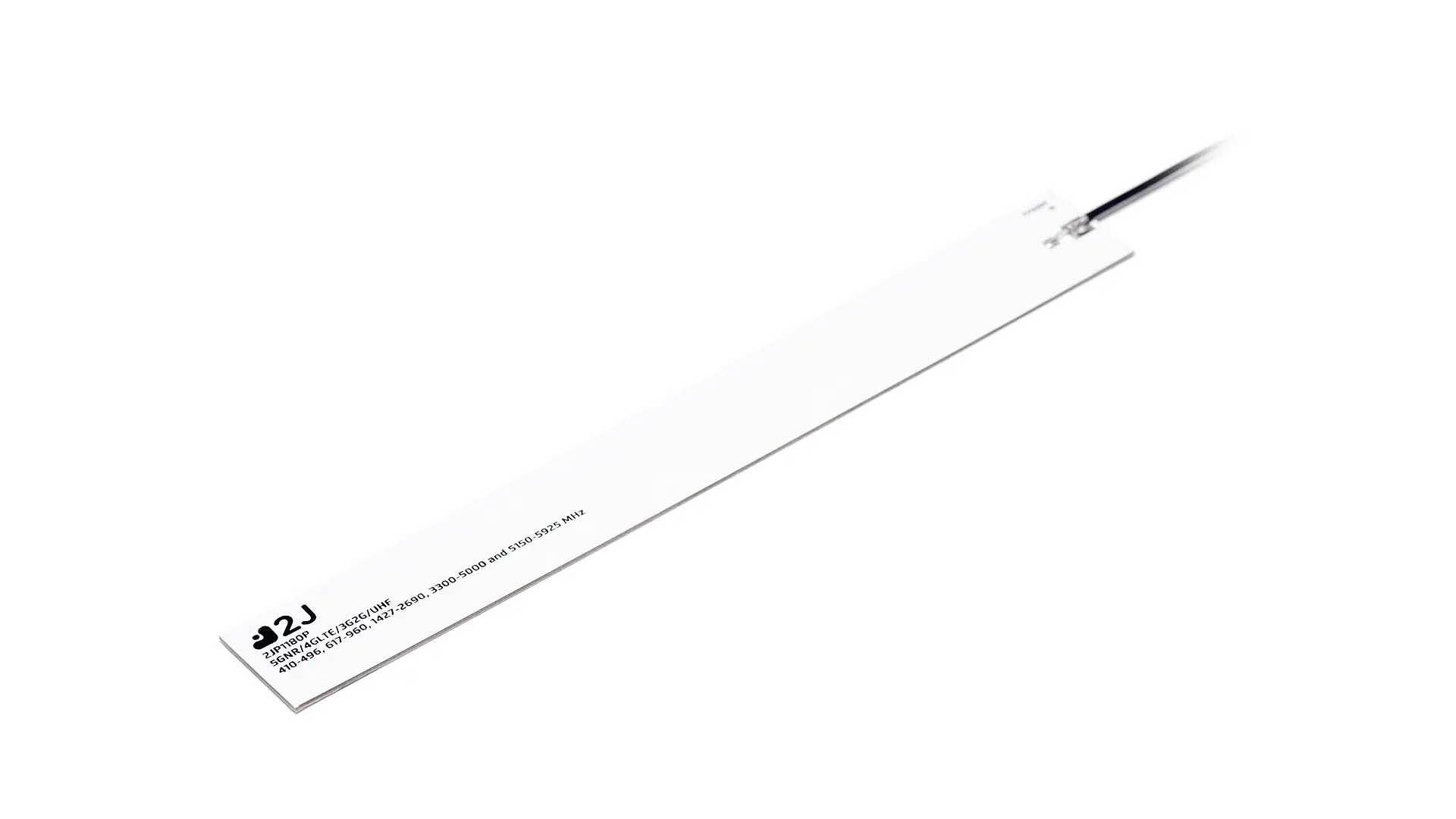

5GNR/UHF/4GLTE/3G/2G Rigid Fiberglass Self-Adhesive Mount Antenna
Connections (1)
1×
5G NR / Cellular / LPWA / UHF 450
| Mounting | Adhesive Mount Rigid |
|---|---|
| Dimensions (mm) | 155 × 19.5 × 0.9 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA / UHF 450
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF |
| Frequency | 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-5.9, ~-14.1, ~-13.2, ~-9.3, ~-9.1 |
| VSWR | ~3.1:1, ~1.5:1, ~1.7:1, ~2.6:1, ~2.6:1 |
| Efficiency (%) | ~26.0, ~53.0, ~63.8, ~31.5, ~30.8 |
| Peak Gain (dBi) | ~-3.2, ~1.6, ~4.2, ~0.4, ~2.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Rigid Internal Antenna
Self-Adhesive
Customizable Cable and Connector
Fiberglass Material
Ultra Wide band Antenna
Full 4GLTE backward compatibility
4.2 dBi 5G NR Peak Gain
410-5925 MHz Sub 6GHz Bands
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Broadcasting & Media
Consumer & Entertainment
Internal Antenna Solutions
Antenna band list
| Parameters | 5GNR Antenna | ||||
| Frequency (MHz) | 410-496 | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 460 | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n77, n78, n79 | ||
| 4GLTE Bands | B31, B72, B73, B87, B88 | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 | ||
| 2GCELL Bands | 410T, 450, 480 | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | ||
| CDMACELL Bands | BC5, BC11 | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
||
