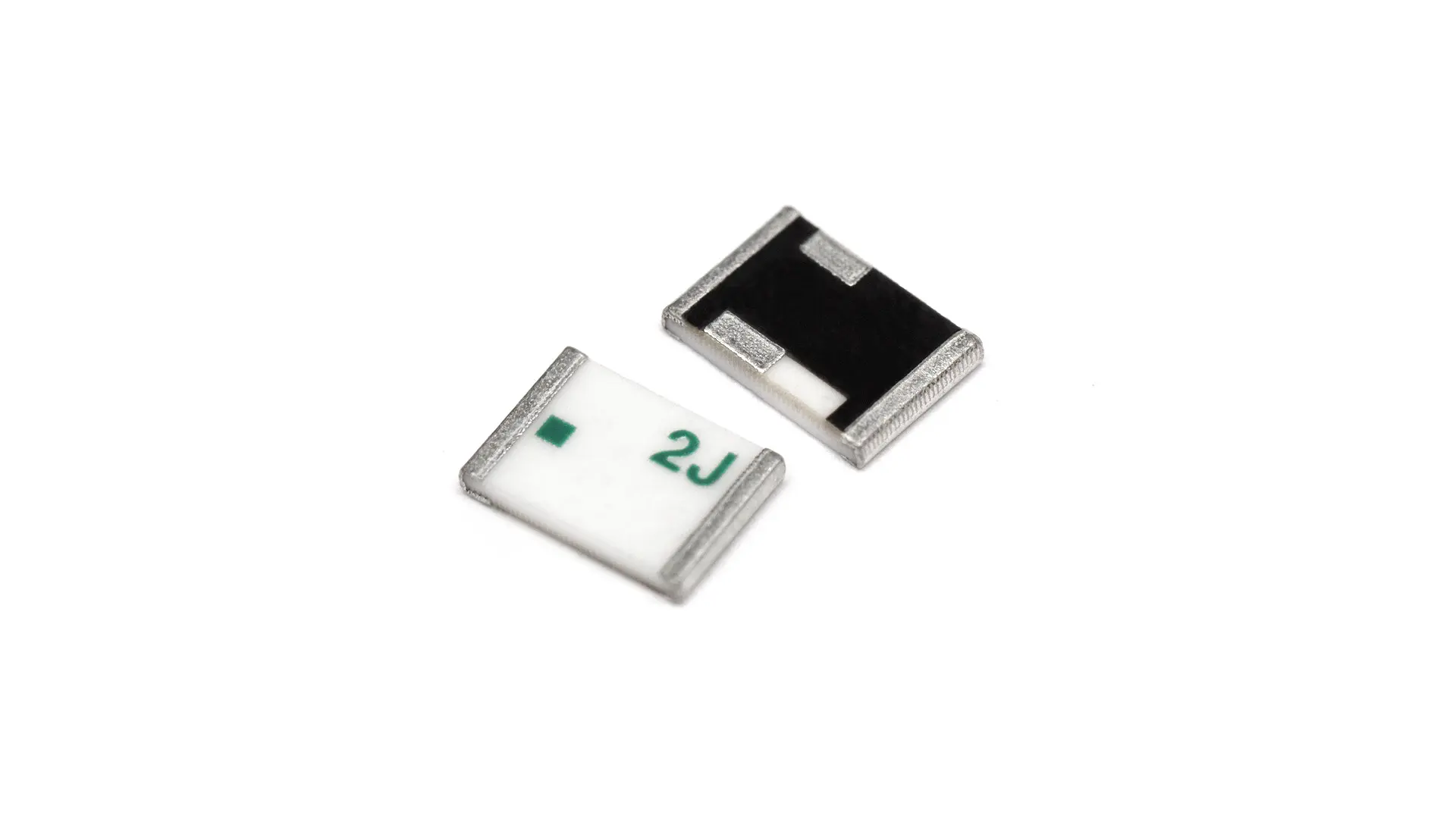

2JL41
WIFI 6E / WIFI 7 Surface Mount Compact Ceramic Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Surface Mount Ceramic |
|---|---|
| Dimensions (mm) | 5.2 × 3.7 × 0.7 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.5:1, ~1.7:1, ~2.9:1 |
| Efficiency (%) | ~83.2, ~80.0, ~56.2 |
| Peak Gain (dBi) | ~2.3, ~3.2, ~1.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
Antenna Description
Key Features
Ground Plane Dependent
Compact Size
Easy to Integrate
WIFI 6E / WIFI 7 Antenna
3.2 dBi WIFI Peak Gain
Ceramic Material
SMT Loop Embedded Antenna
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Embedded Antenna Solutions
