2JF0302Pa

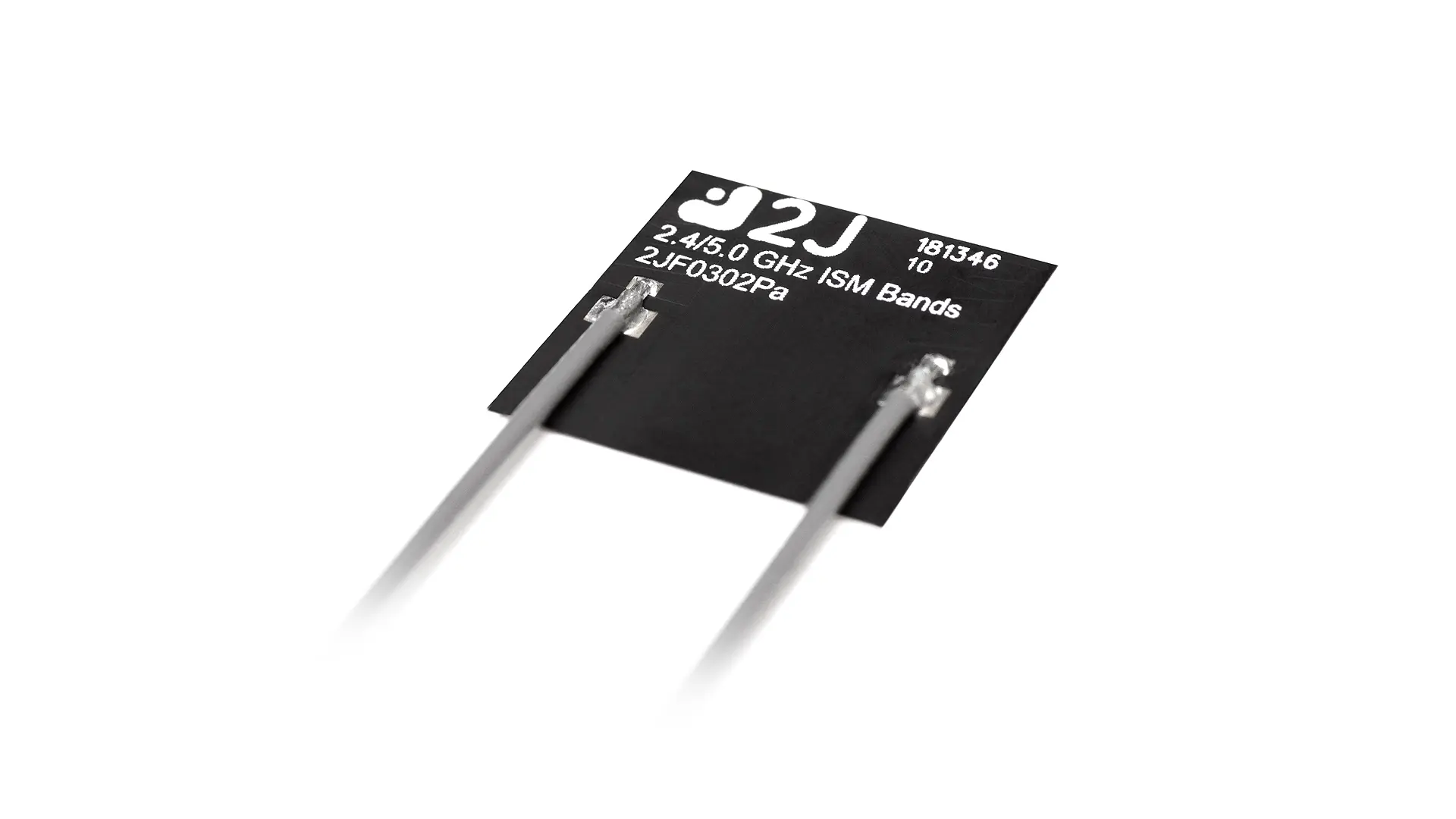

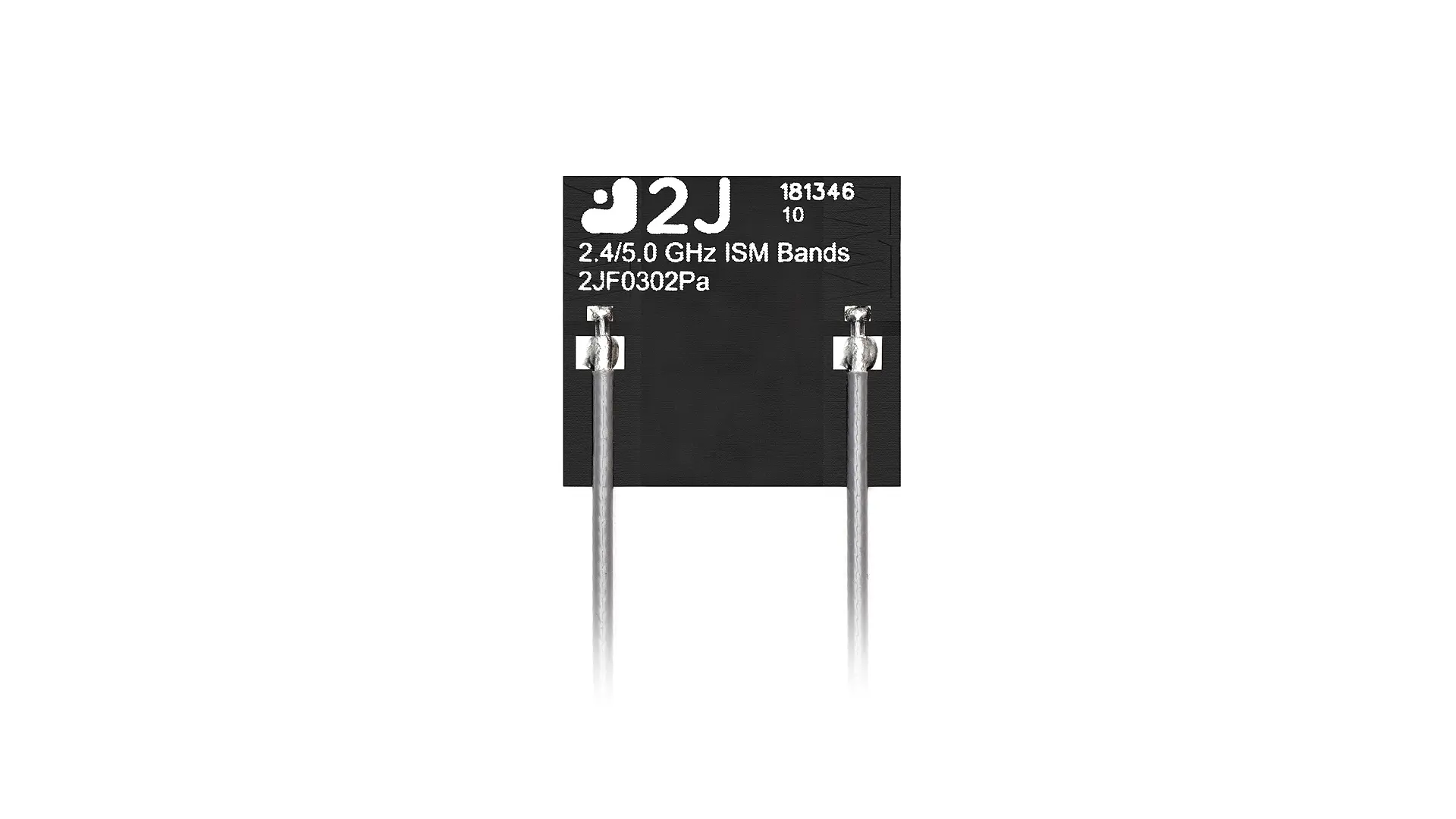

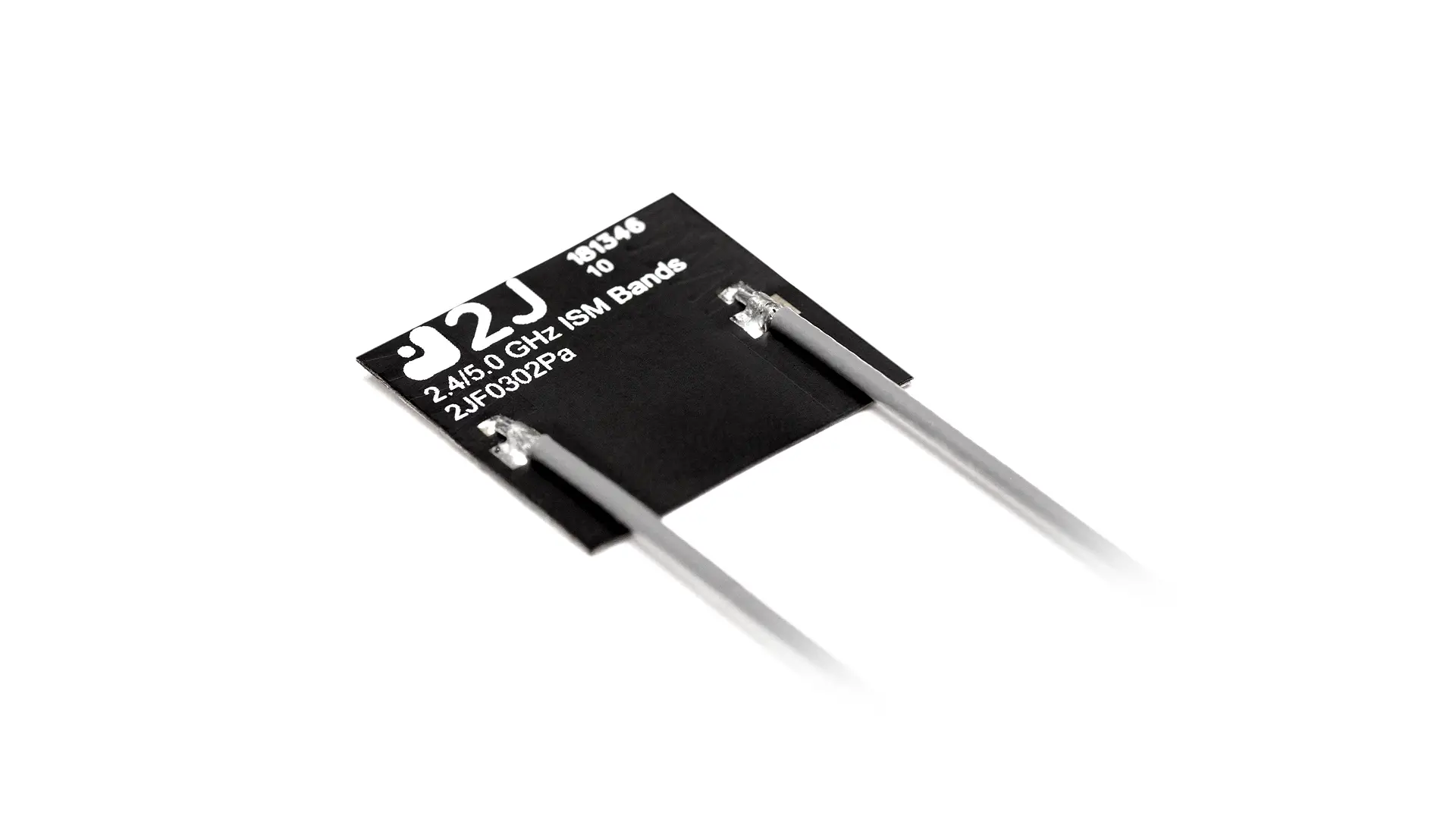

2 × 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM MIMO Flexible Ultra-Thin PCB Adhesive Antenna
Connections (2)
2×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 22.4 × 20.6 × 0.2 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~2.4:1, ~2.2:1, ~2.5:1 |
| Efficiency (%) | ~53, ~64, ~52.1 |
| Peak Gain (dBi) | ~3.2, ~5.0, ~5.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
connection 2
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~2.4:1, ~2.2:1, ~2.7:1 |
| Efficiency (%) | ~55, ~63, ~63 |
| Peak Gain (dBi) | ~3.0, ~4.9, ~5.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Self-Adhesive
Customizable Cable and Connector
Compact Size
Flexi Internal Antenna
WIFI 6E / WIFI 7 Antenna
5.2 dBi WIFI Peak Gain
2-in-1 Combination Antenna
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Internal Antenna Solutions
