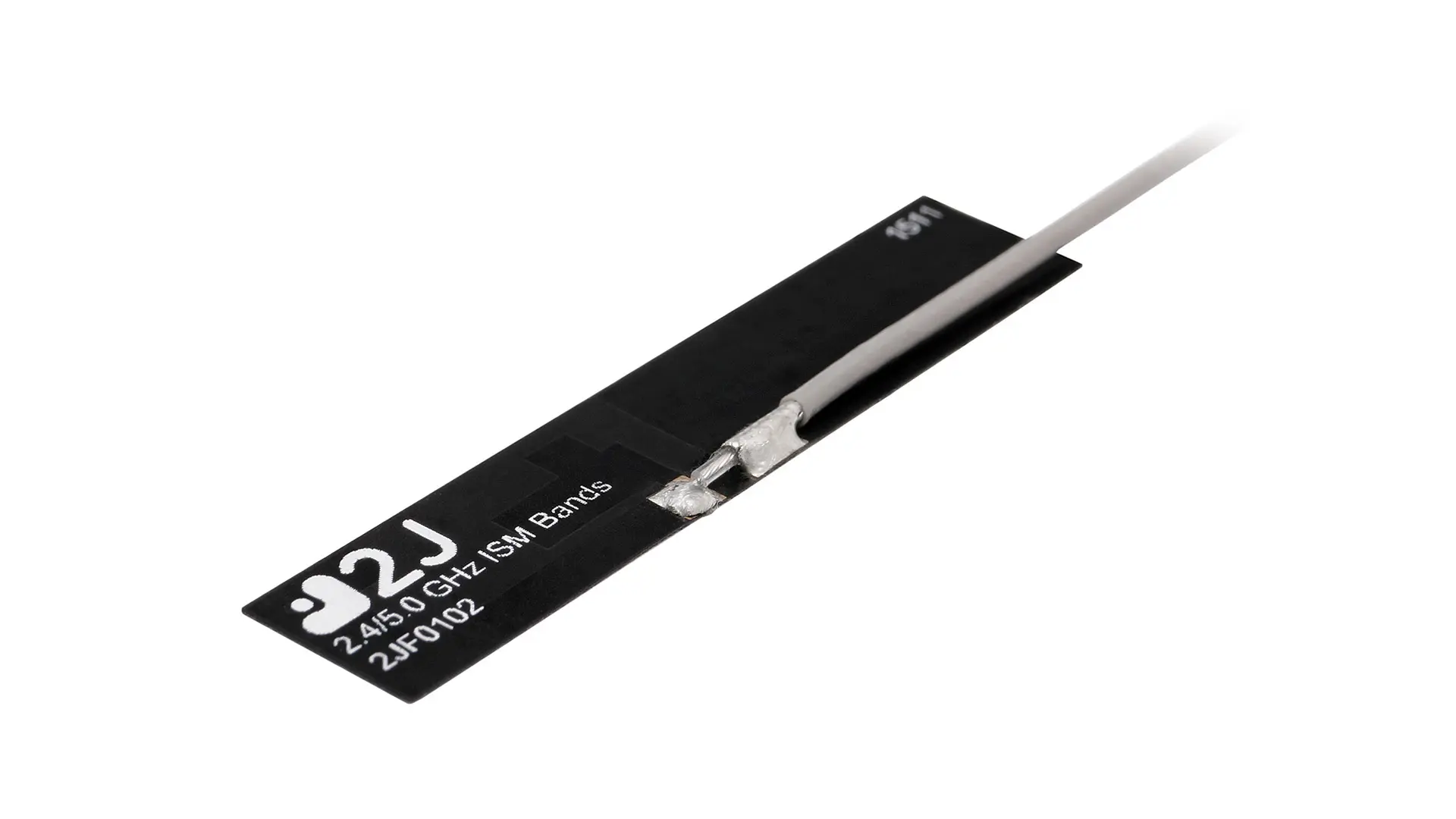

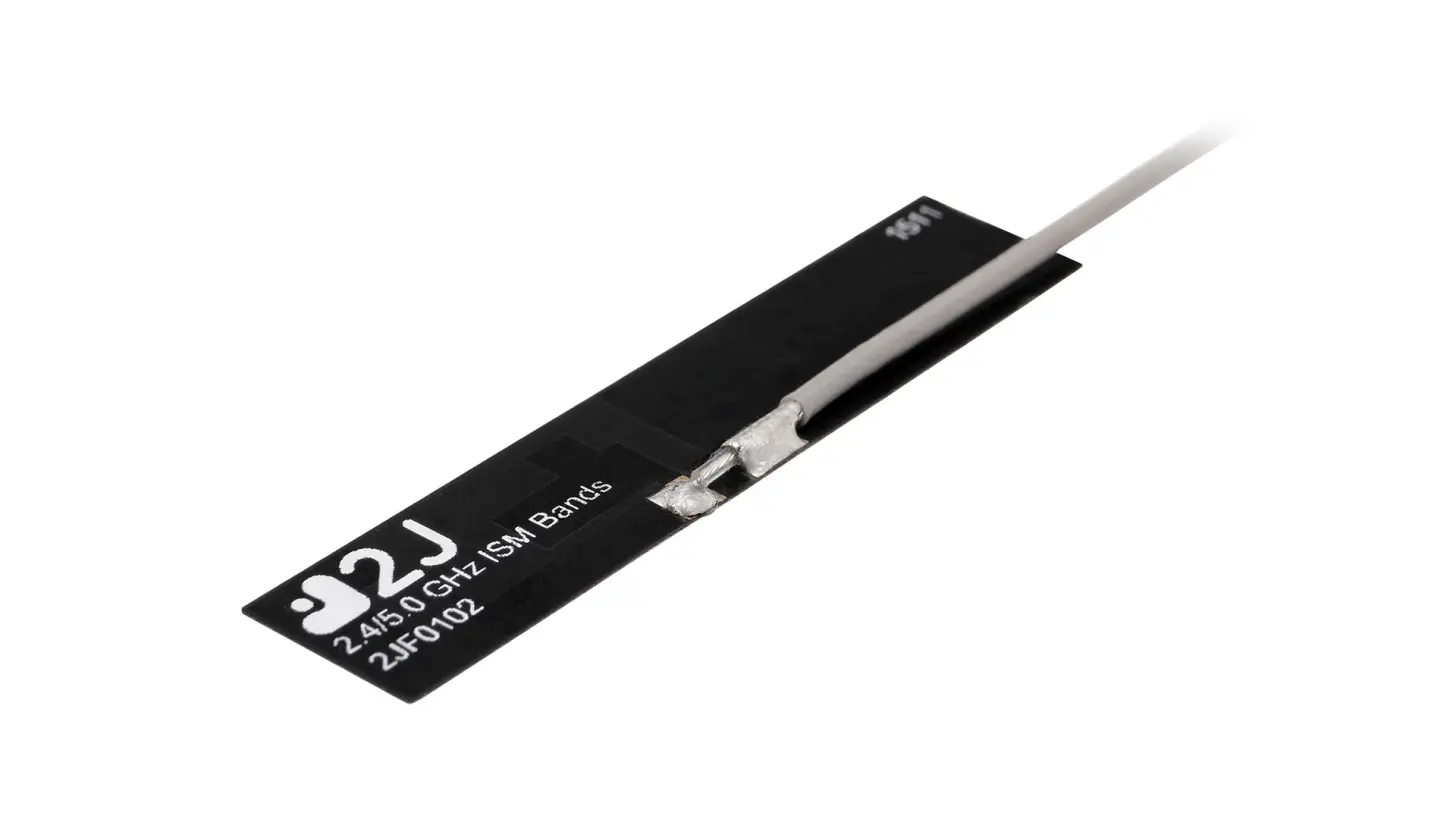

2JF0102P
2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible ultra-thin PCB Adhesive Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 39.6 × 8.4 × 0.1 |
| Operating temperature | -40 °C to +85 °C |
| Note | Flexi Embedded Antenna |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.2:1, ~1.4:1, ~2.1:1 |
| Efficiency (%) | ~76, ~82, ~60.4 |
| Peak Gain (dBi) | ~2.2, ~3.8, ~3.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Independent
High Performance
High Efficiency
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
WIFI 6E / WIFI 7 Antenna
3.8 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Internal Antenna Solutions
