2JE07h

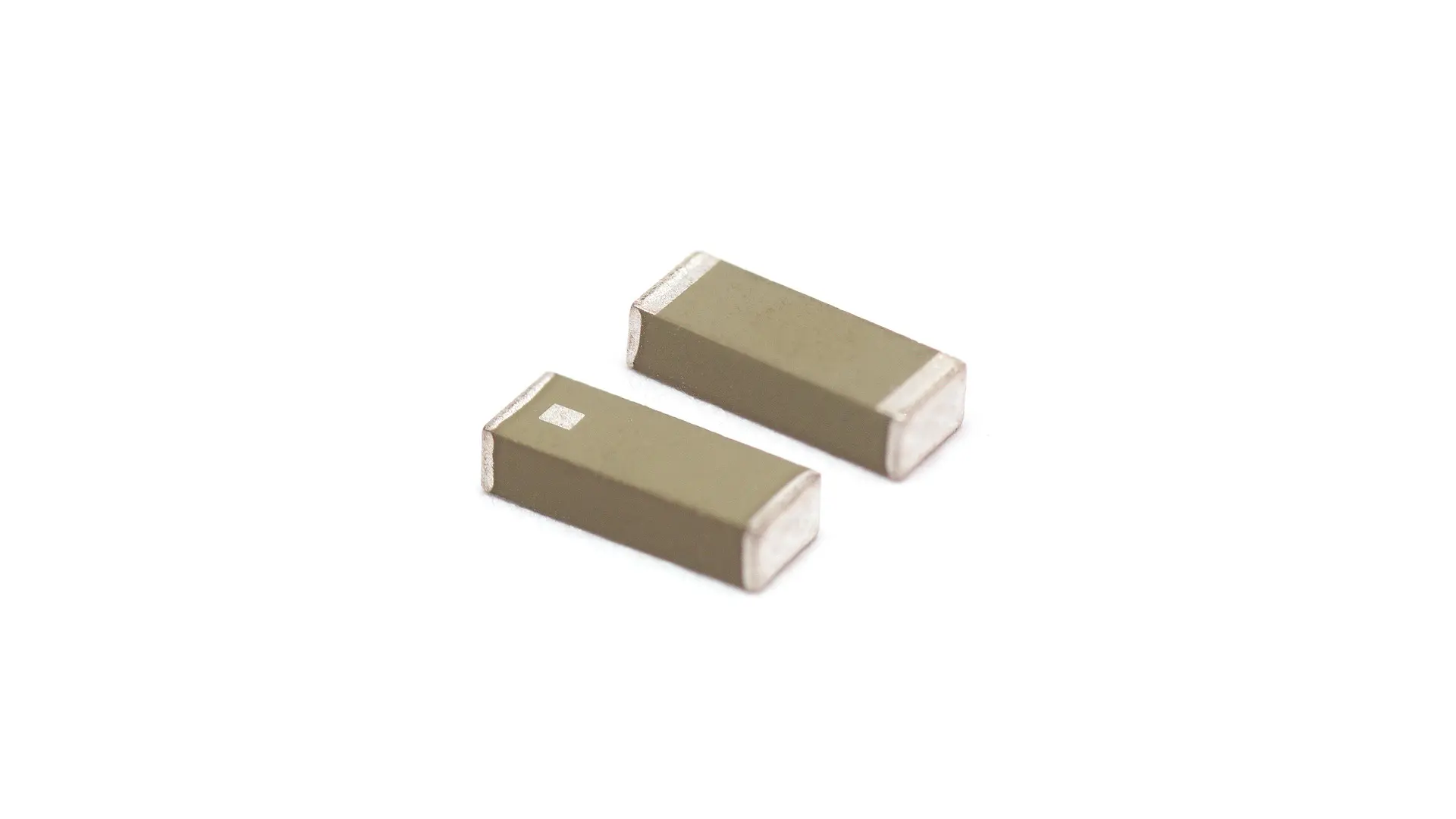

2.4/5.0 GHz ISM Surface Mount Compact Ceramic Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Surface Mount Ceramic |
|---|---|
| Dimensions (mm) | 5.3 × 2 × 1.3 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~75.1, ~52.0 |
| Peak Gain (dBi) | ~2.3, ~1.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 10 |
Antenna Description
Key Features
Ground Plane Dependent
Compact Size
Easy to Integrate
2.3 dBi WIFI Peak Gain
Ceramic Material
SMT Monopole Embedded Antenna
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Embedded Antenna Solutions
