2J7702Ma

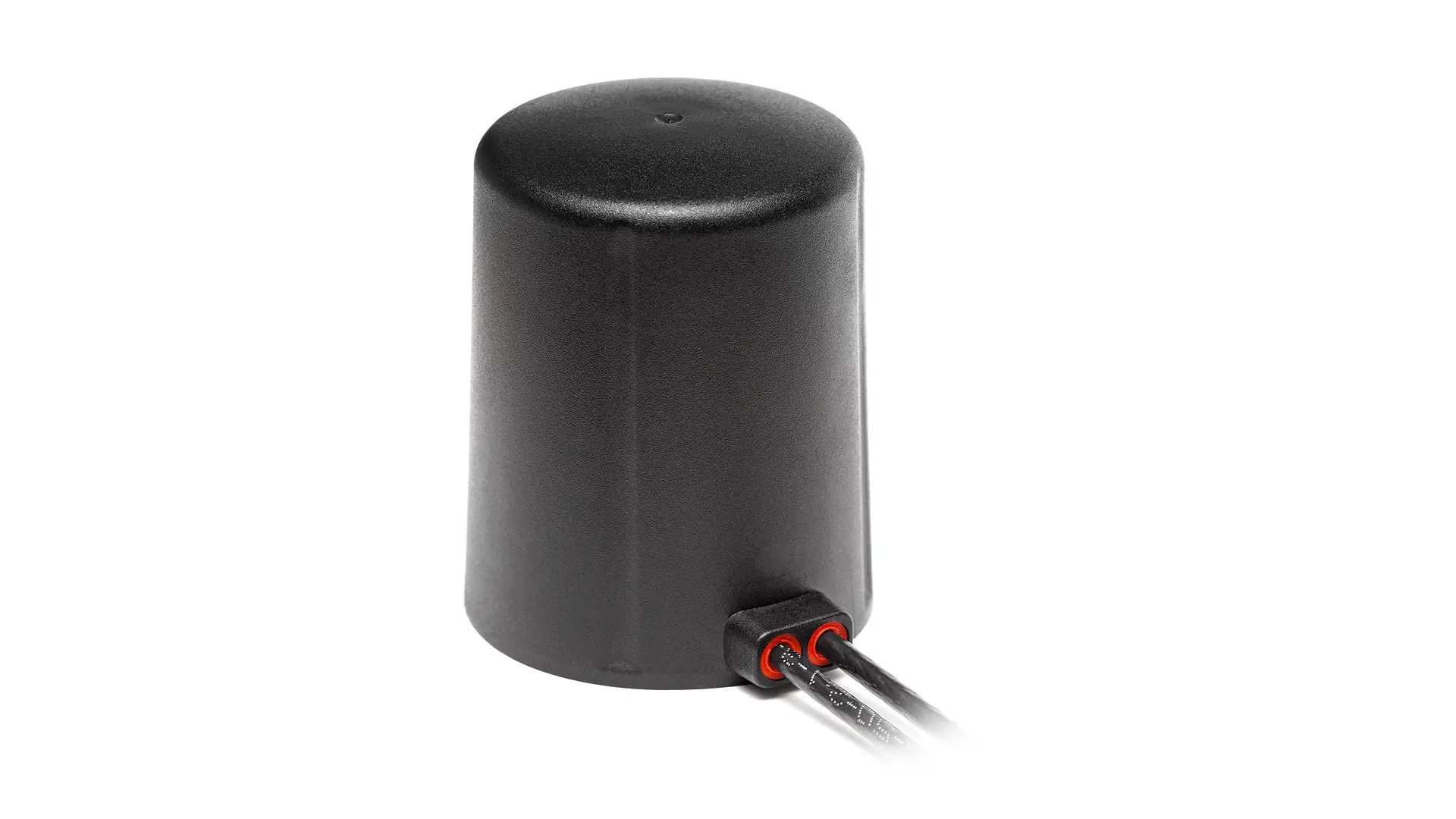

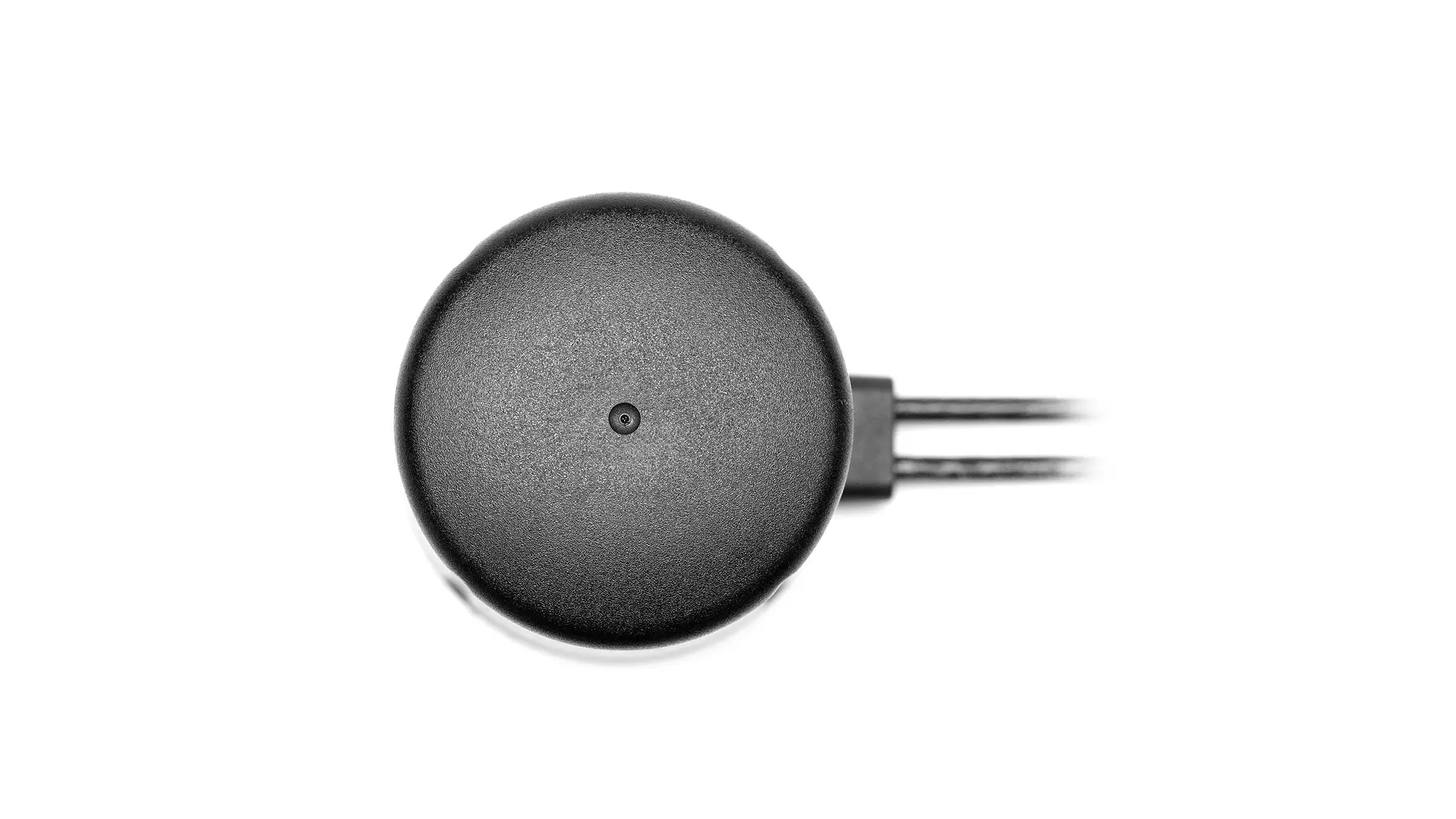

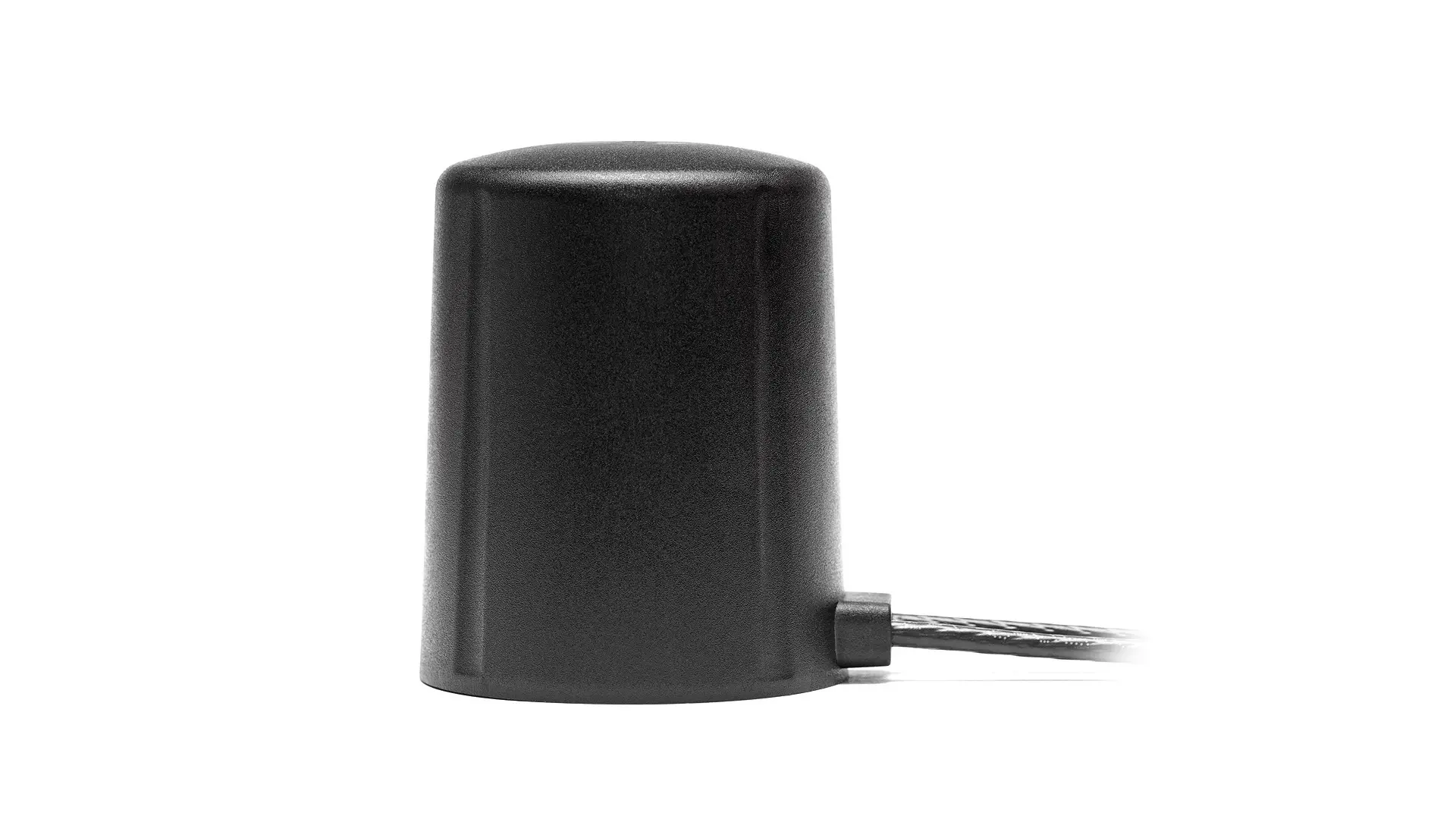

2 x Dual Band Wifi MIMO Shaker High Performance Magnetic Mount Antenna
Connections (2)
2×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 54 × 68.2 |
| Operating temperature | -40 °C to +85 °C |
| Note | Specification subject to change |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.5:1, ~2.3:1 |
| Efficiency (%) | ~51.5, ~33.6 |
| Peak Gain (dBi) | ~3.2, ~2.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.6:1, ~2.2:1 |
| Efficiency (%) | ~49.3, ~30.0 |
| Peak Gain (dBi) | ~3.9, ~2.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
High Performance
Customizable Cable and Connector
Heavy Duty antenna
2-in-1 Combination Antenna
3.9 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
