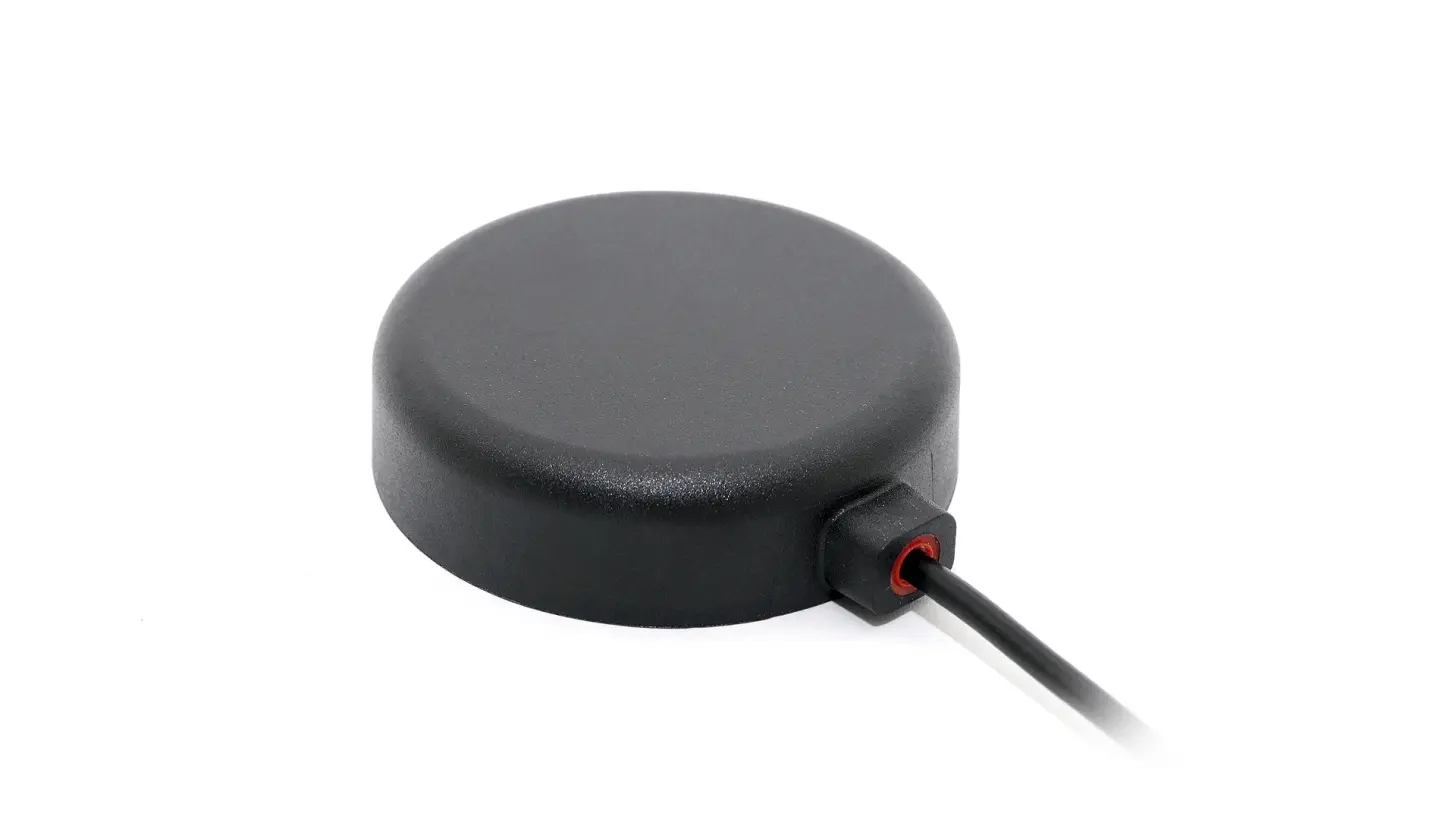

2J7402M-2.4

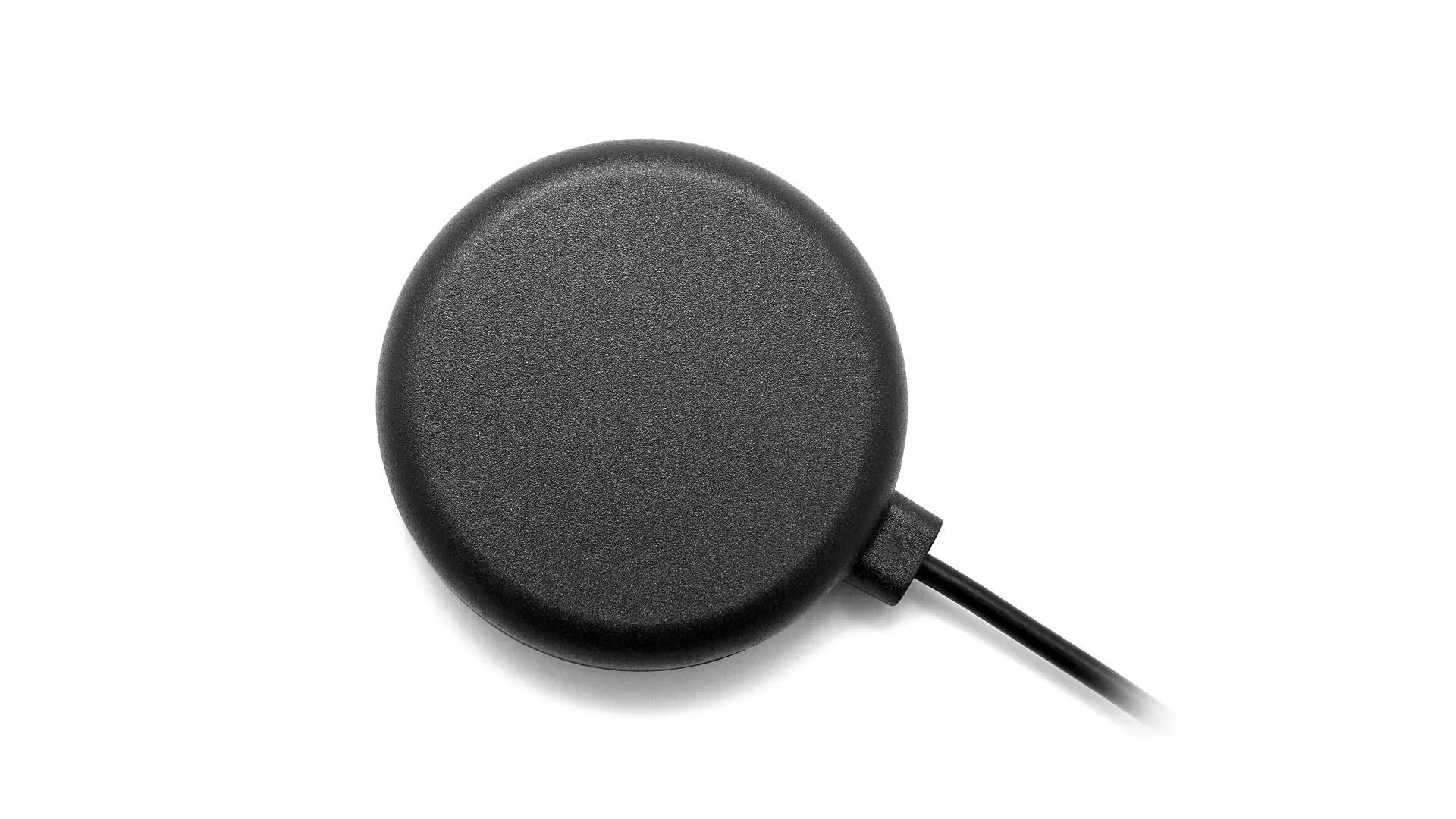

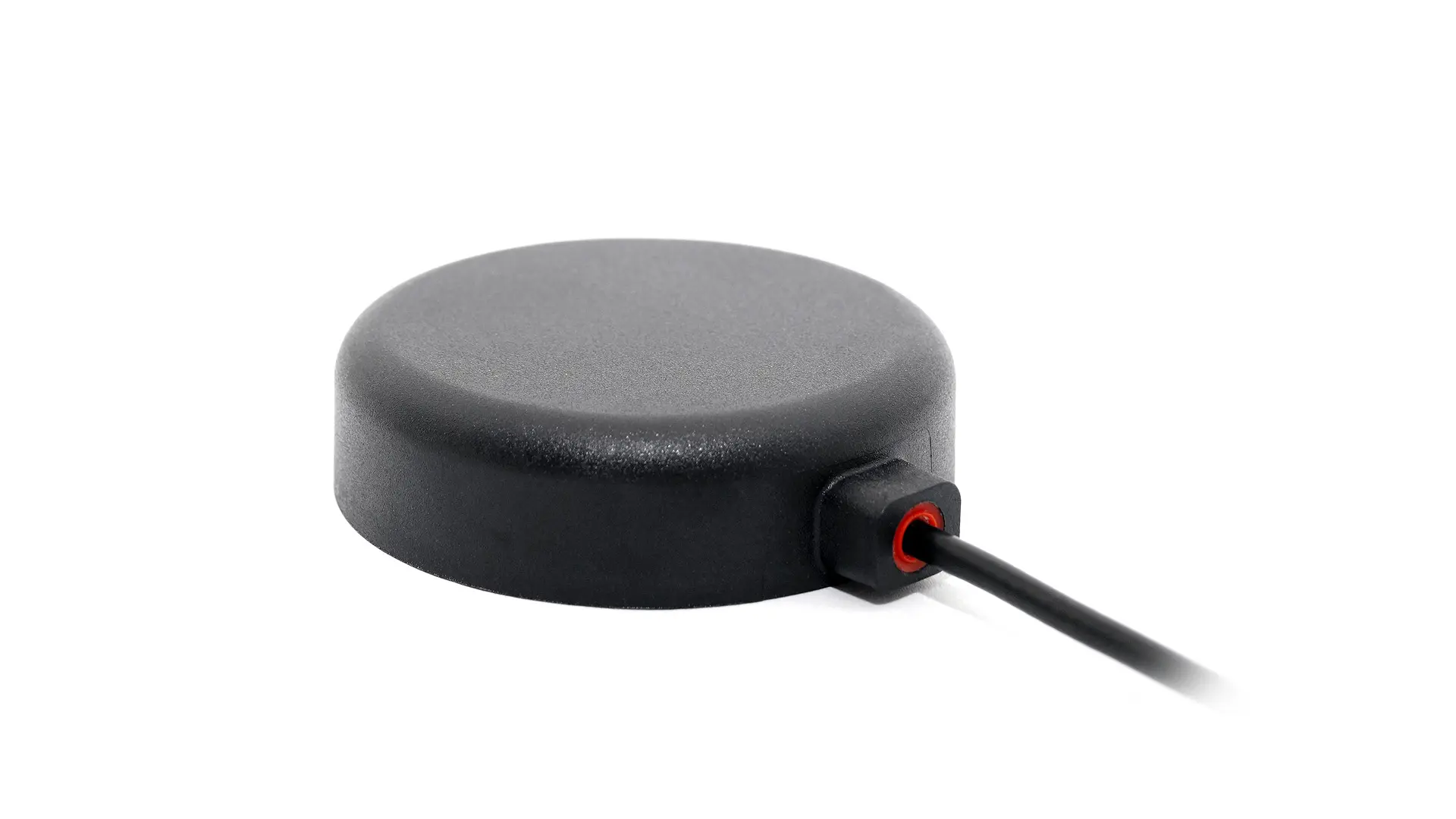

Mini-Blackhat 2.4 GHz WiFi High Gain IP67 IP69K Magnetic Mount Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 54 × 14.7 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69K |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490 |
| VSWR | ~1.4:1 |
| Peak Gain (dBi) | ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
| Efficiency (%) | ~56.5 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
3.8 dBi WIFI Peak Gain
Low Profile
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
