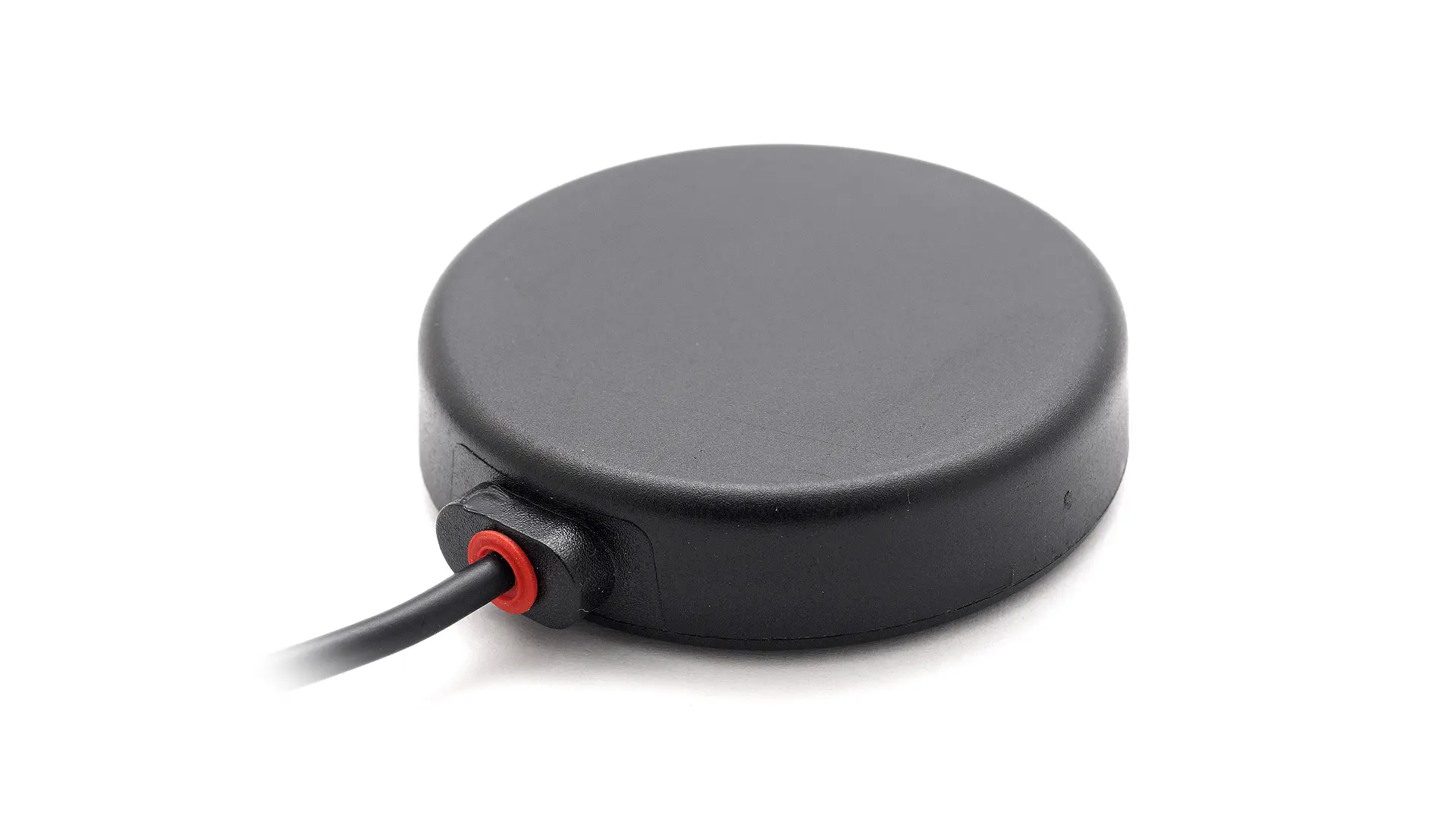

2J6302MP
WiFi ISM Ground Plane Dependant IP67 Customizable Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Also available | Adhesive (P) only or Magnetic (M) only |
| Dimensions (mm) | Ø 52.5 × 14.3 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.6:1, ~1.5:1 |
| Efficiency (%) | ~42.7, ~29.7 |
| Peak Gain (dBi) | ~1.7, ~2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Low Profile
2.3 dBi WIFI Peak Gain
Adhesive Mounting sticker included
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
