2J6012B-2.4

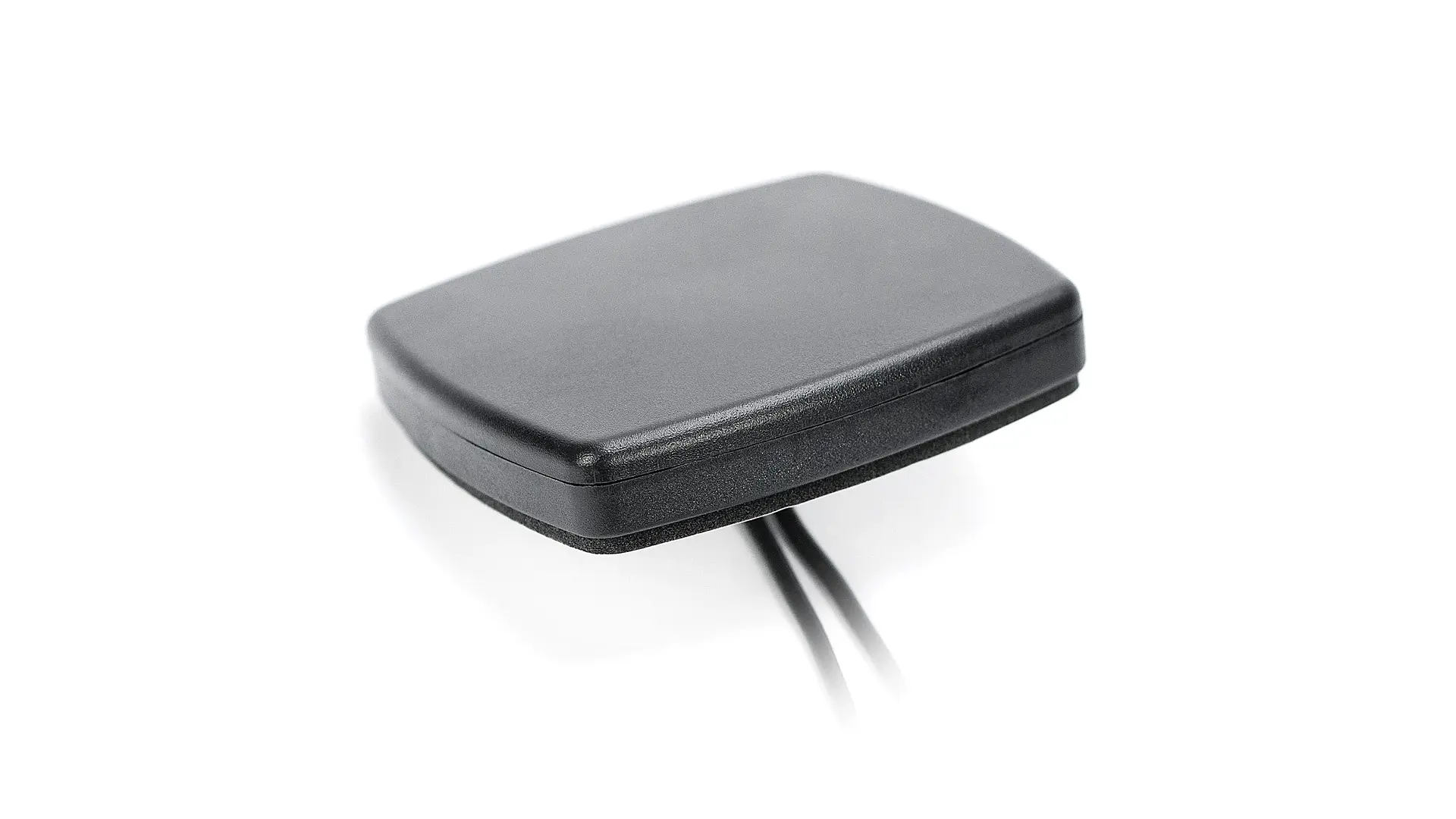

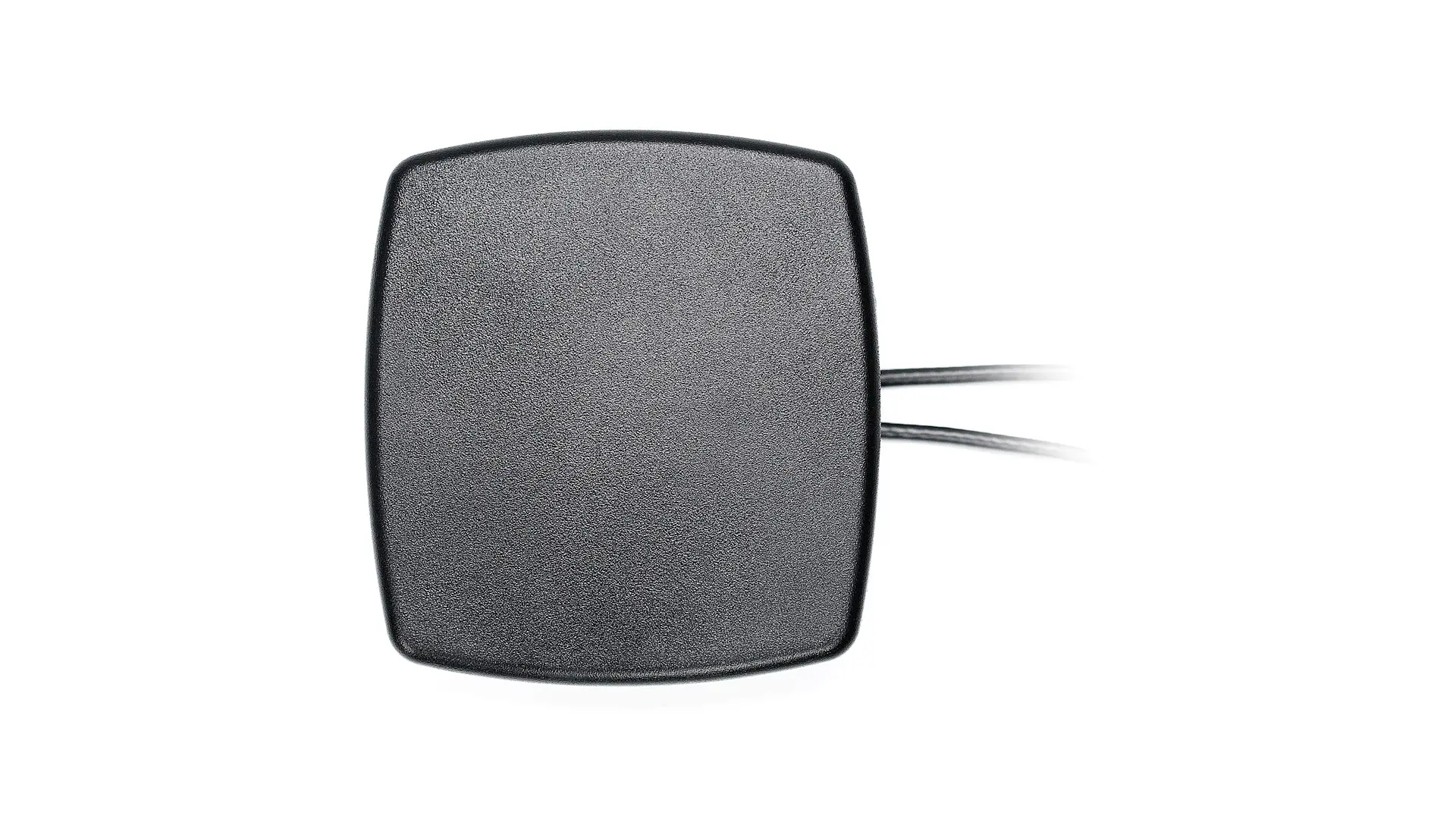

Falcon WiFi, 868 MHz ISM Screw Mount Antenna
Connections (2)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
1×
868 MHz ISM / Sigfox / LoRa / LPWA

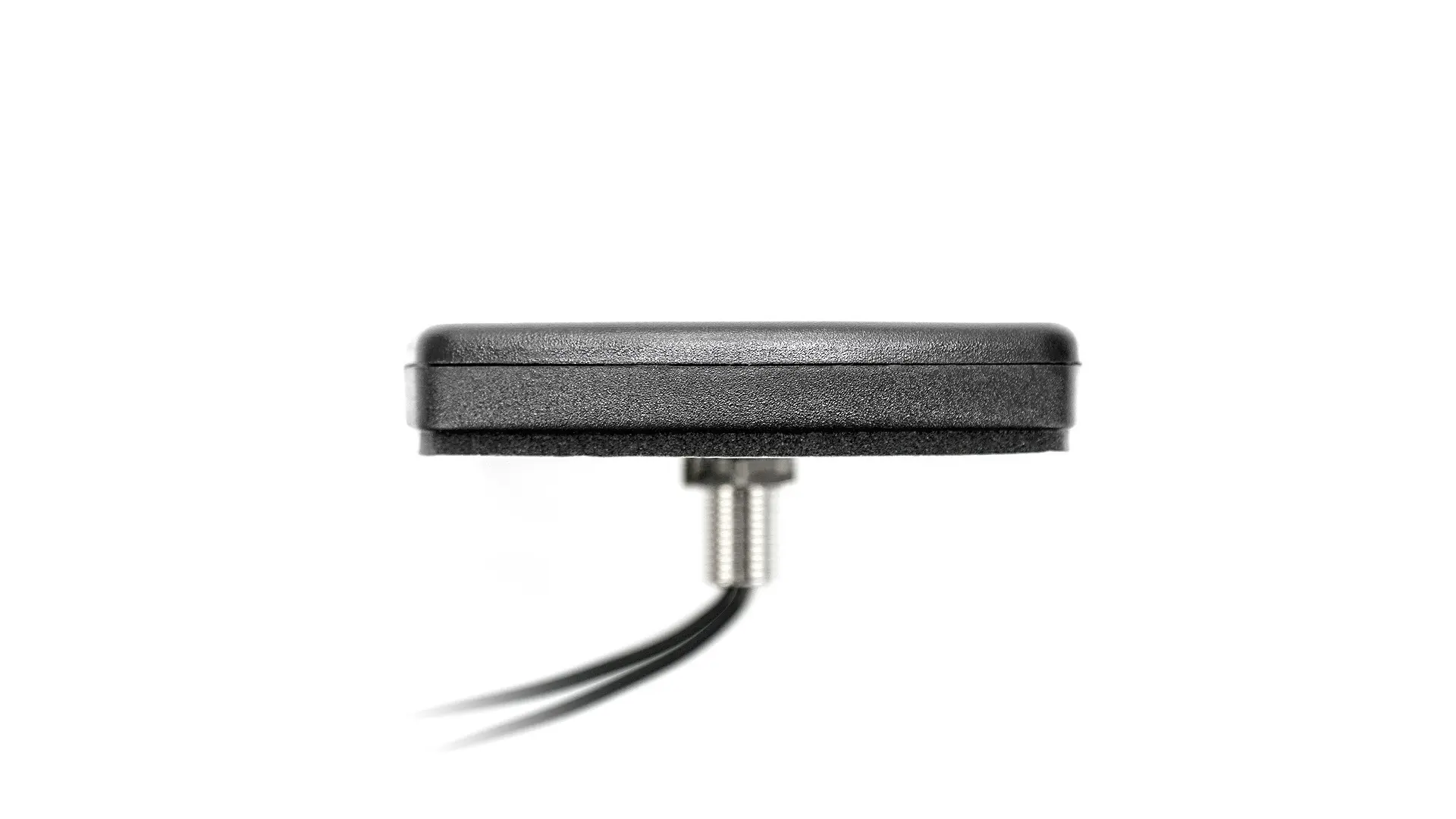

| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 80 × 74 × 14.7 |
| Operating temperature | -40 °C to +85 °C |
| Note | 19mm Thread is Default Option. See Drawing in Datasheet for other Thread Options available. |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490 |
| VSWR | ~1.8:1 |
| Efficiency (%) | ~30.7 |
| Peak Gain (dBi) | ~2.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
868 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870 |
| VSWR | ~1.5:1 |
| Efficiency (%) | ~50.3 |
| Peak Gain (dBi) | ~1.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
2.0 dBi WIFI Peak Gain
1.8 dBi 868 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
Compatible mounting brackets
2JB03H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J47xx, 2J6Axx, 2J60xx, 2J65xx, 2J66xx, 2J67xx, 2J72xx, 2J74xx, 2J75xx, 2J76xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03J
Pole Mount metal bracket for Screw Mount Antenna versions of 2J47xx, 2J6Axx, 2J60xx, 2J65xx, 2J66xx, 2J67xx, 2J72xx, 2J74xx, 2J75xx, 2J76xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
