2J5502VP

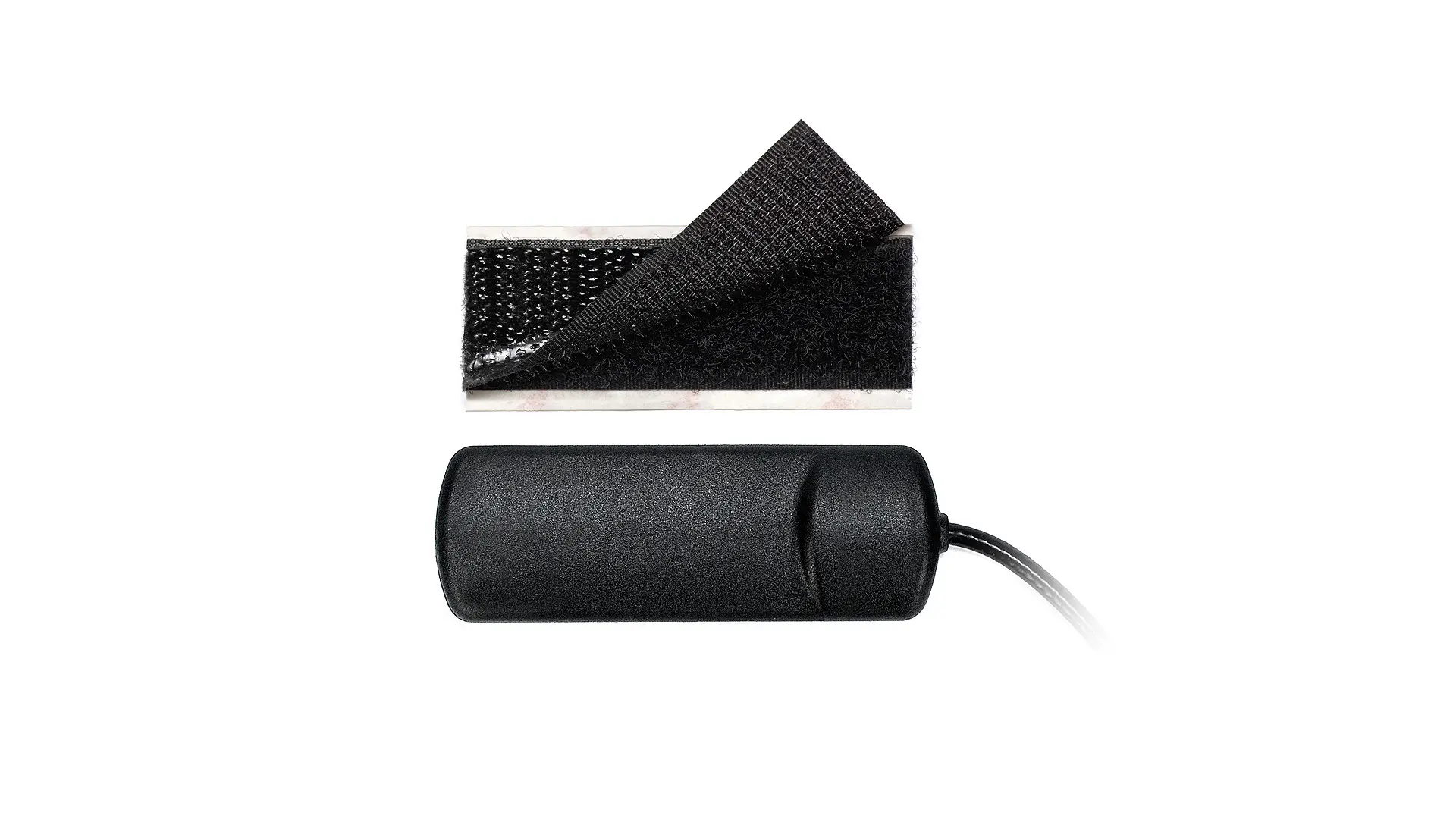

WIFI 6E / WIFI 7 ISM Customizable Velcro/Adhesive Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Adhesive Mount, Velcro Mount, Velcro/Adhesive Mount |
|---|---|
| Dimensions (mm) | 71 × 25 × 7 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.6:1, ~1.9:1, ~2.6:1 |
| Efficiency (%) | ~54.0, ~46.0, ~26.3 |
| Peak Gain (dBi) | ~3.3, ~2.0, ~-0.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Low Profile
3.3 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
