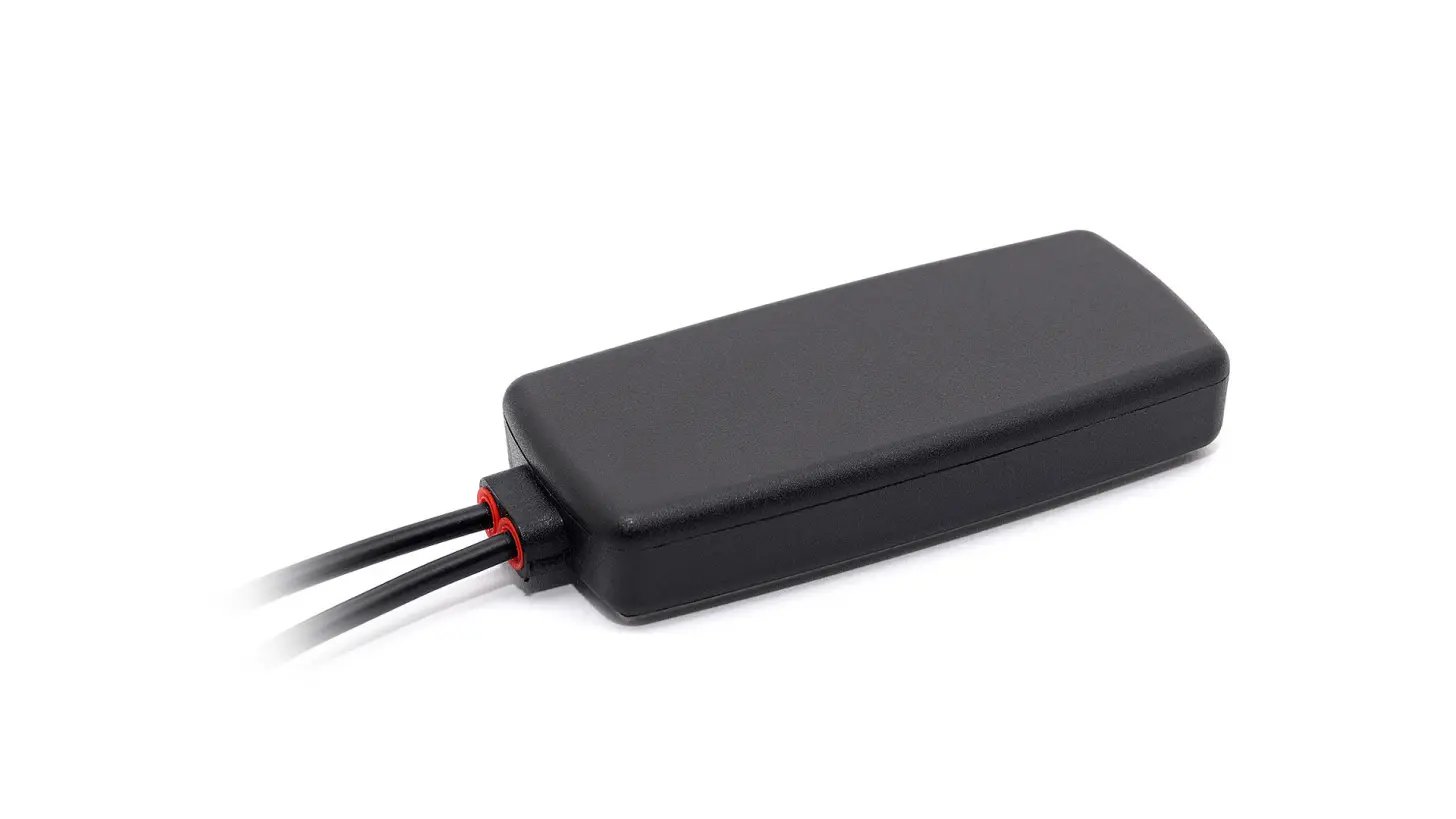

2J4802Pa
2× 2.4/5.0/6.0GHz WIFI 6E / WIFI 7 Adhesive Mount Antenna
Connections (2)
2×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 83 × 35 × 13.3 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.2:1, ~1.5:1, ~1.6:1 |
| Efficiency (%) | ~50.1, ~46.8, ~45.1 |
| Peak Gain (dBi) | ~5.5, ~6.2, ~4.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.3:1, ~1.7:1, ~2.0:1 |
| Efficiency (%) | ~50.3, ~45.5, ~40.4 |
| Peak Gain (dBi) | ~4.0, ~6.1, ~5.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Low Profile
2-in-1 Combination Antenna
6.2 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
